Order No.: 59MX2CW000SA
Remember articleRemember article

Article lighting management components
Product name Silica® 21
Protection rating IP20
Weight 0.3kg

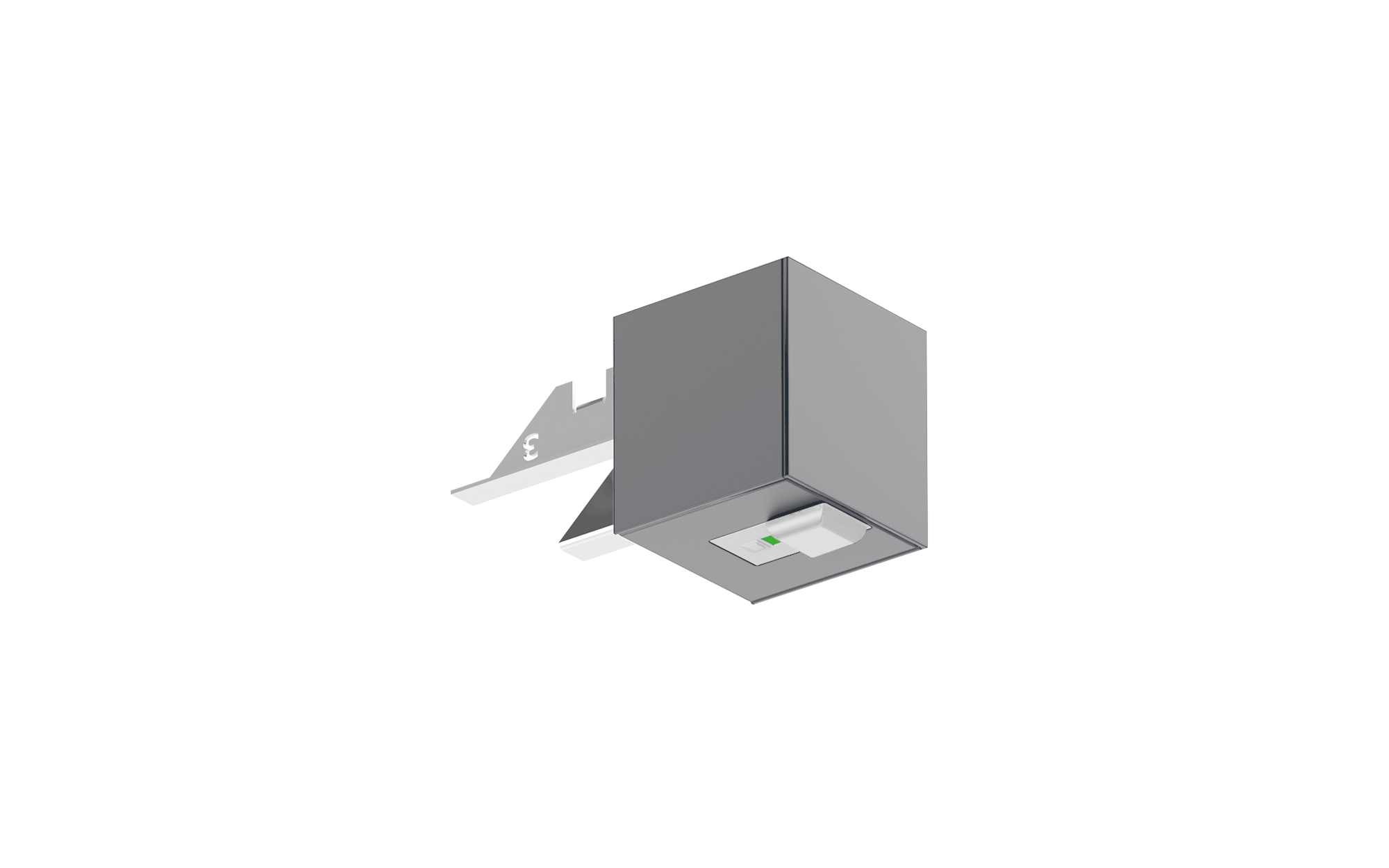

Silica® 21sensor PC3, slave, local control - self-sufficient standalone sensors, dimmable, installation arrangement: single/continuous arrangement, installation type: slip-in mounting, installation location: to the Silica® luminaire, of extruded aluminium section, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, 1 x PIR movement sensor, 1 x light sensor, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

System family SITECO Connect 31 Wireless
Product type lighting management components
Product name Silica® 21
Order No. 59MX2CW000SA

Control

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Temperature range (operation) 0..+40°C
Certification, designation CE

Material, Colour

housing extruded aluminium section, anodised, metallic grey (RAL 9006), for luminaires with darklight reflector
Colour specification metallic grey (RAL 9006)

Mounting

Mounting method, mounting location slip-in mounting, to the Silica® luminaire
Mounting height 2.5..5m
Arrangement single/continuous arrangement
Supplement for surface-mounted luminaires, for pendant luminaires

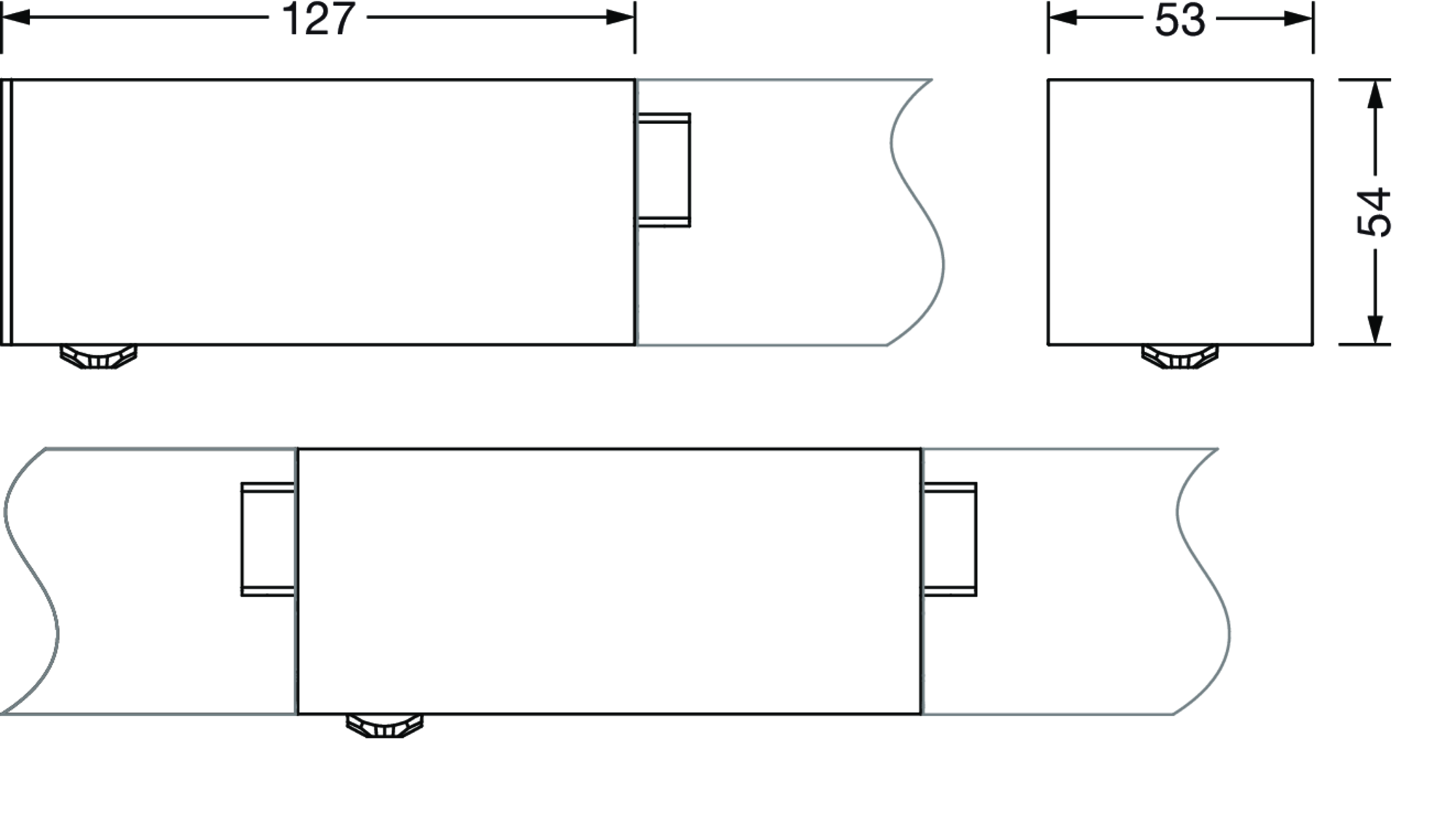

Dimensions, Weight

Length 127mm
Width 53mm
Height 54mm
Weight 0.3kg

Inputs

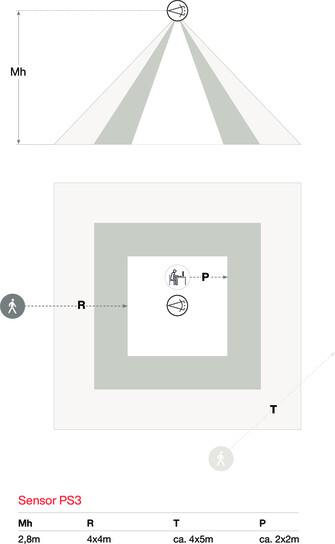

1x PIR movement sensor
Connection PIR sensor (passive-infrared)

System family
SITECO Connect 31 Wireless

Product type
lighting management components

Product name
Silica® 21

Order No.
59MX2CW000SA

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
0..+40°C

Certification, designation
CE

housing
extruded aluminium section, anodised, metallic grey (RAL 9006), for luminaires with darklight reflector

Colour specification
metallic grey (RAL 9006)

Mounting method, mounting location
slip-in mounting, to the Silica® luminaire

Mounting height
2.5..5m

Arrangement
single/continuous arrangement

Supplement
for surface-mounted luminaires, for pendant luminaires

Length
127mm

Width
53mm

Height
54mm

Weight
0.3kg

1x PIR movement sensor

Connection
PIR sensor (passive-infrared)
