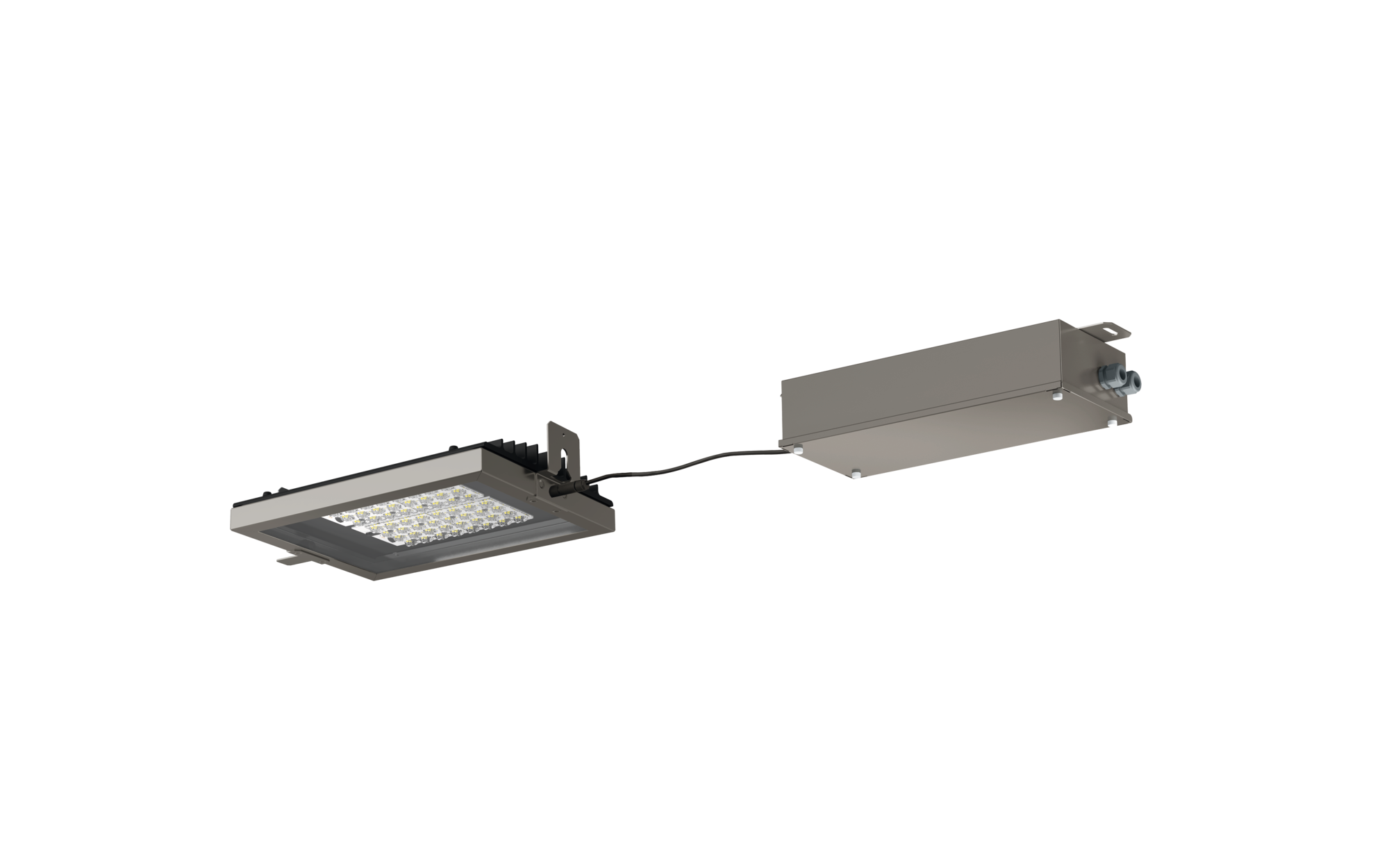

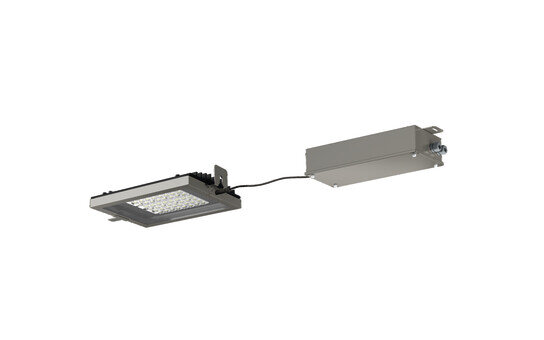

TL 33S mini, 10StepDIM
Close
Article tunnel luminaire
Product name TL 33S mini
Lamp LED
Rated luminous flux 19750lm
Luminous efficacy 145lm/W
Colour temperature 5000K
Colour rendering CRI > 70
Rated input power 136W
Service life 100000h (L95/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK09
Weight 10.6kg

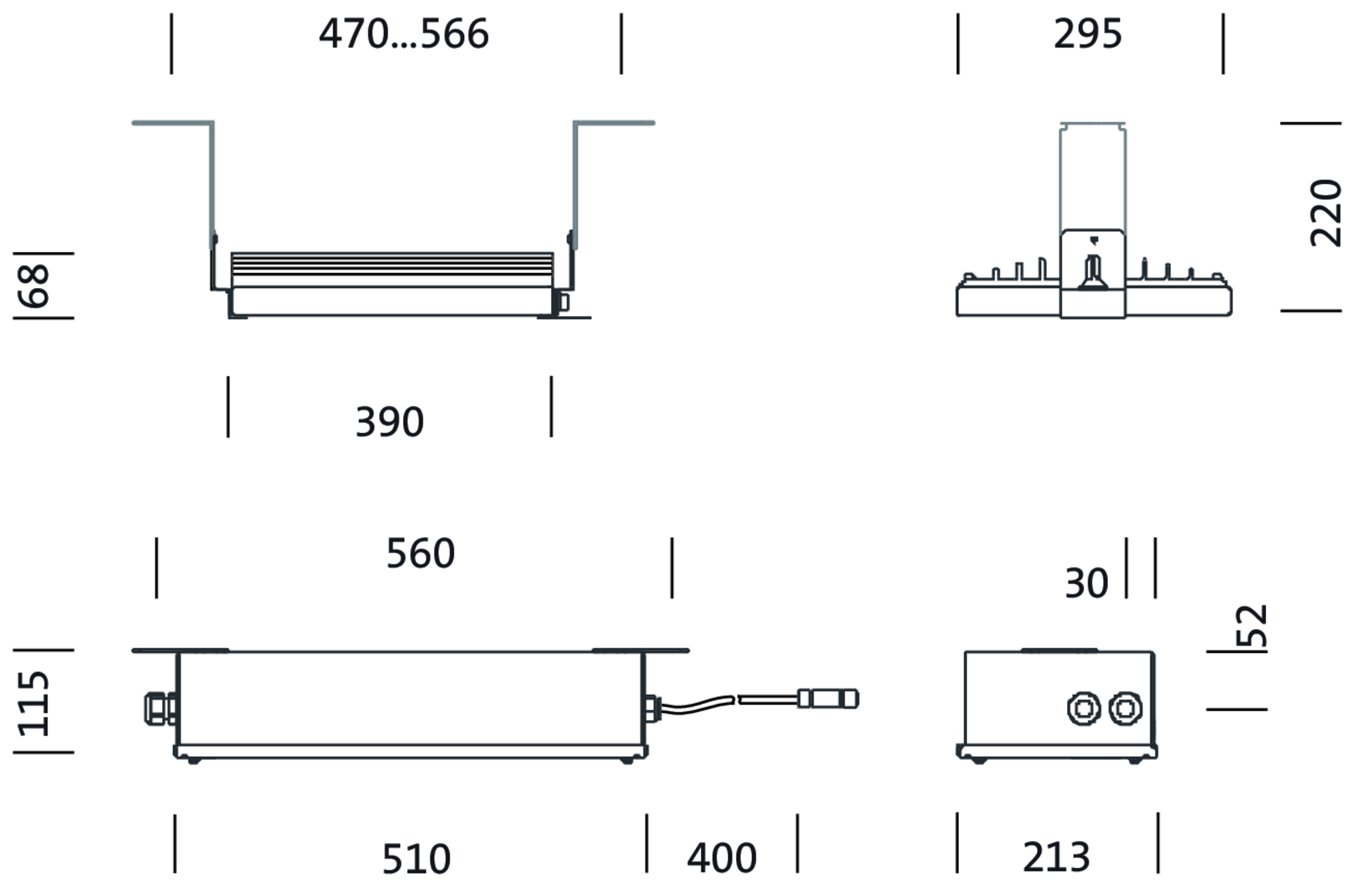

TL 33S mini, tunnel luminaire, primary optical cover: cover panel, of toughened safety glass, non-reflecting, transparent, light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, connection on control gear side,LED, High Power LED, rated luminous flux: 19.750lm, luminous efficacy: 145lm/W, light colour: 750, colour temperature: 5000K, control gear: ECG dimmable, with system connector, mains connection: 220..240V, AC, 50/60Hz, connection cable plug integrated into luminaire housing at face end, rated input power: 136W, connection on mains side,6-pole, max. 10mm² (5G+1), with terminal, luminaire housing, of stainless steel 1.4404 (AISI316), etched and passivated, length: 390mm, width: 295mm, height: 68mm, heat sink, of Al Mg 2, e-box, of stainless steel 1.4404 (AISI316), etched and passivated, length: 510mm, width: 213mm, height: 115mm, protection rating (complete): IP66, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK09, permissible operating ambient temperature: -25..+45°C, packaging unit: 1 piece
