Ordercode: 5WD26CDC3SN3

Article tunnel luminaire
Product name TL 33S mini
Lamp LED
Rated luminous flux 19120lm
Luminous efficacy 148lm/W
Colour temperature 5000K
Colour rendering CRI > 70
Rated input power 129W
Service life 100000h (L95/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK09
Weight 10.8kg

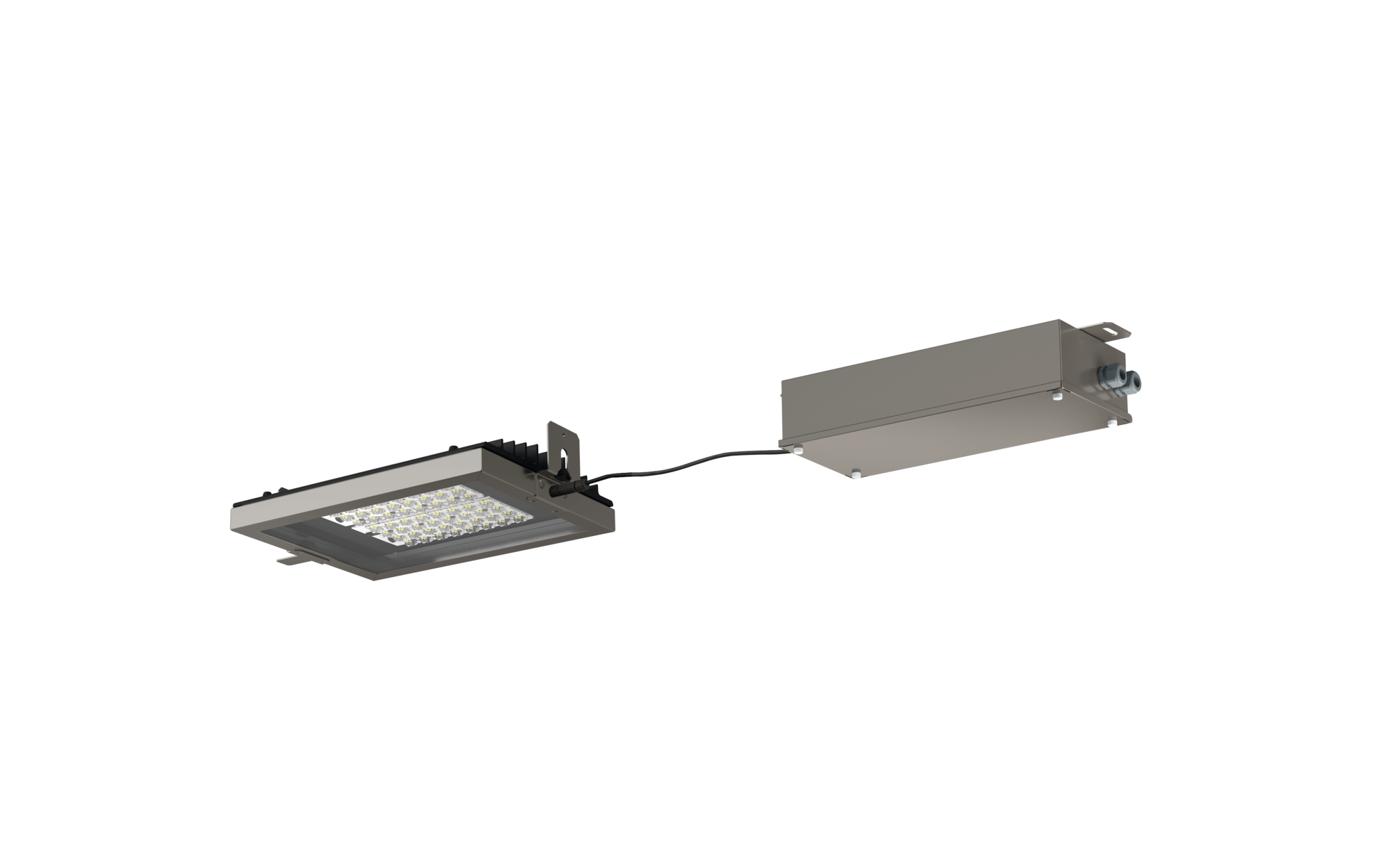

TL 33S mini, tunnel luminaire, primary optical cover: cover panel, of toughened safety glass, non-reflecting, transparent, light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, connection on control gear side,LED, High Power LED, rated luminous flux: 19.120lm, luminous efficacy: 148lm/W, light colour: 750, colour temperature: 5000K, control gear: ECG DALI, with system connector, mains connection: 220..240V, AC, 50/60Hz, connection cable plug integrated into luminaire housing at face end, rated input power: 129W, connection on mains side,7-pole, max. 10mm² (5G+2), with terminal, luminaire housing, of stainless steel 1.4404 (AISI316), etched and passivated, length: 390mm, width: 295mm, height: 68mm, heat sink, of Al Mg 2, e-box, of stainless steel 1.4404 (AISI316), etched and passivated, length: 510mm, width: 213mm, height: 115mm, protection rating (complete): IP66, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK09, permissible operating ambient temperature: -25..+45°C, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details


Key data

Product type tunnel luminaire
Product name TL 33S mini
Order No. 5WD26CDC3SN3


Component 1

Lighting technology
Cover cover panel, transparent, non-reflecting
Symmetry symmetric distribution
Light emission direct distribution

Lamps
Lamps with High Power LED, LED
Rated luminous flux 19120lm
Luminous efficacy 148lm/W
Colour temperature 5000K
Colour rendering index CRI > 70
Light colour 750
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 5 SDCM (initial)
Rated input power 129W

Operating device
Control gear ECG DALI
Control DALI


Component 2

Lamps
Supplement suitable for 3-phase through-wiring on mains side


Certificates, Standards

Protection rating IP66
Insulation class insulation class I (protective earthing)
Impact resistance IK09
Temperature range (operation) -25..+45°C
Certification, designation CE


Material, Colour

luminaire housing stainless steel 1.4404 (AISI316), etched and passivated
e-box stainless steel 1.4404 (AISI316), etched and passivated
Cover cover panel of toughened safety glass


Mounting

Mounting method, mounting location surface-mounted, to supporting structure, to the ceiling


Electrical connection

Connection system connector
Nominal voltage 220..240V, 50/60Hz, AC
Surge voltage resistance 10kV 1.2/50µs
Connection cable plug integrated into luminaire housing at face end

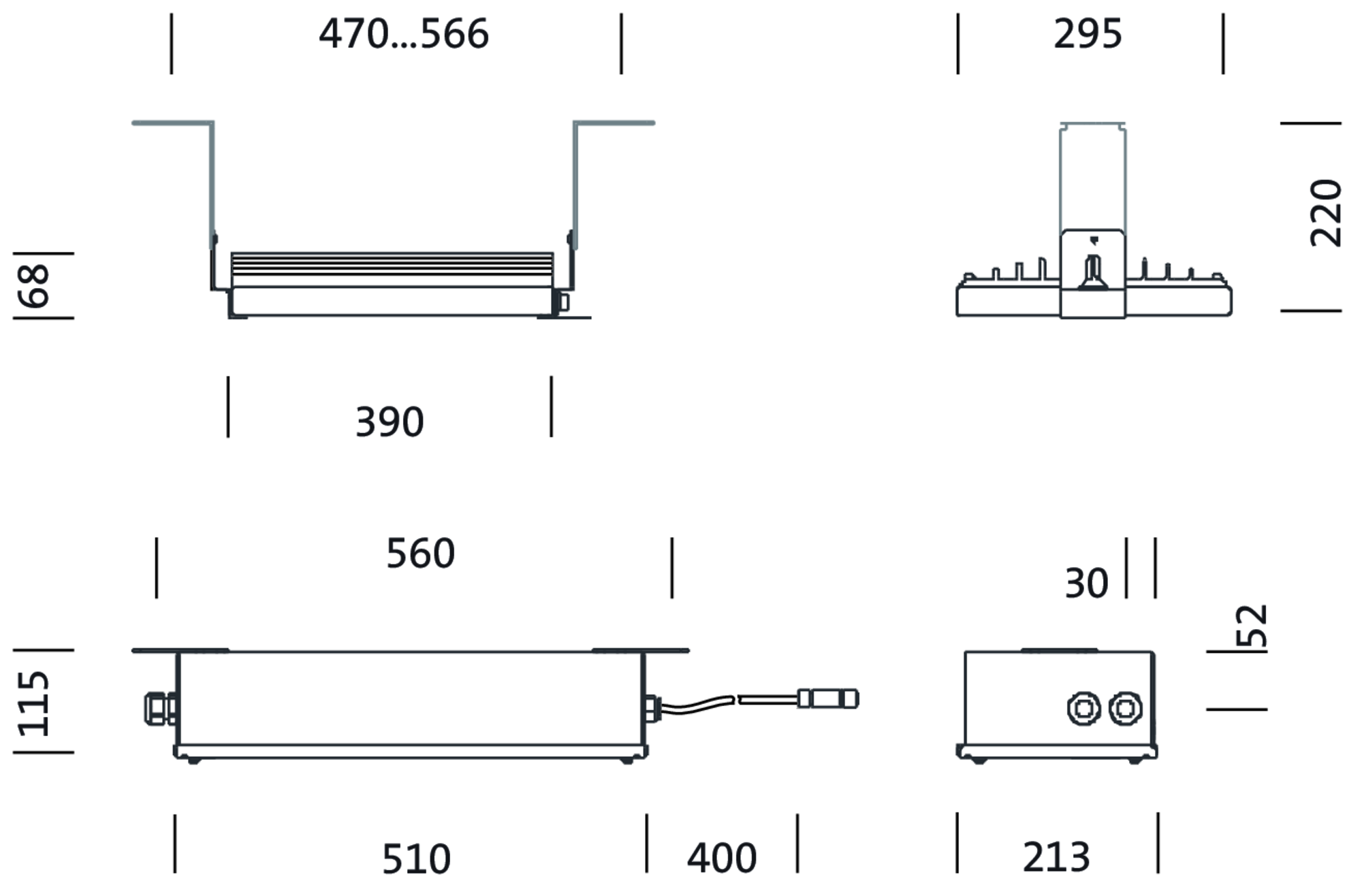

Dimensions, Weight

Length 390mm
Width 295mm
Height 68mm
Weight 10.8kg


Service life

Rated service life 100000h (L95/B10) at AT = 25°C

Product type
tunnel luminaire

Product name
TL 33S mini

Order No.
5WD26CDC3SN3

Lighting technology

Cover
cover panel, transparent, non-reflecting

Symmetry
symmetric distribution

Light emission
direct distribution

Lamps

Lamps
with High Power LED, LED

Rated luminous flux
19120lm

Luminous efficacy
148lm/W

Colour temperature
5000K

Colour rendering index
CRI > 70

Light colour
750

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 5 SDCM (initial)

Rated input power
129W

Operating device

Control gear
ECG DALI

Control
DALI

Lamps

Supplement
suitable for 3-phase through-wiring on mains side

Protection rating
IP66

Insulation class
insulation class I (protective earthing)

Impact resistance
IK09

Temperature range (operation)
-25..+45°C

Certification, designation
CE

luminaire housing
stainless steel 1.4404 (AISI316), etched and passivated

e-box
stainless steel 1.4404 (AISI316), etched and passivated

Cover
cover panel of toughened safety glass

Mounting method, mounting location
surface-mounted, to supporting structure, to the ceiling

Connection
system connector

Nominal voltage
220..240V, 50/60Hz, AC

Surge voltage resistance
10kV 1.2/50µs

Connection cable
plug integrated into luminaire housing at face end

Length
390mm

Width
295mm

Height
68mm

Weight
10.8kg

Rated service life
100000h (L95/B10) at AT = 25°C
