Ordercode: 51DB15MF4D
Remember productRemember product

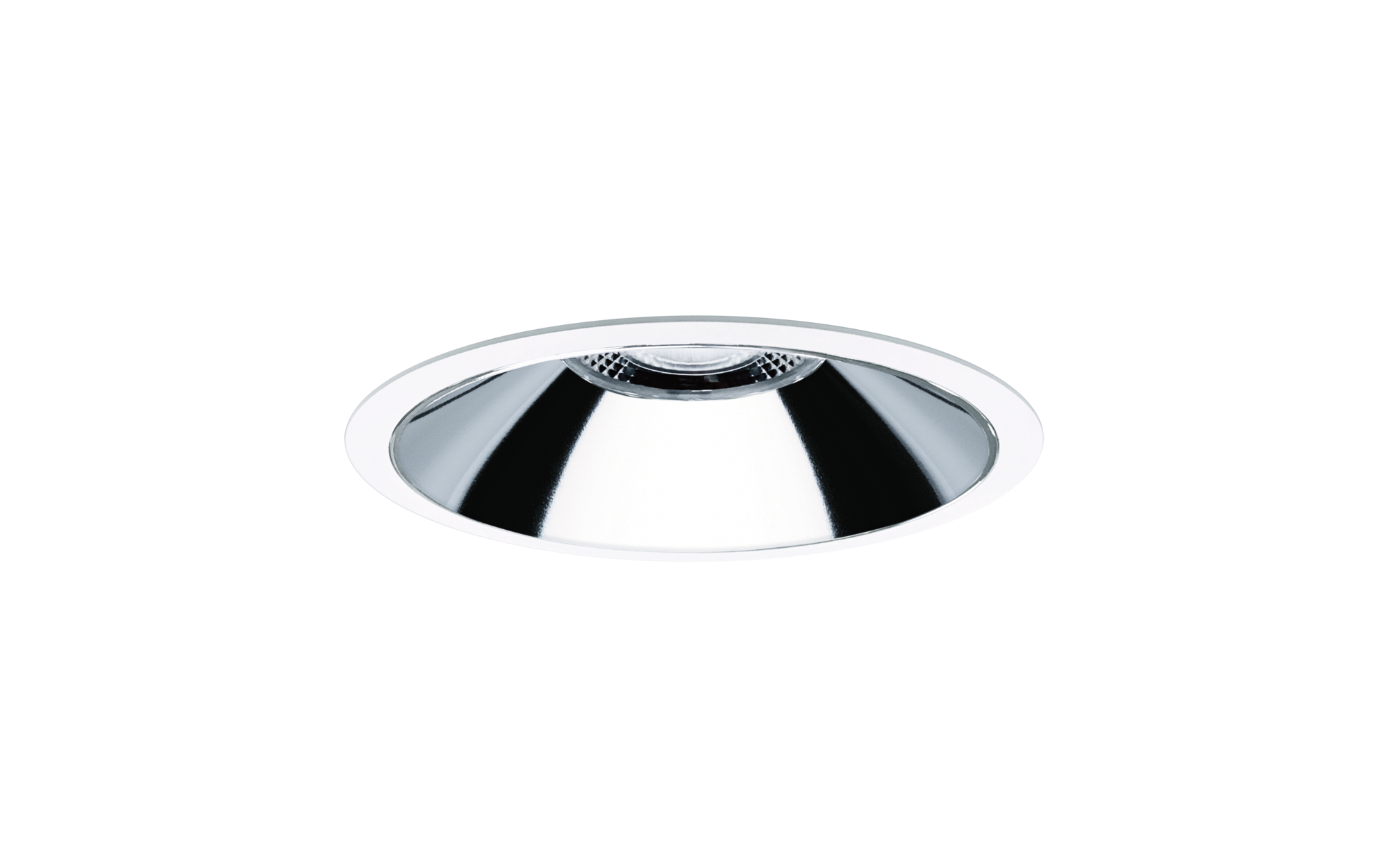

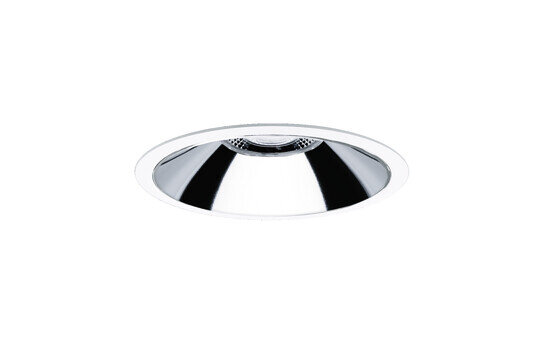

Article downlight
Product name Lunis 21 XL
Lamp LED
Rated luminous flux 2280lm
Luminous efficacy 129lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 18W
Service life 50000h (L80/B50) at AT = 25°C
Protection rating IP20
Impact resistance IK02
Weight 1.0kg

Lunis 21, XL, downlight, of PC, light emission: direct distribution, LED rated luminous flux: 2.280lm, light colour: 840, control gear: ECG, with terminal, 3-pole, mains connection: 220..240V, AC, housing, round, of diecast aluminium, traffic white (RAL 9016), diameter: 213mm, protection rating (complete): IP20, protection rating (on room side): IP54, insulation class (complete): insulation class II (safety insulation), certification: CE, impact resistance: IK02, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details

Key data

Product type downlight
Product name Lunis 21 XL
Order No. 51DB15MF4D

Lighting technology

Beam angle wide distribution
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 19
UGR viewing direction along lateral luminaire axis ≤ 19

Lamps

Lamps with LED
Rated luminous flux 2280lm
Luminous efficacy 129lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 18W
Supplement internal wiring halogen-free

Operating device

Control gear ECG
Control ON/OFF Multilumen

Certificates, Standards

Protection rating IP20
Protection rating (on room side) IP54
Insulation class insulation class II (safety insulation)
Impact resistance IK02
Certification, designation CE

Material, Colour

housing diecast aluminium, traffic white (RAL 9016), round
Colour specification traffic white (RAL 9016)

Mounting

Mounting method, mounting location recessed, in the ceiling
Ø of ceiling cut-out 200mm
Arrangement single arrangement

Electrical connection

Connection terminal, 3-pole
Nominal voltage 220..240V, AC

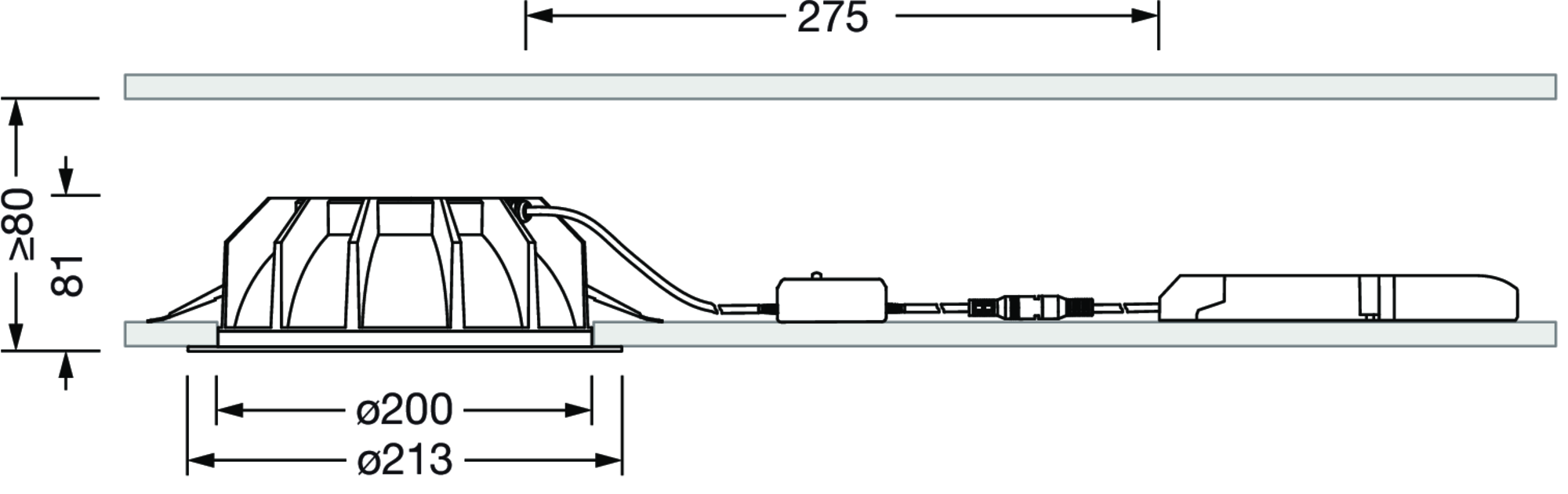

Dimensions, Weight

Diameter 213mm
Height 66mm
Weight 1.0kg

Service life

Rated service life 50000h (L80/B50) at AT = 25°C

Product type
downlight

Product name
Lunis 21 XL

Order No.
51DB15MF4D

Beam angle
wide distribution

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 19

UGR viewing direction along lateral luminaire axis
≤ 19

Lamps
with LED

Rated luminous flux
2280lm

Luminous efficacy
129lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
18W

Supplement
internal wiring halogen-free

Control gear
ECG

Control
ON/OFF Multilumen

Protection rating
IP20

Protection rating (on room side)
IP54

Insulation class
insulation class II (safety insulation)

Impact resistance
IK02

Certification, designation
CE

housing
diecast aluminium, traffic white (RAL 9016), round

Colour specification
traffic white (RAL 9016)

Mounting method, mounting location
recessed, in the ceiling

Ø of ceiling cut-out
200mm

Arrangement
single arrangement

Connection
terminal, 3-pole

Nominal voltage
220..240V, AC

Diameter
213mm

Height
66mm

Weight
1.0kg

Rated service life
50000h (L80/B50) at AT = 25°C

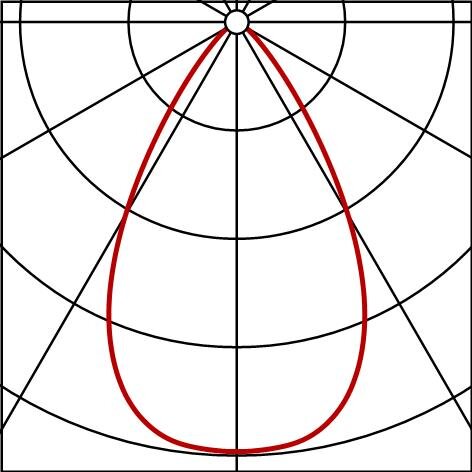

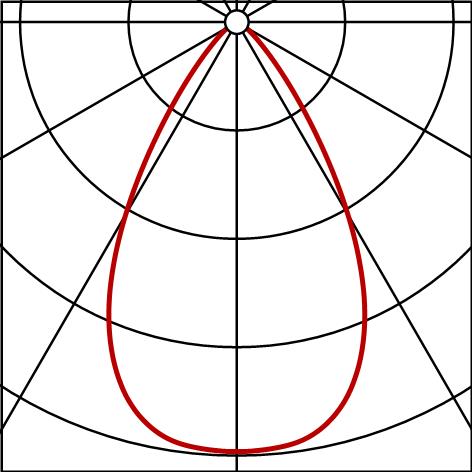

Photometric report / planning data

Lunis 21
LED, ECG, PC, direct wide distribution, single arrangement, recessed, in the ceiling, ø= 213mm
Lamps: 1x LED
Ordercode: 51DB15MF4D

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
