51LJ12DNM80A
Close

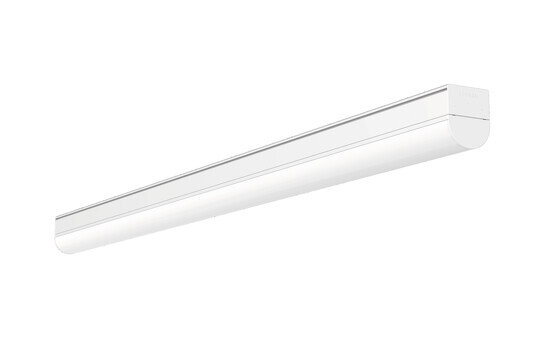

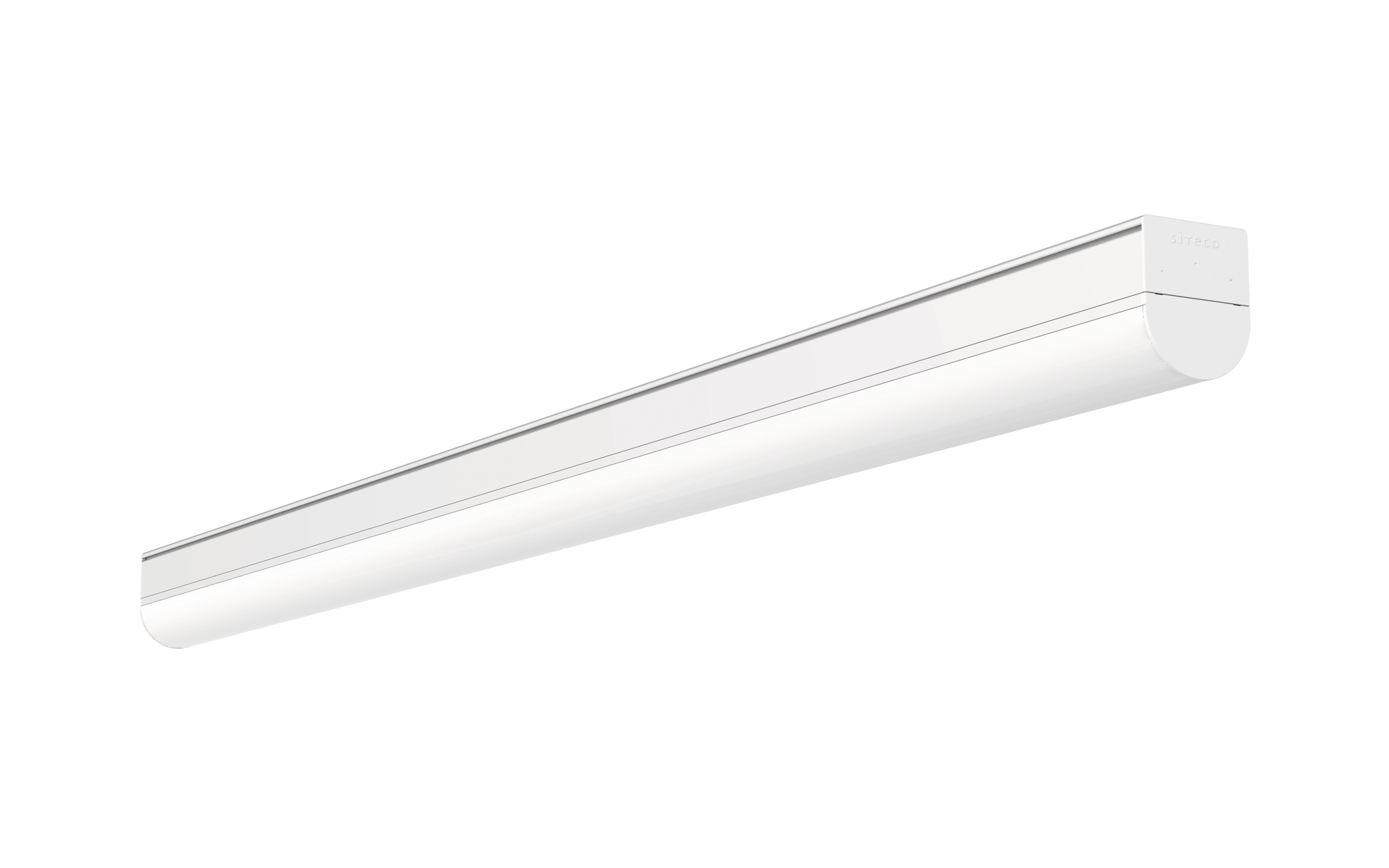

Article diffuser luminaire
Product name Ecopack® 31
Lamp LED
Rated luminous flux 7000lm
Luminous efficacy 135lm/W
Colour temperature 3000/4000/5000K
Colour rendering CRI > 80
Rated input power 52W
Service life 50000h (L80/B50) at AT = 25°C
Protection rating IP20
Impact resistance IK06
Weight 1.5kg

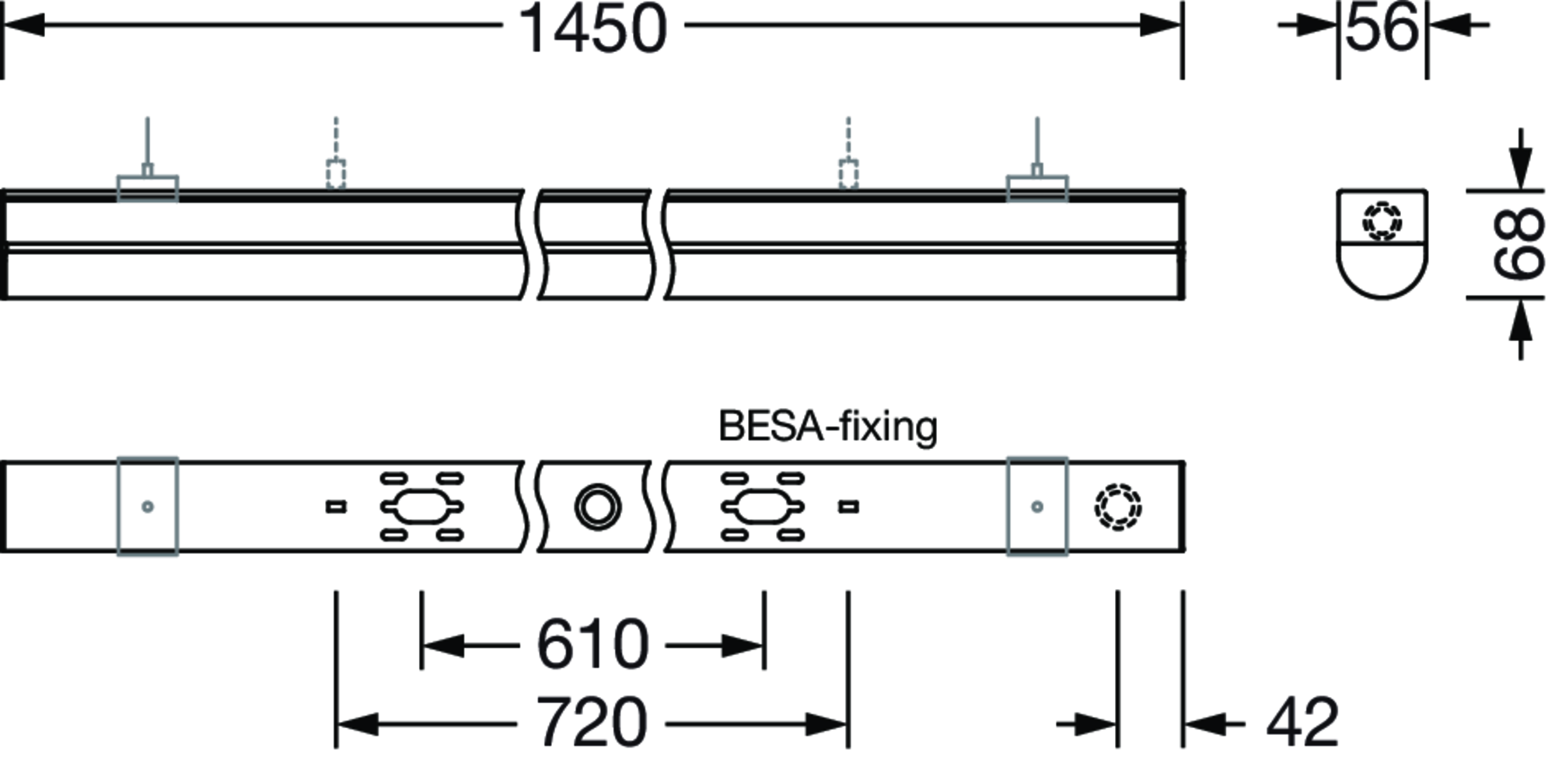

Ecopack® 31, diffuser luminaire, primary optical cover: cover, of PC, frosted, light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 7.000lm, luminous efficacy: 135lm/W, light colour: 830/840/850, colour temperature: 3000/4000/5000K, control gear: DALI 2, with terminal, 5-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 52W, housing, of aluminium, traffic white (RAL 9016), length: 1.450mm, width: 56mm, height: 68mm, end cap, of PC, white, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK06, permissible operating ambient temperature: -20..+40°C, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

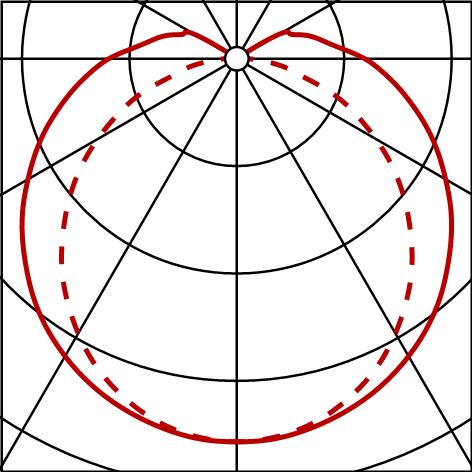

Photometric report / planning data
Ecop31
L1450,7000lm8mc,DA2
Lamps: 1x LED, factory setting: colour temperature 4000K
Order No.: 51LJ12DNM80A
Ecop31
Lamps: 1x LED, individual setting: colour temperature 3000K
Order No.: 51LJ12DNM80A
Ecop31
Lamps: 1x LED, individual setting: colour temperature 5000K
Order No.: 51LJ12DNM80A
