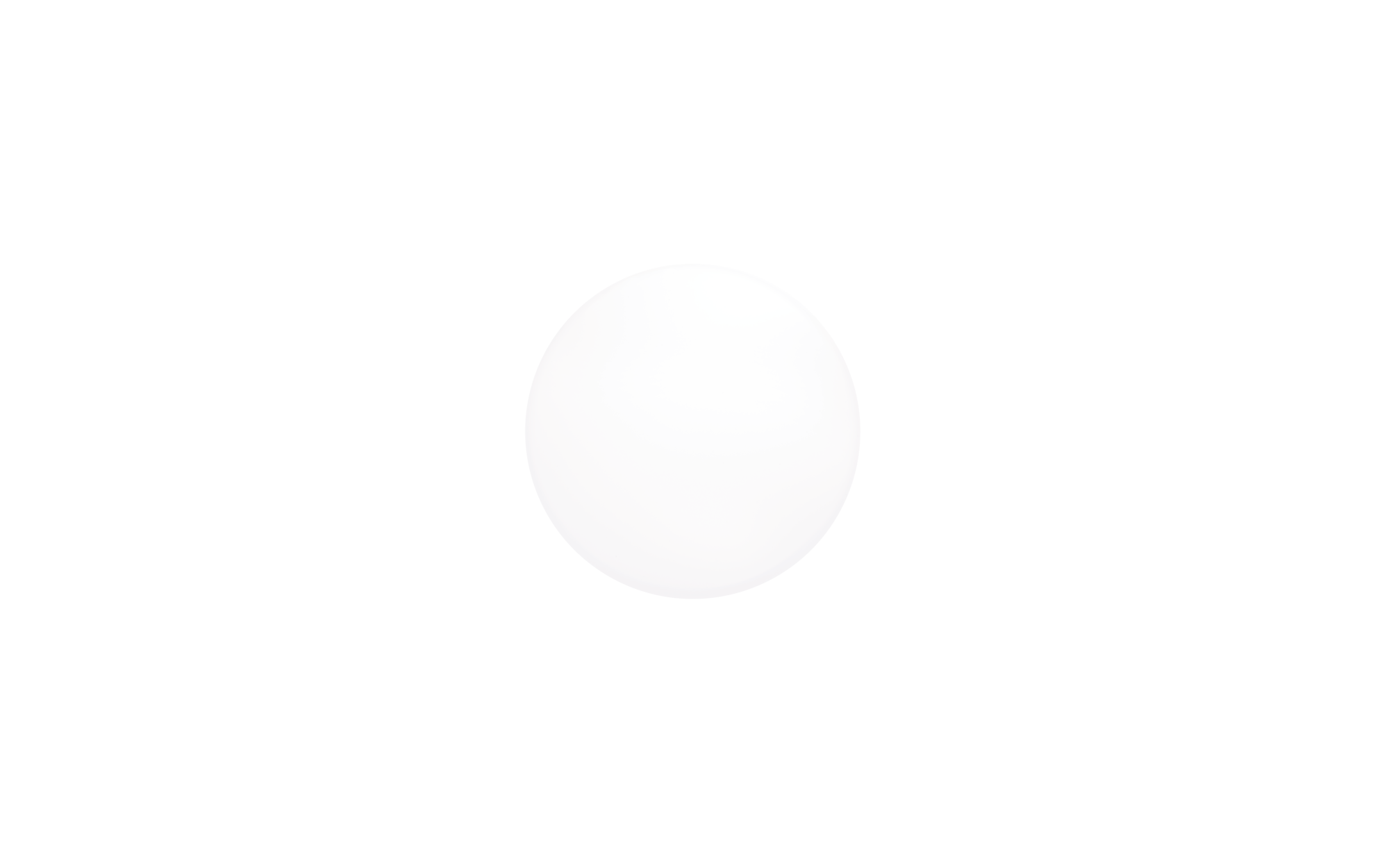

Rondel 41, Light colour 830/840, ON/OFF, Ø330
Close
Article wall and ceiling luminaire
Product name Rondel 41
Lamp LED
Rated luminous flux 2300lm
Luminous efficacy 105lm/W
Colour temperature 3000/4000K
Colour rendering CRI > 80
Rated input power 21W
Service life 50000h (L80/B10) at AT = 25°C
Protection rating IP44
Impact resistance IK02
Weight 0.7kg

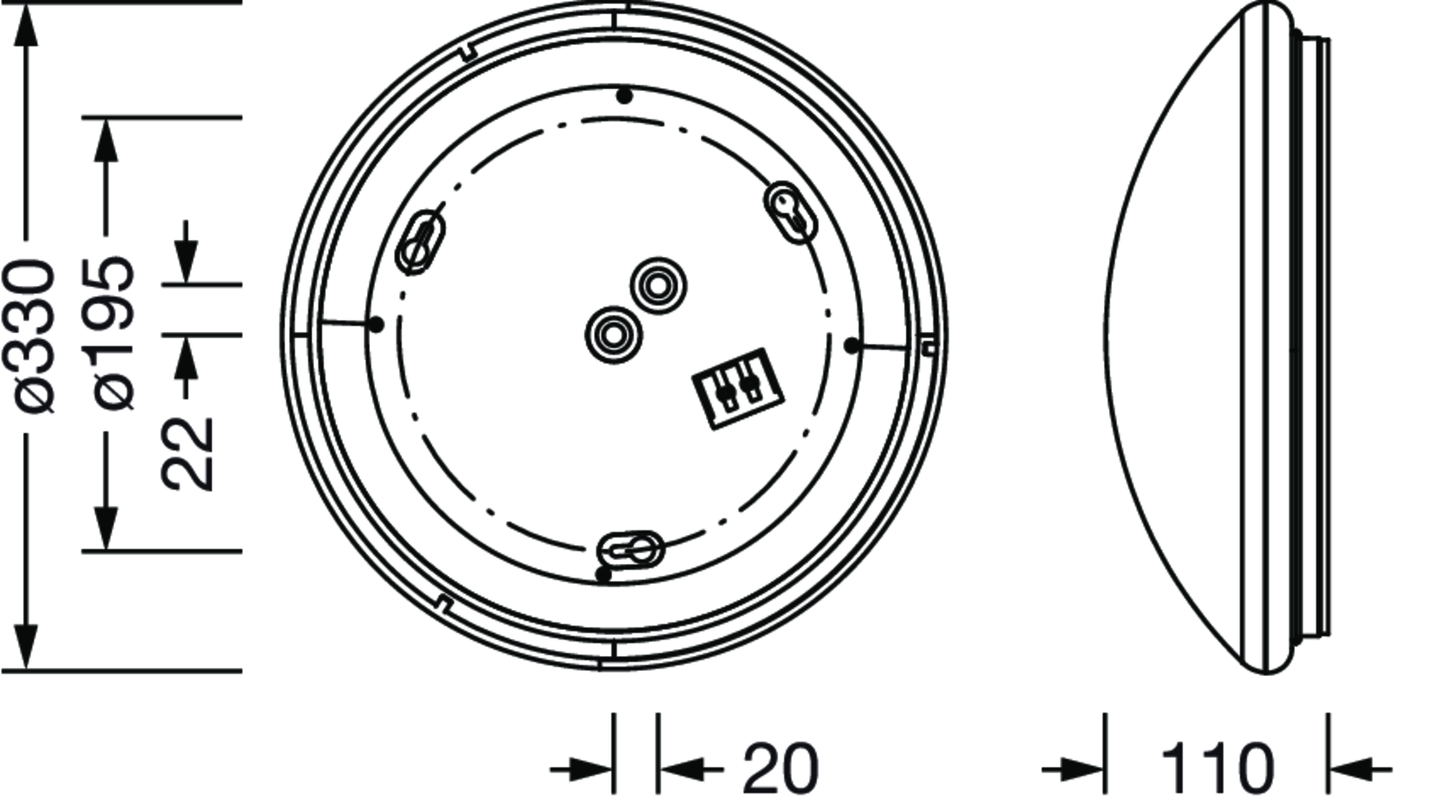

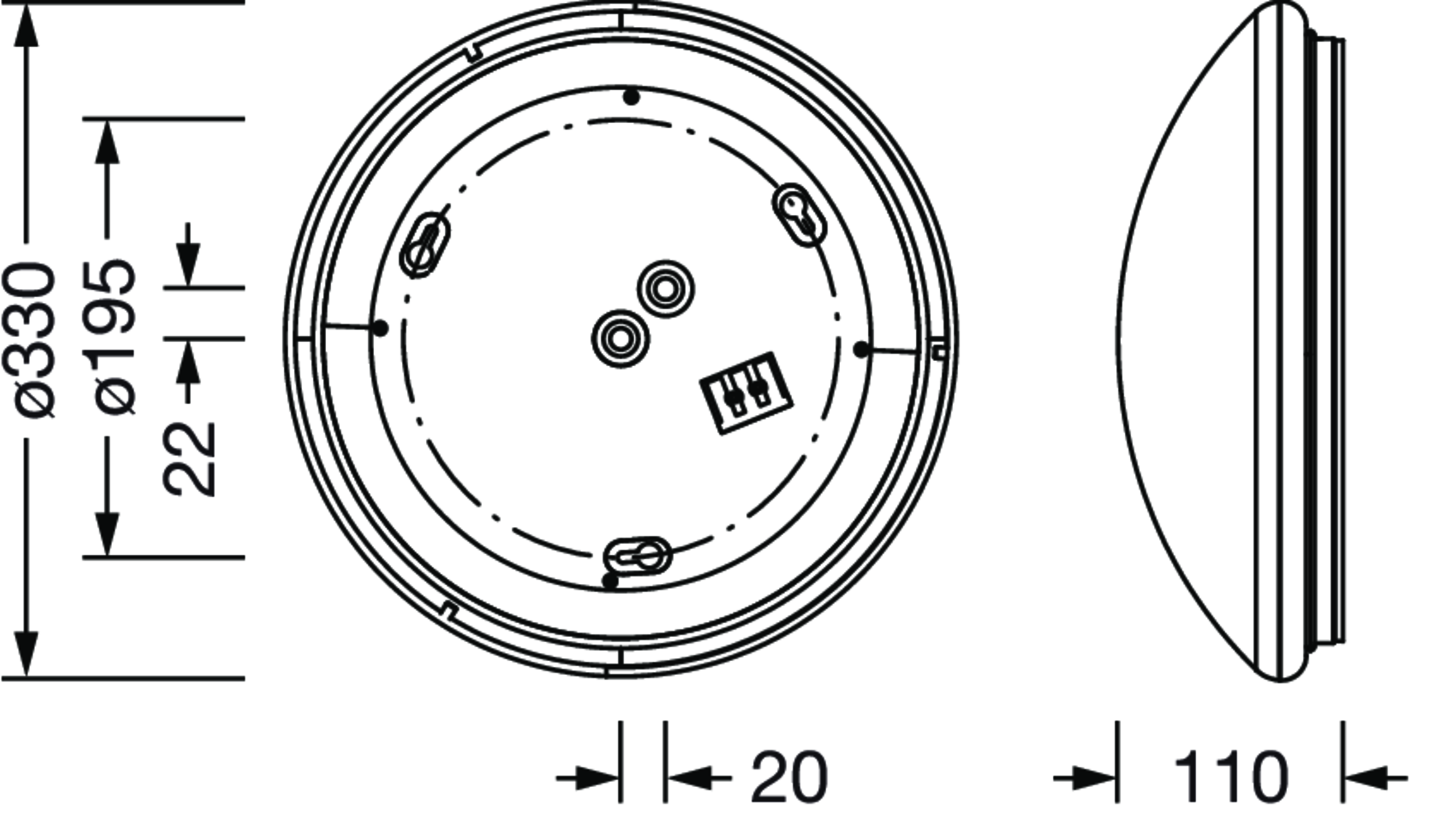

Rondel 41, wall and ceiling luminaire, primary optical cover: enclosure, of PMMA, opal, light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 2.300lm, luminous efficacy: 105lm/W, light colour: 830/840, colour temperature: 3000/4000K, control gear: ON/OFF, with terminal, 3-pole, max. 2.5mm², mains connection: 230V, AC, 50/60Hz, rated input power: 21W, luminaire housing, round, of steel, powder-coated, white, diameter: 330mm, height: 110mm, protection rating (complete): IP44, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK02, permissible operating ambient temperature: -30..+40°C, permissible storage temperature: -30..+80°C, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

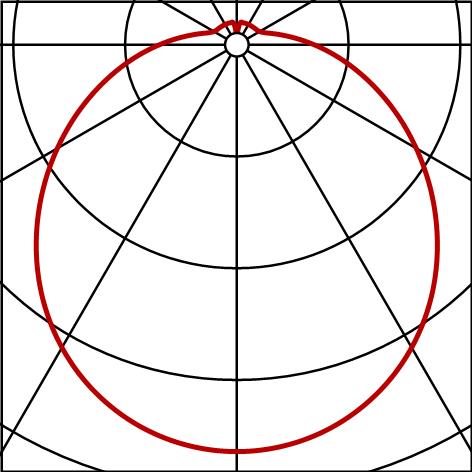

Photometric report / planning data
Rond41
2300lm830/840,0/1,PMMA,wh
Lamps: 1x LED, factory setting: colour temperature 4000K
Order No.: 51WD107BG2A
Rond41
Lamps: 1x LED, individual setting: colour temperature 3000K
Order No.: 51WD107BG2A
