Mira® 21 TD, direct symmetric wide distribution, ON/OFF, for surface-mounted
Close
Article clean room luminaire
Product name Mira® 21 TD
Lamp LED
Rated luminous flux 5500lm
Luminous efficacy 141lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 39W
Service life 75000h (L80/B10) at AT = 25°C
Protection rating IP43
Impact resistance ??
Weight 2.0kg
Mira® 21 TD, clean room luminaire, primary light control with reflector, primary optical cover: cover, of PMMA, frosted, light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 5.500lm, luminous efficacy: 141lm/W, light colour: 840, colour temperature: 4000K, control gear: ON/OFF, with terminal, 3-pole, max. 2.5mm², mains connection: 230V, AC, 50/60Hz, rated input power: 39W, luminaire housing, of sheet steel, coated, pure white (RAL 9010), length: 900mm, width: 55mm, height: 120mm, protection rating (complete): IP43, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, permissible operating ambient temperature: -5..+40°C, standard: EN 50419, packaging unit: 1 piece
Downloads
Technical product information
Data for application programs
Product details

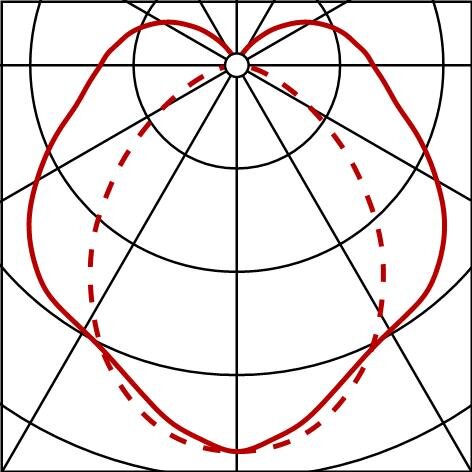

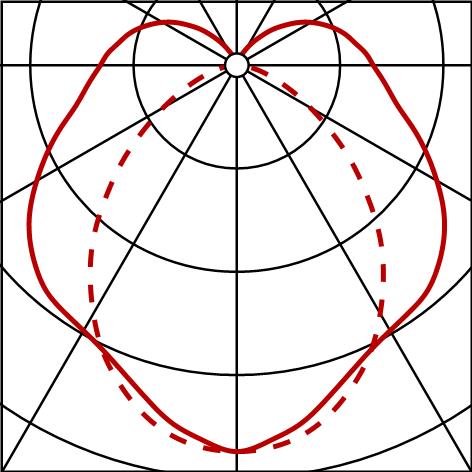

Photometric report / planning data
Mira21TDCRL
LED,5500lm840,ECG,PMMA,dir
Lamps: 1x LED
Ordercode: 51FR527G454A
