Article batten luminaire

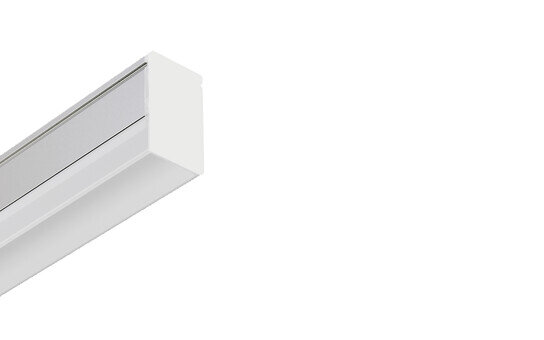

Product name Siluette® 41-F
Lamp LED
Rated luminous flux 1000lm
Luminous efficacy 120lm/W
Colour temperature 3000/4000/5000K
Colour rendering CRI > 80
Rated input power 8.3W
Service life 50000h (L80/B50) at AT = 25°C
Protection rating IP20
Weight 0.3kg

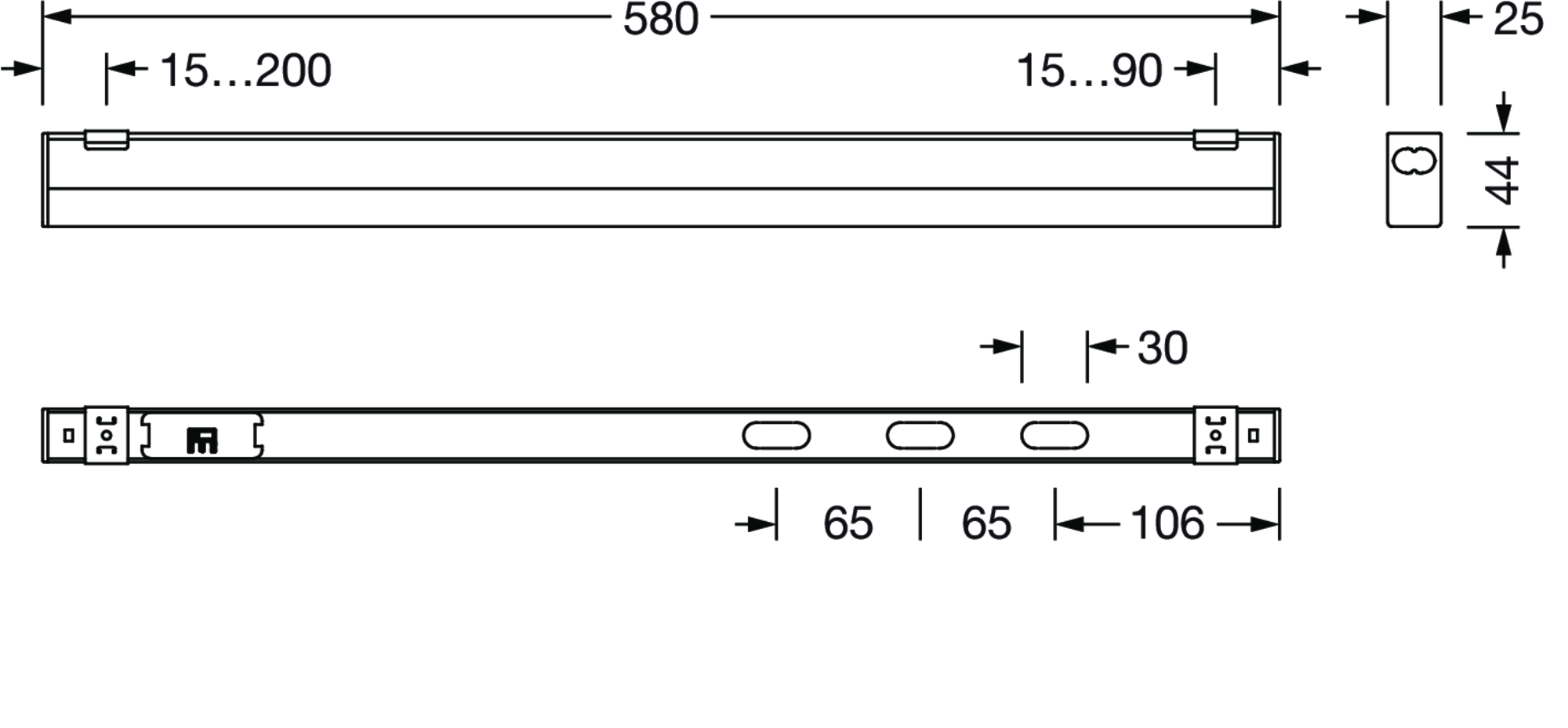

Siluette® 41-F, batten luminaire, primary optical cover: cover, of PC, frosted, light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 1.000lm, luminous efficacy: 120lm/W, light colour: 830/840/850, colour temperature: 3000/4000/5000K, control gear: ON/OFF, with terminal, 2-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 8.3W, housing, of aluminium, silver, length: 580mm, width: 25mm, height: 44mm, end cap, of PC, white, protection rating (complete): IP20, insulation class (complete): insulation class II (safety insulation), certification: CE, permissible operating ambient temperature: -20..+40°C, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

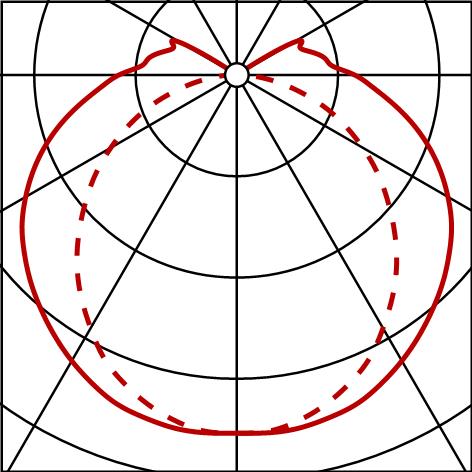

Photometric report / planning data
SIU41F
1000lm8mc,0/1,PC,sr
Lamps: 1x LED, factory setting: colour temperature 4000K
Order No.: 51LP327DM10AF
SIU41F
Lamps: 1x LED, individual setting: colour temperature 3000K
Order No.: 51LP327DM10AF
SIU41F
Lamps: 1x LED, individual setting: colour temperature 5000K
Order No.: 51LP327DM10AF
