Ordercode: 5LZ904712
Remember productRemember product

Article control unit

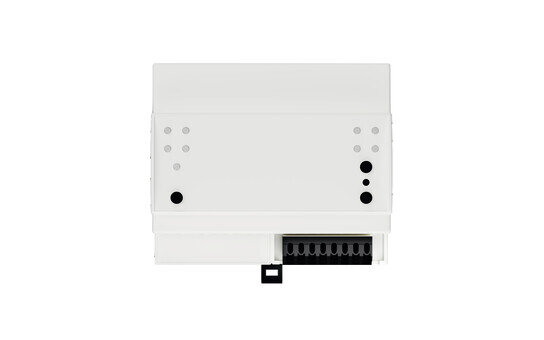

Product name SITECO Connect 21-O
Rated input power on request
Protection rating IP20
Weight 0.4kg

SITECO Connect 21-Ocontroller, master, central control, dimmable, installation type: recessed, installation location: in an electrical distributor, of plastic, part units: 9 part units, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, voltage: 100..240V, voltage type: AC, 1 x network connector Ethernet, 4 x DALI, 4 x relay contact, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details

Key data

System family SITECO Connect 21 O
Product type control unit
Product name SITECO Connect 21-O
Order No. 5LZ904712

Control

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Temperature range (operation) 0..+40°C
Certification, designation CE

Material, Colour

housing plastic, grey, 9 part units
Colour specification grey

Mounting

Mounting method, mounting location recessed, in an electrical distributor
Supplement only suitable for indoor use

Electrical connection

Connection terminal, 3-pole, max. 2.5mm²
Nominal voltage 100..240V, 50/60Hz, AC

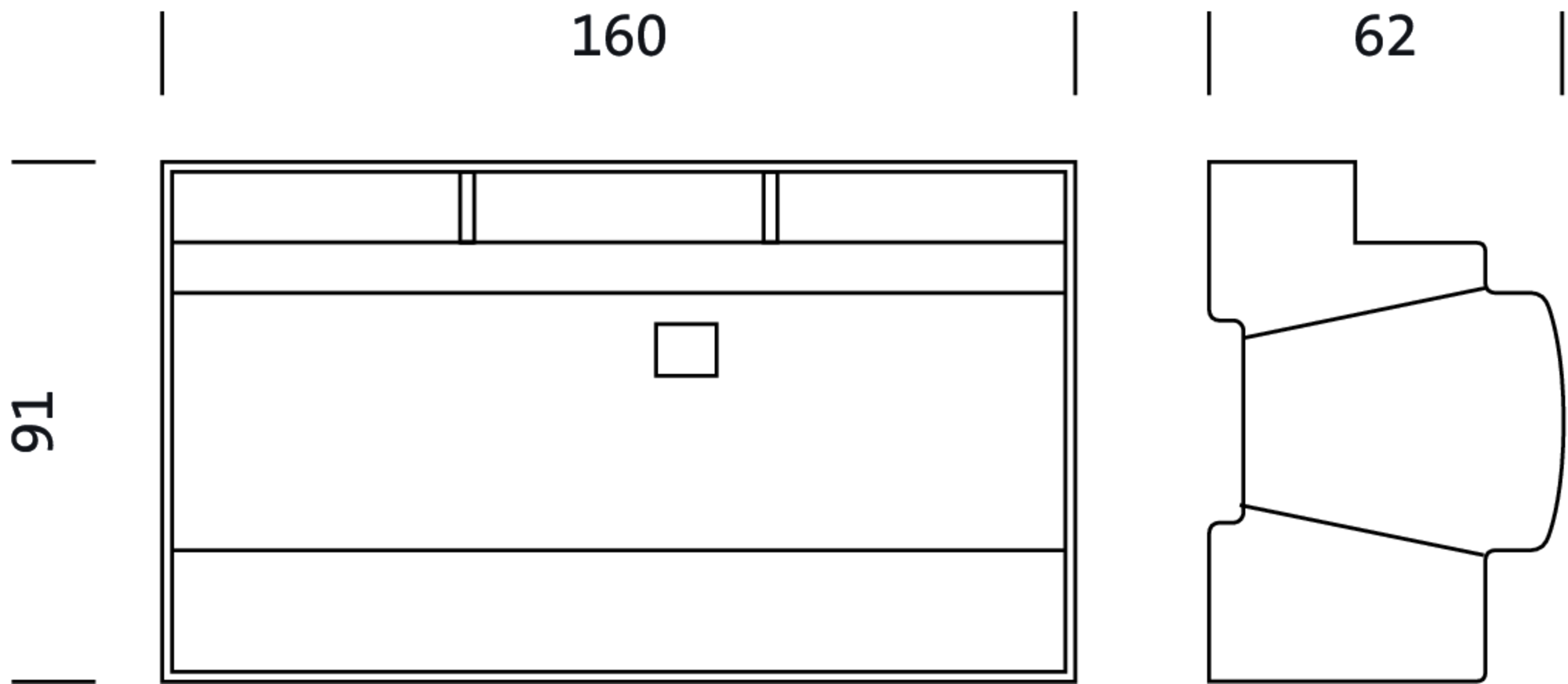

Dimensions, Weight

Length 90mm
Width 160mm
Height 62mm
Weight 0.4kg

Outputs

4x DALI
Connection plug-in terminal, 2-pole, max. 2.5mm²
Limiting max. 64x ECG DALI
System current DALI current 250mA per DALI line
Cable length max. 300m

4x relay contact
Connection screw terminal, 3-pole, max. 2.5mm²
Feature changeover relay 5A, programmable via DALI

System family
SITECO Connect 21 O

Product type
control unit

Product name
SITECO Connect 21-O

Order No.
5LZ904712

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
0..+40°C

Certification, designation
CE

housing
plastic, grey, 9 part units

Colour specification
grey

Mounting method, mounting location
recessed, in an electrical distributor

Supplement
only suitable for indoor use

Connection
terminal, 3-pole, max. 2.5mm²

Nominal voltage
100..240V, 50/60Hz, AC

Length
90mm

Width
160mm

Height
62mm

Weight
0.4kg

4x DALI

Connection
plug-in terminal, 2-pole, max. 2.5mm²

Limiting
max. 64x ECG DALI

System current
DALI current 250mA per DALI line

Cable length
max. 300m

4x relay contact

Connection
screw terminal, 3-pole, max. 2.5mm²

Feature
changeover relay 5A, programmable via DALI
