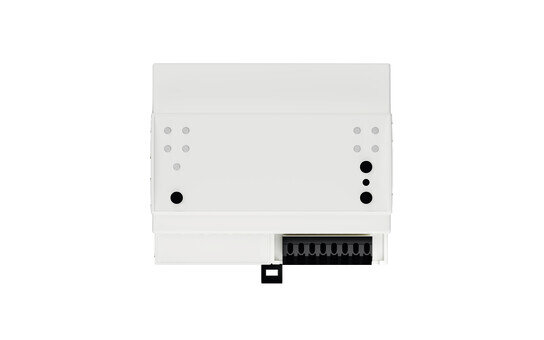

Article lighting management components
Product name Professional
Rated input power 20W
Protection rating IP20
Weight 1.0kg

Professional, controller, installation type: recessed, installation location: in an electrical distributor, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, voltage: 100..240V, voltage type: AC, mains connection, 4 x ECG DALI, 4 x relay, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details


Key data

System family DALIpro
Product type lighting management components
Product name Professional
Order No. 5LZ904712


Lamps

Rated input power 20W


Operating device

Control DALI


Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Temperature range (operation) 0..+40°C
Certification, designation CE


Mounting

Mounting method, mounting location recessed, in an electrical distributor
Supplement only suitable for indoor use


Electrical connection

Connection terminal, 3-pole, max. 2.5mm²
Nominal voltage 100..240V, 50/60Hz, AC

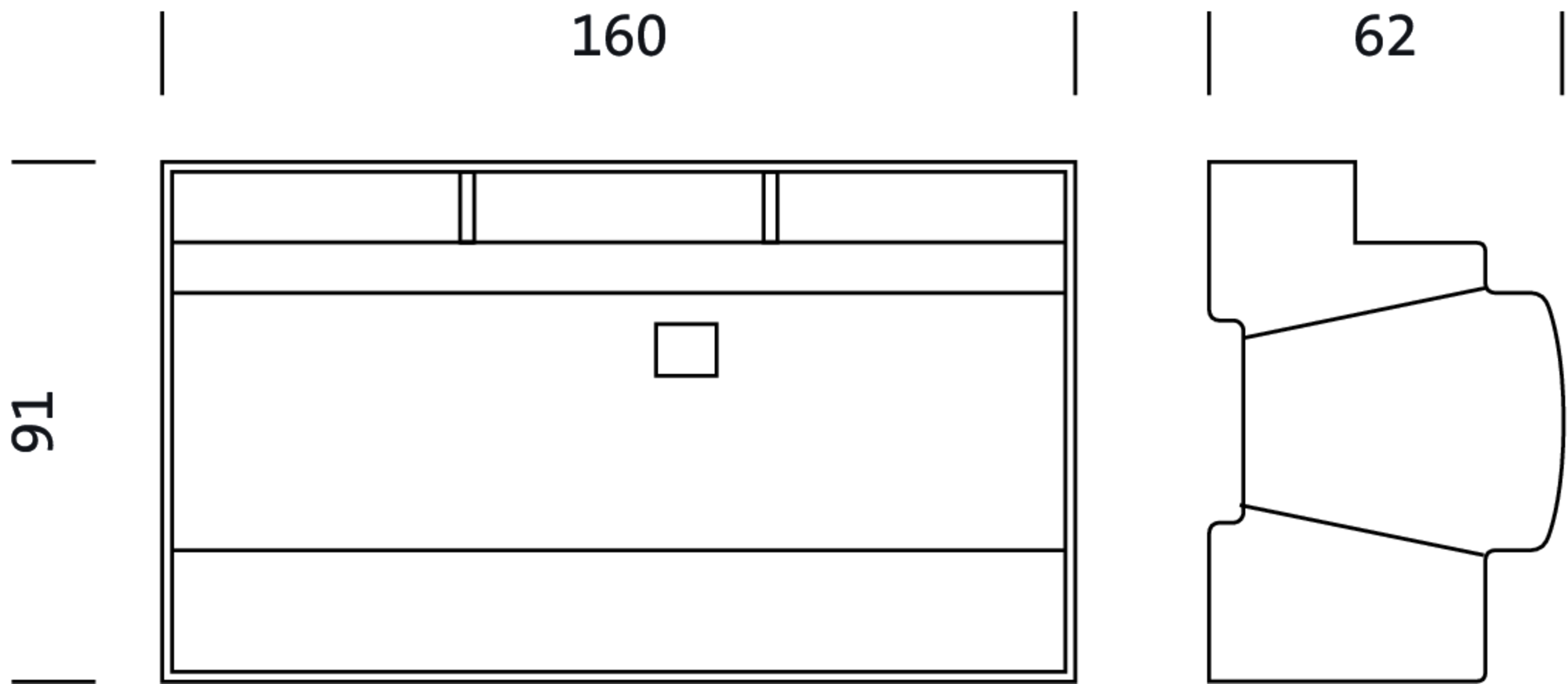

Dimensions, Weight

Length 90mm
Width 160mm
Height 62mm
Weight 1.0kg


Inputs

mains connection
Connection terminals
Supply voltage 230V


Outputs

4x ECG DALI
Connection screw terminal, 2-pole, max. 2.5mm²
Feature addressable, for luminaire control, maximum 64 devices or addresses per line

4x relay
Connection screw terminal, 3-pole, max. 2.5mm²
Feature changeover relay 5A, programmable via DALI

System family
DALIpro

Product type
lighting management components

Product name
Professional

Order No.
5LZ904712

Rated input power
20W

Control
DALI

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
0..+40°C

Certification, designation
CE

Mounting method, mounting location
recessed, in an electrical distributor

Supplement
only suitable for indoor use

Connection
terminal, 3-pole, max. 2.5mm²

Nominal voltage
100..240V, 50/60Hz, AC

Length
90mm

Width
160mm

Height
62mm

Weight
1.0kg

mains connection

Connection
terminals

Supply voltage
230V

4x ECG DALI

Connection
screw terminal, 2-pole, max. 2.5mm²

Feature
addressable, for luminaire control, maximum 64 devices or addresses per line

4x relay

Connection
screw terminal, 3-pole, max. 2.5mm²

Feature
changeover relay 5A, programmable via DALI
