Apollon 21 linear, direct distribution, Light colour 840, DALI, for M600 and for cut ceiling aperture
Close
Article office luminaire
Product name Apollon 21 linear
Lamp LED
Rated luminous flux 4000lm
Luminous efficacy 121lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 33W
Service life 50000h (L85/B50) at AT = 25°C
Protection rating IP20
Weight 2.9kg
Apollon 21 linear, office luminaire, primary optical cover: micro prismatic cover, CAT 2 (L<= 3000cd/m²), light emission: direct distribution, primary light characteristic: symmetric, installation type: lay-in mounting, recessed, LED, rated luminous flux: 4.000lm, luminous efficacy: 121lm/W, light colour: 840, colour temperature: 4000K, control gear: DALI, with terminal, 5-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 33W, housing, of aluminium, coated, pure white, module: M600, length: 1.195mm, width: 295mm, height: 39mm, housing upper side, of sheet steel, galvanised, protection rating (complete): IP20, protection rating (lamp compartment, on room side): IP50, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

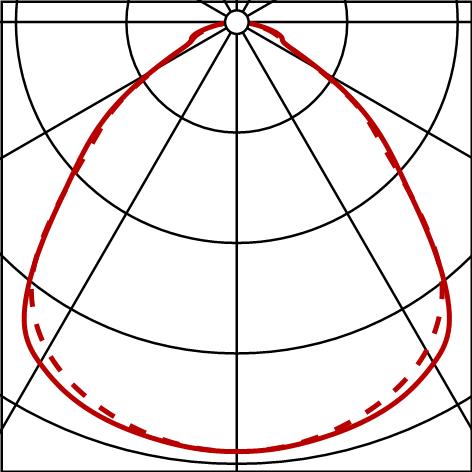

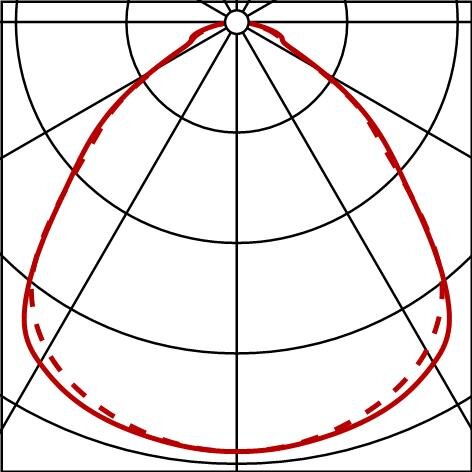

Photometric report / planning data

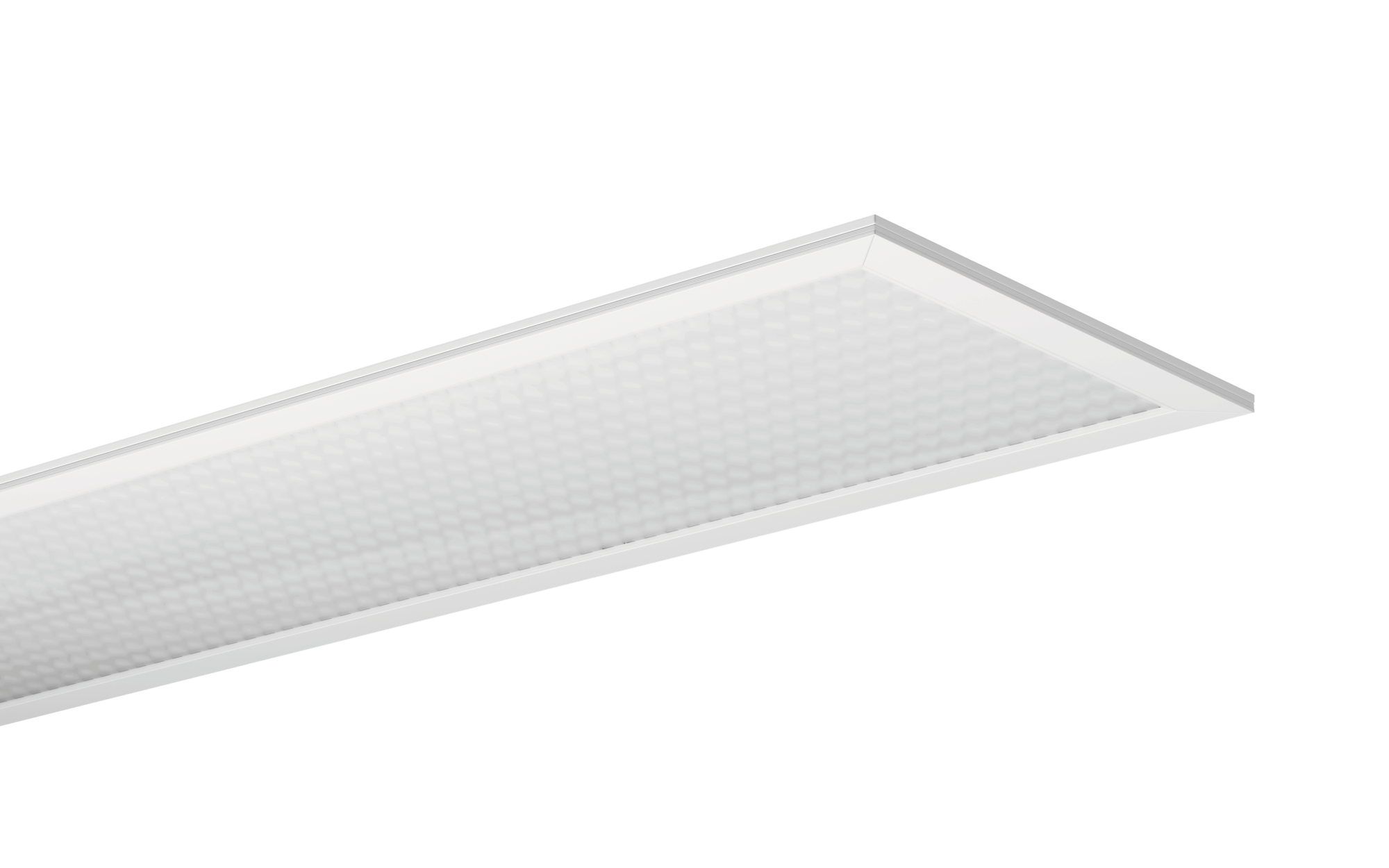

Apollon 21 linear
office luminaire, pure white, DALI, 4000lm, 840, 1195x295mm, for M600 and for cut ceiling aperture, Connection: terminal
Lamps: 1x LED
Order No.: 51MQ18WD2412
