Apollon® 41, Light colour 840/865, DALI 2, for M625

Close
Order No.: 51MH11WD2N43
Remember articleRemember article

Article office luminaire

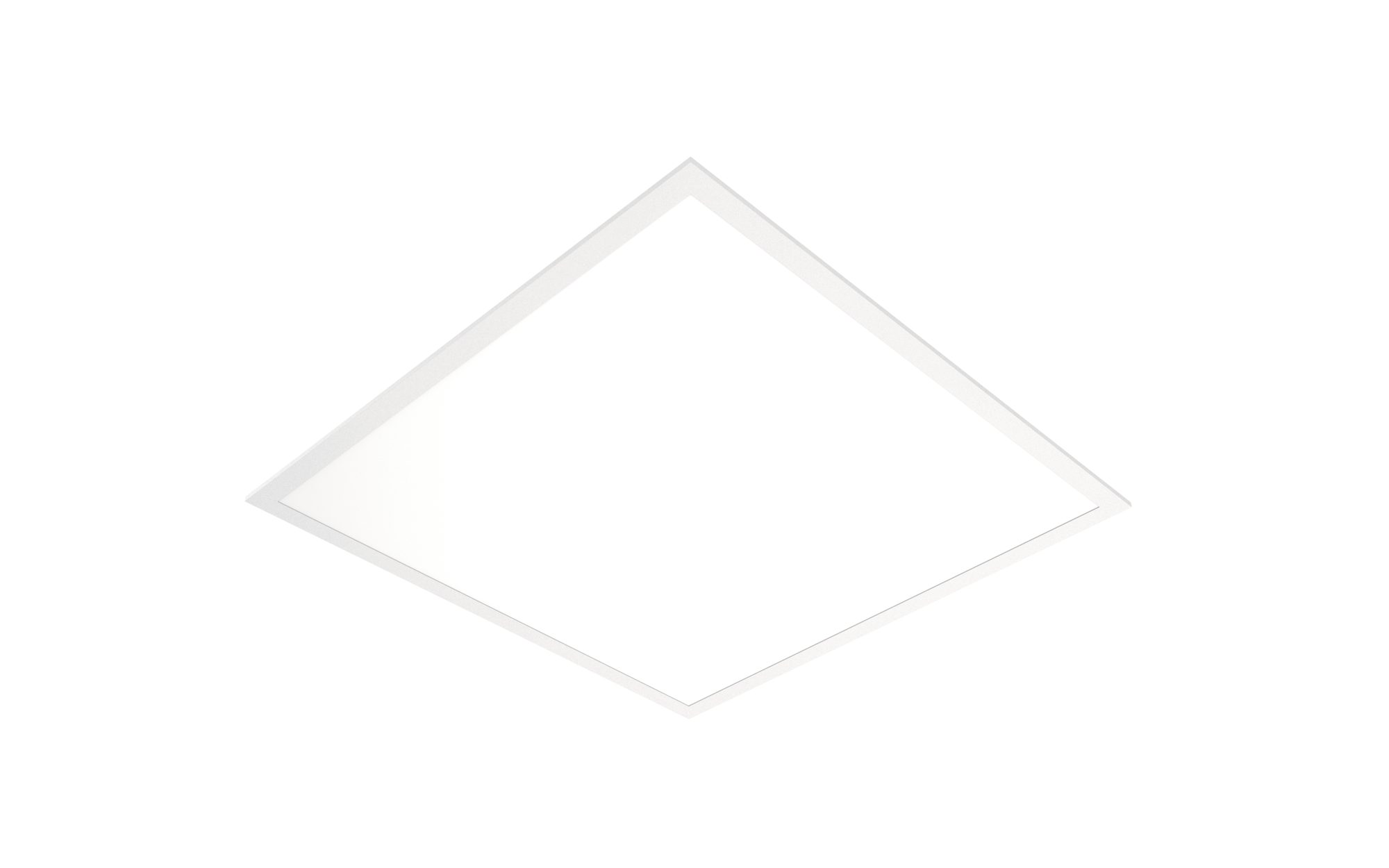

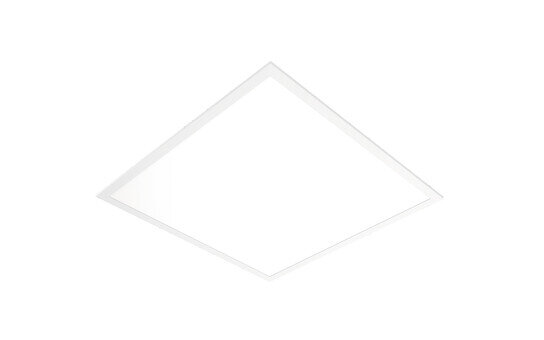

Product name Apollon® 41
Lamp LED
Rated luminous flux 3500lm
Luminous efficacy 123lm/W
Colour temperature 4000/6500K
Colour rendering CRI > 80
Rated input power 28.5W
Service life 50000h (L80/B50) at AT = 25°C, 60000h (L70/B50) at AT = 25°C
Protection rating IP20
Impact resistance IK03
Weight 2.2kg

Apollon® 41, office luminaire, primary optical cover: prismatic diffuser, of PS, light emission: direct distribution, primary light characteristic: symmetric, installation type: lay-in mounting, LED, rated luminous flux: 3.500lm, luminous efficacy: 123lm/W, light colour: 840/865, colour temperature: 4000/6500K, control gear: DALI 2, with terminal, 5-pole, mains connection: 220..240V, AC/DC, 0/50..60Hz, suitable for self-contained emergency lighting element 58DB00B013A with integrated self-test function according to EN 60598-2-22, housing, of aluminium section, traffic white (RAL 9016), module: M625, length: 620mm, width: 620mm, height: 60mm, recess depth: 180mm, housing upper side, of sheet steel, protection rating (complete): IP20, protection rating (lamp compartment, on room side): IP40, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, impact resistance: IK03, permissible operating ambient temperature: -25..+40°C, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type office luminaire
Product name Apollon® 41
Order No. 51MH11WD2N43

Component 1

Lighting technology
Cover prismatic diffuser

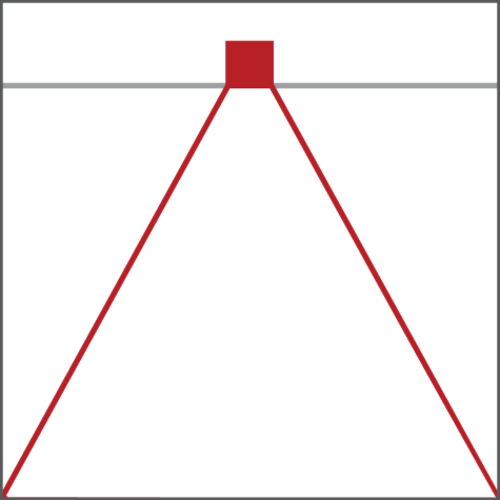

Beam angle wide distribution, 90°
Symmetry symmetric
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 19
UGR viewing direction along lateral luminaire axis ≤ 19

Lamps
Lamps with LED
Rated luminous flux 3500lm
Luminous efficacy 123lm/W
Colour temperature 4000/6500K
Colour rendering index CRI > 80
Light colour 840/865
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 28.5W
Supplement with through-wiring, suitable for emergency light operating devices according to IEC 60598-2-22, for central battery installations according to DIN EN 60598-2-22

Operating device
Control DALI 2

Component 2

Operating device
Switching method suitable for self-contained emergency lighting element 58DB00B013A with integrated self-test function according to EN 60598-2-22

Certificates, Standards

Protection rating IP20
Protection rating (lamp compartment, on room side) IP40
Insulation class insulation class II (safety insulation)
Impact resistance IK03
Temperature range (operation) -25..+40°C
Certification, designation CE, ENEC

Material, Colour

housing aluminium section, traffic white (RAL 9016)
Colour specification traffic white (RAL 9016)
housing upper side sheet steel
Cover prismatic diffuser of PS

Mounting

Mounting method, mounting location lay-in mounting, in the ceiling
Arrangement single arrangement

Electrical connection

Connection terminal, 5-pole
Nominal voltage 220..240V, 0/50..60Hz, AC/DC

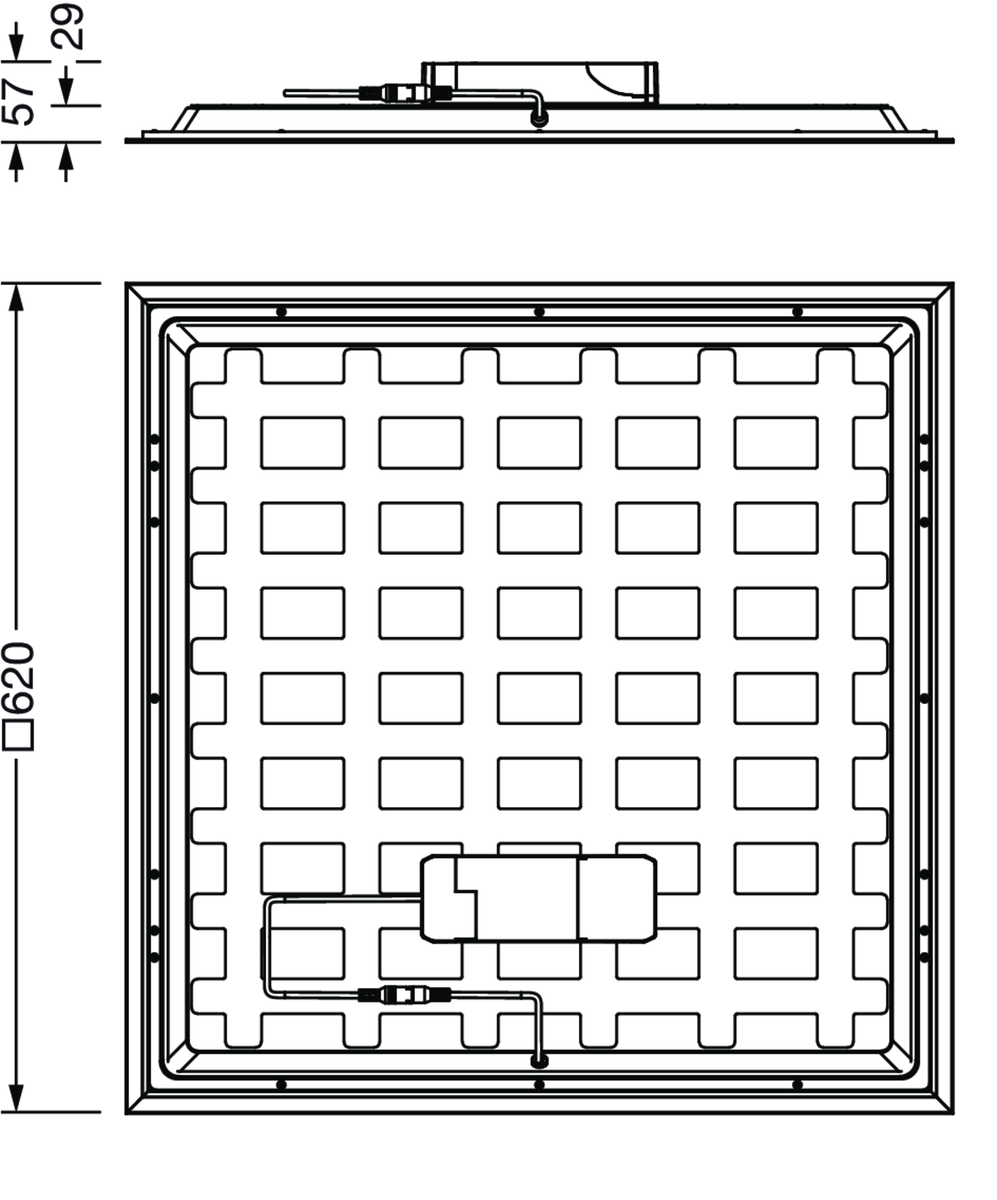

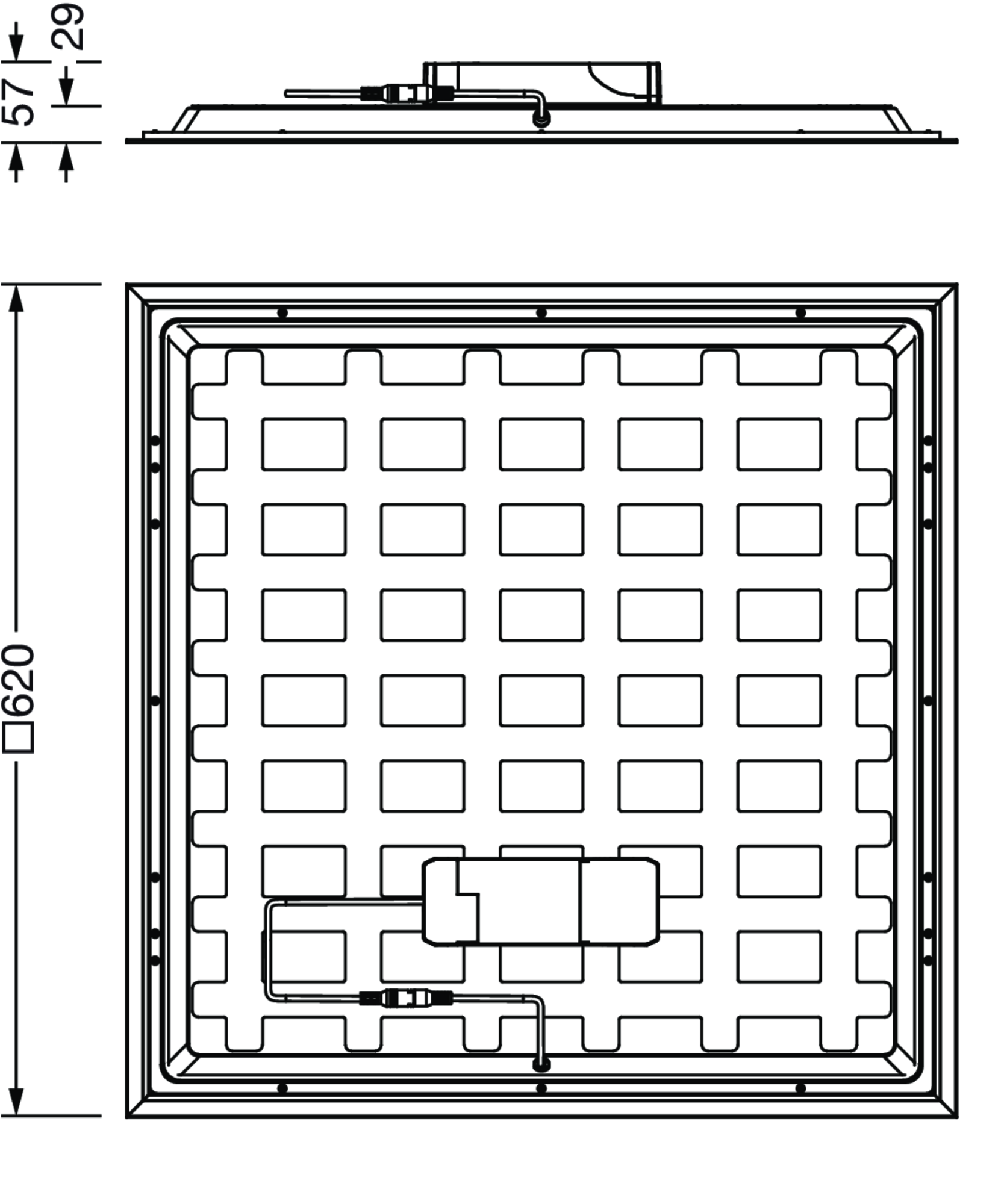

Dimensions, Weight

Length 620mm
Width 620mm
Height 60mm
Recess depth 180mm
Weight 2.2kg

Service life

Rated service life 50000h (L80/B50) at AT = 25°C, 60000h (L70/B50) at AT = 25°C

Product type
office luminaire

Product name
Apollon® 41

Order No.
51MH11WD2N43

Lighting technology

Cover
prismatic diffuser

Beam angle
wide distribution, 90°

Symmetry
symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 19

UGR viewing direction along lateral luminaire axis
≤ 19

Lamps

Lamps
with LED

Rated luminous flux
3500lm

Luminous efficacy
123lm/W

Colour temperature
4000/6500K

Colour rendering index
CRI > 80

Light colour
840/865

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
28.5W

Supplement
with through-wiring, suitable for emergency light operating devices according to IEC 60598-2-22, for central battery installations according to DIN EN 60598-2-22

Operating device

Control
DALI 2

Operating device

Switching method
suitable for self-contained emergency lighting element 58DB00B013A with integrated self-test function according to EN 60598-2-22

Protection rating
IP20

Protection rating (lamp compartment, on room side)
IP40

Insulation class
insulation class II (safety insulation)

Impact resistance
IK03

Temperature range (operation)
-25..+40°C

Certification, designation
CE, ENEC

housing
aluminium section, traffic white (RAL 9016)

Colour specification
traffic white (RAL 9016)

housing upper side
sheet steel

Cover
prismatic diffuser of PS

Mounting method, mounting location
lay-in mounting, in the ceiling

Arrangement
single arrangement

Connection
terminal, 5-pole

Nominal voltage
220..240V, 0/50..60Hz, AC/DC

Length
620mm

Width
620mm

Height
60mm

Recess depth
180mm

Weight
2.2kg

Rated service life
50000h (L80/B50) at AT = 25°C, 60000h (L70/B50) at AT = 25°C

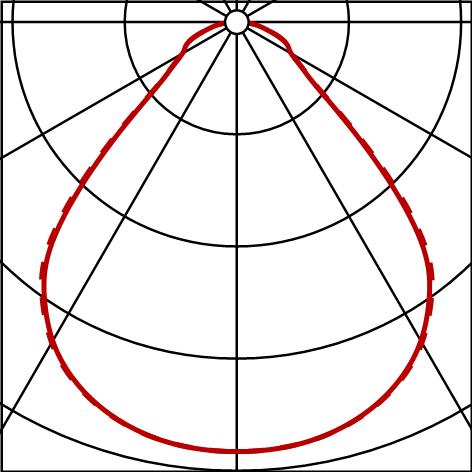

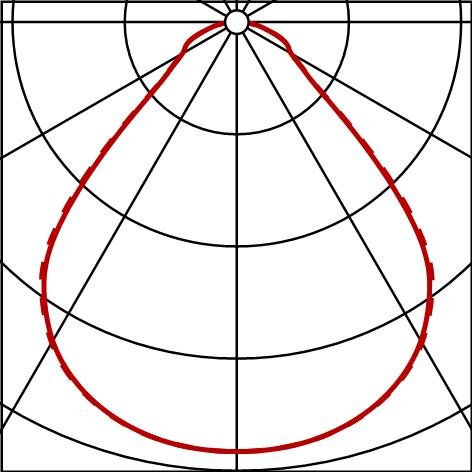

Photometric report / planning data

Apollon® 41
office luminaire, traffic white (RAL 9016), DALI 2, 3500lm, 840/865, 620x620mm, for M625, Connection: terminal
Lamps: 1x LED, factory setting
Order No.: 51MH11WD2N43

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
Product versions/accessory

Apollon® 41
Lamps: 1x LED, individual setting
Order No.: 51MH11WD2N43

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
