Apollon® 41, Light colour 840, DALI 2, for M600

Key data

Product type office luminaire
Product name Apollon® 41
Order No. 51MH12WD2443

Component 1

Lighting technology
Cover prismatic diffuser

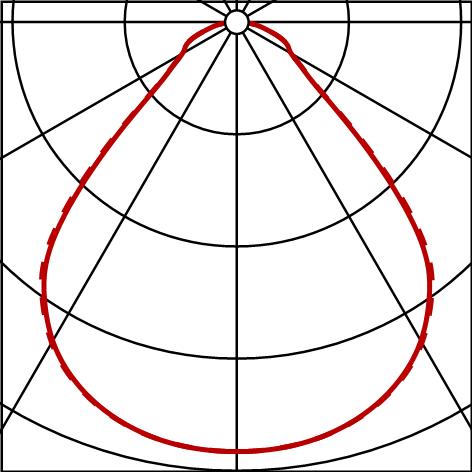

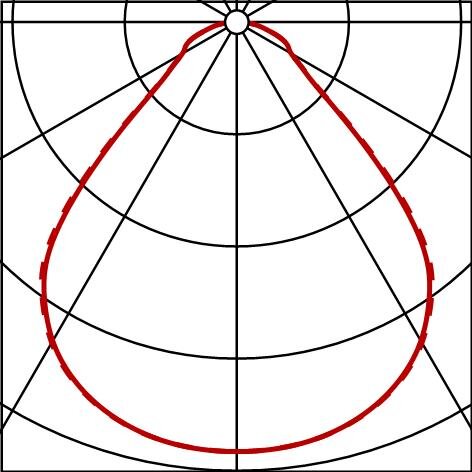

Beam angle wide distribution, 90°
Symmetry symmetric
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 19
UGR viewing direction along lateral luminaire axis ≤ 19

Lamps
Lamps with LED
Rated luminous flux 3500lm
Luminous efficacy 123lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 28.5W
Supplement with through-wiring, suitable for emergency light operating devices according to IEC 60598-2-22, for central battery installations according to DIN EN 60598-2-22

Operating device
Control DALI 2

Component 2

Operating device
Switching method suitable for self-contained emergency lighting element 58DB00B013A with integrated self-test function according to EN 60598-2-22

Certificates, Standards

Protection rating IP20
Protection rating (lamp compartment, on room side) IP40
Insulation class insulation class II (safety insulation)
Impact resistance IK03
Temperature range (operation) -25..+40°C
Certification, designation CE, ENEC

Material, Colour

housing aluminium section, traffic white (RAL 9016)
Colour specification traffic white (RAL 9016)
housing upper side sheet steel
Cover prismatic diffuser of PS

Mounting

Mounting method, mounting location lay-in mounting, in the ceiling
Arrangement single arrangement

Electrical connection

Connection terminal, 5-pole
Nominal voltage 220..240V, 50/60Hz, AC

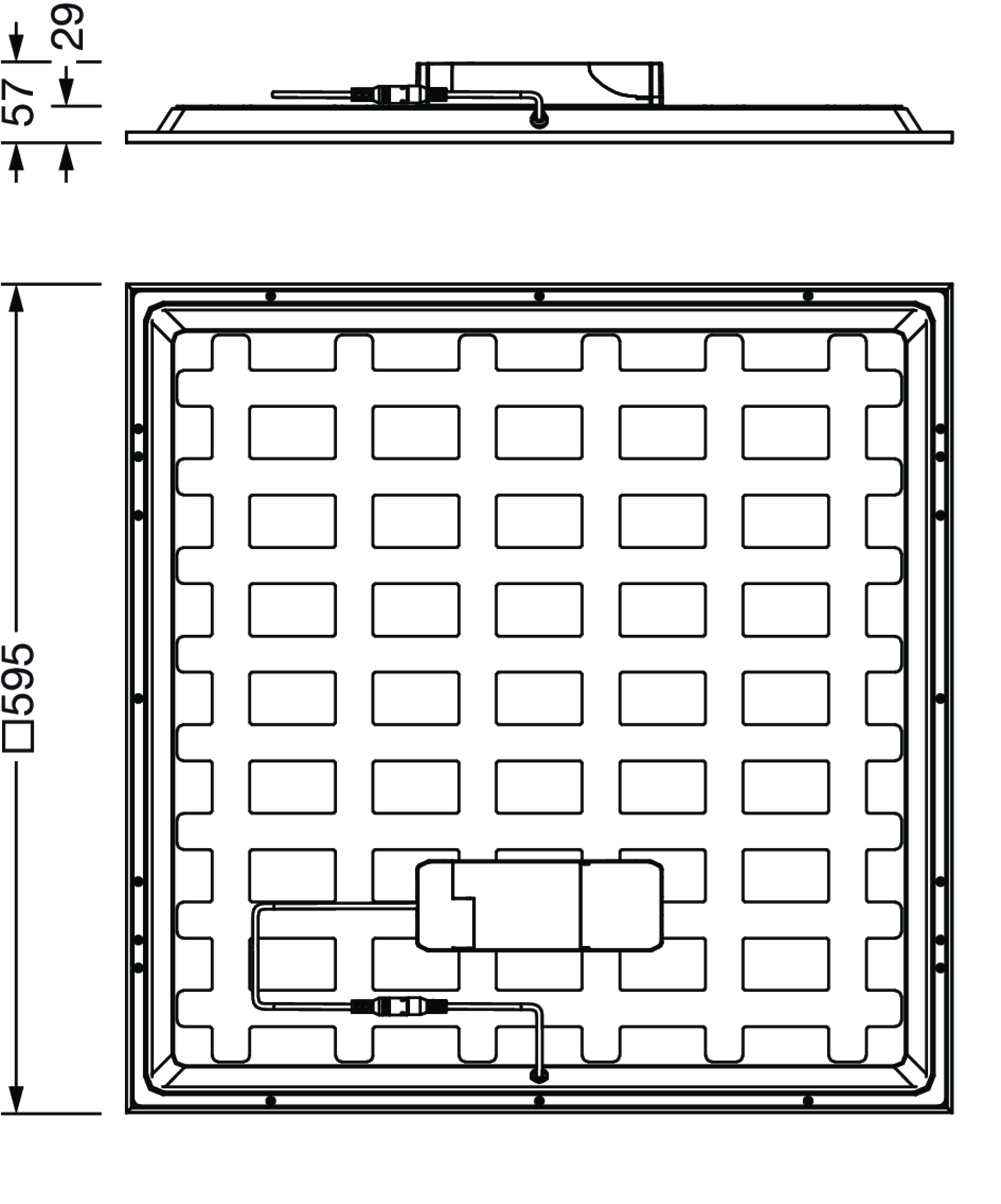

Dimensions, Weight

Length 595mm
Width 595mm
Height 60mm
Recess depth 180mm
Weight 1.9kg

Service life

Rated service life 50000h (L80/B50) at AT = 25°C, 60000h (L70/B50) at AT = 25°C
