Taris® 21, direct distribution, Light colour 830, DALI, for surface-mounted
Close
Article office luminaire
Product name Taris® 21
Lamp LED
Rated luminous flux 5700lm
Luminous efficacy 159lm/W
Colour temperature 3000K
Colour rendering CRI > 80
Rated input power 36W
Service life 50000h (L80/B50) at AT = 25°C
Protection rating IP20
Impact resistance IK02
Weight 4.3kg

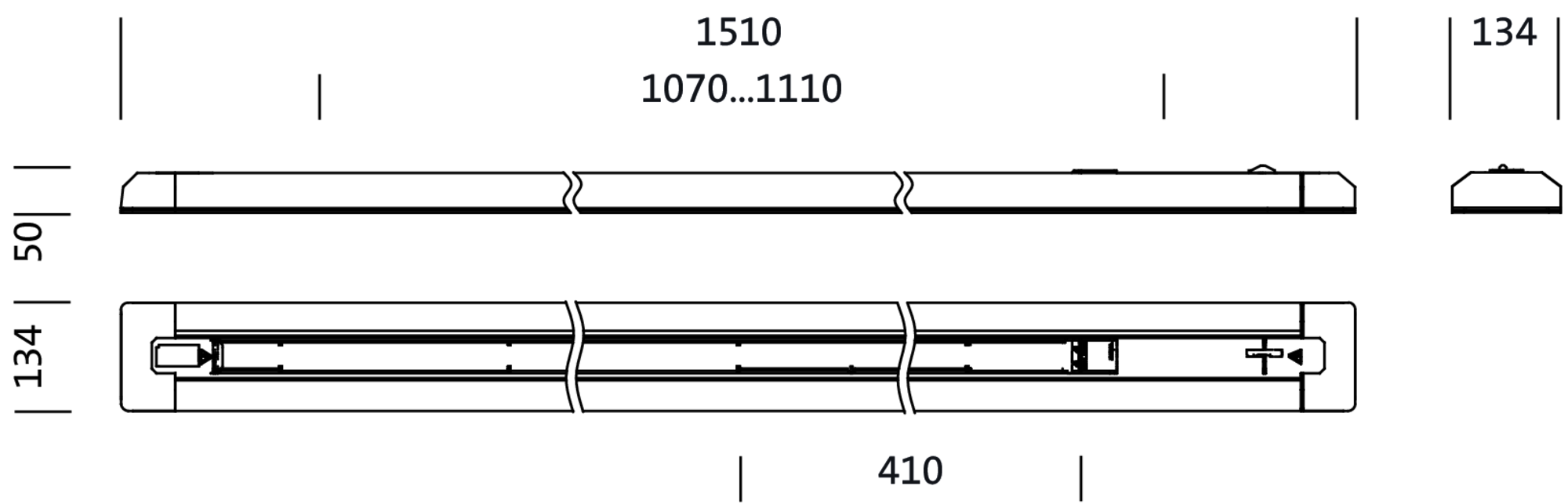

Taris® 21, office luminaire, primary anti-glare with micro louvre, primary optical cover: axial lens, of PMMA, structured, CAT 2 (L<= 1500cd/m²), light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 5.700lm, luminous efficacy: 159lm/W, light colour: 830, colour temperature: 3000K, control gear: ECG DALI, with terminal, 5-pole, mains connection: 230V, AC, 50Hz, rated input power: 36W, housing, luminaire housing, of plastic, traffic white (RAL 9016), length: 1.510mm, width: 134mm, height: 50mm, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, protection symbol: F, impact resistance: IK02, permissible operating ambient temperature: 0..+35°C, standard: EN 50419, packaging unit: 1 piece
Downloads
Technical product information
Data for application programs
Product details
Photometric report / planning data
Taris® 21
office luminaire, traffic white (RAL 9016), DALI, 5700lm, 830, 1510x134mm, Connection: terminal
Ordercode: 5MT217D03WD
