Vega® 11, direct/indirect distribution, Light colour 830, DALI
Close

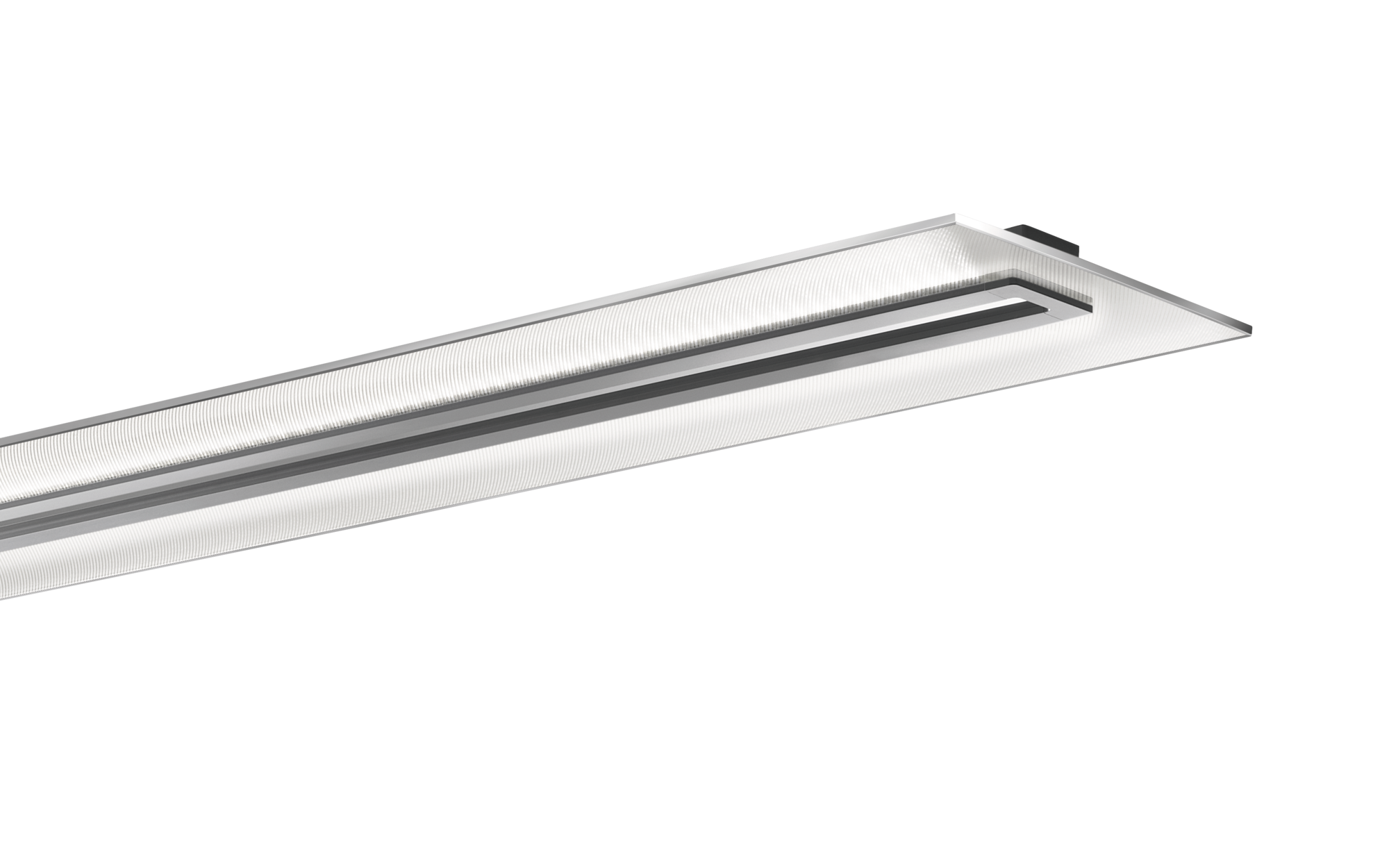

Article office luminaire
Product name Vega® 11
Lamp LED
Rated luminous flux 7300lm
Luminous efficacy 118lm/W
Colour temperature 3000K
Colour rendering CRI > 80
Rated input power 62W
Service life 50000h (L80/B50) at AT = 25°C
Protection rating IP20
Weight 6.5kg

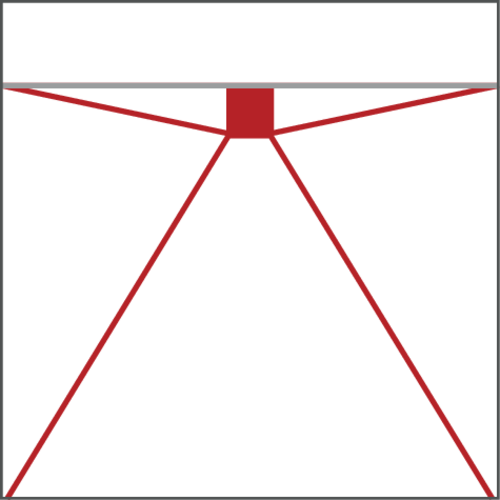

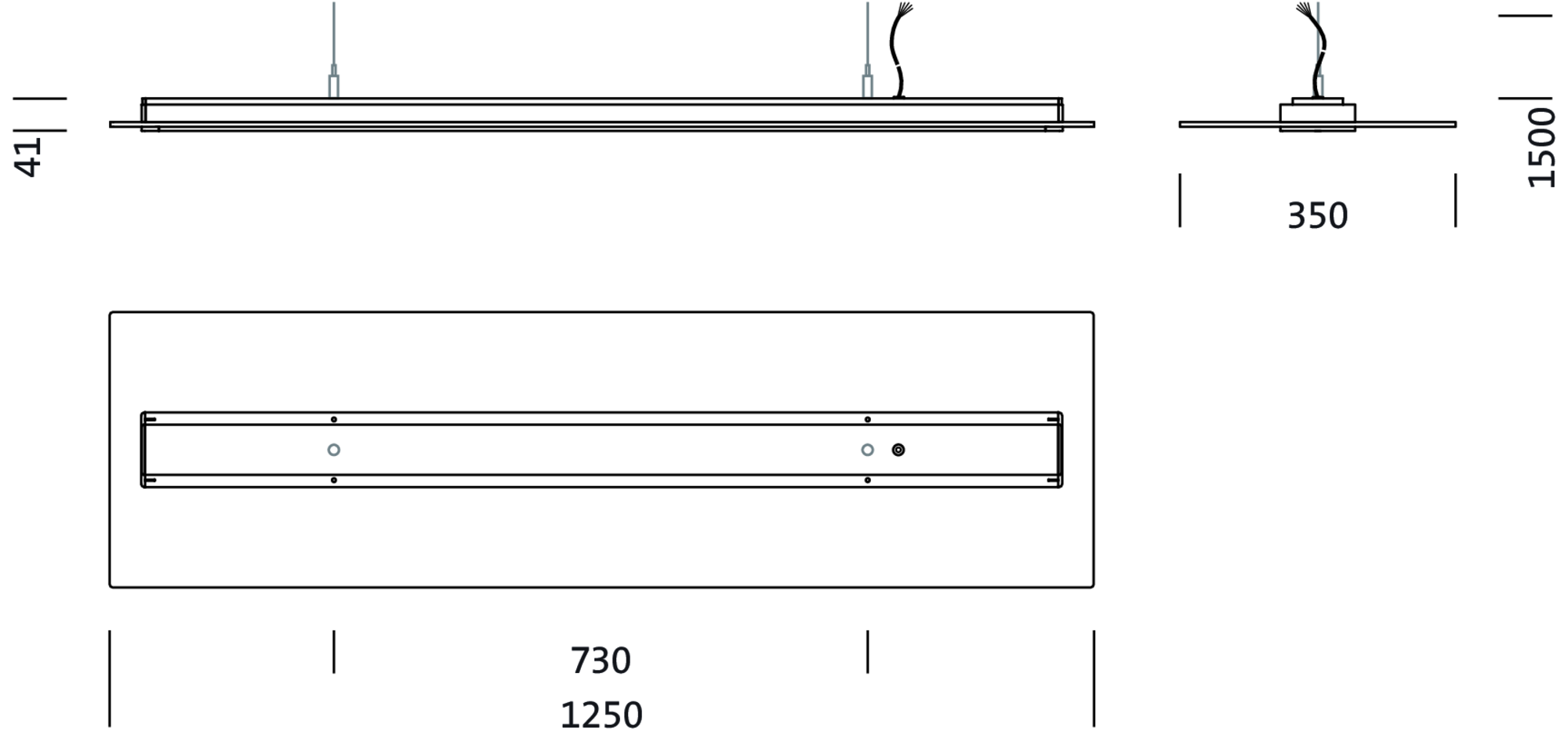

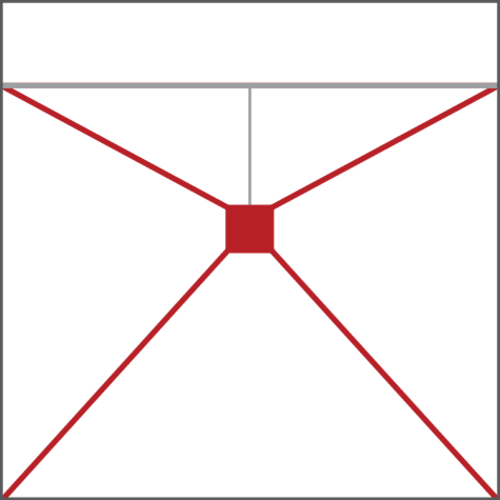

Vega® 11, office luminaire, primary light control with prismatic reflector, of PMMA, transparent prismatic structure, CAT 2 (L<= 1500cd/m²), light emission: direct/indirect distribution, primary light characteristic: symmetric, installation type: suspended mounting, surface-mounted, LED, rated luminous flux: 7.300lm, luminous efficacy: 118lm/W, light colour: 830, colour temperature: 3000K, control gear: DALI, with terminal, 3+2-pole, max. 2.5mm², mains connection: 230V, AC, 50Hz, connection cable inclusive, cable length: 1,5m, rated input power: 62W, luminaire housing, rectangular, rounded, of aluminium section, anodised, metallic grey (RAL 9006), length: 1.250mm, width: 350mm, height: 43mm, luminaire housing, lower part, of aluminium section, anodised, metallic grey (RAL 9006), of PC, grey, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, standard: EN 50419, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

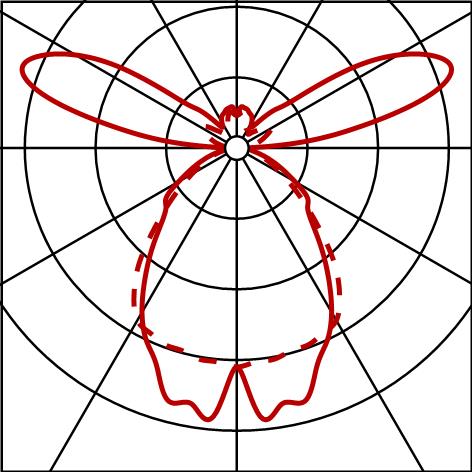

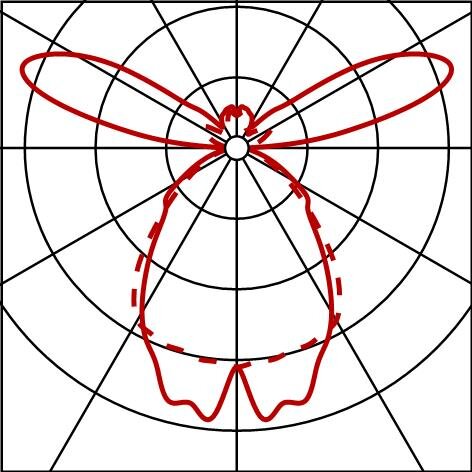

Photometric report / planning data
Vega® 11
office luminaire, metallic grey (RAL 9006), DALI, 7300lm, 830, 1250x350mm, Connection: terminal
Lamps: 1x LED 3000K / CRI >= 80
Order No.: 5MN238DLE003
Vega® 11
Lamps: 1x LED 3000K / CRI >= 80
Order No.: 5MN238DLE003

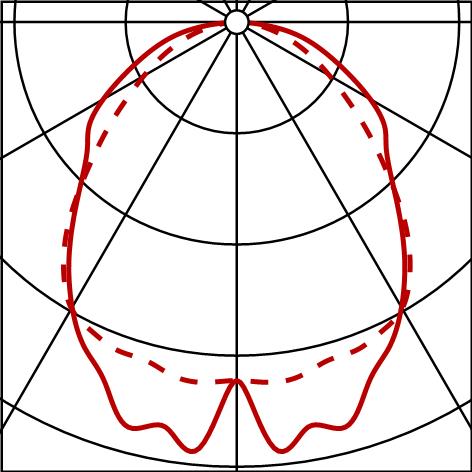

passepartout
Order No.: 5MN91401
Vega® 11
Lamps: 1x LED 3000K / CRI >= 80
Order No.: 5MN238DLE003

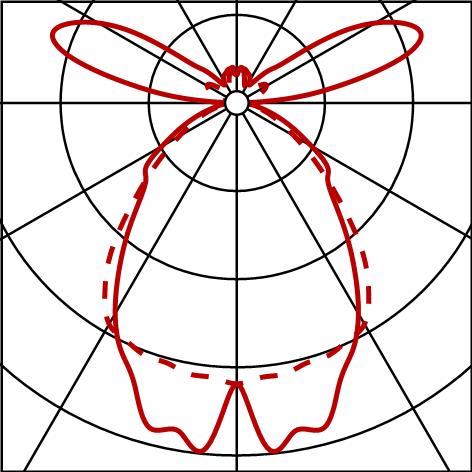

passepartout
Order No.: 5MN91402
