Lunis 11 mini round Spot, narrow distribution, Light colour 840, ON/OFF

Close
Ordercode: 51DH11B73FG22
Remember productRemember product

Article downlight
Product name Lunis 11 mini round Spot
Lamp LED
Rated luminous flux 2760lm
Luminous efficacy 100lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 28W
Service life 50000h (L85/B50) at AT = 25°C
Protection rating IP20
Weight 0.9kg

Lunis 11 mini round, Spot, downlight, LED rated luminous flux: 2.760lm, light colour: 840, with terminal, 5-pole, mains connection: 220..230V, AC, 50/60Hz, LED module, luminaire module, of diecast aluminium, coated, silver, diameter: 176mm, clamping range: 1..40mm, recessing ring, round, of PC, traffic white (RAL 9016), protection rating (complete): IP20, insulation class (complete): insulation class II (safety insulation), certification: CE, permissible ambient temperature for indoor applications: 0..+35°C, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details

Key data

Product type downlight
Product name Lunis 11 mini round Spot
Order No. 51DH11B73FG22

Lighting technology

Beam angle narrow distribution
UGR viewing direction along lateral luminaire axis ≤ 19

Lamps

Lamps with High Power LED, LED
Rated luminous flux 2760lm
Luminous efficacy 100lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 28W

Operating device

Control ON/OFF

Certificates, Standards

Protection rating IP20
Insulation class insulation class II (safety insulation)
Temperature range (operation) 0..+35°C
Certification, designation CE

Material, Colour

LED module diecast aluminium, coated, silver
luminaire module diecast aluminium, coated, silver
Colour specification silver
recessing ring PC, traffic white (RAL 9016), round
Colour specification traffic white (RAL 9016)

Mounting

Mounting method, mounting location recessed, in the ceiling
Ø of ceiling cut-out 162mm
Clamping range 1..40mm
Arrangement single arrangement

Electrical connection

Connection terminal, 5-pole
Nominal voltage 220..230V, 50/60Hz, AC

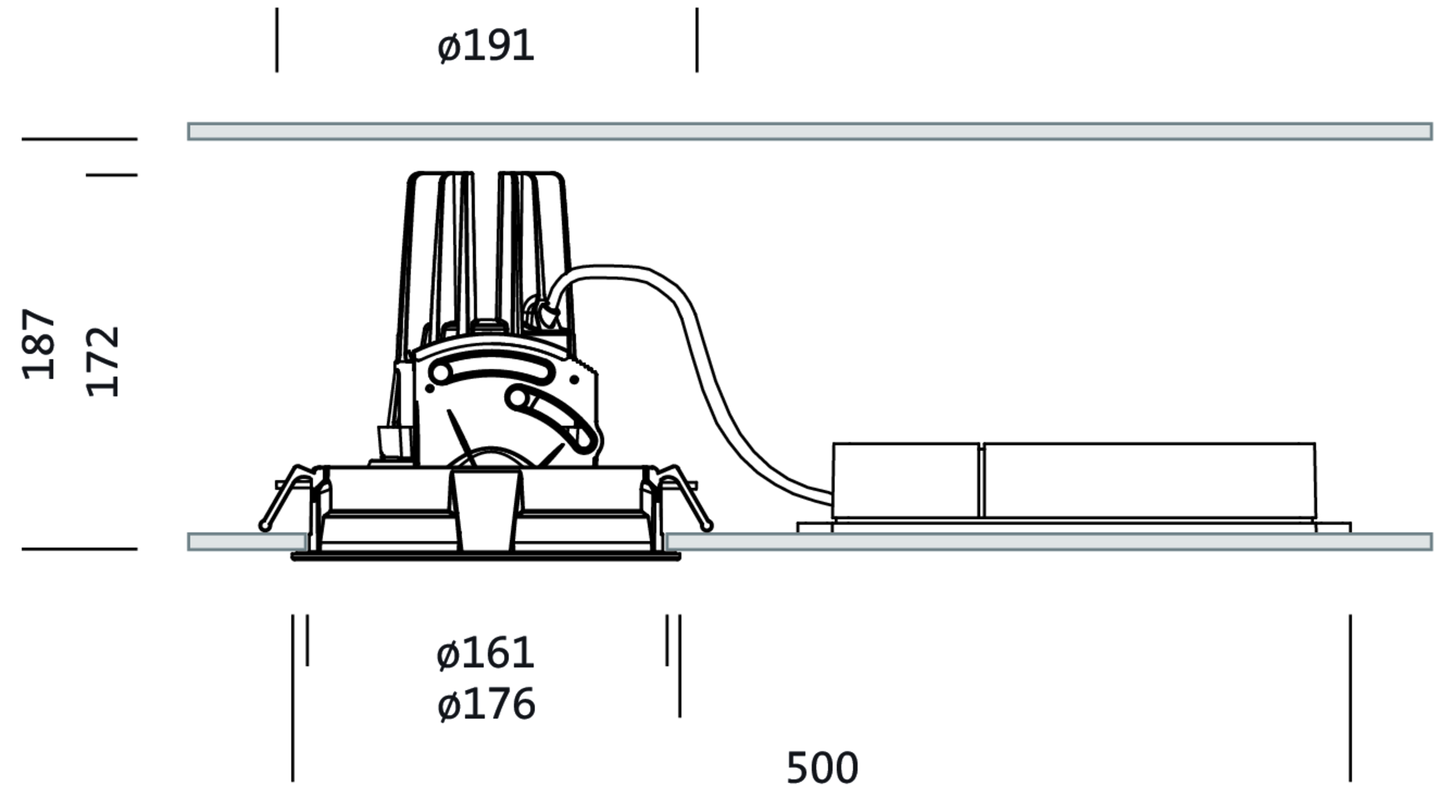

Dimensions, Weight

Diameter 176mm
Height 175mm
Weight 0.9kg

Service life

Rated service life 50000h (L85/B50) at AT = 25°C

Product type
downlight

Product name
Lunis 11 mini round Spot

Order No.
51DH11B73FG22

Beam angle
narrow distribution

UGR viewing direction along lateral luminaire axis
≤ 19

Lamps
with High Power LED, LED

Rated luminous flux
2760lm

Luminous efficacy
100lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
28W

Control
ON/OFF

Protection rating
IP20

Insulation class
insulation class II (safety insulation)

Temperature range (operation)
0..+35°C

Certification, designation
CE

LED module
diecast aluminium, coated, silver

luminaire module
diecast aluminium, coated, silver

Colour specification
silver

recessing ring
PC, traffic white (RAL 9016), round

Colour specification
traffic white (RAL 9016)

Mounting method, mounting location
recessed, in the ceiling

Ø of ceiling cut-out
162mm

Clamping range
1..40mm

Arrangement
single arrangement

Connection
terminal, 5-pole

Nominal voltage
220..230V, 50/60Hz, AC

Diameter
176mm

Height
175mm

Weight
0.9kg

Rated service life
50000h (L85/B50) at AT = 25°C

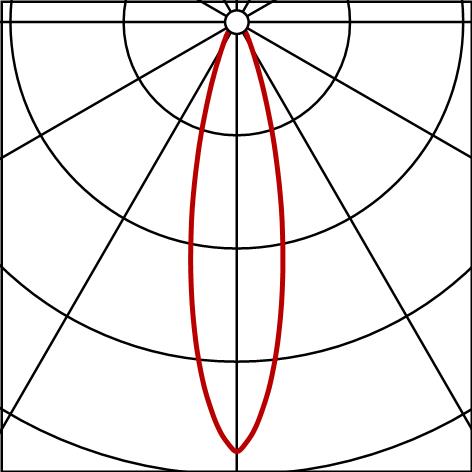

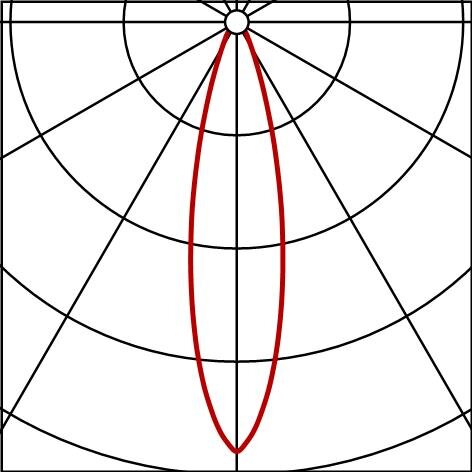

Photometric report / planning data

Lunis 11 mini round
LED, narrow distribution, single arrangement, recessed, in the ceiling, ø= 176mm
Lamps: 1x LED 4000K / CRI >= 80
Ordercode: 51DH11B73FG22

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
Produktvariants/Accessoires

Lunis 11 mini round
Lamps: 1x LED 4000K / CRI >= 80
Ordercode: 51DH11B73FG22

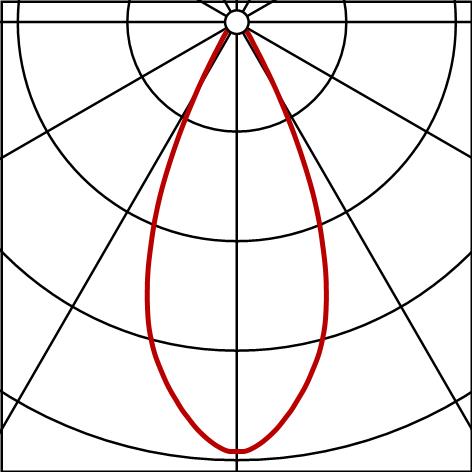

lens
Ordercode: 59DL1L0000G0000D0

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
