Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, matt jet black (RAL 9005)
Close
Article office luminaire
Product name Silica® 21
Lamp LED
Rated luminous flux 14340lm
Luminous efficacy 101lm/W
Colour temperature 2700..6500K
Colour rendering CRI > 80
Rated input power 141.4W
Service life 50000h (L85/B50) at AT = 25°C
Protection rating IP20
Weight 5.5kg
Silica® 21, office luminaire, primary optical cover: prismatic diffuser, of PMMA, CAT 2 (L<= 3000cd/m²), light emission: direct/indirect distribution, primary light characteristic: symmetric, installation type: suspended mounting, LED, rated luminous flux: 14.340lm, luminous efficacy: 101lm/W, light colour: 8tw, colour temperature: 2700..6500K, control gear: DALI DT8, with terminal, 3+2-pole, max. 2.5mm², mains connection: 220..240V, AC, 50/60Hz, rated input power: 141.4W, luminaire housing, of aluminium, matt jet black (RAL 9005), length: 3.004mm, width: 53mm, height: 53mm, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, permissible operating ambient temperature: 0..+35°C, standard: EN 50419, packaging unit: 1 piece
Downloads
Technical product information
Data for application programs
Product details

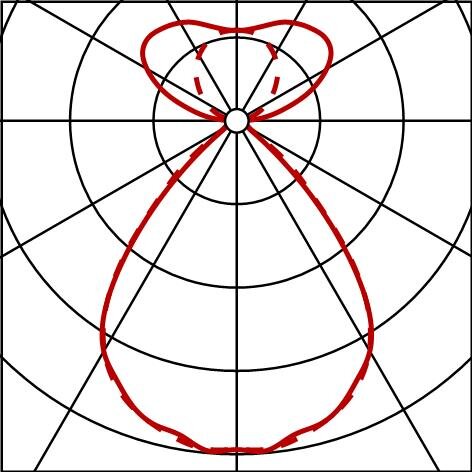

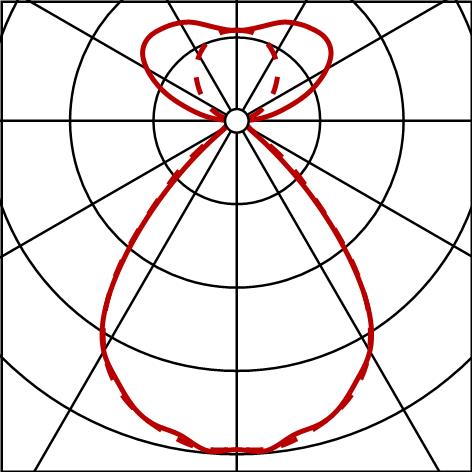

Photometric report / planning data
Silica® 21
office luminaire, matt jet black (RAL 9005), DALI DT8, 14340lm, 8tw, 3004x53mm, Connection: terminal
Lamps: 1x LED, factory setting
Ordercode: 51MX33TCTDB
Silica® 21
Lamps: 1x LED, individual setting
Ordercode: 51MX33TCTDB
Silica® 21
Lamps: 1x LED, individual setting
Ordercode: 51MX33TCTDB
