Order No.: 5LZ905950
Remember articleRemember article

Article control unit

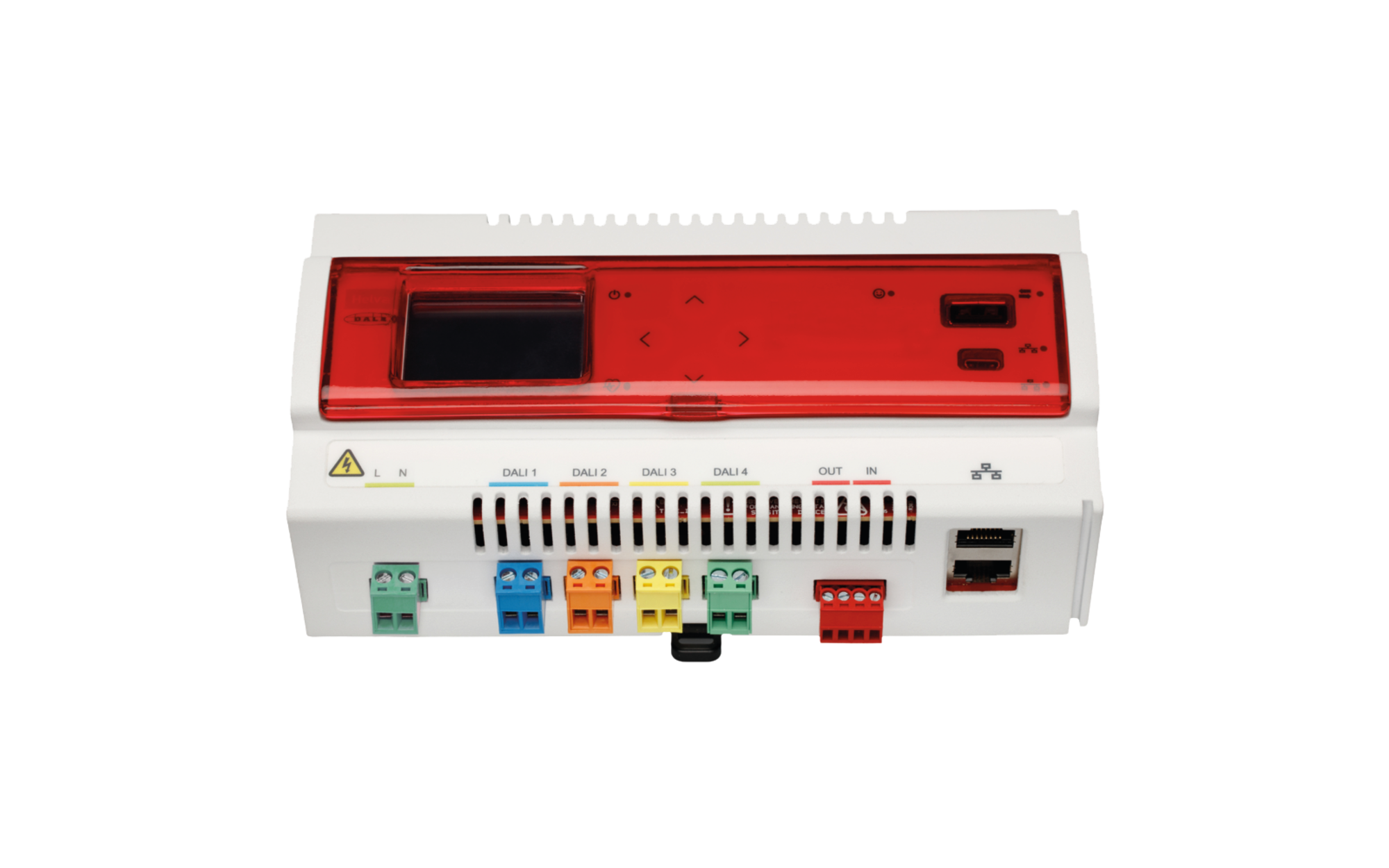

Product name SITECO Connect 21H
Protection rating IP20
Weight 0.5kg

SITECO Connect 21Hcontroller, master, central control - connection to lighting or building management, dimmable, installation type: recessed, installation location: in an electrical distributor, of plastic, part units: 6 part units, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, voltage: 100..240V, voltage type: AC, 1 x network connector Ethernet, 1 x USB/WiFi, 3 x service push button, 4 x DALI-2, 1 x status LED, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

System family SITECO Connect 21H
Product type control unit
Product name SITECO Connect 21H
Order No. 5LZ905950

Control

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Temperature range (operation) 0..+40°C
Certification, designation CE, UKCA

Material, Colour

housing plastic, bright grey, 6 part units
Colour specification bright grey

Mounting

Mounting method, mounting location recessed, in an electrical distributor
Supplement only suitable for use in indoor areas

Electrical connection

Nominal voltage 100..240V, 50/60Hz, AC

Dimensions, Weight

Length 91mm
Width 107mm
Height 62mm
Weight 0.5kg

Inputs

3x service push button
Option for manual control and basic system setting

Outputs

4x DALI-2
System current DALI current 250mA per DALI line
Feature maximum 64 ECG DALI and maximum 63 certified DALI2 sensors/push button interfaces connectable per DALI line, HCLlive function in combination with ECG DT8, averaging with connected light sensors, connection of DALI2 certified sensors

System family
SITECO Connect 21H

Product type
control unit

Product name
SITECO Connect 21H

Order No.
5LZ905950

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
0..+40°C

Certification, designation
CE, UKCA

housing
plastic, bright grey, 6 part units

Colour specification
bright grey

Mounting method, mounting location
recessed, in an electrical distributor

Supplement
only suitable for use in indoor areas

Nominal voltage
100..240V, 50/60Hz, AC

Length
91mm

Width
107mm

Height
62mm

Weight
0.5kg

3x service push button

Option
for manual control and basic system setting

4x DALI-2

System current
DALI current 250mA per DALI line

Feature
maximum 64 ECG DALI and maximum 63 certified DALI2 sensors/push button interfaces connectable per DALI line, HCLlive function in combination with ECG DT8, averaging with connected light sensors, connection of DALI2 certified sensors
