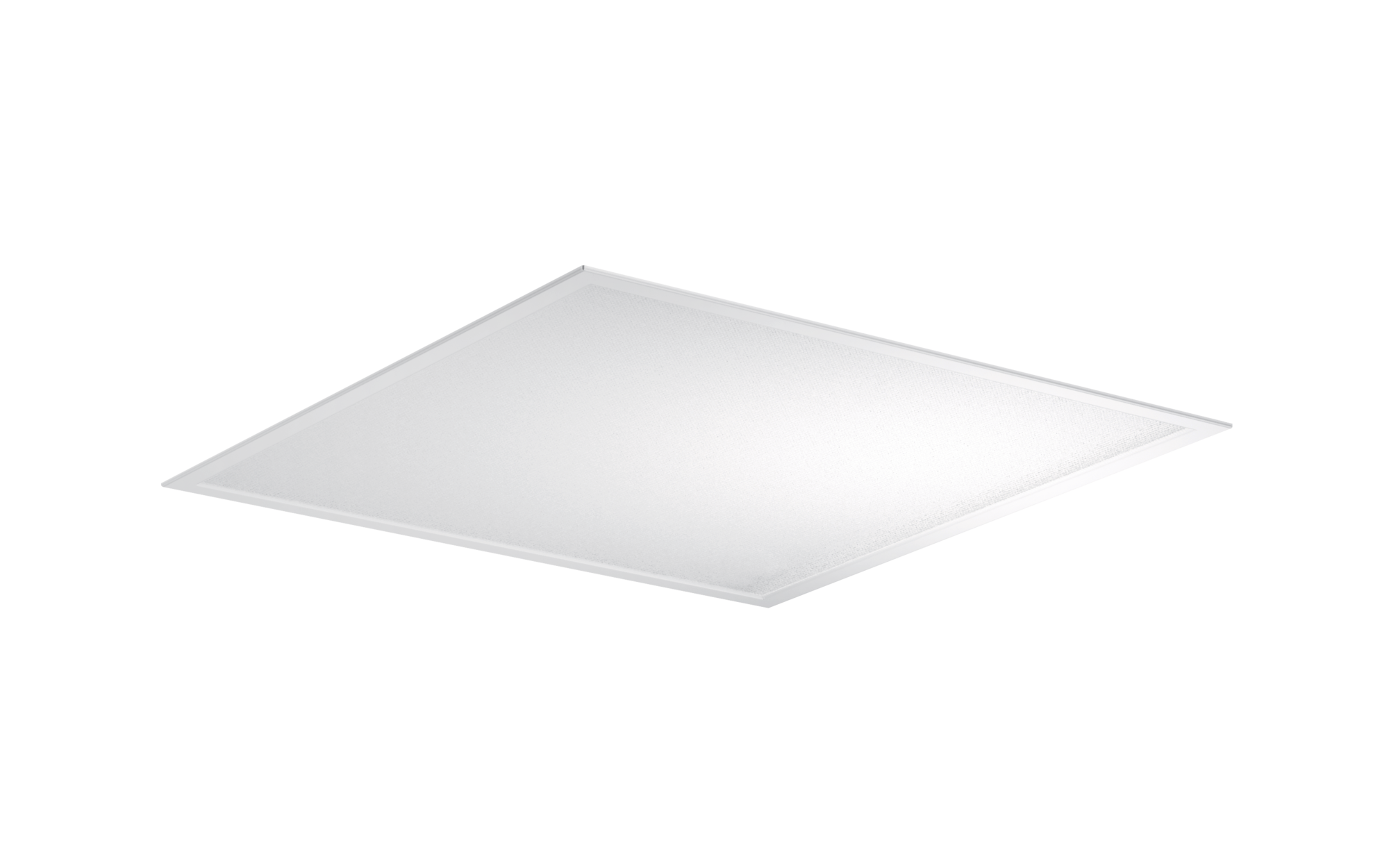

Apollon 21 square, direct distribution, Light colour 840, DALI 2, Multilumen, for M600 and for cut ceiling aperture

Close
Order No.: 51MQ12WD2414
Remember articleRemember article

Article office luminaire
Product name Apollon 21 square
Lamp LED
Rated luminous flux 4200lm
Luminous efficacy 170lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 24.7W
Service life 50000h (L90/B50) at AT = 25°C, 100000h (L80/B50) at AT = 25°C
Protection rating IP20
Impact resistance IK03
Weight 1.8kg

Apollon 21 square, office luminaire, primary optical cover: micro prismatic cover, of PMMA, CAT 2 (L<= 3000cd/m²), light emission: direct distribution, primary light characteristic: symmetric, installation type: lay-in mounting, recessed, LED, rated luminous flux: 4.200lm, luminous efficacy: 170lm/W, light colour: 840, colour temperature: 4000K, control gear: DALI 2, Multilumen, with terminal, 5-pole, mains connection: 220..240V, AC/DC, 0/50..60Hz, rated input power: 24.7W, suitable for self-contained emergency lighting element 59MQE002602A with integrated self-test function according to EN 60598-2-22, housing, of aluminium, coated, traffic white (RAL 9016), module: M600, length: 595mm, width: 595mm, height: 55mm, recess depth: 180mm, housing upper side, of sheet steel, galvanised, protection rating (complete): IP20, protection rating (lamp compartment, on room side): IP50, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, UKCA, impact resistance: IK03, permissible operating ambient temperature: -20..+45°C, standard: EN 60598-2-22, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type office luminaire
Product name Apollon 21 square
Order No. 51MQ12WD2414

Component 1

Lighting technology
Cover micro prismatic cover
Beam angle wide distribution, 90°
Symmetry symmetric
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 19
UGR viewing direction along lateral luminaire axis ≤ 19

Lamps
Lamps with LED
Rated luminous flux 4200lm
Luminous efficacy 170lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 24.7W
Supplement with through-wiring, for emergency light function, for central battery installations according to DIN EN 60598-2-22

Operating device
Control DALI 2, Multilumen

Component 2

Operating device
Switching method suitable for self-contained emergency lighting element 59MQE002602A with integrated self-test function according to EN 60598-2-22

Certificates, Standards

Protection rating IP20
Protection rating (lamp compartment, on room side) IP50
Insulation class insulation class II (safety insulation)
Impact resistance IK03
Temperature range (operation) -20..+45°C
Standard EN 60598-2-22
Certification, designation CE, ENEC, UKCA

Material, Colour

housing aluminium, coated, traffic white (RAL 9016)
Colour specification traffic white (RAL 9016)
housing upper side sheet steel, galvanised
Cover micro prismatic cover of PMMA

Mounting

Mounting method, mounting location recessed, lay-in mounting, in the ceiling
Arrangement single arrangement
Supplement please order the required mounting accessories for ceiling recessing separately

Electrical connection

Connection terminal, 5-pole
Nominal voltage 220..240V, 0/50..60Hz, AC/DC

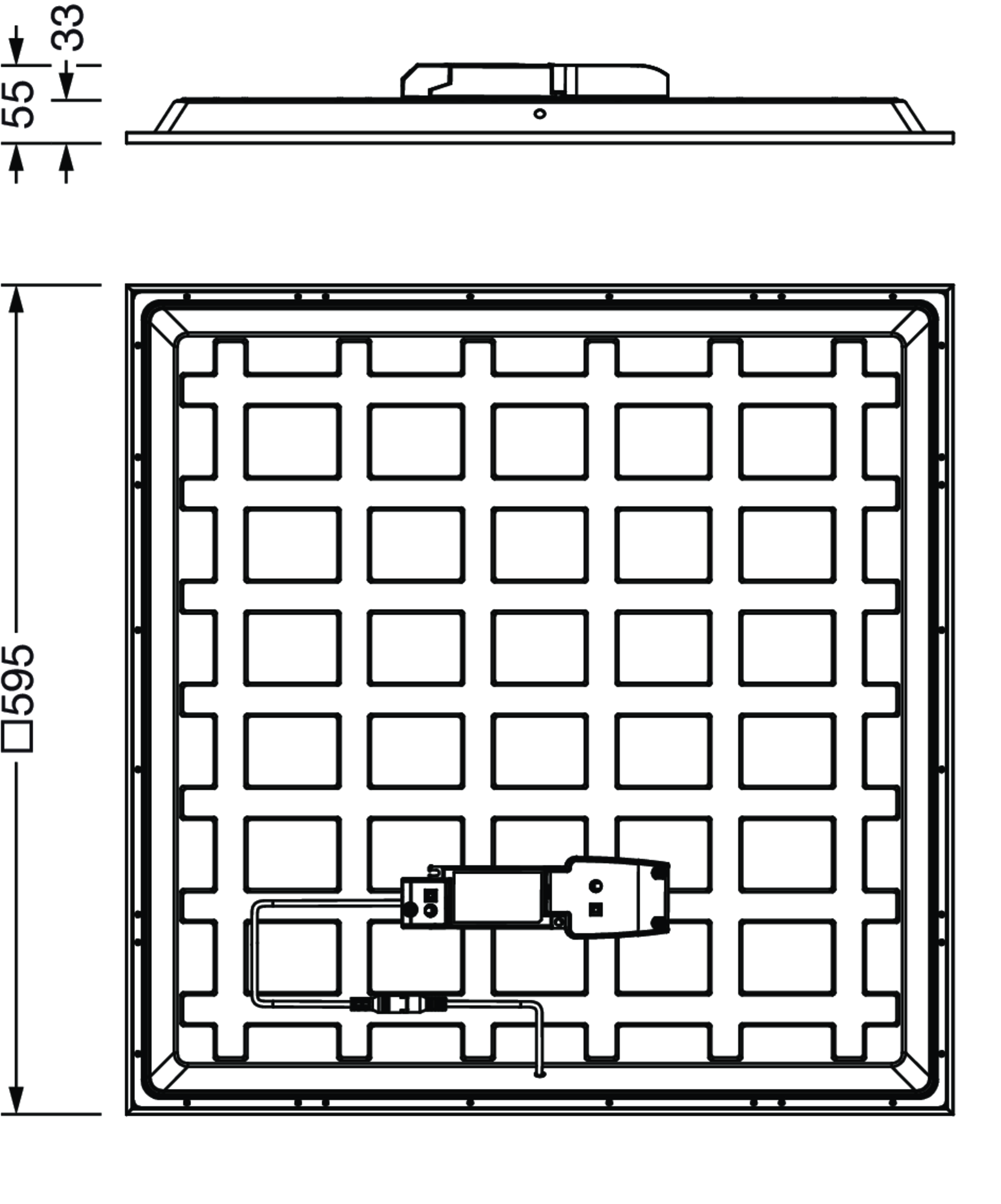

Dimensions, Weight

Length 595mm
Width 595mm
Height 55mm
Recess depth 180mm
Weight 1.8kg

Service life

Rated service life 100000h (L80/B50) at AT = 25°C, 50000h (L90/B50) at AT = 25°C

Product type
office luminaire

Product name
Apollon 21 square

Order No.
51MQ12WD2414

Lighting technology

Cover
micro prismatic cover

Beam angle
wide distribution, 90°

Symmetry
symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 19

UGR viewing direction along lateral luminaire axis
≤ 19

Lamps

Lamps
with LED

Rated luminous flux
4200lm

Luminous efficacy
170lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
24.7W

Supplement
with through-wiring, for emergency light function, for central battery installations according to DIN EN 60598-2-22

Operating device

Control
DALI 2, Multilumen

Operating device

Switching method
suitable for self-contained emergency lighting element 59MQE002602A with integrated self-test function according to EN 60598-2-22

Protection rating
IP20

Protection rating (lamp compartment, on room side)
IP50

Insulation class
insulation class II (safety insulation)

Impact resistance
IK03

Temperature range (operation)
-20..+45°C

Standard
EN 60598-2-22

Certification, designation
CE, ENEC, UKCA

housing
aluminium, coated, traffic white (RAL 9016)

Colour specification
traffic white (RAL 9016)

housing upper side
sheet steel, galvanised

Cover
micro prismatic cover of PMMA

Mounting method, mounting location
recessed, lay-in mounting, in the ceiling

Arrangement
single arrangement

Supplement
please order the required mounting accessories for ceiling recessing separately

Connection
terminal, 5-pole

Nominal voltage
220..240V, 0/50..60Hz, AC/DC

Length
595mm

Width
595mm

Height
55mm

Recess depth
180mm

Weight
1.8kg

Rated service life
100000h (L80/B50) at AT = 25°C, 50000h (L90/B50) at AT = 25°C

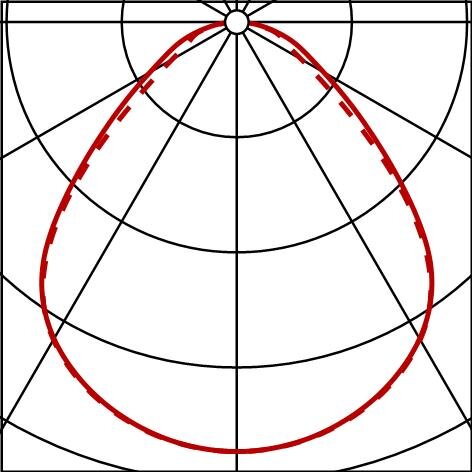

Photometric report / planning data

Apollon 21 square
office luminaire, traffic white (RAL 9016), DALI 2, Multilumen, 4200lm, 840, 595x595mm, for M600 and for cut ceiling aperture, Connection: terminal
Lamps: 1x LED
Order No.: 51MQ12WD2414

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
