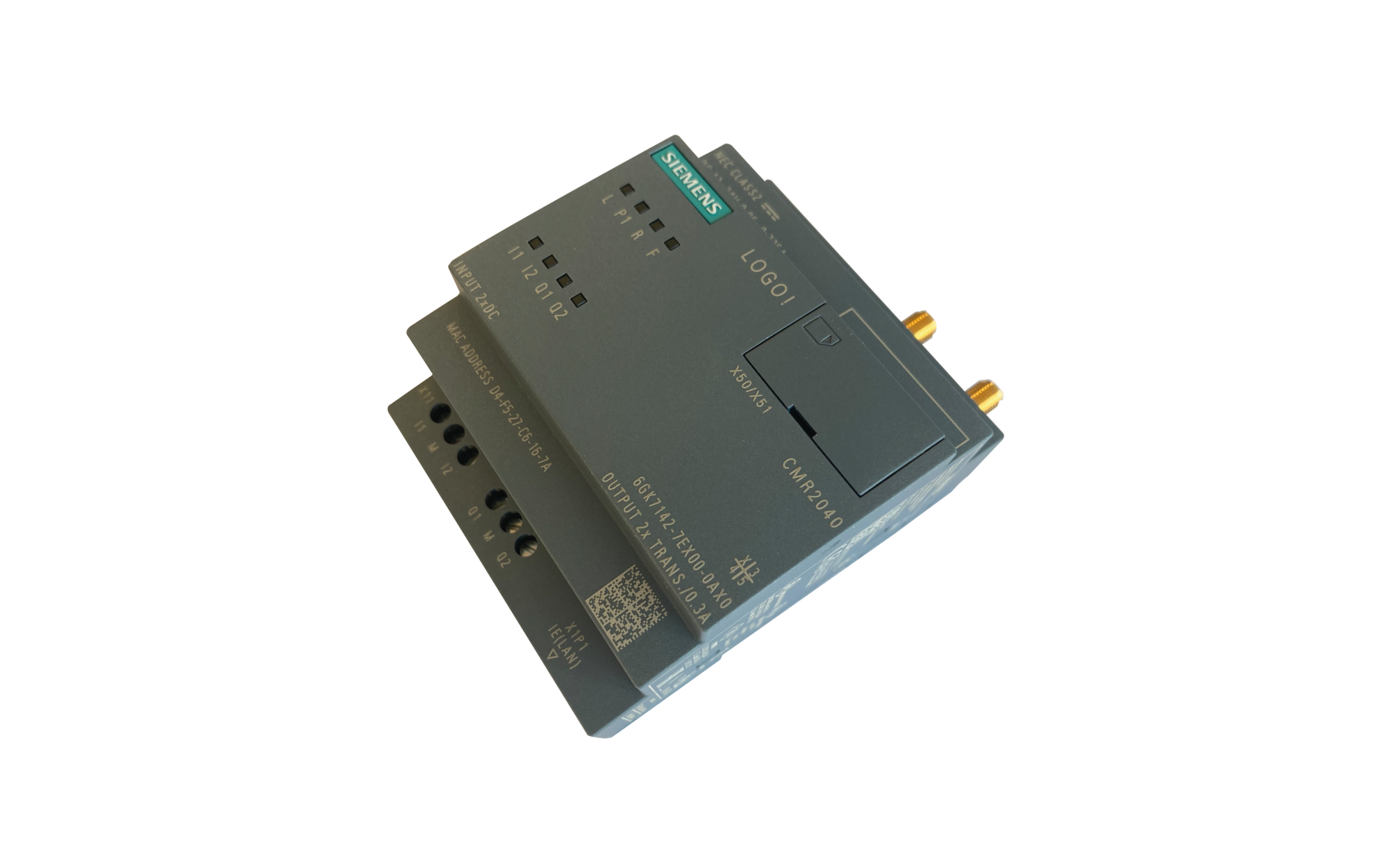

SITECO Connect Group, for DIN rail mounting

Close
Ordercode: 5EA1SLCOM01
Remember productRemember product

Article communication module
Product name SITECO Connect Group
Protection rating IP20
Weight 0.2kg

SITECO Connect Group, communication module, installation type: DIN rail mounting, mains connection: 12/24V, DC, housing, of plastic, grey, 4 part units, length: 58mm, width: 72mm, height: 90mm, communication module, equipment: slot for SIM card, slot for microSD card, protection rating (complete): IP20, certification: CE, permissible operating ambient temperature for outdoor applications: -20..+70°C, permissible storage temperature: -20..+85°C, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details

Key data

System family SITECO Connect Group
Product type communication module
Product name SITECO Connect Group
Order No. 5EA1SLCOM01

Certificates, Standards

Protection rating IP20
Temperature range (operation) -20..+70°C
Certification, designation CE

Material, Colour

housing plastic, grey, 4 part units
Colour specification grey

Mounting

Mounting method, mounting location DIN rail mounting, in a switching cabinet

Electrical connection

Nominal voltage 12/24V, DC

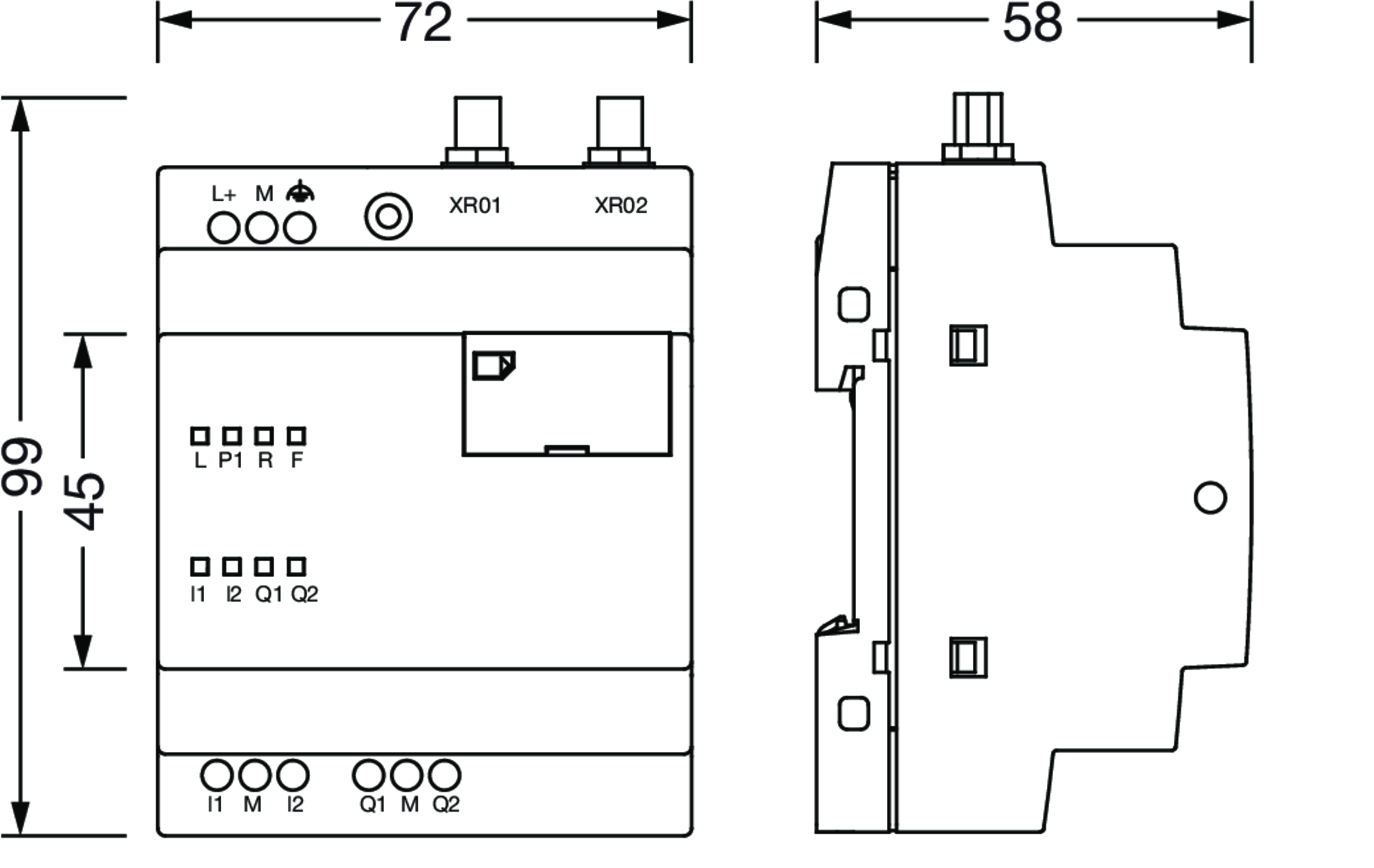

Dimensions, Weight

Length 58mm
Width 72mm
Height 90mm
Weight 0.2kg

Inputs

1x antenna connection for cellular network (SMA Female)
Protocol GPRS/GSM, UMTS, LTE (2G/4G)

System family
SITECO Connect Group

Product type
communication module

Product name
SITECO Connect Group

Order No.
5EA1SLCOM01

Protection rating
IP20

Temperature range (operation)
-20..+70°C

Certification, designation
CE

housing
plastic, grey, 4 part units

Colour specification
grey

Mounting method, mounting location
DIN rail mounting, in a switching cabinet

Nominal voltage
12/24V, DC

Length
58mm

Width
72mm

Height
90mm

Weight
0.2kg

1x antenna connection for cellular network (SMA Female)

Protocol
GPRS/GSM, UMTS, LTE (2G/4G)
