DL® 50 iQ

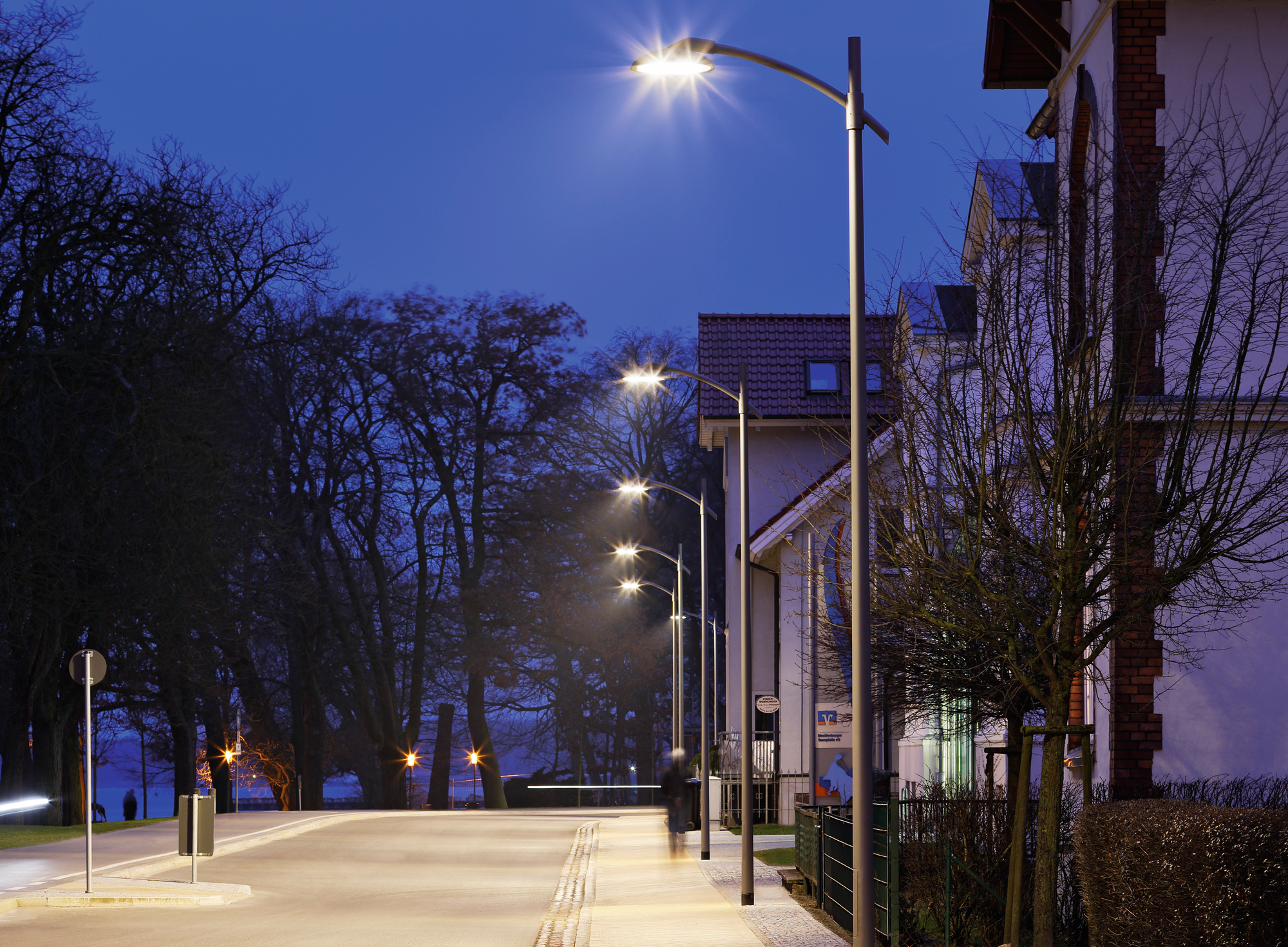

Whether on the wire, on the mast or on the bracket, whether decorative or technical - the DL® 50 iQ with central lens technology offers maximum flexibility in urban planning. With a large number of installation variants, different lumen packages and three light colours, a wide range of applications is possible, from small paths to multi-lane main traffic arteries. And thanks to the patented SITECO iQ control electronics, the full potential of intelligent lighting control is unleashed – for lighting the city of tomorrow.
DL® 50 iQ. One for all
Product types
DL® 50 iQ mini Smart Interface
Intro product family
Key data

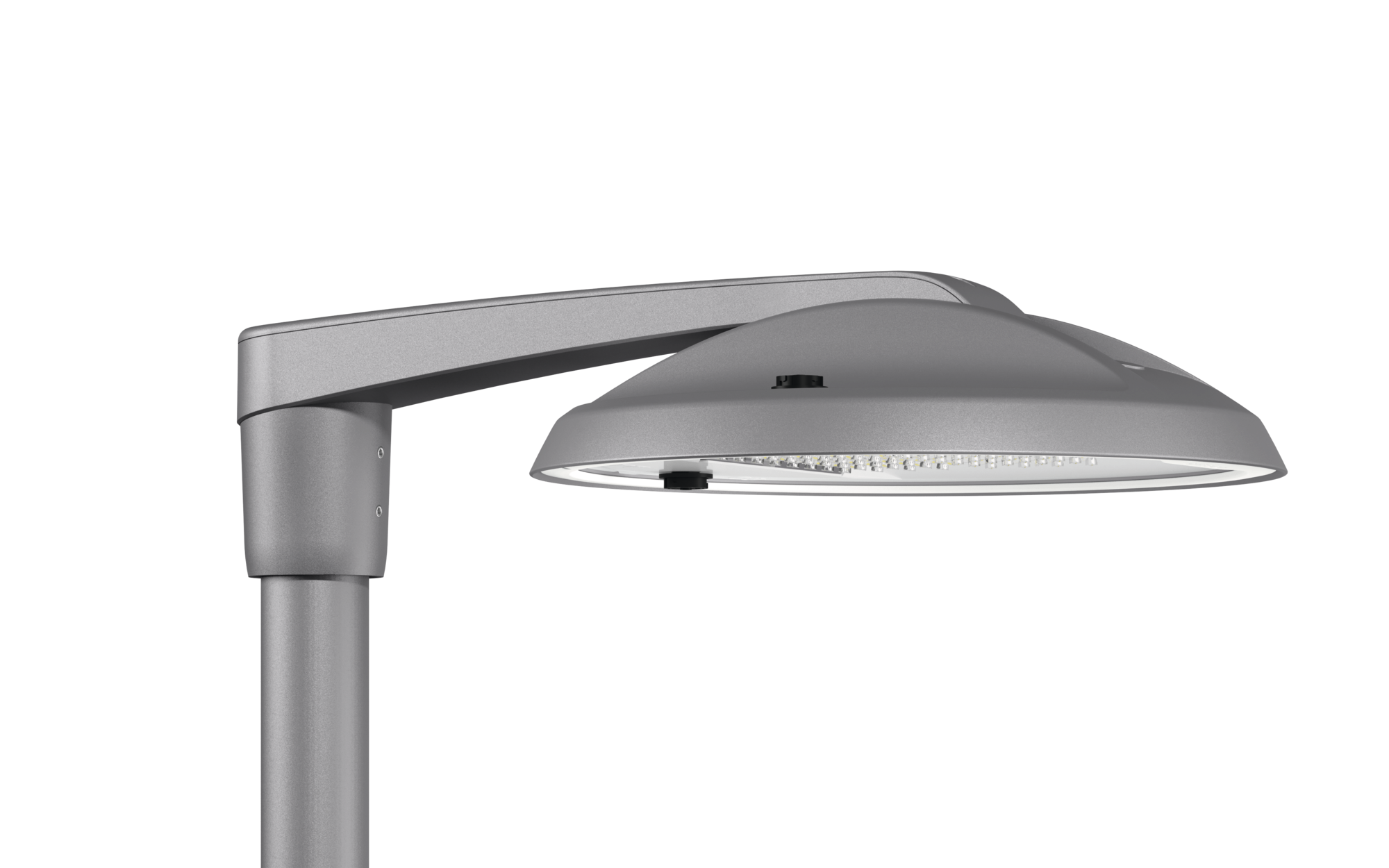

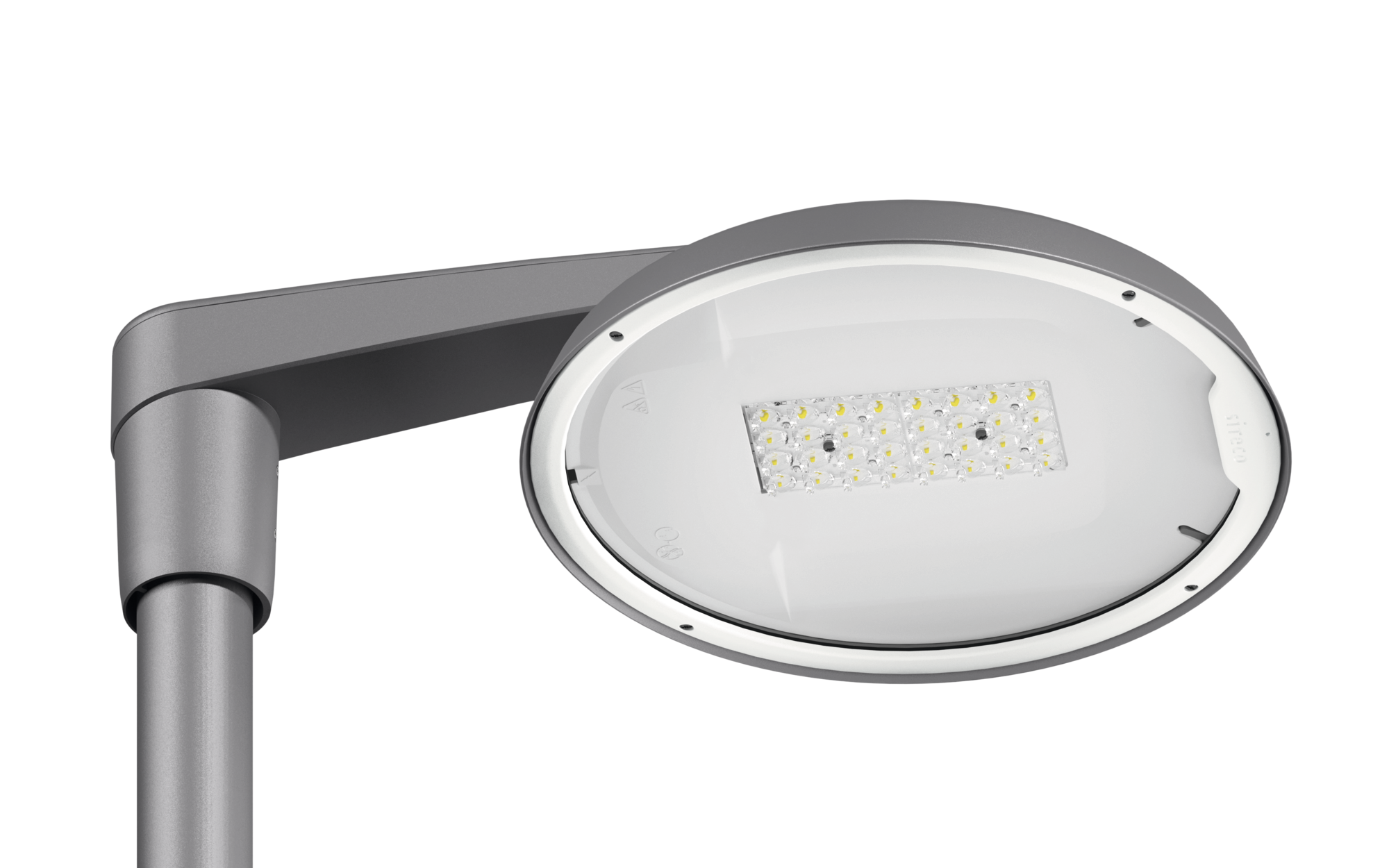

Article mast luminaire
Net luminous flux 2700lm to 17900lm
Colour temperature 3000K
Lighting effect direct asymmetric wide distribution
Light distribution ST1.0a
Protection rating IP66
Insulation class insulation class II (safety insulation)
Special features
Technical-decorative solution as a mast and catenary luminaire with a wide range of variants for all urban applications with Smart Interface
Resource-saving and good for the environment: 90% of the luminaire retained after replacing the LED unit or gear tray
Digital interface for automatic communication when replacing ECGs or modules – individual pre-configuration of the luminaire ex-works on request
Uncomplicated installation thanks to pre-installed connection cable for mast luminaires and plug-in system with catenary luminaires
Various control options, intelligent dimming function, CLO 2.0 and Smart Interface (Zhaga & D4i) for smart city applications
With a variety of series types and additional configuration options, the DL® 50 iQ is always exactly the luminaire you need. With different light colours, optics and mounting options. And always as flexible as you want - straight from the factory and prepared for the future
Configuration & data sheets
- Please order mast post-top element or mast side-entry element separately according to version
- please order reducer according to spigot size separately if required
- luminaire includes pre-assembled connection cable, l = 6.5m (low luminous flux levels), l = 8.5m (high luminous flux levels)
- further light distributions, light colours, customer-specific programming and connection cable variants on request
Results
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface above
Order No.: 5XA248D31V08FE GTIN (EAN): 4069025023636
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 2700lm | ST1.0a | iQ-Street Remote, D4i with power reduction | 16 | 17 | 8 | 10.5 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface above
Order No.: 5XA248D31V08GE GTIN (EAN): 4069025023650
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 5200lm | ST1.0a | iQ-Street Remote, D4i with power reduction | 32 | 33 | 15 | 10.5 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface above
Order No.: 5XA248D31V08HE GTIN (EAN): 4058352055717
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 8160lm | ST1.0a | iQ-Street Remote, D4i with power reduction | 57 | 60 | 25 | 10.9 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface above
Order No.: 5XA248D31V08KE GTIN (EAN): 4058352055755
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 5510lm | ST1.0a | iQ-Street Remote, D4i with power reduction | 32 | 33 | 25 | 10.5 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface above
Order No.: 5XA248D31V08JE GTIN (EAN): 4058352055731
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 9570lm | ST1.0a | iQ-Street Remote, D4i with power reduction | 56 | 58 | 26 | 10.9 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface above
Order No.: 5XA248D31V08RE GTIN (EAN): 4069025023674
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 6010lm | ST1.0a | iQ-Street Remote, D4i with power reduction | 35 | 36 | 17 | 11.1 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface above
Order No.: 5XA248D31V08LE GTIN (EAN): 4058352055779
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 10390lm | ST1.0a | iQ-Street Remote, D4i with power reduction | 66 | 69 | 30 | 11.6 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface above
Order No.: 5XA248D31V08ME GTIN (EAN): 4058352055793
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 15720lm | ST1.0a | iQ-Street Remote, D4i with power reduction | 107 | 113 | 47 | 12.2 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface above
Order No.: 5XA248D31V08NE GTIN (EAN): 4058352055816
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 17900lm | ST1.0a | iQ-Street Remote, D4i with power reduction | 110 | 116 | 50 | 12.2 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below
Order No.: 5XA248D31U08FE GTIN (EAN): 4069025023476
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 2700lm | ST1.0a | iQ-Street Remote, D4i with power reduction | 16 | 17 | 8 | 10.5 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below
Order No.: 5XA248D31U08GE GTIN (EAN): 4069025023490
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 5200lm | ST1.0a | iQ-Street Remote, D4i with power reduction | 32 | 33 | 15 | 10.5 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below
Order No.: 5XA248D31U08HE GTIN (EAN): 4069025023513
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 8160lm | ST1.0a | iQ-Street Remote, D4i with power reduction | 57 | 60 | 25 | 10.9 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below
Order No.: 5XA248D31U08KE GTIN (EAN): 4069025023551
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 5510lm | ST1.0a | iQ-Street Remote, D4i with power reduction | 32 | 33 | 15 | 10.5 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below
Order No.: 5XA248D31U08JE GTIN (EAN): 4069025023537
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 9570lm | ST1.0a | iQ-Street Remote, D4i with power reduction | 56 | 58 | 26 | 10.9 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below
Order No.: 5XA248D31U08RE GTIN (EAN): 4069025023612
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 6010lm | ST1.0a | iQ-Street Remote, D4i with power reduction | 35 | 36 | 17 | 11.1 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below
Order No.: 5XA248D31U08LE GTIN (EAN): 4069025023575
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 10390lm | ST1.0a | iQ-Street Remote, D4i with power reduction | 66 | 69 | 30 | 11.6 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below
Order No.: 5XA248D31U08ME GTIN (EAN): 4069025023605
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 15720lm | ST1.0a | iQ-Street Remote, D4i with power reduction | 107 | 113 | 47 | 12.2 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below
Order No.: 5XA248D31U08NE GTIN (EAN): 4058352030219
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 17900lm | ST1.0a | iQ-Street Remote, D4i with power reduction | 110 | 116 | 50 | 12.2 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below and above
Order No.: 5XA248D31Y08FE GTIN (EAN): 4058352030233
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 2700lm | ST1.0a | iQ-Street Remote, D4i with power reduction | 16 | 17 | 8 | 10.5 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below and above
Order No.: 5XA248D31Y08GE GTIN (EAN): 4058352030257
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 5200lm | ST1.0a | iQ-Street Remote, D4i with power reduction | 32 | 33 | 15 | 10.5 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below and above
Order No.: 5XA248D31Y08HE GTIN (EAN): 4058352030288
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 8160lm | ST1.0a | iQ-Street Remote, D4i with power reduction | 57 | 60 | 25 | 10.9 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below and above
Order No.: 5XA248D31Y08KE GTIN (EAN): 4069025023711
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 5510lm | ST1.0a | iQ-Street Remote, D4i with power reduction | 32 | 33 | 15 | 10.5 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below and above
Order No.: 5XA248D31Y08JE GTIN (EAN): 4069025023698
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 9570lm | ST1.0a | iQ-Street Remote, D4i with power reduction | 56 | 58 | 26 | 10.9 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below and above
Order No.: 5XA248D31Y08RE GTIN (EAN): 4069025023766
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 6010lm | ST1.0a | iQ-Street Remote, D4i with power reduction | 35 | 36 | 17 | 11.1 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below and above
Order No.: 5XA248D31Y08LE GTIN (EAN): 4058352990728
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 10390lm | ST1.0a | iQ-Street Remote, D4i with power reduction | 66 | 69 | 30 | 11.6 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below and above
Order No.: 5XA248D31Y08ME GTIN (EAN): 4058352990735
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 15720lm | ST1.0a | iQ-Street Remote, D4i with power reduction | 107 | 113 | 47 | 12.2 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below and above
Order No.: 5XA248D31Y08NE GTIN (EAN): 4069025023735
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 17900lm | ST1.0a | iQ-Street Remote, D4i with power reduction | 110 | 116 | 50 | 12.2 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface above
Order No.: 5XA248D31V08FEGTIN (EAN): 4069025023636
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 2700lm |
| Light distribution | ST1.0a |
| Control | iQ-Street Remote, D4i with power reduction |
| Pnom begin service life | 16 |
| Pnom end service life | 17 |
| Pred at 50% lumin. flux | 8 |
| Wt. (kg) | 10.5 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface above
Order No.: 5XA248D31V08GEGTIN (EAN): 4069025023650
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 5200lm |
| Light distribution | ST1.0a |
| Control | iQ-Street Remote, D4i with power reduction |
| Pnom begin service life | 32 |
| Pnom end service life | 33 |
| Pred at 50% lumin. flux | 15 |
| Wt. (kg) | 10.5 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface above
Order No.: 5XA248D31V08HEGTIN (EAN): 4058352055717
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 8160lm |
| Light distribution | ST1.0a |
| Control | iQ-Street Remote, D4i with power reduction |
| Pnom begin service life | 57 |
| Pnom end service life | 60 |
| Pred at 50% lumin. flux | 25 |
| Wt. (kg) | 10.9 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface above
Order No.: 5XA248D31V08KEGTIN (EAN): 4058352055755
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 5510lm |
| Light distribution | ST1.0a |
| Control | iQ-Street Remote, D4i with power reduction |
| Pnom begin service life | 32 |
| Pnom end service life | 33 |
| Pred at 50% lumin. flux | 25 |
| Wt. (kg) | 10.5 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface above
Order No.: 5XA248D31V08JEGTIN (EAN): 4058352055731
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 9570lm |
| Light distribution | ST1.0a |
| Control | iQ-Street Remote, D4i with power reduction |
| Pnom begin service life | 56 |
| Pnom end service life | 58 |
| Pred at 50% lumin. flux | 26 |
| Wt. (kg) | 10.9 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface above
Order No.: 5XA248D31V08REGTIN (EAN): 4069025023674
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 6010lm |
| Light distribution | ST1.0a |
| Control | iQ-Street Remote, D4i with power reduction |
| Pnom begin service life | 35 |
| Pnom end service life | 36 |
| Pred at 50% lumin. flux | 17 |
| Wt. (kg) | 11.1 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface above
Order No.: 5XA248D31V08LEGTIN (EAN): 4058352055779
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 10390lm |
| Light distribution | ST1.0a |
| Control | iQ-Street Remote, D4i with power reduction |
| Pnom begin service life | 66 |
| Pnom end service life | 69 |
| Pred at 50% lumin. flux | 30 |
| Wt. (kg) | 11.6 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface above
Order No.: 5XA248D31V08MEGTIN (EAN): 4058352055793
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 15720lm |
| Light distribution | ST1.0a |
| Control | iQ-Street Remote, D4i with power reduction |
| Pnom begin service life | 107 |
| Pnom end service life | 113 |
| Pred at 50% lumin. flux | 47 |
| Wt. (kg) | 12.2 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface above
Order No.: 5XA248D31V08NEGTIN (EAN): 4058352055816
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 17900lm |
| Light distribution | ST1.0a |
| Control | iQ-Street Remote, D4i with power reduction |
| Pnom begin service life | 110 |
| Pnom end service life | 116 |
| Pred at 50% lumin. flux | 50 |
| Wt. (kg) | 12.2 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below
Order No.: 5XA248D31U08FEGTIN (EAN): 4069025023476
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 2700lm |
| Light distribution | ST1.0a |
| Control | iQ-Street Remote, D4i with power reduction |
| Pnom begin service life | 16 |
| Pnom end service life | 17 |
| Pred at 50% lumin. flux | 8 |
| Wt. (kg) | 10.5 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below
Order No.: 5XA248D31U08GEGTIN (EAN): 4069025023490
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 5200lm |
| Light distribution | ST1.0a |
| Control | iQ-Street Remote, D4i with power reduction |
| Pnom begin service life | 32 |
| Pnom end service life | 33 |
| Pred at 50% lumin. flux | 15 |
| Wt. (kg) | 10.5 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below
Order No.: 5XA248D31U08HEGTIN (EAN): 4069025023513
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 8160lm |
| Light distribution | ST1.0a |
| Control | iQ-Street Remote, D4i with power reduction |
| Pnom begin service life | 57 |
| Pnom end service life | 60 |
| Pred at 50% lumin. flux | 25 |
| Wt. (kg) | 10.9 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below
Order No.: 5XA248D31U08KEGTIN (EAN): 4069025023551
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 5510lm |
| Light distribution | ST1.0a |
| Control | iQ-Street Remote, D4i with power reduction |
| Pnom begin service life | 32 |
| Pnom end service life | 33 |
| Pred at 50% lumin. flux | 15 |
| Wt. (kg) | 10.5 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below
Order No.: 5XA248D31U08JEGTIN (EAN): 4069025023537
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 9570lm |
| Light distribution | ST1.0a |
| Control | iQ-Street Remote, D4i with power reduction |
| Pnom begin service life | 56 |
| Pnom end service life | 58 |
| Pred at 50% lumin. flux | 26 |
| Wt. (kg) | 10.9 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below
Order No.: 5XA248D31U08REGTIN (EAN): 4069025023612
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 6010lm |
| Light distribution | ST1.0a |
| Control | iQ-Street Remote, D4i with power reduction |
| Pnom begin service life | 35 |
| Pnom end service life | 36 |
| Pred at 50% lumin. flux | 17 |
| Wt. (kg) | 11.1 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below
Order No.: 5XA248D31U08LEGTIN (EAN): 4069025023575
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 10390lm |
| Light distribution | ST1.0a |
| Control | iQ-Street Remote, D4i with power reduction |
| Pnom begin service life | 66 |
| Pnom end service life | 69 |
| Pred at 50% lumin. flux | 30 |
| Wt. (kg) | 11.6 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below
Order No.: 5XA248D31U08MEGTIN (EAN): 4069025023605
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 15720lm |
| Light distribution | ST1.0a |
| Control | iQ-Street Remote, D4i with power reduction |
| Pnom begin service life | 107 |
| Pnom end service life | 113 |
| Pred at 50% lumin. flux | 47 |
| Wt. (kg) | 12.2 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below
Order No.: 5XA248D31U08NEGTIN (EAN): 4058352030219
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 17900lm |
| Light distribution | ST1.0a |
| Control | iQ-Street Remote, D4i with power reduction |
| Pnom begin service life | 110 |
| Pnom end service life | 116 |
| Pred at 50% lumin. flux | 50 |
| Wt. (kg) | 12.2 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below and above
Order No.: 5XA248D31Y08FEGTIN (EAN): 4058352030233
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 2700lm |
| Light distribution | ST1.0a |
| Control | iQ-Street Remote, D4i with power reduction |
| Pnom begin service life | 16 |
| Pnom end service life | 17 |
| Pred at 50% lumin. flux | 8 |
| Wt. (kg) | 10.5 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below and above
Order No.: 5XA248D31Y08GEGTIN (EAN): 4058352030257
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 5200lm |
| Light distribution | ST1.0a |
| Control | iQ-Street Remote, D4i with power reduction |
| Pnom begin service life | 32 |
| Pnom end service life | 33 |
| Pred at 50% lumin. flux | 15 |
| Wt. (kg) | 10.5 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below and above
Order No.: 5XA248D31Y08HEGTIN (EAN): 4058352030288
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 8160lm |
| Light distribution | ST1.0a |
| Control | iQ-Street Remote, D4i with power reduction |
| Pnom begin service life | 57 |
| Pnom end service life | 60 |
| Pred at 50% lumin. flux | 25 |
| Wt. (kg) | 10.9 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below and above
Order No.: 5XA248D31Y08KEGTIN (EAN): 4069025023711
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 5510lm |
| Light distribution | ST1.0a |
| Control | iQ-Street Remote, D4i with power reduction |
| Pnom begin service life | 32 |
| Pnom end service life | 33 |
| Pred at 50% lumin. flux | 15 |
| Wt. (kg) | 10.5 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below and above
Order No.: 5XA248D31Y08JEGTIN (EAN): 4069025023698
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 9570lm |
| Light distribution | ST1.0a |
| Control | iQ-Street Remote, D4i with power reduction |
| Pnom begin service life | 56 |
| Pnom end service life | 58 |
| Pred at 50% lumin. flux | 26 |
| Wt. (kg) | 10.9 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below and above
Order No.: 5XA248D31Y08REGTIN (EAN): 4069025023766
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 6010lm |
| Light distribution | ST1.0a |
| Control | iQ-Street Remote, D4i with power reduction |
| Pnom begin service life | 35 |
| Pnom end service life | 36 |
| Pred at 50% lumin. flux | 17 |
| Wt. (kg) | 11.1 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below and above
Order No.: 5XA248D31Y08LEGTIN (EAN): 4058352990728
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 10390lm |
| Light distribution | ST1.0a |
| Control | iQ-Street Remote, D4i with power reduction |
| Pnom begin service life | 66 |
| Pnom end service life | 69 |
| Pred at 50% lumin. flux | 30 |
| Wt. (kg) | 11.6 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below and above
Order No.: 5XA248D31Y08MEGTIN (EAN): 4058352990735
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 15720lm |
| Light distribution | ST1.0a |
| Control | iQ-Street Remote, D4i with power reduction |
| Pnom begin service life | 107 |
| Pnom end service life | 113 |
| Pred at 50% lumin. flux | 47 |
| Wt. (kg) | 12.2 |
DL® 50 iQ mini, direct asymmetric wide distribution, ST1.0a, with Smart Interface below and above
Order No.: 5XA248D31Y08NEGTIN (EAN): 4069025023735
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 17900lm |
| Light distribution | ST1.0a |
| Control | iQ-Street Remote, D4i with power reduction |
| Pnom begin service life | 110 |
| Pnom end service life | 116 |
| Pred at 50% lumin. flux | 50 |
| Wt. (kg) | 12.2 |
Mandatory accessories
| Order No.: 5XA24800XM1GTIN (EAN): 4050737827063 | Show all details |
| Order No.: 5XA24800XM2GTIN (EAN): 4050737827087 | Show all details |
Optional accessories
| Order No.: 5NA24600XR2GTIN (EAN): 4050737978154 | Show all details |
| Order No.: 5NA24600XM4GTIN (EAN): 4039806197450 | Show all details |
| Order No.: 5NY70062DKGTIN (EAN): 4058352552247 | Show all details |
