Silica® 21 Square
The Silica® 21 Square offers maximum flexibility in use and is suitable for all assembly situations in offices, public buildings and educational institutions. Thanks to the selectable arrangement of the LED modules, different luminous fluxes and louvre colours, the Silica® 21 Square adapts exactly to your needs - in the usual clear design.
Our open solution: modular, networked, adaptable and open in design
Product types

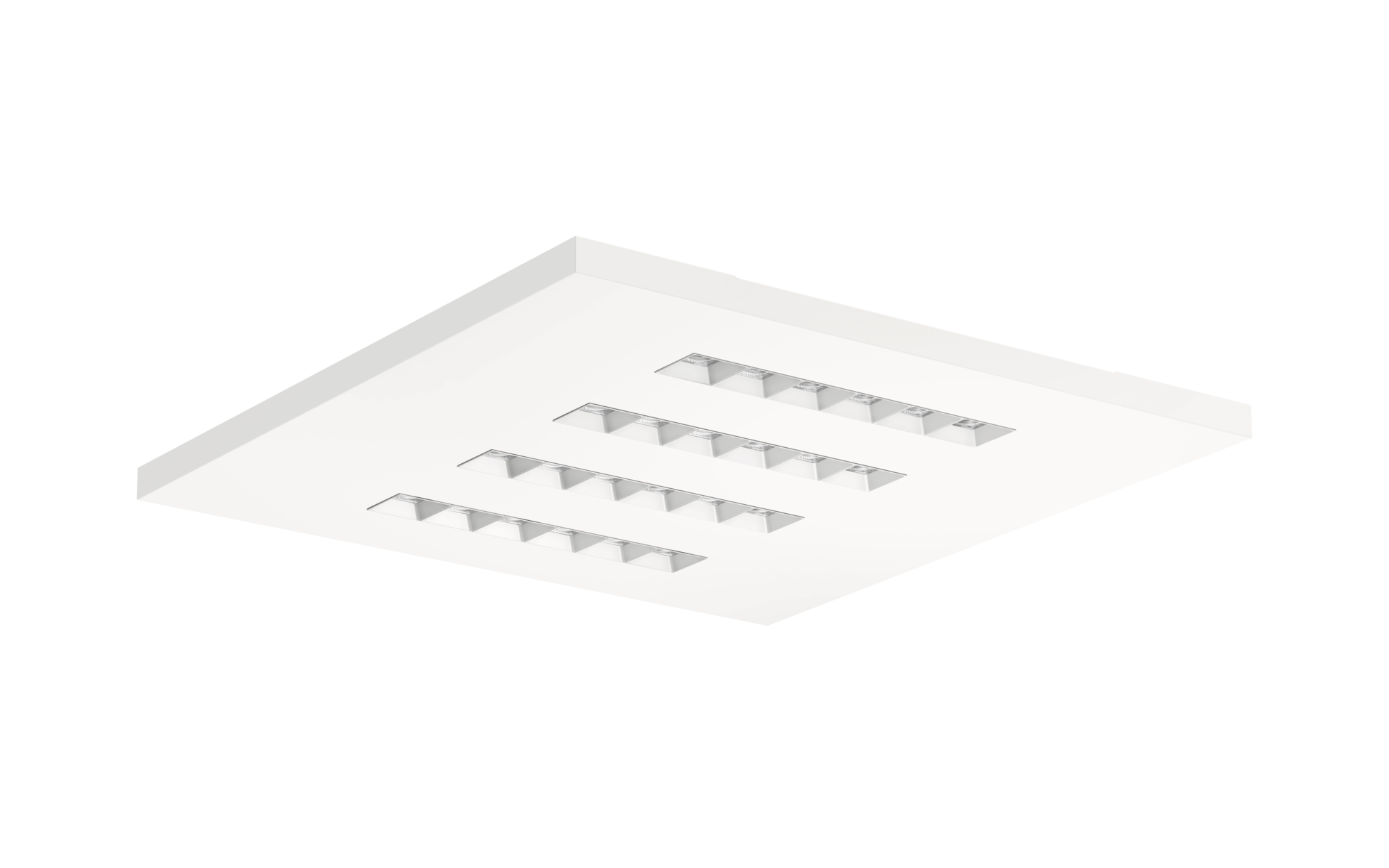

housing colour white - with darklight reflector, white, LED arrangement in parallel

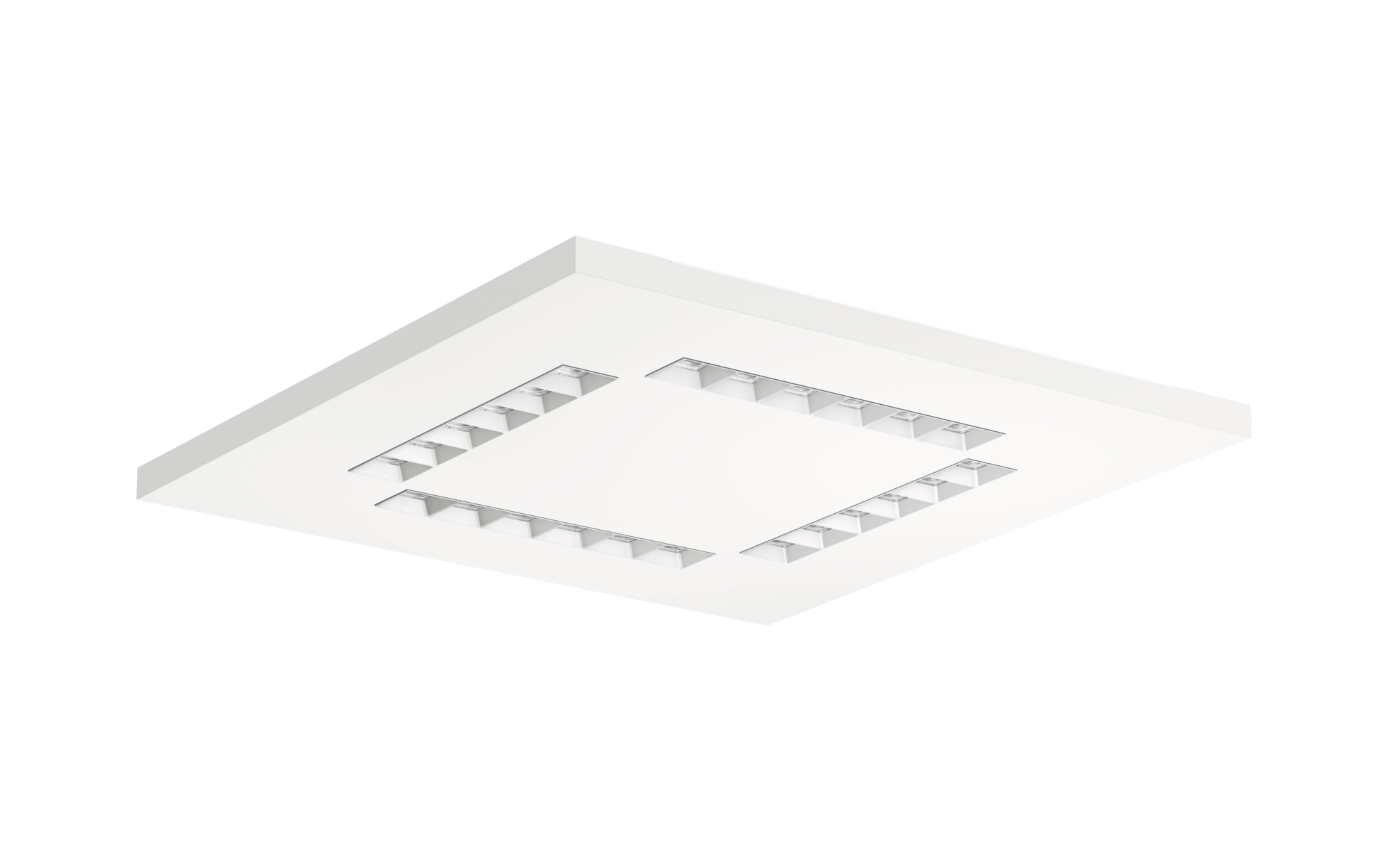

housing colour white - with darklight reflector, white, LED arrangement square

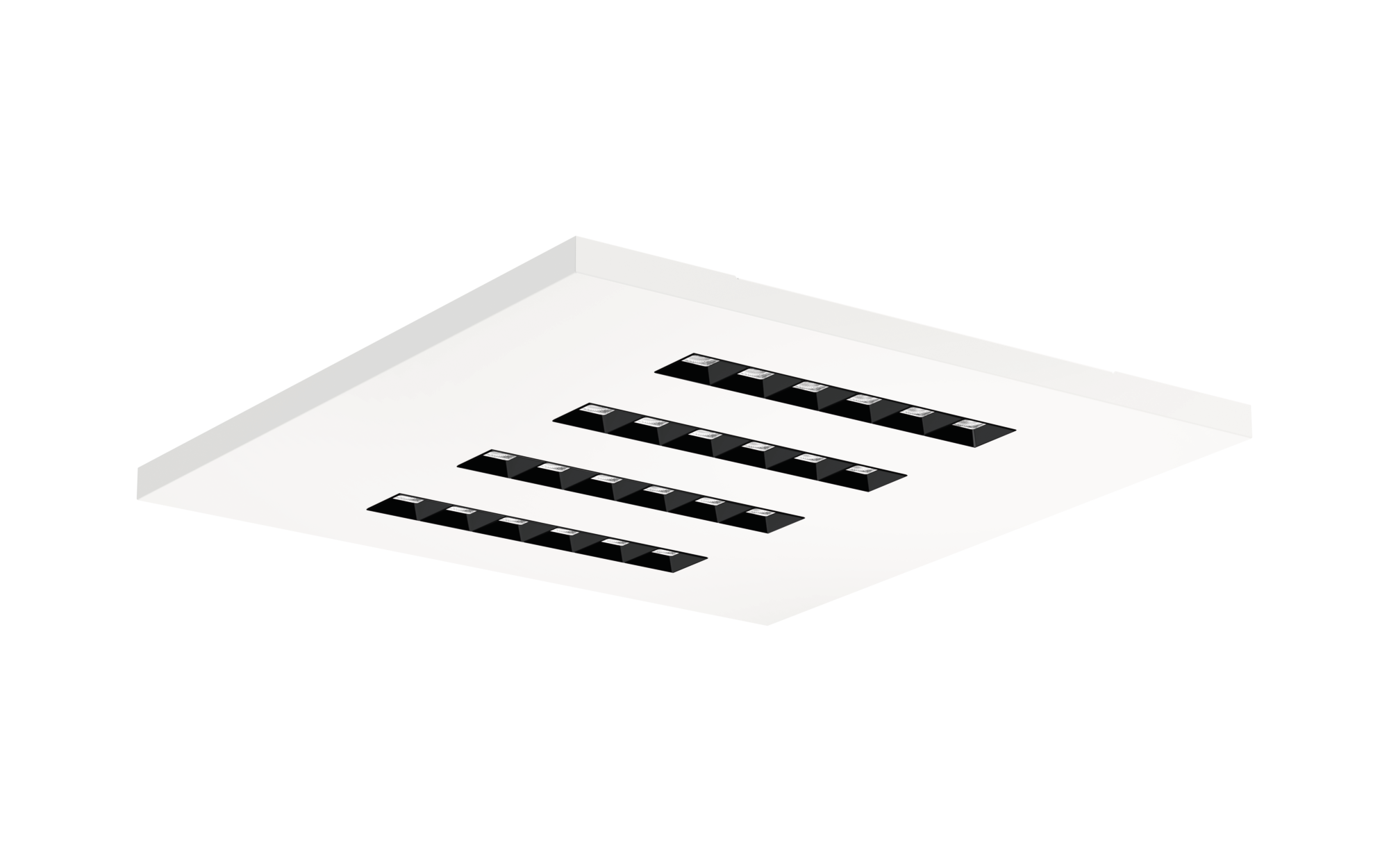

housing colour white - with darklight reflector, black, LED arrangement in parallel

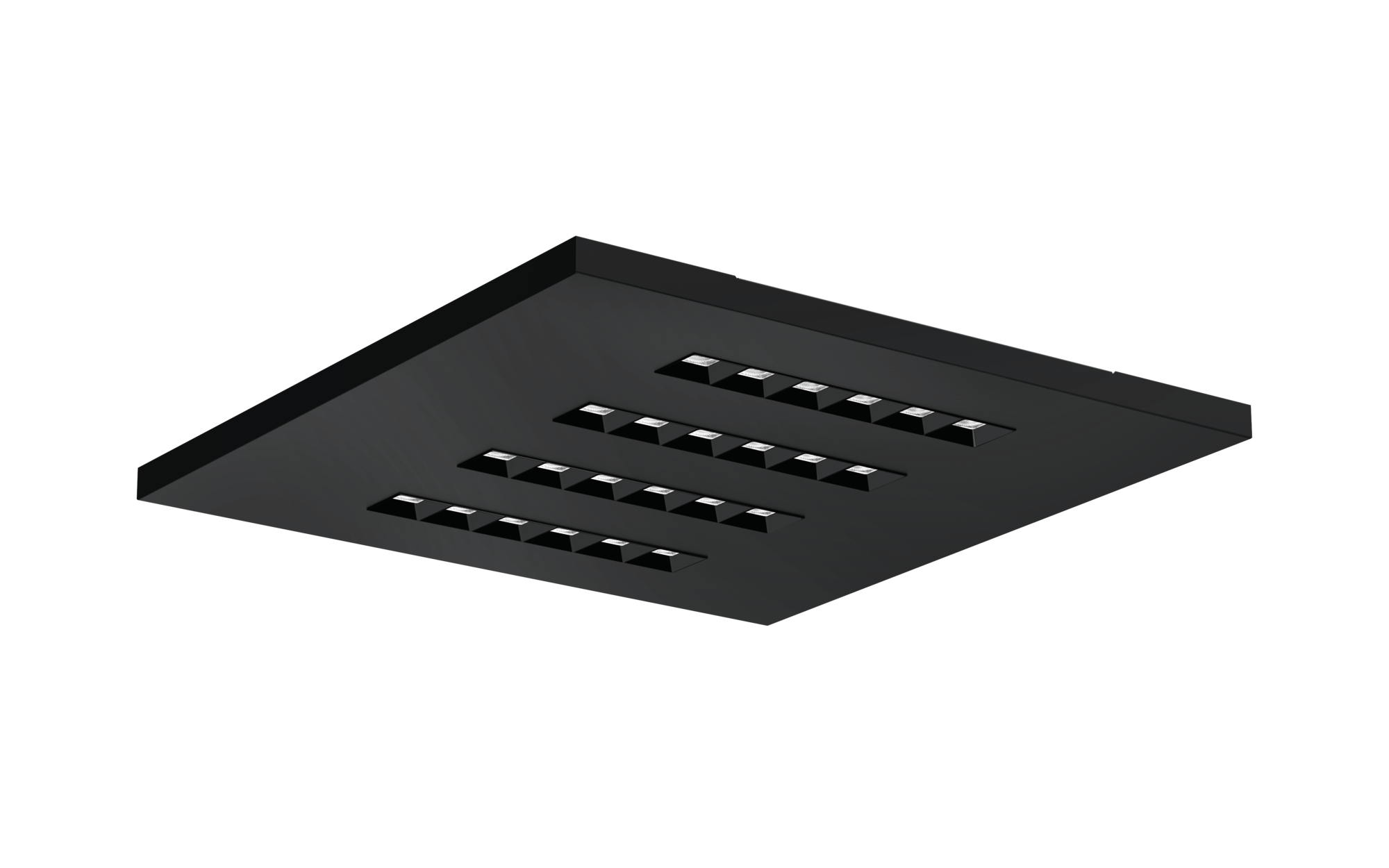

housing colour black - with darklight reflector, black, LED arrangement in parallel
ELDACON® L - country version Sweden
housing colour white - with darklight reflector, black, LED arrangement in parallel
Intro product family
Key data
Article office luminaire
Lighting effect direct symmetric wide distribution
Net luminous flux 4600lm
Colour temperature 3000K; 4000K
Control DALI 2
Special features
Configuration & data sheets
Results
Silica® 21 Square, direct symmetric wide distribution, DALI 2, for lay-in mounting, for M625
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 4600lm | 31.9W | 144lm/W | DALI 2 | 4.5 |
Silica® 21 Square, direct symmetric wide distribution, DALI 2, for lay-in mounting, for M625
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4600lm | 29.6W | 155lm/W | DALI 2 | 4.5 |
Silica® 21 Square, direct symmetric wide distribution, DALI 2, for lay-in mounting, for M600
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 4600lm | 31.9W | 144lm/W | DALI 2 | 4.5 |
Silica® 21 Square, direct symmetric wide distribution, DALI 2, for lay-in mounting, for M600
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4600lm | 29.6W | 155lm/W | DALI 2 | 4.5 |
Silica® 21 Square, direct symmetric wide distribution, DALI 2, for lay-in mounting, for M625
Order No.: 51MX6KDU34WGTIN (EAN): 4058352988862
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4600lm |
| Connected load | 31.9W |
| Luminous efficacy | 144lm/W |
| Control | DALI 2 |
| Wt. (kg) | 4.5 |
Silica® 21 Square, direct symmetric wide distribution, DALI 2, for lay-in mounting, for M625
Order No.: 51MX6KDU44WGTIN (EAN): 4058352880982
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4600lm |
| Connected load | 29.6W |
| Luminous efficacy | 155lm/W |
| Control | DALI 2 |
| Wt. (kg) | 4.5 |
Silica® 21 Square, direct symmetric wide distribution, DALI 2, for lay-in mounting, for M600
Order No.: 51MX6KDS34WGTIN (EAN): 4058352988824
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4600lm |
| Connected load | 31.9W |
| Luminous efficacy | 144lm/W |
| Control | DALI 2 |
| Wt. (kg) | 4.5 |
Silica® 21 Square, direct symmetric wide distribution, DALI 2, for lay-in mounting, for M600
Order No.: 51MX6KDS44WGTIN (EAN): 4058352880968
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4600lm |
| Connected load | 29.6W |
| Luminous efficacy | 155lm/W |
| Control | DALI 2 |
| Wt. (kg) | 4.5 |
