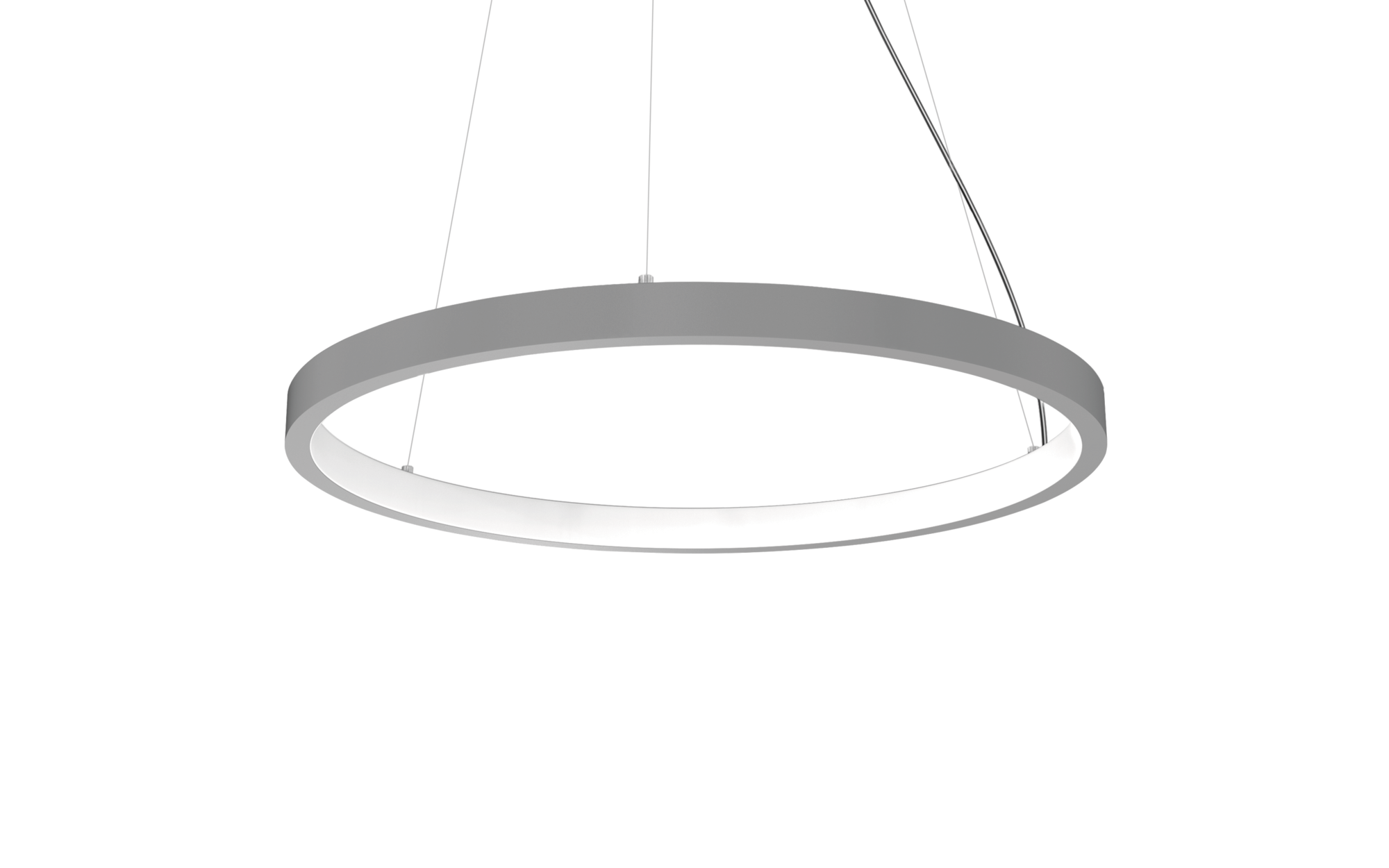

Silica® 21 Ring
Round elegance that inspires: With the Silica 21 Ring you are choosing refreshing simplicity - which meets all requirements. Two light colours, three colour versions and different sizes allow freedom of design. The pendant luminaire, whose LEDs are directed inwards, downwards or outwards, provides that certain something in offices, foyers, restaurants or public buildings.
Our core portfolio: Silica 21 Ring is our pendant luminaire with the highest standards of efficiency, quality and flexibility for your project
outer ring side luminous
Intro to Productfamily
Data
Article suspended luminaire

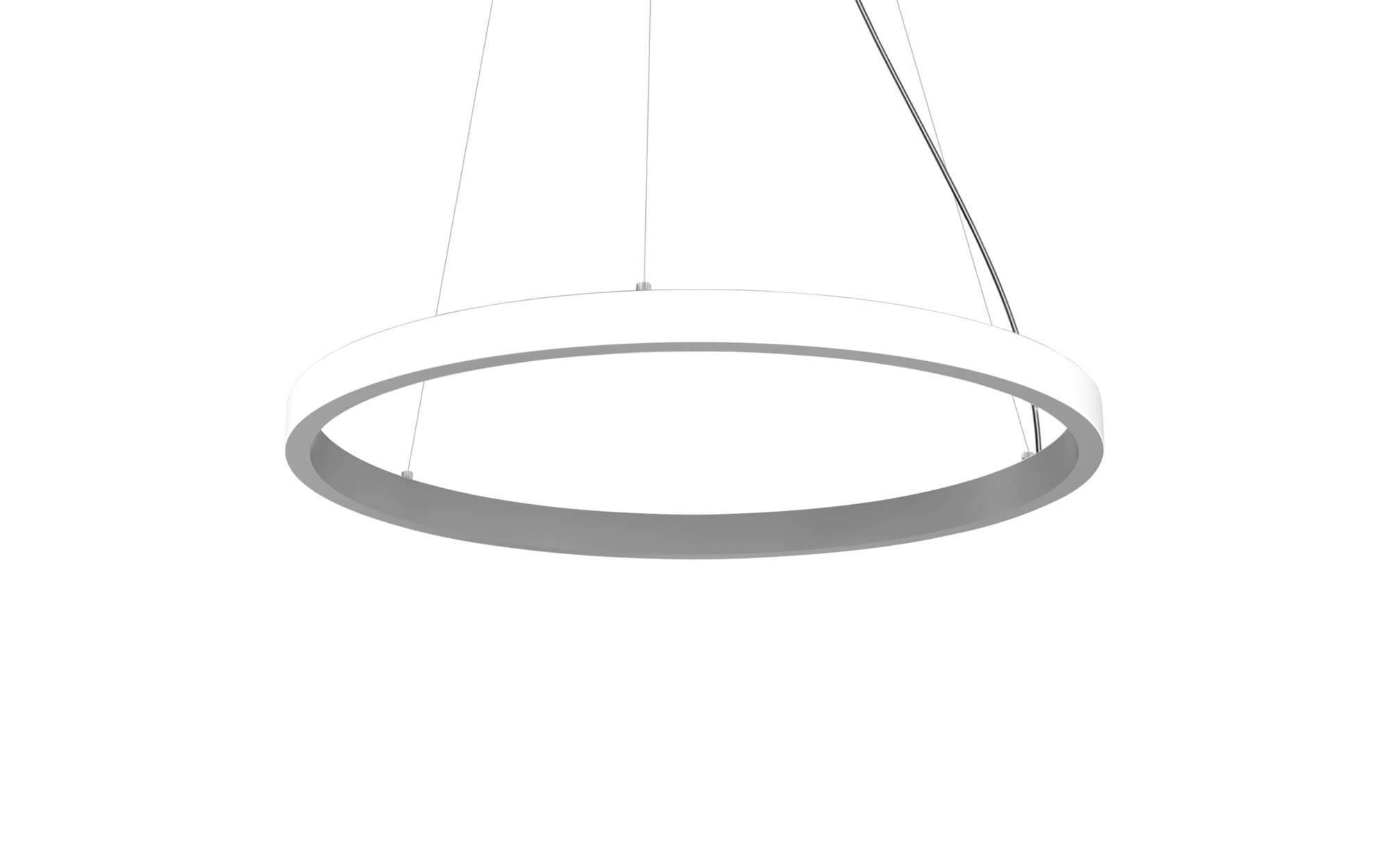

Light emission outer ring side luminous
Net luminous flux 3744lm to 9260lm
Colour temperature 3000K; 4000K
Control DALI 2
Configuration & Datasheets
Luminaire incl. 3-fold wire suspension with height adjustment to 4000mm | incl. connection cable with transparent insulation
Housing in other RAL colours on request
Further light colours/colour temperatures on request
Housing in other RAL colours on request
Further light colours/colour temperatures on request
Results
Silica® 21 Ring-O, outer ring side luminous, DALI 2, metallic grey (RAL 9006)
Order No.: 5PJBO1D1204A GTIN (EAN): 4058352958933
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 3744lm | 60W | 62lm/W | DALI 2 | 610 | 2.2 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, metallic grey (RAL 9006)
Order No.: 5PJBO2D1204A GTIN (EAN): 4058352958988
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 4700lm | 80W | 59lm/W | DALI 2 | 810 | 2.6 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, metallic grey (RAL 9006)
Order No.: 5PJBO3D1204A GTIN (EAN): 4058352959046
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 6860lm | 105W | 65lm/W | DALI 2 | 1100 | 3.1 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, metallic grey (RAL 9006)
Order No.: 5PJBO4D1204A GTIN (EAN): 4058352959107
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 8820lm | 140W | 63lm/W | DALI 2 | 1480 | 3.8 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, metallic grey (RAL 9006)
Order No.: 5PJBO2D3204A GTIN (EAN): 4058352959015
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4940lm | 80W | 62lm/W | DALI 2 | 810 | 2.6 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, metallic grey (RAL 9006)
Order No.: 5PJBO3D3204A GTIN (EAN): 4058352959077
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 7210lm | 105W | 69lm/W | DALI 2 | 1100 | 3.1 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, metallic grey (RAL 9006)
Order No.: 5PJBO4D3204A GTIN (EAN): 4058352959138
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 9260lm | 140W | 66lm/W | DALI 2 | 1480 | 3.8 |

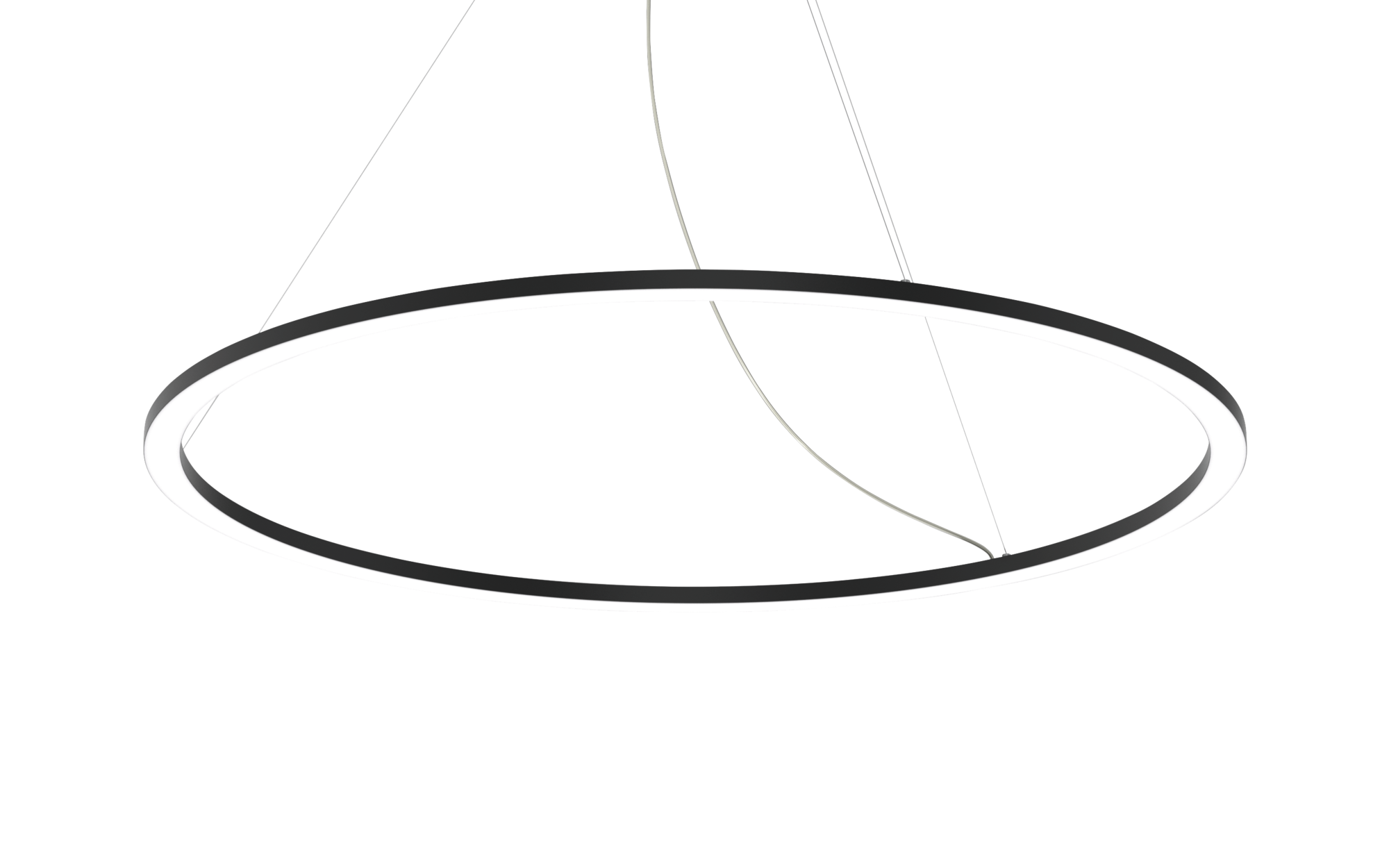

Silica® 21 Ring-O, outer ring side luminous, DALI 2, jet black (RAL 9005)
Order No.: 5PJBO1D1104A GTIN (EAN): 4058352958926
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 3744lm | 60W | 62lm/W | DALI 2 | 610 | 2.2 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, jet black (RAL 9005)
Order No.: 5PJBO2D1104A GTIN (EAN): 4058352958971
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 4700lm | 80W | 59lm/W | DALI 2 | 810 | 2.6 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, jet black (RAL 9005)
Order No.: 5PJBO3D1104A GTIN (EAN): 4058352959039
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 6860lm | 105W | 65lm/W | DALI 2 | 1100 | 3.1 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, jet black (RAL 9005)
Order No.: 5PJBO4D1104A GTIN (EAN): 4058352959091
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 8820lm | 140W | 63lm/W | DALI 2 | 1480 | 3.8 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, jet black (RAL 9005)
Order No.: 5PJBO1D3104A GTIN (EAN): 4058352958940
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 3930lm | 60W | 66lm/W | DALI 2 | 610 | 2.2 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, metallic grey (RAL 9006)
Order No.: 5PJBO1D3204A GTIN (EAN): 4058352958957
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 3930lm | 60W | 66lm/W | DALI 2 | 610 | 2.2 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, jet black (RAL 9005)
Order No.: 5PJBO2D3104A GTIN (EAN): 4058352959008
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4940lm | 80W | 62lm/W | DALI 2 | 810 | 2.6 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, jet black (RAL 9005)
Order No.: 5PJBO3D3104A GTIN (EAN): 4058352959060
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 7210lm | 105W | 69lm/W | DALI 2 | 1100 | 3.1 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, jet black (RAL 9005)
Order No.: 5PJBO4D3104A GTIN (EAN): 4058352959121
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 9260lm | 140W | 66lm/W | DALI 2 | 1480 | 3.8 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, traffic white (RAL 9016)
Order No.: 5PJBO1D1004A GTIN (EAN): 4058352958919
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 3744lm | 60W | 62lm/W | DALI 2 | 610 | 2.2 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, traffic white (RAL 9016)
Order No.: 5PJBO2D1004A GTIN (EAN): 4058352958964
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 4700lm | 80W | 59lm/W | DALI 2 | 810 | 2.6 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, traffic white (RAL 9016)
Order No.: 5PJBO3D1004A GTIN (EAN): 4058352959022
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 6860lm | 105W | 65lm/W | DALI 2 | 1100 | 3.1 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, traffic white (RAL 9016)
Order No.: 5PJBO4D1004A GTIN (EAN): 4058352959084
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 8820lm | 140W | 63lm/W | DALI 2 | 1480 | 3.8 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, traffic white (RAL 9016)
Order No.: 5PJBO2D3004A GTIN (EAN): 4058352958995
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4940lm | 80W | 62lm/W | DALI 2 | 810 | 2.6 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, traffic white (RAL 9016)
Order No.: 5PJBO3D3004A GTIN (EAN): 4058352959053
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 7210lm | 105W | 69lm/W | DALI 2 | 1100 | 3.1 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, traffic white (RAL 9016)
Order No.: 5PJBO4D3004A GTIN (EAN): 4058352959114
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | D (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 9260lm | 140W | 66lm/W | DALI 2 | 1480 | 3.8 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, metallic grey (RAL 9006)
Order No.: 5PJBO1D1204AGTIN (EAN): 4058352958933
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3744lm |
| Connected load | 60W |
| Luminous efficacy | 62lm/W |
| Control | DALI 2 |

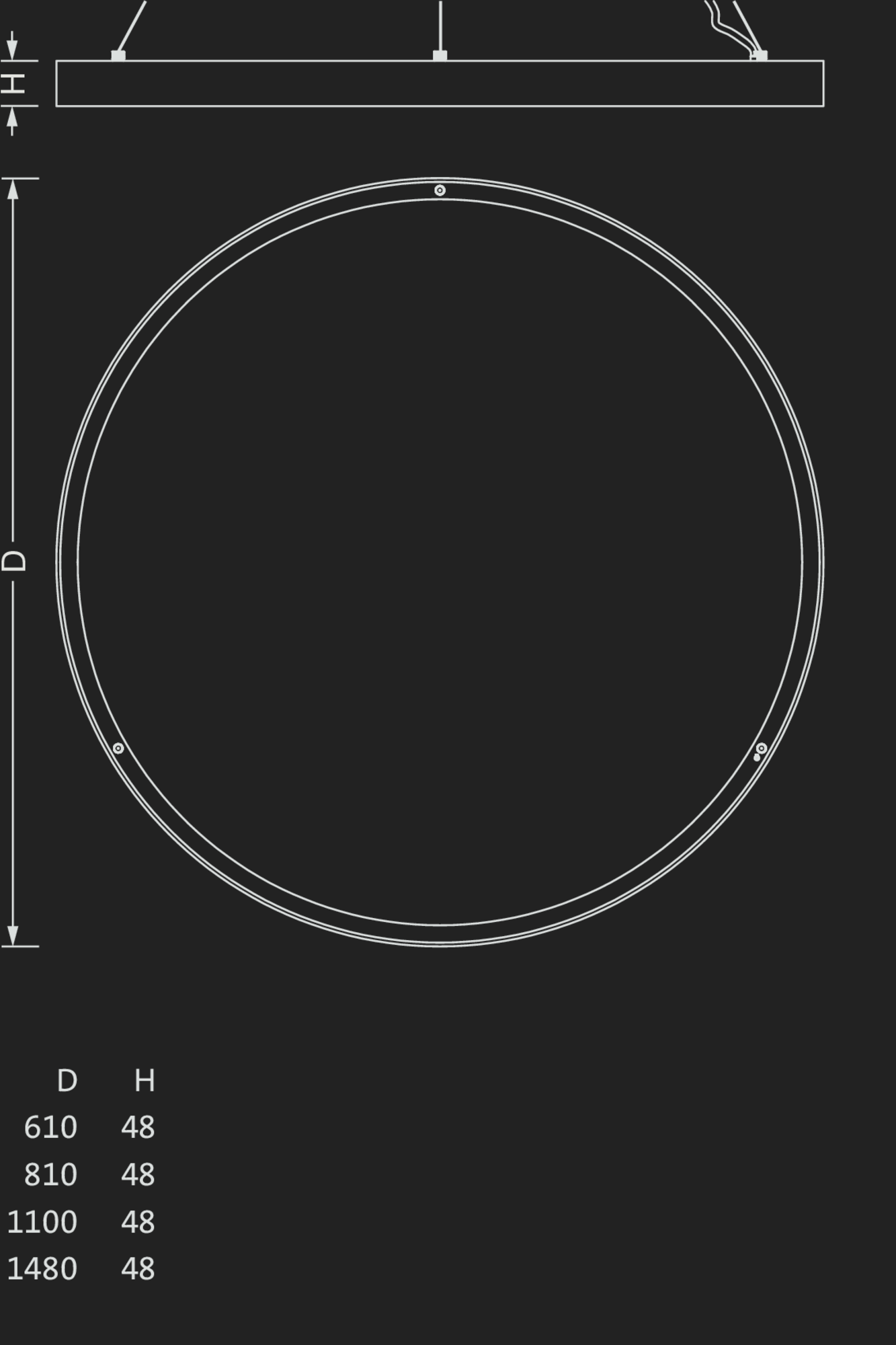

| D (mm) | 610 |
| Wt. (kg) | 2.2 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, metallic grey (RAL 9006)
Order No.: 5PJBO2D1204AGTIN (EAN): 4058352958988
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4700lm |
| Connected load | 80W |
| Luminous efficacy | 59lm/W |
| Control | DALI 2 |
| D (mm) | 810 |
| Wt. (kg) | 2.6 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, metallic grey (RAL 9006)
Order No.: 5PJBO3D1204AGTIN (EAN): 4058352959046
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 6860lm |
| Connected load | 105W |
| Luminous efficacy | 65lm/W |
| Control | DALI 2 |
| D (mm) | 1100 |
| Wt. (kg) | 3.1 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, metallic grey (RAL 9006)
Order No.: 5PJBO4D1204AGTIN (EAN): 4058352959107
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 8820lm |
| Connected load | 140W |
| Luminous efficacy | 63lm/W |
| Control | DALI 2 |
| D (mm) | 1480 |
| Wt. (kg) | 3.8 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, metallic grey (RAL 9006)
Order No.: 5PJBO2D3204AGTIN (EAN): 4058352959015
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4940lm |
| Connected load | 80W |
| Luminous efficacy | 62lm/W |
| Control | DALI 2 |
| D (mm) | 810 |
| Wt. (kg) | 2.6 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, metallic grey (RAL 9006)
Order No.: 5PJBO3D3204AGTIN (EAN): 4058352959077
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7210lm |
| Connected load | 105W |
| Luminous efficacy | 69lm/W |
| Control | DALI 2 |
| D (mm) | 1100 |
| Wt. (kg) | 3.1 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, metallic grey (RAL 9006)
Order No.: 5PJBO4D3204AGTIN (EAN): 4058352959138
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 9260lm |
| Connected load | 140W |
| Luminous efficacy | 66lm/W |
| Control | DALI 2 |
| D (mm) | 1480 |
| Wt. (kg) | 3.8 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, jet black (RAL 9005)
Order No.: 5PJBO1D1104AGTIN (EAN): 4058352958926
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3744lm |
| Connected load | 60W |
| Luminous efficacy | 62lm/W |
| Control | DALI 2 |
| D (mm) | 610 |
| Wt. (kg) | 2.2 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, jet black (RAL 9005)
Order No.: 5PJBO2D1104AGTIN (EAN): 4058352958971
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4700lm |
| Connected load | 80W |
| Luminous efficacy | 59lm/W |
| Control | DALI 2 |
| D (mm) | 810 |
| Wt. (kg) | 2.6 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, jet black (RAL 9005)
Order No.: 5PJBO3D1104AGTIN (EAN): 4058352959039
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 6860lm |
| Connected load | 105W |
| Luminous efficacy | 65lm/W |
| Control | DALI 2 |
| D (mm) | 1100 |
| Wt. (kg) | 3.1 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, jet black (RAL 9005)
Order No.: 5PJBO4D1104AGTIN (EAN): 4058352959091
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 8820lm |
| Connected load | 140W |
| Luminous efficacy | 63lm/W |
| Control | DALI 2 |
| D (mm) | 1480 |
| Wt. (kg) | 3.8 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, jet black (RAL 9005)
Order No.: 5PJBO1D3104AGTIN (EAN): 4058352958940
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3930lm |
| Connected load | 60W |
| Luminous efficacy | 66lm/W |
| Control | DALI 2 |
| D (mm) | 610 |
| Wt. (kg) | 2.2 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, metallic grey (RAL 9006)
Order No.: 5PJBO1D3204AGTIN (EAN): 4058352958957
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3930lm |
| Connected load | 60W |
| Luminous efficacy | 66lm/W |
| Control | DALI 2 |
| D (mm) | 610 |
| Wt. (kg) | 2.2 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, jet black (RAL 9005)
Order No.: 5PJBO2D3104AGTIN (EAN): 4058352959008
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4940lm |
| Connected load | 80W |
| Luminous efficacy | 62lm/W |
| Control | DALI 2 |
| D (mm) | 810 |
| Wt. (kg) | 2.6 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, jet black (RAL 9005)
Order No.: 5PJBO3D3104AGTIN (EAN): 4058352959060
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7210lm |
| Connected load | 105W |
| Luminous efficacy | 69lm/W |
| Control | DALI 2 |
| D (mm) | 1100 |
| Wt. (kg) | 3.1 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, jet black (RAL 9005)
Order No.: 5PJBO4D3104AGTIN (EAN): 4058352959121
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 9260lm |
| Connected load | 140W |
| Luminous efficacy | 66lm/W |
| Control | DALI 2 |
| D (mm) | 1480 |
| Wt. (kg) | 3.8 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, traffic white (RAL 9016)
Order No.: 5PJBO1D1004AGTIN (EAN): 4058352958919
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3744lm |
| Connected load | 60W |
| Luminous efficacy | 62lm/W |
| Control | DALI 2 |
| D (mm) | 610 |
| Wt. (kg) | 2.2 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, traffic white (RAL 9016)
Order No.: 5PJBO2D1004AGTIN (EAN): 4058352958964
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4700lm |
| Connected load | 80W |
| Luminous efficacy | 59lm/W |
| Control | DALI 2 |
| D (mm) | 810 |
| Wt. (kg) | 2.6 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, traffic white (RAL 9016)
Order No.: 5PJBO3D1004AGTIN (EAN): 4058352959022
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 6860lm |
| Connected load | 105W |
| Luminous efficacy | 65lm/W |
| Control | DALI 2 |
| D (mm) | 1100 |
| Wt. (kg) | 3.1 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, traffic white (RAL 9016)
Order No.: 5PJBO4D1004AGTIN (EAN): 4058352959084
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 8820lm |
| Connected load | 140W |
| Luminous efficacy | 63lm/W |
| Control | DALI 2 |
| D (mm) | 1480 |
| Wt. (kg) | 3.8 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, traffic white (RAL 9016)
Order No.: 5PJBO2D3004AGTIN (EAN): 4058352958995
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4940lm |
| Connected load | 80W |
| Luminous efficacy | 62lm/W |
| Control | DALI 2 |
| D (mm) | 810 |
| Wt. (kg) | 2.6 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, traffic white (RAL 9016)
Order No.: 5PJBO3D3004AGTIN (EAN): 4058352959053
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7210lm |
| Connected load | 105W |
| Luminous efficacy | 69lm/W |
| Control | DALI 2 |
| D (mm) | 1100 |
| Wt. (kg) | 3.1 |
Silica® 21 Ring-O, outer ring side luminous, DALI 2, traffic white (RAL 9016)
Order No.: 5PJBO4D3004AGTIN (EAN): 4058352959114
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 9260lm |
| Connected load | 140W |
| Luminous efficacy | 66lm/W |
| Control | DALI 2 |
| D (mm) | 1480 |
| Wt. (kg) | 3.8 |
