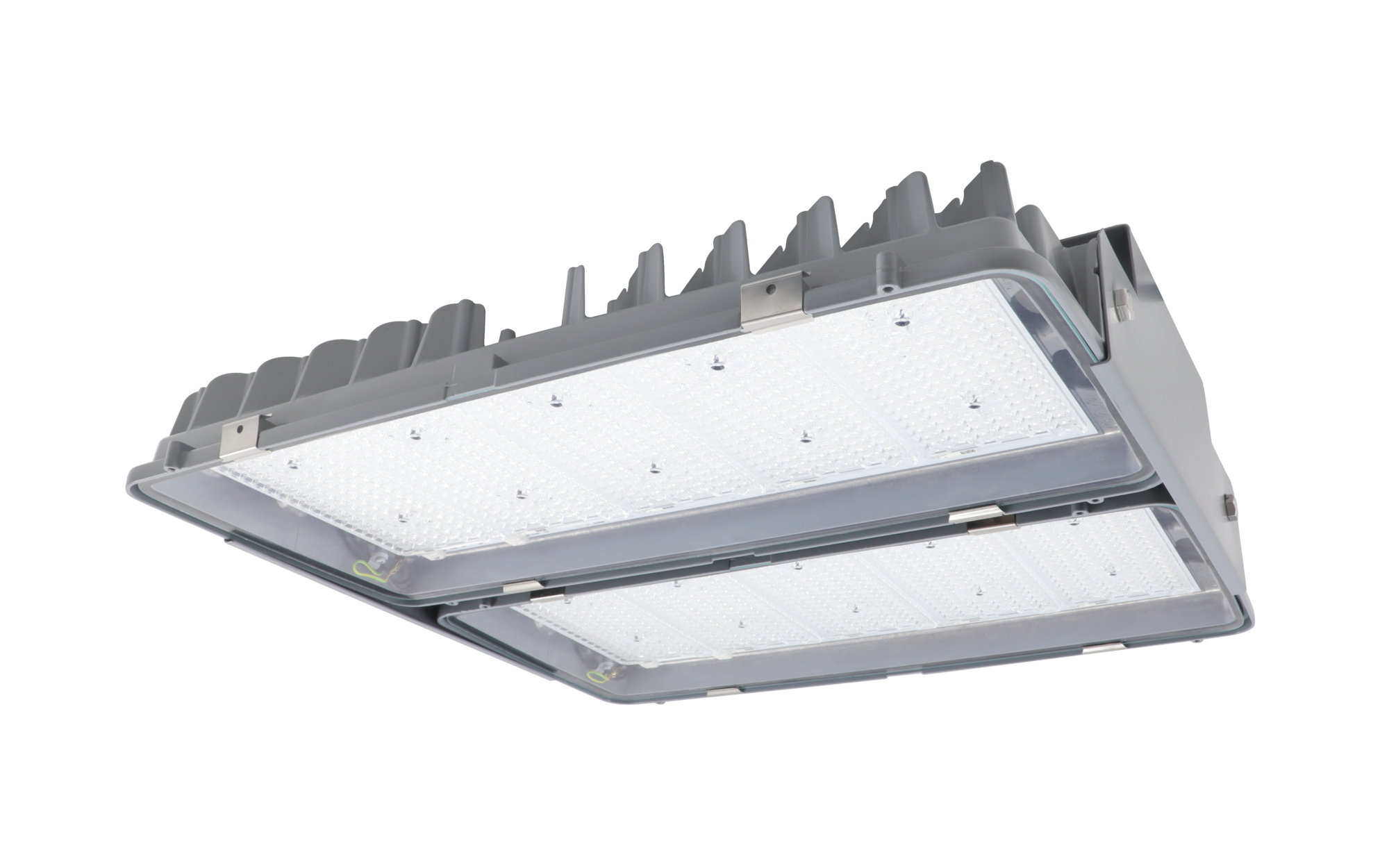

Highbay Xtreme
Made for extreme environmental conditions: The Highbay Xtreme easily keeps up. In production halls, for example in the steel, glass or food industry or warehouses with special room heights and logistics centers, the high bay luminaire shows what it can do. Thanks to very high lumen packages of up to 75,000lm, two construction sizes and various light distributions, it always ensures the best lighting conditions. At the same time, it easily withstands permanent ambient temperatures of up to +70°C and impresses with its very high efficiency of up to 194lm/W. The robust construction made of cast aluminum with a cover made of toughened safety glass (ESG) makes the Highbay Xtreme a long-lasting, reliable lighting solution for the most demanding environments.
Our robust solution for extreme environmental conditions: 18,000-76,000lm | up to 194lm/W | 100,000h service life
with 1 luminaire head narrow or wide distribution
Intro to Productfamily
Data
Article high bay luminaire
Lighting effect direct symmetric narrow distribution; direct symmetric wide distribution
Net luminous flux 18500lm to 34200lm
Colour temperature 4000K
Control DALI 2
Cover toughened safety glass
Protection rating IP66
Insulation class insulation class I (protective earthing)
Protection symbol D
Impact resistance IK08
Ball protection ball impact resistant according to DIN VDE 0710 part 13 (with chain suspension)
Specials
Configuration & Datasheets
- suspended mounting with chain on the luminaire side with 4 suspension points (double suspension on the ceiling side with two attachment points)
- installation close to ceiling with two mounting brackets at face ends
- please order mounting accessories (in required quantities) separately
- please order supplementary chain for higher suspension heights separately if required (as replacement for standard chain of chain suspension | please consider desired suspension height and number of chain strands)
- versions with colour temperature 3000K, 5000K or 6500K on request
Results
Highbay 11Xtreme, narrow distribution, 1x LED, 840, DALI 2, AC, ball impact resistant according to DIN VDE 0710 part 13 (with chain suspension)
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 1x LED | 4000K | CRI > 80 | 18700lm | 96W | 194lm/W | DALI 2 | -25..+70°C | 595x280 | 8.0 |
Highbay 11Xtreme, narrow distribution, 1x LED, 840, DALI 2, AC, ball impact resistant according to DIN VDE 0710 part 13 (with chain suspension)
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 1x LED | 4000K | CRI > 80 | 31500lm | 171W | 184lm/W | DALI 2 | -25..+60°C | 595x280 | 10.1 |
Highbay 11Xtreme, narrow distribution, 1x LED, 840, DALI 2, AC, ball impact resistant according to DIN VDE 0710 part 13 (with chain suspension)
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 1x LED | 4000K | CRI > 80 | 34200lm | 188W | 182lm/W | DALI 2 | -25..+45°C | 595x280 | 10.1 |
Highbay 11Xtreme, wide distribution, 1x LED, 840, DALI 2, AC, ball impact resistant according to DIN VDE 0710 part 13 (with chain suspension)
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 1x LED | 4000K | CRI > 80 | 18500lm | 97W | 192lm/W | DALI 2 | -25..+70°C | 595x280 | 10.1 |
Highbay 11Xtreme, wide distribution, 1x LED, 840, DALI 2, AC, ball impact resistant according to DIN VDE 0710 part 13 (with chain suspension)
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 1x LED | 4000K | CRI > 80 | 31100lm | 171W | 182lm/W | DALI 2 | -25..+60°C | 595x280 | 10.1 |
Highbay 11Xtreme, wide distribution, 1x LED, 840, DALI 2, AC, ball impact resistant according to DIN VDE 0710 part 13 (with chain suspension)
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 1x LED | 4000K | CRI > 80 | 33700lm | 188W | 180lm/W | DALI 2 | -25..+45°C | 595x280 | 8.0 |
Highbay 11Xtreme, narrow distribution, 1x LED, 840, DALI 2, AC, ball impact resistant according to DIN VDE 0710 part 13 (with chain suspension)
Order No.: 51HF61DA4HMAGTIN (EAN): 4058352919736
| Lamps | 1x LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 18700lm |
| Connected load | 96W |
| Luminous efficacy | 194lm/W |
| Control | DALI 2 |
| ta | -25..+70°C |

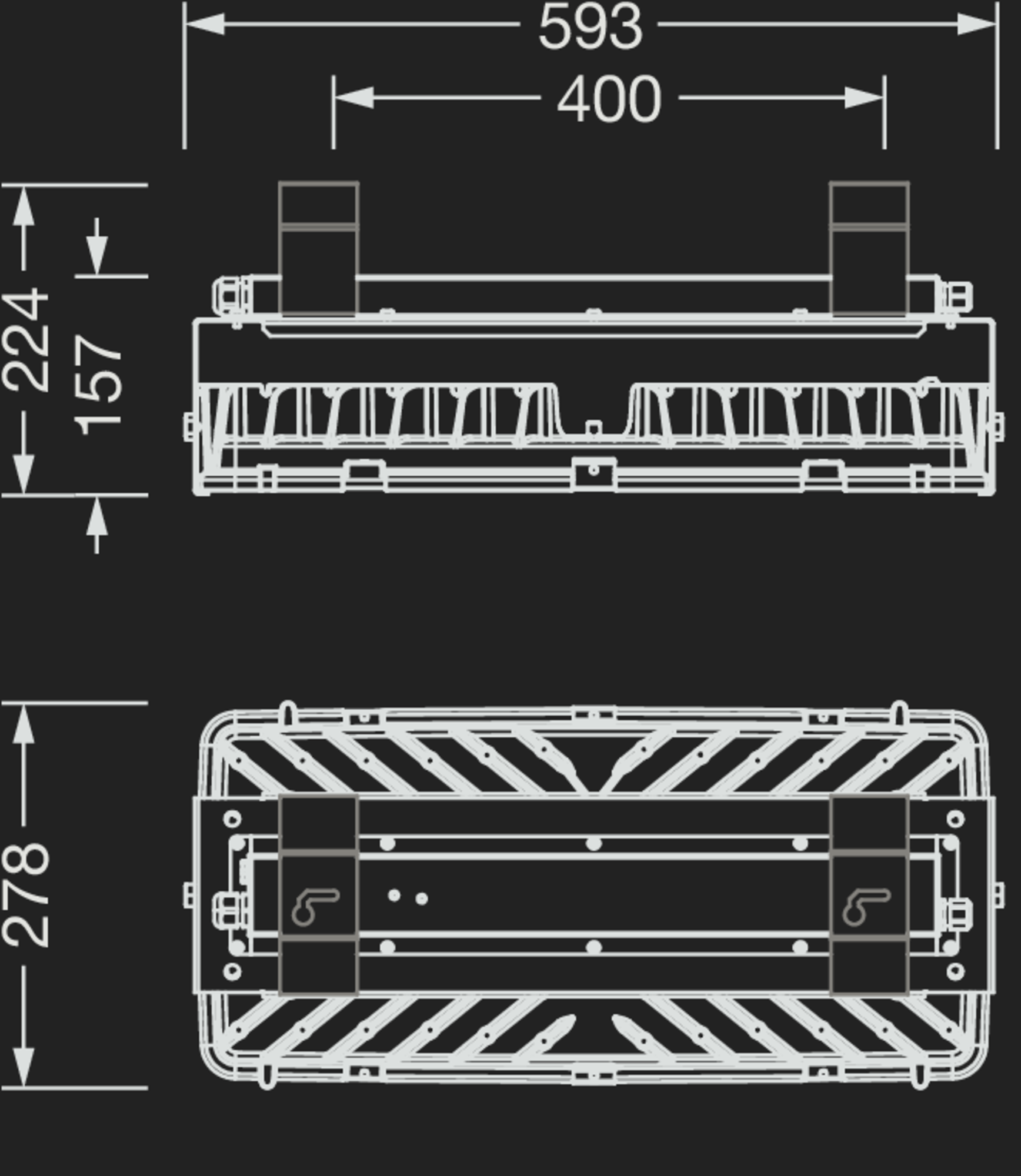

| Dimension (mm) | 595x280 |
| Wt. (kg) | 8.0 |
Highbay 11Xtreme, narrow distribution, 1x LED, 840, DALI 2, AC, ball impact resistant according to DIN VDE 0710 part 13 (with chain suspension)
Order No.: 51HF61DA4MMAGTIN (EAN): 4058352919750
| Lamps | 1x LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 31500lm |
| Connected load | 171W |
| Luminous efficacy | 184lm/W |
| Control | DALI 2 |
| ta | -25..+60°C |
| Dimension (mm) | 595x280 |
| Wt. (kg) | 10.1 |
Highbay 11Xtreme, narrow distribution, 1x LED, 840, DALI 2, AC, ball impact resistant according to DIN VDE 0710 part 13 (with chain suspension)
Order No.: 51HF81DA4NMAGTIN (EAN): 4058352919910
| Lamps | 1x LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 34200lm |
| Connected load | 188W |
| Luminous efficacy | 182lm/W |
| Control | DALI 2 |
| ta | -25..+45°C |
| Dimension (mm) | 595x280 |
| Wt. (kg) | 10.1 |
Highbay 11Xtreme, wide distribution, 1x LED, 840, DALI 2, AC, ball impact resistant according to DIN VDE 0710 part 13 (with chain suspension)
Order No.: 51HF62DA4HMAGTIN (EAN): 4058352919835
| Lamps | 1x LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 18500lm |
| Connected load | 97W |
| Luminous efficacy | 192lm/W |
| Control | DALI 2 |
| ta | -25..+70°C |
| Dimension (mm) | 595x280 |
| Wt. (kg) | 10.1 |
Highbay 11Xtreme, wide distribution, 1x LED, 840, DALI 2, AC, ball impact resistant according to DIN VDE 0710 part 13 (with chain suspension)
Order No.: 51HF62DA4MMAGTIN (EAN): 4058352919859
| Lamps | 1x LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 31100lm |
| Connected load | 171W |
| Luminous efficacy | 182lm/W |
| Control | DALI 2 |
| ta | -25..+60°C |
| Dimension (mm) | 595x280 |
| Wt. (kg) | 10.1 |
Highbay 11Xtreme, wide distribution, 1x LED, 840, DALI 2, AC, ball impact resistant according to DIN VDE 0710 part 13 (with chain suspension)
Order No.: 51HF82DA4NMAGTIN (EAN): 4058352919972
| Lamps | 1x LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 33700lm |
| Connected load | 188W |
| Luminous efficacy | 180lm/W |
| Control | DALI 2 |
| ta | -25..+45°C |
| Dimension (mm) | 595x280 |
| Wt. (kg) | 8.0 |
