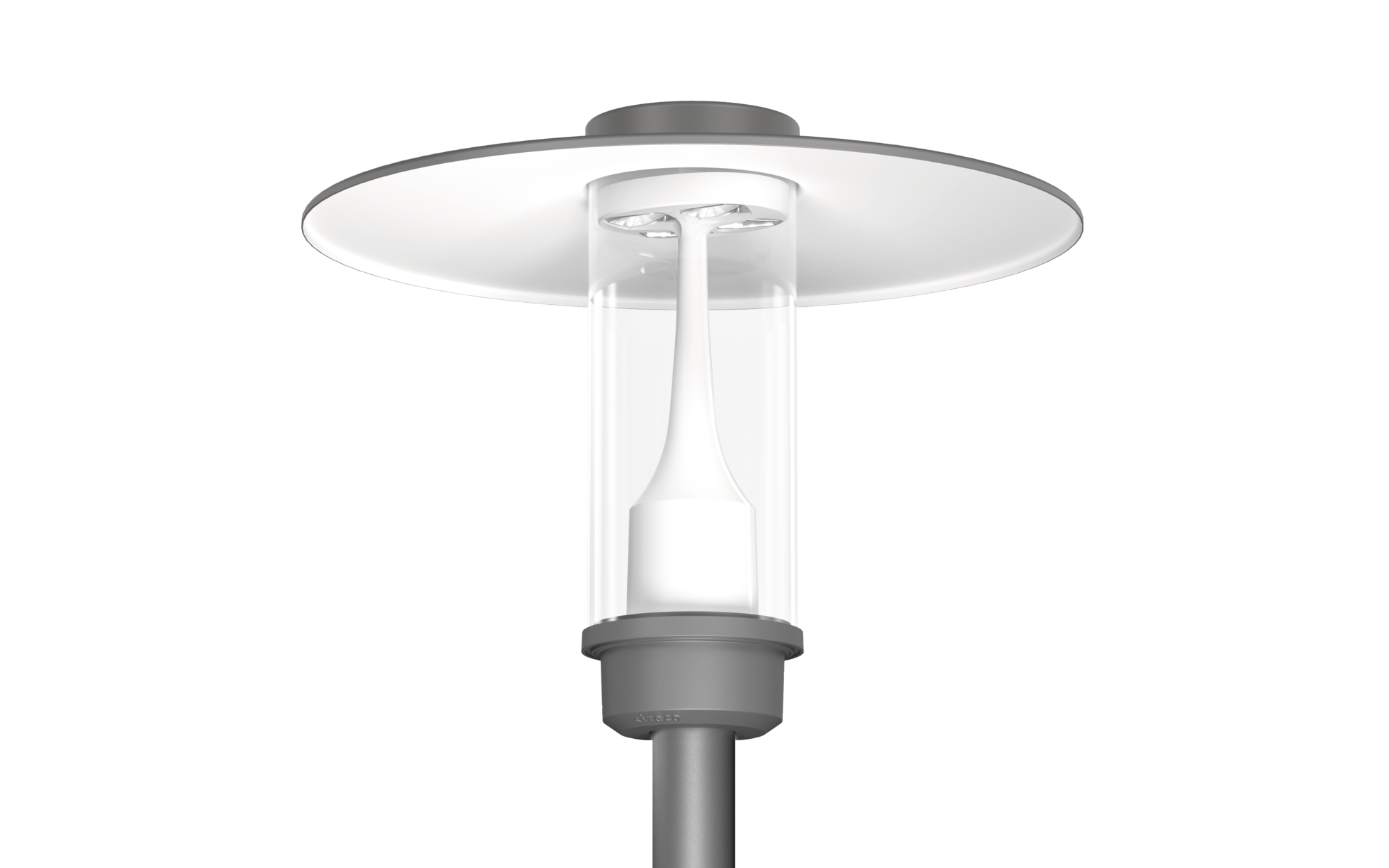

Litepole 2 iQ

Product typesConfiguration & data sheets

Every city is different - but each wants to be attractive and welcoming. SITECO town and park luminaires can make a decisive contribution to giving your town that certain flair. Our luminaires are effective day and night, set aesthetic accents and can be perfectly combined with designer masts. But the best thing is their inner workings: All luminaires contain the latest generation of Module 540, which is also perfectly suited as a refurbishment solution for old systems. Because this module has it all: for example iQ, our new, patented luminaire electronics, which equips your light with a multitude of new functions and future-oriented control options. In this way, SITECO not only transports cherished design classics into the LED age, but directly into the future.

The epitome of urban aesthetics

Product types

Litepole 2 with Module 540 iQ white (as single components)

Litepole 2 with Module 540 iQ (pre-assembled, incl. connection cable)

Litepole 2 with Module 540 iQ (pre-assembled, incl. connection cable)

Intro product family

Key data

Article mast luminaire
Lighting effect direct asymmetric wide distribution; direct highly asymmetric extremely wide distribution; direct symmetric wide distribution
Light distribution ST1.2a; P1.0a; PL1.2s
Net luminous flux 1520lm to 2990lm
Colour temperature 3000K
Control iQ Street-Remote; iQ-Street Remote, D4i with power reduction

Special features

Easy installation and low maintenance due to future-oriented modular design for exchangeable LED module and gear tray
Luminous module body as a visual guidance element with decorative day/night time effect
Low energy consumption due to high luminous efficacy and avoidance of overplanning thanks to the patented CLO 2.0 luminous flux tracking
High visual comfort due to uniform illumination and very good glare control – can be further improved with spreader element

Configuration & data sheets

Lighting effect

Light distribution

Control

Smart City

Supplement

  • further light colours and connection cable variants on request
  • please order mast reducer separately if required
  • luminaire incl. pre-installed connection cable, l = 5.0m
  • Setting the luminaire with Street-Remote: with the SITECO iQ app on the SITECO iQ handheld (5EA6HBR02) or your own smart phone
  • SITECO offers the SITECO Connect Group Control (230V or 12/24V) product to use the Smart Wire function '10 levels'. A communication module is also available with which remote access is possible and radio clock functionality is provided.
  • Smart Interface luminaires currently without iQ functionality

Results

Litepole 2 iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, standard

Order No.: 5XA5425FF14H000022 GTIN (EAN): 4058352636572
Colour temperatureColour renderingLuminous fluxLight distributionControlSupplementPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)Price (EUR)
3000KCRI > 701520lmP1.0aiQ Street-Remote 111159.01520.30
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Litepole 2 iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard

Order No.: 5XA5425EF14H000022 GTIN (EAN): 4058352635308
Colour temperatureColour renderingLuminous fluxLight distributionControlSupplementPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)Price (EUR)
3000KCRI > 701550lmST1.2aiQ Street-Remote 111159.01520.30
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Litepole 2 iQ, PL1.2s, direct symmetric wide distribution, transparent, standard

Order No.: 5XA5425JF14H000022 GTIN (EAN): 4058352636619
Colour temperatureColour renderingLuminous fluxLight distributionControlSupplementPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)Price (EUR)
3000KCRI > 702990lmPL1.2siQ Street-Remote 1921109.01593.80
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Litepole 2 iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard, with Smart Interface below

Order No.: 5XA5425EU14H000022 GTIN (EAN): 4058352024164
Colour temperatureColour renderingLuminous fluxLight distributionControlSupplementPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)Price (EUR)
3000KCRI > 701540lmST1.2aiQ-Street Remote, D4i with power reductionSmart Interface below111167.51642.90
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Litepole 2 iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard, with Smart Interface above

Order No.: 5XA5425EV14H000022 GTIN (EAN): 4069025026972
Colour temperatureColour renderingLuminous fluxLight distributionControlSupplementPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)Price (EUR)
3000KCRI > 701540lmST1.2aiQ-Street Remote, D4i with power reductionSmart Interface above111167.51569.30
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Litepole 2 iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard, with Smart Interface below and above

Order No.: 5XA5425EY14H000022 GTIN (EAN): 4058352024201
Colour temperatureColour renderingLuminous fluxLight distributionControlSupplementPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)Price (EUR)
3000KCRI > 701540lmST1.2aiQ-Street Remote, D4i with power reductionSmart Interface below and above111167.51691.90
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Litepole 2 iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, standard

Order No.: 5XA5425FF14H000022GTIN (EAN): 4058352636572

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux1520lm
Light distributionP1.0a
ControliQ Street-Remote
Supplement
Pnom begin service life11
Pnom end service life11
Pred at 50% lumin. flux5
Wt. (kg)9.0
Price (EUR)1520.30
Show all details

Litepole 2 iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard

Order No.: 5XA5425EF14H000022GTIN (EAN): 4058352635308

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux1550lm
Light distributionST1.2a
ControliQ Street-Remote
Supplement
Pnom begin service life11
Pnom end service life11
Pred at 50% lumin. flux5
Wt. (kg)9.0
Price (EUR)1520.30
Show all details

Litepole 2 iQ, PL1.2s, direct symmetric wide distribution, transparent, standard

Order No.: 5XA5425JF14H000022GTIN (EAN): 4058352636619

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux2990lm
Light distributionPL1.2s
ControliQ Street-Remote
Supplement
Pnom begin service life19
Pnom end service life21
Pred at 50% lumin. flux10
Wt. (kg)9.0
Price (EUR)1593.80
Show all details

Litepole 2 iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard, with Smart Interface below

Order No.: 5XA5425EU14H000022GTIN (EAN): 4058352024164

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux1540lm
Light distributionST1.2a
ControliQ-Street Remote, D4i with power reduction
SupplementSmart Interface below
Pnom begin service life11
Pnom end service life11
Pred at 50% lumin. flux6
Wt. (kg)7.5
Price (EUR)1642.90
Show all details

Litepole 2 iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard, with Smart Interface above

Order No.: 5XA5425EV14H000022GTIN (EAN): 4069025026972

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux1540lm
Light distributionST1.2a
ControliQ-Street Remote, D4i with power reduction
SupplementSmart Interface above
Pnom begin service life11
Pnom end service life11
Pred at 50% lumin. flux6
Wt. (kg)7.5
Price (EUR)1569.30
Show all details

Litepole 2 iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard, with Smart Interface below and above

Order No.: 5XA5425EY14H000022GTIN (EAN): 4058352024201

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux1540lm
Light distributionST1.2a
ControliQ-Street Remote, D4i with power reduction
SupplementSmart Interface below and above
Pnom begin service life11
Pnom end service life11
Pred at 50% lumin. flux6
Wt. (kg)7.5
Price (EUR)1691.90
Show all details

Optional accessories

Articlespreader elementPU1 pc.Wt. (kg)0.2Price (EUR)43.40Order No.: 5XA54000XSGTIN (EAN): 4050737730073Show all details
Articlespreader elementPU1 pc.Wt. (kg)0.2Price (EUR)67.40Order No.: 5XA54000XSAGTIN (EAN): 4058352161326Show all details
Articleshield, rear shieldingPU1 pc.Wt. (kg)0.1Price (EUR)96.50Order No.: 5XA54000XBSGTIN (EAN): 4050737971445Show all details
Articleshield, rear shieldingPU1 pc.Wt. (kg)0.1Price (EUR)108.70Order No.: 5XA54000XBLGTIN (EAN): 4050737971421Show all details
Articleshield, rear shieldingPU1 pc.Wt. (kg)0.5Price (EUR)117.60Order No.: 5XA54000XBXLGTIN (EAN): 4058352415573Show all details
Articledecorative ring, silverPU1 pc.Wt. (kg)0.2Price (EUR)43.40Order No.: 5XA54001XSGTIN (EAN): 4050737754895Show all details
Articlereducer, spigot size: 76/60mmPU1 pc.Wt. (kg)0.1Price (EUR)31.10Order No.: 5LA52201XRGTIN (EAN): 4039806232175Show all details
Articlecable junction box, 2x E14, for 3 cables to 5x 16mm²PU1 pc.Wt. (kg)0.8Price (EUR)174.50Order No.: 5NY70062DKGTIN (EAN): 4058352552247Show all details
Articlewall bracket, rocker-type, single, DB 702S, a= 600mmPU1 pc.Wt. (kg)7.4Price (EUR)623.60Order No.: 5NY52660XG18GTIN (EAN): 4039806215932Show all details
Articlemast arm, rocker-type, single, DB 702S, a= 600mm, d_a= 76mmPU1 pc.Wt. (kg)9.5Price (EUR)793.40Order No.: 5NY52650XG18GTIN (EAN): 4039806216694Show all details
Articlemast arm, rocker-type, twin, DB 702S, a= 600mm, d_a= 76mmPU1 pc.Wt. (kg)13.8Price (EUR)1598.50Order No.: 5NY52650XG28GTIN (EAN): 4039806215833Show all details
Articlewall bracket, rail-type, single, DB 702S, a= 600mmPU1 pc.Wt. (kg)7.9Price (EUR)514.00Order No.: 5NY52660XN18GTIN (EAN): 4039806216014Show all details
Articlemast arm, rail-type, single, DB 702S, a= 600mm, d_a= 76mmPU1 pc.Wt. (kg)9.8Price (EUR)715.50Order No.: 5NY52650XN18GTIN (EAN): 4039806215857Show all details
Articlemast arm, rail-type, twin, DB 702S, a= 600mm, d_a= 76mmPU1 pc.Wt. (kg)15.9Price (EUR)1293.20Order No.: 5NY52650XN28GTIN (EAN): 4039806215895Show all details
Articlecover, PMMA, transparent, ø= 200mmPU1 pc.Wt. (kg)1.3Price (EUR)173.20Order No.: 5NA54900XGGTIN (EAN): 4039806059666Show all details
Articlecover, PMMA, frosted, ø= 200mmPU1 pc.Wt. (kg)1.2Price (EUR)173.20Order No.: 5NA54903XGGTIN (EAN): 4039806210357Show all details
