City-Light iQ
Every city is different - but each wants to be attractive and welcoming. SITECO town and park luminaires can make a decisive contribution to giving your town that certain flair. Our luminaires are effective day and night, set aesthetic accents and can be perfectly combined with designer masts. But the best thing is their inner workings: All luminaires contain the latest generation of Module 540, which is also perfectly suited as a refurbishment solution for old systems. Because this module has it all: for example iQ, our new, patented luminaire electronics, which equips your light with a multitude of new functions and future-oriented control options. In this way, SITECO not only transports cherished design classics into the LED age, but directly into the future.
Flexible and modular into the future of city lighting
City-Light Plus with Module 540 iQ (as single components)
Intro product family
Key data

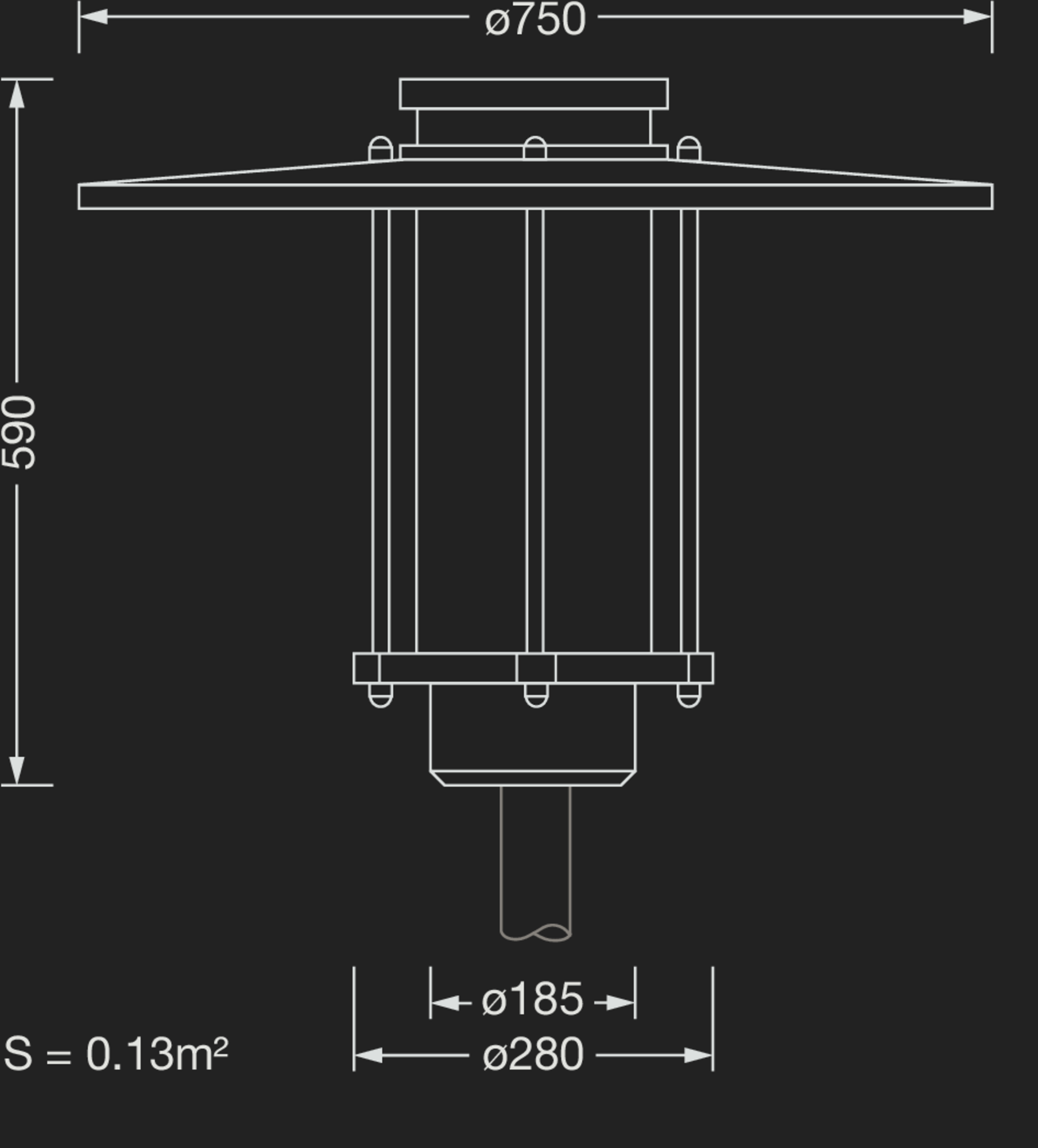

Article mast luminaire
Lighting effect direct asymmetric wide distribution; direct highly asymmetric extremely wide distribution; direct symmetric wide distribution
Light distribution ST1.2a; P1.0a; PL1.2s
Net luminous flux 1440lm to 4710lm
Colour temperature 2700K; 2200K; 3000K; 4000K
Control iQ Street-Remote
Protection rating IP65
Insulation class insulation class II (safety insulation)
Special features
Easy installation and low maintenance due to future-oriented modular design for exchangeable LED module and gear tray
Luminous module body as a visual guidance element with decorative day/night time effect
Low energy consumption due to high luminous efficacy and avoidance of overplanning thanks to the patented CLO 2.0 luminous flux tracking
High visual comfort due to uniform illumination and very good glare control – can be further improved with spreader element
Configuration & data sheets
- please order mast reducer separately if required
- Setting the luminaire with Street-Remote: with the SITECO iQ app on the SITECO iQ handheld (5EA6HBR02) or your own smart phone
- SITECO offers the SITECO Connect Group Control (230V or 12/24V) product to use the Smart Wire function '10 levels'. A communication module is also available with which remote access is possible and radio clock functionality is provided.
- Smart Interface luminaires currently without iQ functionality
Results
City-Light Plus iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, standard
Order No.: 5XA5275BF14H GTIN (EAN): 4058352835166
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 2200K | CRI > 70 | 1440lm | P1.0a | iQ Street-Remote | 13 | 13 | 6 | 11.0 |
City-Light Plus iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, Power
Order No.: 5XA5275BF14HP GTIN (EAN): 4058352835173
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 2200K | CRI > 70 | 3710lm | P1.0a | iQ Street-Remote | 34 | 36 | 15 | 11.0 |
City-Light Plus iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard
Order No.: 5XA5275AF14H GTIN (EAN): 4058352835111
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 2200K | CRI > 70 | 1470lm | ST1.2a | iQ Street-Remote | 13 | 13 | 6 | 11.0 |
City-Light Plus iQ, ST1.2a, direct asymmetric wide distribution, transparent, Power
Order No.: 5XA5275AF14HP GTIN (EAN): 4058352835135
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 2200K | CRI > 70 | 3730lm | ST1.2a | iQ Street-Remote | 34 | 36 | 15 | 11.0 |
City-Light Plus iQ, PL1.2s, direct symmetric wide distribution, transparent, standard
Order No.: 5XA5275CF14H GTIN (EAN): 4058352835197
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 2200K | CRI > 70 | 2840lm | PL1.2s | iQ Street-Remote | 24 | 26 | 12 | 11.0 |
City-Light Plus iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, standard
Order No.: 5XA5275NF14H GTIN (EAN): 4058352835371
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 2700K | CRI > 70 | 1440lm | P1.0a | iQ Street-Remote | 12 | 12 | 6 | 11.0 |
City-Light Plus iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, Power
Order No.: 5XA5275NF14HP GTIN (EAN): 4058352835395
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 2700K | CRI > 70 | 4020lm | P1.0a | iQ Street-Remote | 34 | 36 | 15 | 11.0 |
City-Light Plus iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard
Order No.: 5XA5275MF14H GTIN (EAN): 4058352835340
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 2700K | CRI > 70 | 1470lm | ST1.2a | iQ Street-Remote | 12 | 12 | 6 | 11.0 |
City-Light Plus iQ, ST1.2a, direct asymmetric wide distribution, transparent, Power
Order No.: 5XA5275MF14HP GTIN (EAN): 4058352835357
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 2700K | CRI > 70 | 4040lm | ST1.2a | iQ Street-Remote | 34 | 36 | 15 | 11.0 |
City-Light Plus iQ, PL1.2s, direct symmetric wide distribution, transparent, standard
Order No.: 5XA5275OF14H GTIN (EAN): 4058352835418
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 2700K | CRI > 70 | 2840lm | PL1.2s | iQ Street-Remote | 22 | 23 | 11 | 11.0 |
City-Light Plus iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, standard
Order No.: 5XA5275FF14H GTIN (EAN): 4058352636152
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 1440lm | P1.0a | iQ Street-Remote | 11 | 11 | 5 | 11.0 |
City-Light Plus iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, Power
Order No.: 5XA5275FF14HP GTIN (EAN): 4058352835234
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 4480lm | P1.0a | iQ Street-Remote | 34 | 36 | 15 | 11.0 |
City-Light Plus iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard
Order No.: 5XA5275EF14H GTIN (EAN): 4058352636138
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 1470lm | ST1.2a | iQ Street-Remote | 11 | 11 | 5 | 11.0 |
City-Light Plus iQ, ST1.2a, direct asymmetric wide distribution, transparent, Power
Order No.: 5XA5275EF14HP GTIN (EAN): 4058352835210
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 4510lm | ST1.2a | iQ Street-Remote | 34 | 36 | 15 | 11.0 |
City-Light Plus iQ, PL1.2s, direct symmetric wide distribution, transparent, standard
Order No.: 5XA5275JF14H GTIN (EAN): 4058352636190
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 2830lm | PL1.2s | iQ Street-Remote | 19 | 21 | 10 | 11.0 |
City-Light Plus iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, standard
Order No.: 5XA5275LF14H GTIN (EAN): 4058352835296
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 1440lm | P1.0a | iQ Street-Remote | 10 | 10 | 5 | 11.0 |
City-Light Plus iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, Power
Order No.: 5XA5275LF14HP GTIN (EAN): 4058352835319
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 4680lm | P1.0a | iQ Street-Remote | 34 | 36 | 15 | 11.0 |
City-Light Plus iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard
Order No.: 5XA5275KF14H GTIN (EAN): 4058352835258
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 1470lm | ST1.2a | iQ Street-Remote | 10 | 10 | 5 | 11.0 |
City-Light Plus iQ, ST1.2a, direct asymmetric wide distribution, transparent, Power
Order No.: 5XA5275KF14HP GTIN (EAN): 4058352835272
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 4710lm | ST1.2a | iQ Street-Remote | 34 | 36 | 15 | 11.0 |
City-Light Plus iQ, PL1.2s, direct symmetric wide distribution, transparent, standard
Order No.: 5XA5275RF14H GTIN (EAN): 4058352835432
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 2840lm | PL1.2s | iQ Street-Remote | 19 | 20 | 9 | 11.0 |
City-Light Plus iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, standard
Order No.: 5XA5275BF14HGTIN (EAN): 4058352835166
| Colour temperature | 2200K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 1440lm |
| Light distribution | P1.0a |
| Control | iQ Street-Remote |
| Pnom begin service life | 13 |
| Pnom end service life | 13 |
| Pred at 50% lumin. flux | 6 |
| Wt. (kg) | 11.0 |
City-Light Plus iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, Power
Order No.: 5XA5275BF14HPGTIN (EAN): 4058352835173
| Colour temperature | 2200K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 3710lm |
| Light distribution | P1.0a |
| Control | iQ Street-Remote |
| Pnom begin service life | 34 |
| Pnom end service life | 36 |
| Pred at 50% lumin. flux | 15 |
| Wt. (kg) | 11.0 |
City-Light Plus iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard
Order No.: 5XA5275AF14HGTIN (EAN): 4058352835111
| Colour temperature | 2200K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 1470lm |
| Light distribution | ST1.2a |
| Control | iQ Street-Remote |
| Pnom begin service life | 13 |
| Pnom end service life | 13 |
| Pred at 50% lumin. flux | 6 |
| Wt. (kg) | 11.0 |
City-Light Plus iQ, ST1.2a, direct asymmetric wide distribution, transparent, Power
Order No.: 5XA5275AF14HPGTIN (EAN): 4058352835135
| Colour temperature | 2200K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 3730lm |
| Light distribution | ST1.2a |
| Control | iQ Street-Remote |
| Pnom begin service life | 34 |
| Pnom end service life | 36 |
| Pred at 50% lumin. flux | 15 |
| Wt. (kg) | 11.0 |
City-Light Plus iQ, PL1.2s, direct symmetric wide distribution, transparent, standard
Order No.: 5XA5275CF14HGTIN (EAN): 4058352835197
| Colour temperature | 2200K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 2840lm |
| Light distribution | PL1.2s |
| Control | iQ Street-Remote |
| Pnom begin service life | 24 |
| Pnom end service life | 26 |
| Pred at 50% lumin. flux | 12 |
| Wt. (kg) | 11.0 |
City-Light Plus iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, standard
Order No.: 5XA5275NF14HGTIN (EAN): 4058352835371
| Colour temperature | 2700K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 1440lm |
| Light distribution | P1.0a |
| Control | iQ Street-Remote |
| Pnom begin service life | 12 |
| Pnom end service life | 12 |
| Pred at 50% lumin. flux | 6 |
| Wt. (kg) | 11.0 |
City-Light Plus iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, Power
Order No.: 5XA5275NF14HPGTIN (EAN): 4058352835395
| Colour temperature | 2700K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 4020lm |
| Light distribution | P1.0a |
| Control | iQ Street-Remote |
| Pnom begin service life | 34 |
| Pnom end service life | 36 |
| Pred at 50% lumin. flux | 15 |
| Wt. (kg) | 11.0 |
City-Light Plus iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard
Order No.: 5XA5275MF14HGTIN (EAN): 4058352835340
| Colour temperature | 2700K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 1470lm |
| Light distribution | ST1.2a |
| Control | iQ Street-Remote |
| Pnom begin service life | 12 |
| Pnom end service life | 12 |
| Pred at 50% lumin. flux | 6 |
| Wt. (kg) | 11.0 |
City-Light Plus iQ, ST1.2a, direct asymmetric wide distribution, transparent, Power
Order No.: 5XA5275MF14HPGTIN (EAN): 4058352835357
| Colour temperature | 2700K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 4040lm |
| Light distribution | ST1.2a |
| Control | iQ Street-Remote |
| Pnom begin service life | 34 |
| Pnom end service life | 36 |
| Pred at 50% lumin. flux | 15 |
| Wt. (kg) | 11.0 |
City-Light Plus iQ, PL1.2s, direct symmetric wide distribution, transparent, standard
Order No.: 5XA5275OF14HGTIN (EAN): 4058352835418
| Colour temperature | 2700K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 2840lm |
| Light distribution | PL1.2s |
| Control | iQ Street-Remote |
| Pnom begin service life | 22 |
| Pnom end service life | 23 |
| Pred at 50% lumin. flux | 11 |
| Wt. (kg) | 11.0 |
City-Light Plus iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, standard
Order No.: 5XA5275FF14HGTIN (EAN): 4058352636152
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 1440lm |
| Light distribution | P1.0a |
| Control | iQ Street-Remote |
| Pnom begin service life | 11 |
| Pnom end service life | 11 |
| Pred at 50% lumin. flux | 5 |
| Wt. (kg) | 11.0 |
City-Light Plus iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, Power
Order No.: 5XA5275FF14HPGTIN (EAN): 4058352835234
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 4480lm |
| Light distribution | P1.0a |
| Control | iQ Street-Remote |
| Pnom begin service life | 34 |
| Pnom end service life | 36 |
| Pred at 50% lumin. flux | 15 |
| Wt. (kg) | 11.0 |
City-Light Plus iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard
Order No.: 5XA5275EF14HGTIN (EAN): 4058352636138
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 1470lm |
| Light distribution | ST1.2a |
| Control | iQ Street-Remote |
| Pnom begin service life | 11 |
| Pnom end service life | 11 |
| Pred at 50% lumin. flux | 5 |
| Wt. (kg) | 11.0 |
City-Light Plus iQ, ST1.2a, direct asymmetric wide distribution, transparent, Power
Order No.: 5XA5275EF14HPGTIN (EAN): 4058352835210
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 4510lm |
| Light distribution | ST1.2a |
| Control | iQ Street-Remote |
| Pnom begin service life | 34 |
| Pnom end service life | 36 |
| Pred at 50% lumin. flux | 15 |
| Wt. (kg) | 11.0 |
City-Light Plus iQ, PL1.2s, direct symmetric wide distribution, transparent, standard
Order No.: 5XA5275JF14HGTIN (EAN): 4058352636190
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 2830lm |
| Light distribution | PL1.2s |
| Control | iQ Street-Remote |
| Pnom begin service life | 19 |
| Pnom end service life | 21 |
| Pred at 50% lumin. flux | 10 |
| Wt. (kg) | 11.0 |
City-Light Plus iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, standard
Order No.: 5XA5275LF14HGTIN (EAN): 4058352835296
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 1440lm |
| Light distribution | P1.0a |
| Control | iQ Street-Remote |
| Pnom begin service life | 10 |
| Pnom end service life | 10 |
| Pred at 50% lumin. flux | 5 |
| Wt. (kg) | 11.0 |
City-Light Plus iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, Power
Order No.: 5XA5275LF14HPGTIN (EAN): 4058352835319
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 4680lm |
| Light distribution | P1.0a |
| Control | iQ Street-Remote |
| Pnom begin service life | 34 |
| Pnom end service life | 36 |
| Pred at 50% lumin. flux | 15 |
| Wt. (kg) | 11.0 |
City-Light Plus iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard
Order No.: 5XA5275KF14HGTIN (EAN): 4058352835258
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 1470lm |
| Light distribution | ST1.2a |
| Control | iQ Street-Remote |
| Pnom begin service life | 10 |
| Pnom end service life | 10 |
| Pred at 50% lumin. flux | 5 |
| Wt. (kg) | 11.0 |
City-Light Plus iQ, ST1.2a, direct asymmetric wide distribution, transparent, Power
Order No.: 5XA5275KF14HPGTIN (EAN): 4058352835272
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 4710lm |
| Light distribution | ST1.2a |
| Control | iQ Street-Remote |
| Pnom begin service life | 34 |
| Pnom end service life | 36 |
| Pred at 50% lumin. flux | 15 |
| Wt. (kg) | 11.0 |
City-Light Plus iQ, PL1.2s, direct symmetric wide distribution, transparent, standard
Order No.: 5XA5275RF14HGTIN (EAN): 4058352835432
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 2840lm |
| Light distribution | PL1.2s |
| Control | iQ Street-Remote |
| Pnom begin service life | 19 |
| Pnom end service life | 20 |
| Pred at 50% lumin. flux | 9 |
| Wt. (kg) | 11.0 |
Optional accessories
| Order No.: 5XA54000XSGTIN (EAN): 4050737730073 | Show all details |
| Order No.: 5XA54000XSAGTIN (EAN): 4058352161326 | Show all details |
| Order No.: 5XA54000XBSGTIN (EAN): 4050737971445 | Show all details |
| Order No.: 5XA54000XBLGTIN (EAN): 4050737971421 | Show all details |
| Order No.: 5XA54000XBXLGTIN (EAN): 4058352415573 | Show all details |
| Order No.: 5XA54001XSGTIN (EAN): 4050737754895 | Show all details |
| Order No.: 5LA52201XRGTIN (EAN): 4039806232175 | Show all details |
| Order No.: 5NY70062DKGTIN (EAN): 4058352552247 | Show all details |
| Order No.: 5NY52660XG18GTIN (EAN): 4039806215932 | Show all details |
| Order No.: 5NY52650XG18GTIN (EAN): 4039806216694 | Show all details |
| Order No.: 5NY52650XG28GTIN (EAN): 4039806215833 | Show all details |
| Order No.: 5NY52660XN18GTIN (EAN): 4039806216014 | Show all details |
| Order No.: 5NY52650XN18GTIN (EAN): 4039806215857 | Show all details |
| Order No.: 5NY52650XN28GTIN (EAN): 4039806215895 | Show all details |
| Order No.: 5NA54900XGGTIN (EAN): 4039806059666 | Show all details |
| Order No.: 5NA54903XGGTIN (EAN): 4039806210357 | Show all details |
