Lantern iQ

ProducttypesConfiguration & Datasheets

Every city is different - but each wants to be attractive and welcoming. SITECO town and park luminaires can make a decisive contribution to giving your town that certain flair. Our luminaires are effective day and night, set aesthetic accents and can be perfectly combined with designer masts. But the best thing is their inner workings: All luminaires contain the latest generation of Module 540, which is also perfectly suited as a refurbishment solution for old systems. Because this module has it all: for example iQ, our new, patented luminaire electronics, which equips your light with a multitude of new functions and future-oriented control options. In this way, SITECO not only transports cherished design classics into the LED age, but directly into the future.

Flexible and modular into the future of city lighting

Producttypes

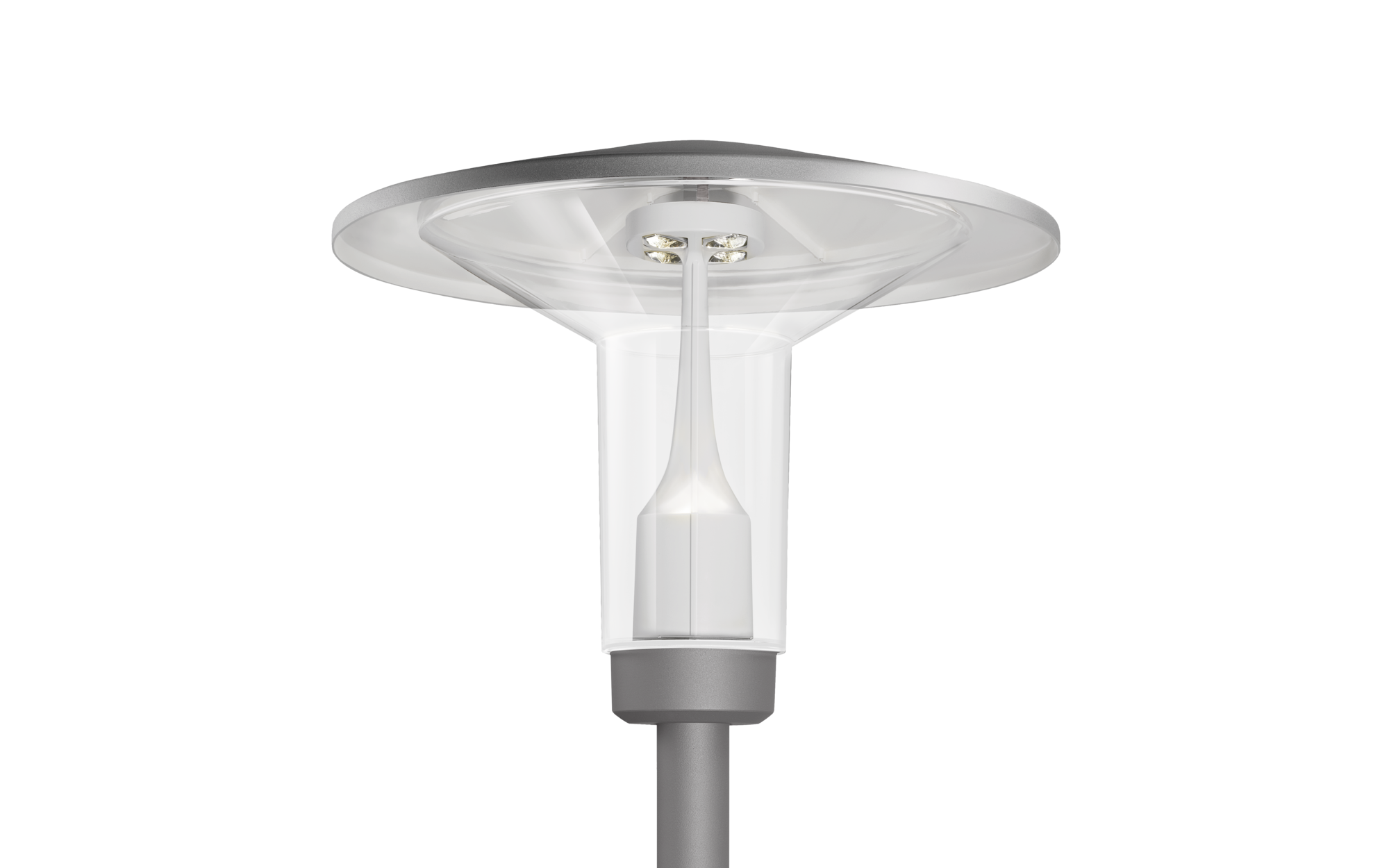

Lantern with Module 540 iQ (as single components)

Lantern with Module 540 iQ (pre-assembled, incl. connection cable)

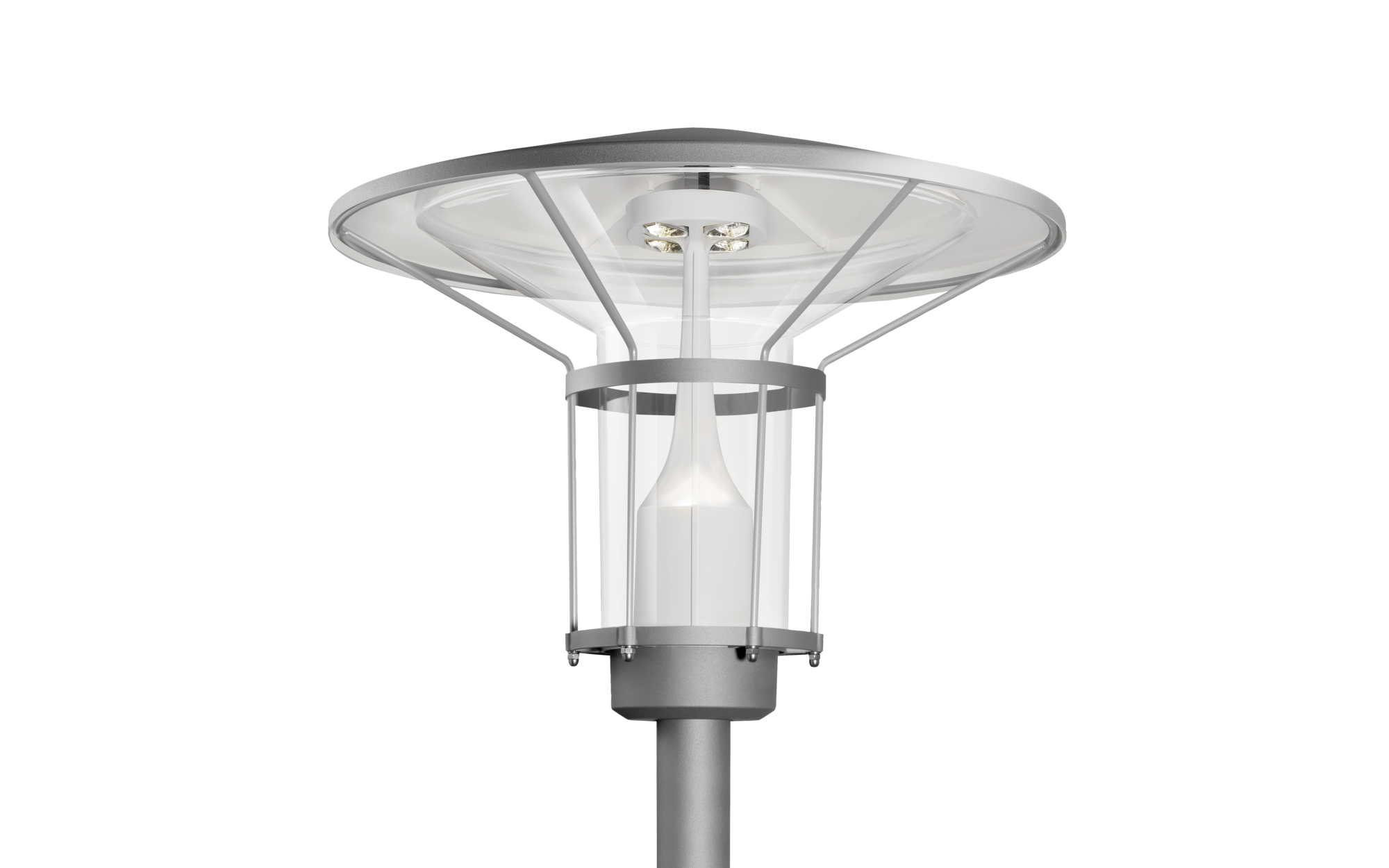

Lantern Classic with Module 540 iQ (as single components)

Lantern Classic with Module 540 iQ (pre-assembled, incl. connection cable)

Lantern Classic with Module 540 iQ (as single components)

Intro to Productfamily

Data

Article mast luminaire
Lighting effect direct asymmetric wide distribution; direct highly asymmetric extremely wide distribution; direct symmetric wide distribution
Light distribution ST1.2a; P1.0a; PL1.2s
Net luminous flux 1360lm to 4430lm
Colour temperature 2700K; 2200K; 3000K; 4000K
Control iQ Street-Remote
Protection rating IP65
Insulation class insulation class II (safety insulation)

Specials

Easy installation and low maintenance due to future-oriented modular design for exchangeable LED module and gear tray
Luminous module body as a visual guidance element with decorative day/night time effect
Low energy consumption due to high luminous efficacy and avoidance of overplanning thanks to the patented CLO 2.0 luminous flux tracking
High visual comfort due to uniform illumination and very good glare control – can be further improved with spreader element

Configuration & Datasheets

Lighting effect

Light distribution

Colour temperature

Equipment

  • please order mast reducer separately if required
  • Setting the luminaire with Street-Remote: with the SITECO iQ app on the SITECO iQ handheld (5EA6HBR02) or your own smart phone
  • SITECO offers the SITECO Connect Group Control (230V or 12/24V) product to use the Smart Wire function '10 levels'. A communication module is also available with which remote access is possible and radio clock functionality is provided.
  • Smart Interface luminaires currently without iQ functionality

Results

Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, standard

Order No.: 5XA5245BF14H GTIN (EAN): 4058352834459
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
2200KCRI > 701360lmP1.0aiQ Street-Remote1313614.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, Power

Order No.: 5XA5245BF14HP GTIN (EAN): 4058352834480
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
2200KCRI > 703480lmP1.0aiQ Street-Remote34361514.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard

Order No.: 5XA5245AF14H GTIN (EAN): 4058352834411
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
2200KCRI > 701380lmST1.2aiQ Street-Remote1313614.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, Power

Order No.: 5XA5245AF14HP GTIN (EAN): 4058352834435
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
2200KCRI > 703510lmST1.2aiQ Street-Remote34361514.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Lantern Classic iQ, PL1.2s, direct symmetric wide distribution, transparent, standard

Order No.: 5XA5245CF14H GTIN (EAN): 4058352834497
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
2200KCRI > 702670lmPL1.2siQ Street-Remote24261214.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, standard

Order No.: 5XA5245NF14H GTIN (EAN): 4058352834671
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
2700KCRI > 701360lmP1.0aiQ Street-Remote1212514.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, Power

Order No.: 5XA5245NF14HP GTIN (EAN): 4058352834695
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
2700KCRI > 703780lmP1.0aiQ Street-Remote34361514.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard

Order No.: 5XA5245MF14H GTIN (EAN): 4058352834633
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
2700KCRI > 701380lmST1.2aiQ Street-Remote1212614.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, Power

Order No.: 5XA5245MF14HP GTIN (EAN): 4058352834664
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
2700KCRI > 703800lmST1.2aiQ Street-Remote34361514.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Lantern Classic iQ, PL1.2s, direct symmetric wide distribution, transparent, standard

Order No.: 5XA5245OF14H GTIN (EAN): 4058352834718
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
2700KCRI > 702970lmPL1.2siQ Street-Remote22231114.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, standard

Order No.: 5XA5245FF14H GTIN (EAN): 4058352635858
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 701360lmP1.0aiQ Street-Remote1111514.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, Power

Order No.: 5XA5245FF14HP GTIN (EAN): 4058352834534
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 704210lmP1.0aiQ Street-Remote34361514.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard

Order No.: 5XA5245EF14H GTIN (EAN): 4058352635841
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 701380lmST1.2aiQ Street-Remote1111514.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, Power

Order No.: 5XA5245EF14HP GTIN (EAN): 4058352834510
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 704240lmST1.2aiQ Street-Remote34361514.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Lantern Classic iQ, PL1.2s, direct symmetric wide distribution, transparent, standard

Order No.: 5XA5245JF14H GTIN (EAN): 4058352635896
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 702670lmPL1.2siQ Street-Remote19211014.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, standard

Order No.: 5XA5245LF14H GTIN (EAN): 4058352834596
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 701360lmP1.0aiQ Street-Remote1010514.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, Power

Order No.: 5XA5245LF14HP GTIN (EAN): 4058352834619
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 704400lmP1.0aiQ Street-Remote34361514.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard

Order No.: 5XA5245KF14H GTIN (EAN): 4058352834558
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 701380lmST1.2aiQ Street-Remote1010514.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, Power

Order No.: 5XA5245KF14HP GTIN (EAN): 4058352834572
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 704430lmST1.2aiQ Street-Remote34361514.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Lantern Classic iQ, PL1.2s, direct symmetric wide distribution, transparent, standard

Order No.: 5XA5245RF14H GTIN (EAN): 4058352834732
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 702670lmPL1.2siQ Street-Remote1920914.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, standard

Order No.: 5XA5245BF14HGTIN (EAN): 4058352834459

Colour temperature2200K
Colour renderingCRI > 70
Luminous flux1360lm
Light distributionP1.0a
ControliQ Street-Remote
Pnom begin service life13
Pnom end service life13
Pred at 50% lumin. flux6
Wt. (kg)14.7
Show details

Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, Power

Order No.: 5XA5245BF14HPGTIN (EAN): 4058352834480

Colour temperature2200K
Colour renderingCRI > 70
Luminous flux3480lm
Light distributionP1.0a
ControliQ Street-Remote
Pnom begin service life34
Pnom end service life36
Pred at 50% lumin. flux15
Wt. (kg)14.7
Show details

Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard

Order No.: 5XA5245AF14HGTIN (EAN): 4058352834411

Colour temperature2200K
Colour renderingCRI > 70
Luminous flux1380lm
Light distributionST1.2a
ControliQ Street-Remote
Pnom begin service life13
Pnom end service life13
Pred at 50% lumin. flux6
Wt. (kg)14.7
Show details

Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, Power

Order No.: 5XA5245AF14HPGTIN (EAN): 4058352834435

Colour temperature2200K
Colour renderingCRI > 70
Luminous flux3510lm
Light distributionST1.2a
ControliQ Street-Remote
Pnom begin service life34
Pnom end service life36
Pred at 50% lumin. flux15
Wt. (kg)14.7
Show details

Lantern Classic iQ, PL1.2s, direct symmetric wide distribution, transparent, standard

Order No.: 5XA5245CF14HGTIN (EAN): 4058352834497

Colour temperature2200K
Colour renderingCRI > 70
Luminous flux2670lm
Light distributionPL1.2s
ControliQ Street-Remote
Pnom begin service life24
Pnom end service life26
Pred at 50% lumin. flux12
Wt. (kg)14.7
Show details

Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, standard

Order No.: 5XA5245NF14HGTIN (EAN): 4058352834671

Colour temperature2700K
Colour renderingCRI > 70
Luminous flux1360lm
Light distributionP1.0a
ControliQ Street-Remote
Pnom begin service life12
Pnom end service life12
Pred at 50% lumin. flux5
Wt. (kg)14.7
Show details

Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, Power

Order No.: 5XA5245NF14HPGTIN (EAN): 4058352834695

Colour temperature2700K
Colour renderingCRI > 70
Luminous flux3780lm
Light distributionP1.0a
ControliQ Street-Remote
Pnom begin service life34
Pnom end service life36
Pred at 50% lumin. flux15
Wt. (kg)14.7
Show details

Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard

Order No.: 5XA5245MF14HGTIN (EAN): 4058352834633

Colour temperature2700K
Colour renderingCRI > 70
Luminous flux1380lm
Light distributionST1.2a
ControliQ Street-Remote
Pnom begin service life12
Pnom end service life12
Pred at 50% lumin. flux6
Wt. (kg)14.7
Show details

Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, Power

Order No.: 5XA5245MF14HPGTIN (EAN): 4058352834664

Colour temperature2700K
Colour renderingCRI > 70
Luminous flux3800lm
Light distributionST1.2a
ControliQ Street-Remote
Pnom begin service life34
Pnom end service life36
Pred at 50% lumin. flux15
Wt. (kg)14.7
Show details

Lantern Classic iQ, PL1.2s, direct symmetric wide distribution, transparent, standard

Order No.: 5XA5245OF14HGTIN (EAN): 4058352834718

Colour temperature2700K
Colour renderingCRI > 70
Luminous flux2970lm
Light distributionPL1.2s
ControliQ Street-Remote
Pnom begin service life22
Pnom end service life23
Pred at 50% lumin. flux11
Wt. (kg)14.7
Show details

Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, standard

Order No.: 5XA5245FF14HGTIN (EAN): 4058352635858

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux1360lm
Light distributionP1.0a
ControliQ Street-Remote
Pnom begin service life11
Pnom end service life11
Pred at 50% lumin. flux5
Wt. (kg)14.7
Show details

Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, Power

Order No.: 5XA5245FF14HPGTIN (EAN): 4058352834534

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux4210lm
Light distributionP1.0a
ControliQ Street-Remote
Pnom begin service life34
Pnom end service life36
Pred at 50% lumin. flux15
Wt. (kg)14.7
Show details

Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard

Order No.: 5XA5245EF14HGTIN (EAN): 4058352635841

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux1380lm
Light distributionST1.2a
ControliQ Street-Remote
Pnom begin service life11
Pnom end service life11
Pred at 50% lumin. flux5
Wt. (kg)14.7
Show details

Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, Power

Order No.: 5XA5245EF14HPGTIN (EAN): 4058352834510

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux4240lm
Light distributionST1.2a
ControliQ Street-Remote
Pnom begin service life34
Pnom end service life36
Pred at 50% lumin. flux15
Wt. (kg)14.7
Show details

Lantern Classic iQ, PL1.2s, direct symmetric wide distribution, transparent, standard

Order No.: 5XA5245JF14HGTIN (EAN): 4058352635896

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux2670lm
Light distributionPL1.2s
ControliQ Street-Remote
Pnom begin service life19
Pnom end service life21
Pred at 50% lumin. flux10
Wt. (kg)14.7
Show details

Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, standard

Order No.: 5XA5245LF14HGTIN (EAN): 4058352834596

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux1360lm
Light distributionP1.0a
ControliQ Street-Remote
Pnom begin service life10
Pnom end service life10
Pred at 50% lumin. flux5
Wt. (kg)14.7
Show details

Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, Power

Order No.: 5XA5245LF14HPGTIN (EAN): 4058352834619

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux4400lm
Light distributionP1.0a
ControliQ Street-Remote
Pnom begin service life34
Pnom end service life36
Pred at 50% lumin. flux15
Wt. (kg)14.7
Show details

Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard

Order No.: 5XA5245KF14HGTIN (EAN): 4058352834558

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux1380lm
Light distributionST1.2a
ControliQ Street-Remote
Pnom begin service life10
Pnom end service life10
Pred at 50% lumin. flux5
Wt. (kg)14.7
Show details

Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, Power

Order No.: 5XA5245KF14HPGTIN (EAN): 4058352834572

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux4430lm
Light distributionST1.2a
ControliQ Street-Remote
Pnom begin service life34
Pnom end service life36
Pred at 50% lumin. flux15
Wt. (kg)14.7
Show details

Lantern Classic iQ, PL1.2s, direct symmetric wide distribution, transparent, standard

Order No.: 5XA5245RF14HGTIN (EAN): 4058352834732

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux2670lm
Light distributionPL1.2s
ControliQ Street-Remote
Pnom begin service life19
Pnom end service life20
Pred at 50% lumin. flux9
Wt. (kg)14.7
Show details

Optional accessory

Articlespreader elementPU1 pc.Wt. (kg)0.2Order No.: 5XA54000XSGTIN (EAN): 4050737730073Show details
Articlespreader elementPU1 pc.Wt. (kg)0.2Order No.: 5XA54000XSAGTIN (EAN): 4058352161326Show details
Articleshield, rear shieldingPU1 pc.Wt. (kg)0.1Order No.: 5XA54000XBSGTIN (EAN): 4050737971445Show details
Articleshield, rear shieldingPU1 pc.Wt. (kg)0.1Order No.: 5XA54000XBLGTIN (EAN): 4050737971421Show details
Articleshield, rear shieldingPU1 pc.Wt. (kg)0.5Order No.: 5XA54000XBXLGTIN (EAN): 4058352415573Show details
Articledecorative ring, silverPU1 pc.Wt. (kg)0.2Order No.: 5XA54001XSGTIN (EAN): 4050737754895Show details
Articlereducer, spigot size: 76/60mmPU1 pc.Wt. (kg)0.1Order No.: 5LA52201XRGTIN (EAN): 4039806232175Show details
Articlecable junction box, 2x E14, for 3 cables to 5x 16mm²PU1 pc.Wt. (kg)0.8Order No.: 5NY70062DKGTIN (EAN): 4058352552247Show details
Articlewall bracket, rocker-type, single, DB 702S, a= 600mmPU1 pc.Wt. (kg)7.4Order No.: 5NY52660XG18GTIN (EAN): 4039806215932Show details
Articlemast arm, rocker-type, single, DB 702S, a= 600mm, d_a= 76mmPU1 pc.Wt. (kg)9.5Order No.: 5NY52650XG18GTIN (EAN): 4039806216694Show details
Articlemast arm, rocker-type, twin, DB 702S, a= 600mm, d_a= 76mmPU1 pc.Wt. (kg)13.8Order No.: 5NY52650XG28GTIN (EAN): 4039806215833Show details
Articlewall bracket, rail-type, single, DB 702S, a= 600mmPU1 pc.Wt. (kg)7.9Order No.: 5NY52660XN18GTIN (EAN): 4039806216014Show details
Articlemast arm, rail-type, single, DB 702S, a= 600mm, d_a= 76mmPU1 pc.Wt. (kg)9.8Order No.: 5NY52650XN18GTIN (EAN): 4039806215857Show details
Articlemast arm, rail-type, twin, DB 702S, a= 600mm, d_a= 76mmPU1 pc.Wt. (kg)15.9Order No.: 5NY52650XN28GTIN (EAN): 4039806215895Show details
Articlecover, PMMA, transparent, ø= 185mmPU1 pc.Wt. (kg)2.0Order No.: 5NC54700XGGTIN (EAN): 4039806180513Show details
