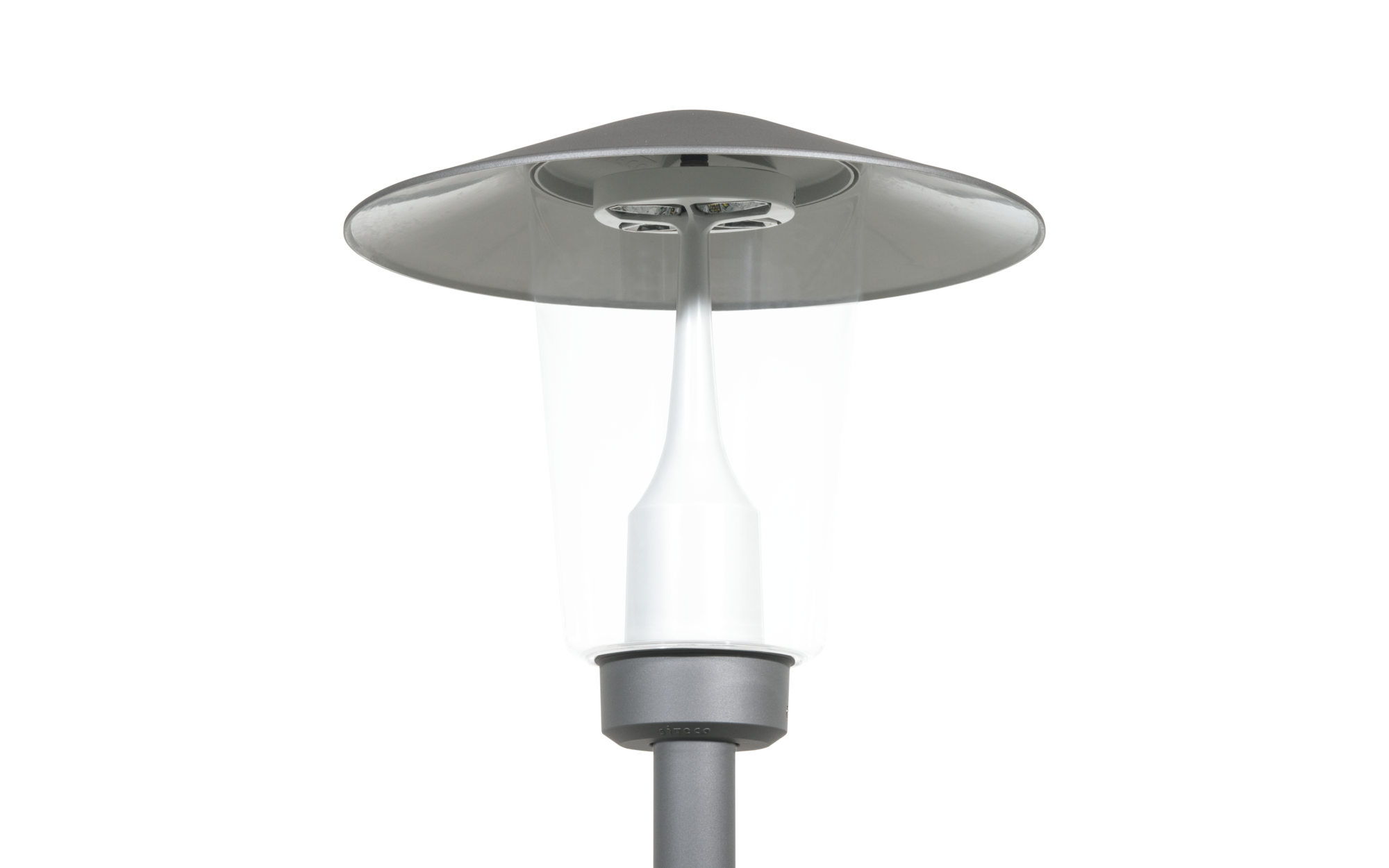

Mushroom Luminaire iQ

Product typesConfiguration & data sheets

Every city is different - but each wants to be attractive and welcoming. SITECO town and park luminaires can make a decisive contribution to giving your town that certain flair. Our luminaires are effective day and night, set aesthetic accents and can be perfectly combined with designer masts. But the best thing is their inner workings: All luminaires contain the latest generation of Module 540, which is also perfectly suited as a refurbishment solution for old systems. Because this module has it all: for example iQ, our new, patented luminaire electronics, which equips your light with a multitude of new functions and future-oriented control options. In this way, SITECO not only transports cherished design classics into the LED age, but directly into the future.

Flexible and modular into the future of city lighting

Product types

Mushroom Luminaire with Module 540 iQ (as single components)

Mushroom Luminaire with Module 540 iQ (pre-assembled, incl. connection cable)

Mushroom Luminaire with Module 540 iQ (pre-assembled, incl. connection cable)

Intro product family

Key data

Article mast luminaire
Lighting effect direct asymmetric wide distribution; direct highly asymmetric extremely wide distribution; direct symmetric wide distribution
Light distribution ST1.2a; P1.0a; PL1.2s
Net luminous flux 1530lm to 3000lm
Colour temperature 3000K
Control iQ Street-Remote; iQ-Street Remote, D4i with power reduction
Smart City with Smart Interface
Supplement Smart Interface above; Smart Interface below; Smart Interface below and above
Protection rating IP65
Insulation class insulation class II (safety insulation)

Configuration & data sheets

Lighting effect

Light distribution

Control

Smart City

Supplement

  • further light colours and connection cable variants on request
  • please order mast reducer separately if required
  • luminaire incl. pre-installed connection cable, l = 5.0m
  • Setting the luminaire with Street-Remote: with the SITECO iQ app on the SITECO iQ handheld (5EA6HBR02) or your own smart phone
  • SITECO offers the SITECO Connect Group Control (230V or 12/24V) product to use the Smart Wire function '10 levels'. A communication module is also available with which remote access is possible and radio clock functionality is provided.
  • Smart Interface luminaires currently without iQ functionality

Results

Mushroom Luminaire iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, standard

Order No.: 5XA5235FF14H000022 GTIN (EAN): 4058352635131
Colour temperatureColour renderingLuminous fluxLight distributionControlSupplementPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 701530lmP1.0aiQ Street-Remote 111159.0
Show all details
Tender textTender text neutralData sheet (PDF, full)Photometric report / planning dataComplete download list

Mushroom Luminaire iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard

Order No.: 5XA5235EF14H000022 GTIN (EAN): 4058352635117
Colour temperatureColour renderingLuminous fluxLight distributionControlSupplementPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 701550lmST1.2aiQ Street-Remote 111159.0
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Mushroom Luminaire iQ, PL1.2s, direct symmetric wide distribution, transparent, standard

Order No.: 5XA5235JF14H000022 GTIN (EAN): 4058352635810
Colour temperatureColour renderingLuminous fluxLight distributionControlSupplementPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 703000lmPL1.2siQ Street-Remote 1921109.0
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Mushroom Luminaire iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard, with Smart Interface below

Order No.: 5XA5235EU14H000022 GTIN (EAN): 4058352023846
Colour temperatureColour renderingLuminous fluxLight distributionControlSupplementPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 701550lmST1.2aiQ-Street Remote, D4i with power reductionSmart Interface below111167.0
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Mushroom Luminaire iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard, with Smart Interface above

Order No.: 5XA5235EV14H000022 GTIN (EAN): 4058352023860
Colour temperatureColour renderingLuminous fluxLight distributionControlSupplementPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 701550lmST1.2aiQ-Street Remote, D4i with power reductionSmart Interface above111167.0
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Mushroom Luminaire iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard, with Smart Interface below and above

Order No.: 5XA5235EY14H000022 GTIN (EAN): 4058352987582
Colour temperatureColour renderingLuminous fluxLight distributionControlSupplementPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 701550lmST1.2aiQ-Street Remote, D4i with power reductionSmart Interface below and above111168.8
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Mushroom Luminaire iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, standard

Order No.: 5XA5235FF14H000022GTIN (EAN): 4058352635131

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux1530lm
Light distributionP1.0a
ControliQ Street-Remote
Supplement
Pnom begin service life11
Pnom end service life11
Pred at 50% lumin. flux5
Wt. (kg)9.0
Show all details

Mushroom Luminaire iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard

Order No.: 5XA5235EF14H000022GTIN (EAN): 4058352635117

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux1550lm
Light distributionST1.2a
ControliQ Street-Remote
Supplement
Pnom begin service life11
Pnom end service life11
Pred at 50% lumin. flux5
Wt. (kg)9.0
Show all details

Mushroom Luminaire iQ, PL1.2s, direct symmetric wide distribution, transparent, standard

Order No.: 5XA5235JF14H000022GTIN (EAN): 4058352635810

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux3000lm
Light distributionPL1.2s
ControliQ Street-Remote
Supplement
Pnom begin service life19
Pnom end service life21
Pred at 50% lumin. flux10
Wt. (kg)9.0
Show all details

Mushroom Luminaire iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard, with Smart Interface below

Order No.: 5XA5235EU14H000022GTIN (EAN): 4058352023846

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux1550lm
Light distributionST1.2a
ControliQ-Street Remote, D4i with power reduction
SupplementSmart Interface below
Pnom begin service life11
Pnom end service life11
Pred at 50% lumin. flux6
Wt. (kg)7.0
Show all details

Mushroom Luminaire iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard, with Smart Interface above

Order No.: 5XA5235EV14H000022GTIN (EAN): 4058352023860

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux1550lm
Light distributionST1.2a
ControliQ-Street Remote, D4i with power reduction
SupplementSmart Interface above
Pnom begin service life11
Pnom end service life11
Pred at 50% lumin. flux6
Wt. (kg)7.0
Show all details

Mushroom Luminaire iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard, with Smart Interface below and above

Order No.: 5XA5235EY14H000022GTIN (EAN): 4058352987582

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux1550lm
Light distributionST1.2a
ControliQ-Street Remote, D4i with power reduction
SupplementSmart Interface below and above
Pnom begin service life11
Pnom end service life11
Pred at 50% lumin. flux6
Wt. (kg)8.8
Show all details

Optional accessories

Articlespreader elementPU1 pc.Wt. (kg)0.2Order No.: 5XA54000XSGTIN (EAN): 4050737730073Show all details
Articlespreader elementPU1 pc.Wt. (kg)0.2Order No.: 5XA54000XSAGTIN (EAN): 4058352161326Show all details
Articleshield, rear shieldingPU1 pc.Wt. (kg)0.1Order No.: 5XA54000XBSGTIN (EAN): 4050737971445Show all details
Articleshield, rear shieldingPU1 pc.Wt. (kg)0.1Order No.: 5XA54000XBLGTIN (EAN): 4050737971421Show all details
Articleshield, rear shieldingPU1 pc.Wt. (kg)0.5Order No.: 5XA54000XBXLGTIN (EAN): 4058352415573Show all details
Articledecorative ring, silverPU1 pc.Wt. (kg)0.2Order No.: 5XA54001XSGTIN (EAN): 4050737754895Show all details
Articlereducer, spigot size: 76/60mmPU1 pc.Wt. (kg)0.1Order No.: 5LA52201XRGTIN (EAN): 4039806232175Show all details
Articlecable junction box, 2x E14, for 3 cables to 5x 16mm²PU1 pc.Wt. (kg)0.8Order No.: 5NY70062DKGTIN (EAN): 4058352552247Show all details
Articlecover, PMMA, opal, ø= 320mmPU1 pc.Wt. (kg)1.4Order No.: 5LA53200XGGTIN (EAN): 4039806179272Show all details
Articlecover, PE-HD, opal, ø= 320mmPU1 pc.Wt. (kg)1.1Order No.: 5LA53210XGGTIN (EAN): 4039806188755Show all details
Articlecover, PMMA, transparent, ø= 320mmPU1 pc.Wt. (kg)1.4Order No.: 5LA53220XGGTIN (EAN): 4039806179296Show all details
Articlecover, PMMA, frosted, ø= 320mmPU1 pc.Wt. (kg)1.5Order No.: 5LA53230XGGTIN (EAN): 4039806202772Show all details
