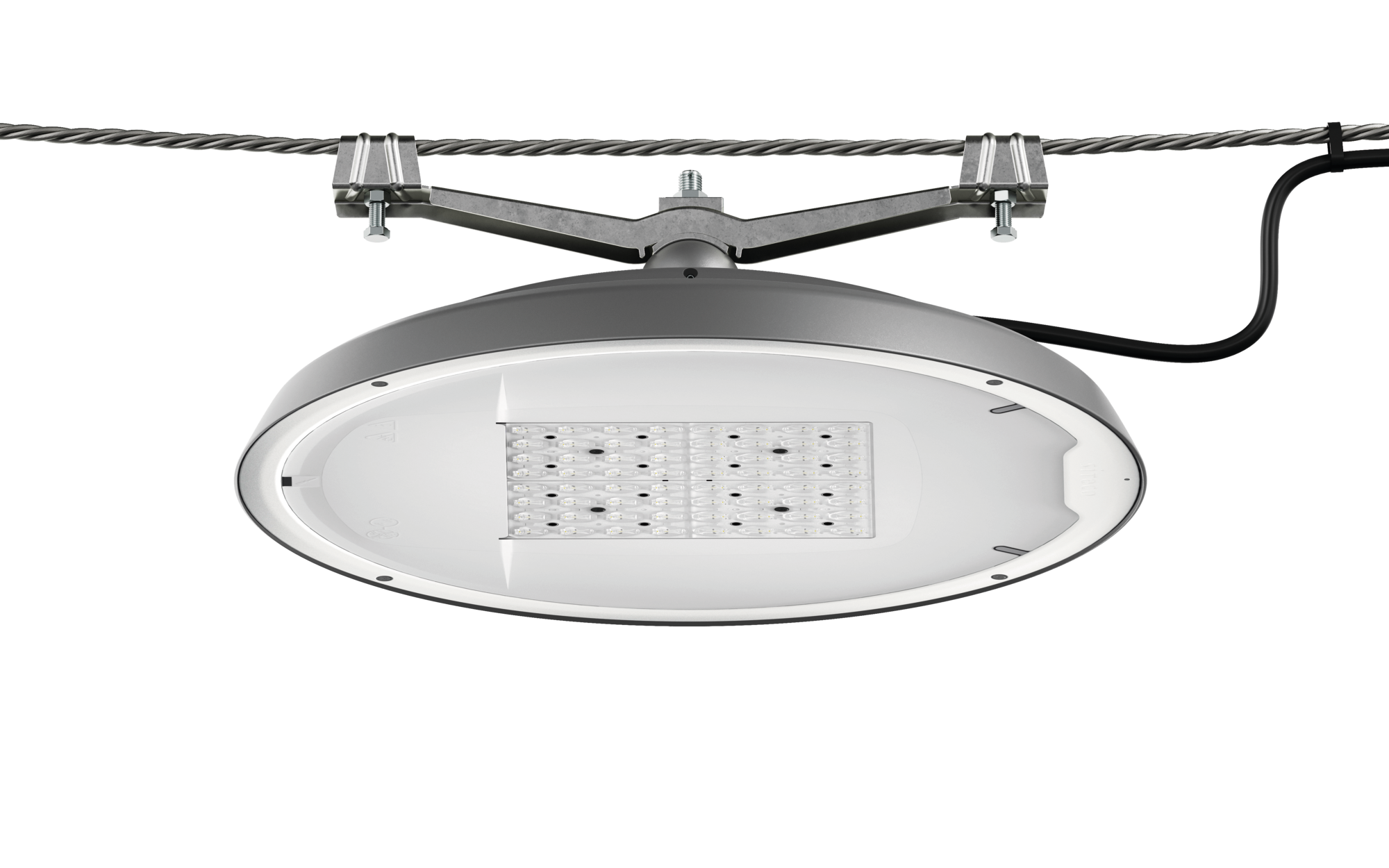

DL® 50 iQ catenary

ProducttypesConfiguration & Datasheets

Whether on the wire, on the mast or on the bracket, whether decorative or technical - the DL® 50 iQ with central lens technology offers maximum flexibility in urban planning. With a large number of installation variants, different lumen packages and three light colours, a wide range of applications is possible, from small paths to multi-lane main traffic arteries. And thanks to the patented SITECO iQ control electronics, the full potential of intelligent lighting control is unleashed – for lighting the city of tomorrow.

DL® 50 iQ. One for all

Producttypes

DL® 50 iQ catenary luminaires

DL® 50 iQ catenary luminaires

Intro to Productfamily

Data

Article catenary luminaire
Net luminous flux 2610lm to 15660lm
Colour temperature 2200K; 3000K; 4000K
Lighting effect direct symmetric wide distribution
Light distribution ST0.8s; ST1.0s; P1.0s
Protection rating IP66
Insulation class insulation class II (safety insulation)

Specials

Technical-decorative solution as a mast and catenary luminaire with a wide range of variants for all urban applications
Siteco iQ: Auto-Match: Replacement of spare parts with automatic data exchange without manually reading out and transferring the data
Resource-saving and good for the environment: 90% of the luminaire retained after replacing the LED unit or gear tray
Desk-Remote: voltage-free transmission of data to the luminaire via application-optimized NFC function/RFID function, even through the packaging
Light for every need thanks to precise lighting technology based on UV stable PMMA lenses and a broad portfolio of different light colours and distributions
Smart Wire: activation of preset dimming values or dimming profiles and many other functions
Uncomplicated installation thanks to pre-installed connection cable for mast luminaires and plug-in system with catenary luminaires
Siteco iQ Street-Remote (iQ-SR): transmission of all parameters without tools and cable connection via a stable Bluetooth connection
Various control options, intelligent dimming function, CLO 2.0 and Smart Interface (Zhaga & D4i) for smart city applications
Uncomplicated installation thanks to pre-installed connection cable for mast luminaires and plug-in system with catenary luminaires
Various control options, intelligent dimming function, CLO 2.0 and Smart Interface (Zhaga & D4i) for smart city applications
With a variety of series types and additional configuration options, the DL® 50 iQ is always exactly the luminaire you need. With different light colours, optics and mounting options. And always as flexible as you want - straight from the factory and prepared for the future

Configuration & Datasheets

Light distribution

Colour temperature

  • please order wire hanger separately
  • please order second plug connection for through-wiring additionally if required
  • SITECO offers the product SITECO Connect Group Control (230V or 12/24V) for using the SmartWire function '10 levels'. Also available is a communication module that allows remote access and radio clock functionality

Results

DL® 50 iQ mini, direct symmetric wide distribution, ST1.0s

Order No.: 5XA248W21F08GE GTIN (EAN): 4058352803981
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
2200KCRI > 704580lmST1.0siQ Street-Remote3536179.1
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 50 iQ mini, direct symmetric wide distribution, ST1.0s

Order No.: 5XA248W21F08HE GTIN (EAN): 4058352803998
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
2200KCRI > 707840lmST1.0siQ Street-Remote6974309.1
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 50 iQ mini, direct symmetric wide distribution, ST1.0s

Order No.: 5XA248W21F08RE GTIN (EAN): 4058352804056
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
2200KCRI > 705120lmST1.0siQ Street-Remote3738189.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 50 iQ mini, direct symmetric wide distribution, ST1.0s

Order No.: 5XA248W21F08LE GTIN (EAN): 4058352804018
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
2200KCRI > 708560lmST1.0siQ Street-Remote6770319.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 50 iQ mini, direct symmetric wide distribution, ST1.0s

Order No.: 5XA248W21F08ME GTIN (EAN): 4058352804032
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
2200KCRI > 7012600lmST1.0siQ Street-Remote104114469.9
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 50 iQ mini, direct symmetric wide distribution, P1.0s

Order No.: 5XA248U31F08FE GTIN (EAN): 4058352803752
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 702610lmP1.0siQ Street-Remote161789.1
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 50 iQ mini, direct symmetric wide distribution, P1.0s

Order No.: 5XA248U31F08GE GTIN (EAN): 4058352803783
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 705030lmP1.0siQ Street-Remote3334169.0
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 50 iQ mini, direct symmetric wide distribution, ST0.8s

Order No.: 5XA248V31F08FE GTIN (EAN): 4058352803837
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 702700lmST0.8siQ Street-Remote161789.1
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 50 iQ mini, direct symmetric wide distribution, ST0.8s

Order No.: 5XA248V31F08GE GTIN (EAN): 4058352803851
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 705190lmST0.8siQ Street-Remote3334169.1
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 50 iQ mini, direct symmetric wide distribution, ST0.8s

Order No.: 5XA248V31F08LE GTIN (EAN): 4058352803875
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 7010390lmST0.8siQ Street-Remote6770319.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 50 iQ mini, direct symmetric wide distribution, ST0.8s

Order No.: 5XA248V31F08ME GTIN (EAN): 4058352789988
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 7015660lmST0.8siQ Street-Remote108118479.9
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 50 iQ mini, direct symmetric wide distribution, ST1.0s

Order No.: 5XA248W31F08GE GTIN (EAN): 4058352804070
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 705190lmST1.0siQ Street-Remote3334169.1
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 50 iQ mini, direct symmetric wide distribution, ST1.0s

Order No.: 5XA248W31F08HE GTIN (EAN): 4058352790014
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 709400lmST1.0siQ Street-Remote6972309.1
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 50 iQ mini, direct symmetric wide distribution, ST1.0s

Order No.: 5XA248W31F08RE GTIN (EAN): 4058352804131
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 706000lmST1.0siQ Street-Remote3536179.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 50 iQ mini, direct symmetric wide distribution, ST1.0s

Order No.: 5XA248W31F08LE GTIN (EAN): 4058352804094
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 7010390lmST1.0siQ Street-Remote6770319.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 50 iQ mini, direct symmetric wide distribution, ST1.0s

Order No.: 5XA248W31F08ME GTIN (EAN): 4058352804117
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 7015660lmST1.0siQ Street-Remote108118479.9
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 50 iQ mini, direct symmetric wide distribution, P1.0s

Order No.: 5XA248U41F08FE GTIN (EAN): 4058352803790
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 702610lmP1.0siQ Street-Remote161689.1
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 50 iQ mini, direct symmetric wide distribution, P1.0s

Order No.: 5XA248U41F08GE GTIN (EAN): 4058352803813
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 705030lmP1.0siQ Street-Remote3132159.1
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 50 iQ mini, direct symmetric wide distribution, ST0.8s

Order No.: 5XA248V41F08FE GTIN (EAN): 4058352803899
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 702690lmST0.8siQ Street-Remote161689.1
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 50 iQ mini, direct symmetric wide distribution, ST0.8s

Order No.: 5XA248V41F08GE GTIN (EAN): 4058352803912
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 705190lmST0.8siQ Street-Remote3132159.1
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 50 iQ mini, direct symmetric wide distribution, ST0.8s

Order No.: 5XA248V41F08LE GTIN (EAN): 4058352803936
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 7010390lmST0.8siQ Street-Remote6467309.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 50 iQ mini, direct symmetric wide distribution, ST0.8s

Order No.: 5XA248V41F08ME GTIN (EAN): 4058352803950
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 7015660lmST0.8siQ Street-Remote102111459.9
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 50 iQ mini, direct symmetric wide distribution, ST1.0s

Order No.: 5XA248W41F08GE GTIN (EAN): 4058352804162
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 705190lmST1.0siQ Street-Remote3132159.1
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 50 iQ mini, direct symmetric wide distribution, ST1.0s

Order No.: 5XA248W41F08HE GTIN (EAN): 4058352804179
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 709400lmST1.0siQ Street-Remote6568299.1
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 50 iQ mini, direct symmetric wide distribution, ST1.0s

Order No.: 5XA248W41F08RE GTIN (EAN): 4058352804247
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 705990lmST1.0siQ Street-Remote3435169.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 50 iQ mini, direct symmetric wide distribution, ST1.0s

Order No.: 5XA248W41F08LE GTIN (EAN): 4058352804209
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 7010390lmST1.0siQ Street-Remote6467309.0
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 50 iQ mini, direct symmetric wide distribution, ST1.0s

Order No.: 5XA248W41F08ME GTIN (EAN): 4058352804223
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 7015660lmST1.0siQ Street-Remote102111459.9
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 50 iQ mini, direct symmetric wide distribution, ST1.0s

Order No.: 5XA248W21F08GEGTIN (EAN): 4058352803981

Colour temperature2200K
Colour renderingCRI > 70
Luminous flux4580lm
Light distributionST1.0s
ControliQ Street-Remote
Pnom begin service life35
Pnom end service life36
Pred at 50% lumin. flux17
Wt. (kg)9.1
Show details

DL® 50 iQ mini, direct symmetric wide distribution, ST1.0s

Order No.: 5XA248W21F08HEGTIN (EAN): 4058352803998

Colour temperature2200K
Colour renderingCRI > 70
Luminous flux7840lm
Light distributionST1.0s
ControliQ Street-Remote
Pnom begin service life69
Pnom end service life74
Pred at 50% lumin. flux30
Wt. (kg)9.1
Show details

DL® 50 iQ mini, direct symmetric wide distribution, ST1.0s

Order No.: 5XA248W21F08REGTIN (EAN): 4058352804056

Colour temperature2200K
Colour renderingCRI > 70
Luminous flux5120lm
Light distributionST1.0s
ControliQ Street-Remote
Pnom begin service life37
Pnom end service life38
Pred at 50% lumin. flux18
Wt. (kg)9.7
Show details

DL® 50 iQ mini, direct symmetric wide distribution, ST1.0s

Order No.: 5XA248W21F08LEGTIN (EAN): 4058352804018

Colour temperature2200K
Colour renderingCRI > 70
Luminous flux8560lm
Light distributionST1.0s
ControliQ Street-Remote
Pnom begin service life67
Pnom end service life70
Pred at 50% lumin. flux31
Wt. (kg)9.7
Show details

DL® 50 iQ mini, direct symmetric wide distribution, ST1.0s

Order No.: 5XA248W21F08MEGTIN (EAN): 4058352804032

Colour temperature2200K
Colour renderingCRI > 70
Luminous flux12600lm
Light distributionST1.0s
ControliQ Street-Remote
Pnom begin service life104
Pnom end service life114
Pred at 50% lumin. flux46
Wt. (kg)9.9
Show details

DL® 50 iQ mini, direct symmetric wide distribution, P1.0s

Order No.: 5XA248U31F08FEGTIN (EAN): 4058352803752

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux2610lm
Light distributionP1.0s
ControliQ Street-Remote
Pnom begin service life16
Pnom end service life17
Pred at 50% lumin. flux8
Wt. (kg)9.1
Show details

DL® 50 iQ mini, direct symmetric wide distribution, P1.0s

Order No.: 5XA248U31F08GEGTIN (EAN): 4058352803783

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux5030lm
Light distributionP1.0s
ControliQ Street-Remote
Pnom begin service life33
Pnom end service life34
Pred at 50% lumin. flux16
Wt. (kg)9.0
Show details

DL® 50 iQ mini, direct symmetric wide distribution, ST0.8s

Order No.: 5XA248V31F08FEGTIN (EAN): 4058352803837

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux2700lm
Light distributionST0.8s
ControliQ Street-Remote
Pnom begin service life16
Pnom end service life17
Pred at 50% lumin. flux8
Wt. (kg)9.1
Show details

DL® 50 iQ mini, direct symmetric wide distribution, ST0.8s

Order No.: 5XA248V31F08GEGTIN (EAN): 4058352803851

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux5190lm
Light distributionST0.8s
ControliQ Street-Remote
Pnom begin service life33
Pnom end service life34
Pred at 50% lumin. flux16
Wt. (kg)9.1
Show details

DL® 50 iQ mini, direct symmetric wide distribution, ST0.8s

Order No.: 5XA248V31F08LEGTIN (EAN): 4058352803875

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux10390lm
Light distributionST0.8s
ControliQ Street-Remote
Pnom begin service life67
Pnom end service life70
Pred at 50% lumin. flux31
Wt. (kg)9.7
Show details

DL® 50 iQ mini, direct symmetric wide distribution, ST0.8s

Order No.: 5XA248V31F08MEGTIN (EAN): 4058352789988

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux15660lm
Light distributionST0.8s
ControliQ Street-Remote
Pnom begin service life108
Pnom end service life118
Pred at 50% lumin. flux47
Wt. (kg)9.9
Show details

DL® 50 iQ mini, direct symmetric wide distribution, ST1.0s

Order No.: 5XA248W31F08GEGTIN (EAN): 4058352804070

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux5190lm
Light distributionST1.0s
ControliQ Street-Remote
Pnom begin service life33
Pnom end service life34
Pred at 50% lumin. flux16
Wt. (kg)9.1
Show details

DL® 50 iQ mini, direct symmetric wide distribution, ST1.0s

Order No.: 5XA248W31F08HEGTIN (EAN): 4058352790014

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux9400lm
Light distributionST1.0s
ControliQ Street-Remote
Pnom begin service life69
Pnom end service life72
Pred at 50% lumin. flux30
Wt. (kg)9.1
Show details

DL® 50 iQ mini, direct symmetric wide distribution, ST1.0s

Order No.: 5XA248W31F08REGTIN (EAN): 4058352804131

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux6000lm
Light distributionST1.0s
ControliQ Street-Remote
Pnom begin service life35
Pnom end service life36
Pred at 50% lumin. flux17
Wt. (kg)9.7
Show details

DL® 50 iQ mini, direct symmetric wide distribution, ST1.0s

Order No.: 5XA248W31F08LEGTIN (EAN): 4058352804094

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux10390lm
Light distributionST1.0s
ControliQ Street-Remote
Pnom begin service life67
Pnom end service life70
Pred at 50% lumin. flux31
Wt. (kg)9.7
Show details

DL® 50 iQ mini, direct symmetric wide distribution, ST1.0s

Order No.: 5XA248W31F08MEGTIN (EAN): 4058352804117

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux15660lm
Light distributionST1.0s
ControliQ Street-Remote
Pnom begin service life108
Pnom end service life118
Pred at 50% lumin. flux47
Wt. (kg)9.9
Show details

DL® 50 iQ mini, direct symmetric wide distribution, P1.0s

Order No.: 5XA248U41F08FEGTIN (EAN): 4058352803790

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux2610lm
Light distributionP1.0s
ControliQ Street-Remote
Pnom begin service life16
Pnom end service life16
Pred at 50% lumin. flux8
Wt. (kg)9.1
Show details

DL® 50 iQ mini, direct symmetric wide distribution, P1.0s

Order No.: 5XA248U41F08GEGTIN (EAN): 4058352803813

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux5030lm
Light distributionP1.0s
ControliQ Street-Remote
Pnom begin service life31
Pnom end service life32
Pred at 50% lumin. flux15
Wt. (kg)9.1
Show details

DL® 50 iQ mini, direct symmetric wide distribution, ST0.8s

Order No.: 5XA248V41F08FEGTIN (EAN): 4058352803899

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux2690lm
Light distributionST0.8s
ControliQ Street-Remote
Pnom begin service life16
Pnom end service life16
Pred at 50% lumin. flux8
Wt. (kg)9.1
Show details

DL® 50 iQ mini, direct symmetric wide distribution, ST0.8s

Order No.: 5XA248V41F08GEGTIN (EAN): 4058352803912

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux5190lm
Light distributionST0.8s
ControliQ Street-Remote
Pnom begin service life31
Pnom end service life32
Pred at 50% lumin. flux15
Wt. (kg)9.1
Show details

DL® 50 iQ mini, direct symmetric wide distribution, ST0.8s

Order No.: 5XA248V41F08LEGTIN (EAN): 4058352803936

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux10390lm
Light distributionST0.8s
ControliQ Street-Remote
Pnom begin service life64
Pnom end service life67
Pred at 50% lumin. flux30
Wt. (kg)9.7
Show details

DL® 50 iQ mini, direct symmetric wide distribution, ST0.8s

Order No.: 5XA248V41F08MEGTIN (EAN): 4058352803950

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux15660lm
Light distributionST0.8s
ControliQ Street-Remote
Pnom begin service life102
Pnom end service life111
Pred at 50% lumin. flux45
Wt. (kg)9.9
Show details

DL® 50 iQ mini, direct symmetric wide distribution, ST1.0s

Order No.: 5XA248W41F08GEGTIN (EAN): 4058352804162

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux5190lm
Light distributionST1.0s
ControliQ Street-Remote
Pnom begin service life31
Pnom end service life32
Pred at 50% lumin. flux15
Wt. (kg)9.1
Show details

DL® 50 iQ mini, direct symmetric wide distribution, ST1.0s

Order No.: 5XA248W41F08HEGTIN (EAN): 4058352804179

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux9400lm
Light distributionST1.0s
ControliQ Street-Remote
Pnom begin service life65
Pnom end service life68
Pred at 50% lumin. flux29
Wt. (kg)9.1
Show details

DL® 50 iQ mini, direct symmetric wide distribution, ST1.0s

Order No.: 5XA248W41F08REGTIN (EAN): 4058352804247

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux5990lm
Light distributionST1.0s
ControliQ Street-Remote
Pnom begin service life34
Pnom end service life35
Pred at 50% lumin. flux16
Wt. (kg)9.7
Show details

DL® 50 iQ mini, direct symmetric wide distribution, ST1.0s

Order No.: 5XA248W41F08LEGTIN (EAN): 4058352804209

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux10390lm
Light distributionST1.0s
ControliQ Street-Remote
Pnom begin service life64
Pnom end service life67
Pred at 50% lumin. flux30
Wt. (kg)9.0
Show details

DL® 50 iQ mini, direct symmetric wide distribution, ST1.0s

Order No.: 5XA248W41F08MEGTIN (EAN): 4058352804223

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux15660lm
Light distributionST1.0s
ControliQ Street-Remote
Pnom begin service life102
Pnom end service life111
Pred at 50% lumin. flux45
Wt. (kg)9.9
Show details

Mandatory accessory

Articlewire hanger, Siteco® metallic grey (DB 702S), one swivel and one rotary axisPU1 pc.Wt. (kg)0.6Order No.: 5NY900408GTIN (EAN): 4039806204271Show details
Articlewire hanger, Siteco® metallic grey (DB 702S), one swivel axisPU1 pc.Wt. (kg)0.5Order No.: 5NA18100XA08GTIN (EAN): 4039806084088Show details

Optional accessory

Articleplug for through-wiringPU1 pc.Wt. (kg)0.1Order No.: 5EA6Y00CSTGTIN (EAN): 4050737734965Show details
Articleadapter cable for Service BoxPU1 pc.Wt. (kg)0.2Order No.: 5EA6Y00C04GTIN (EAN): 4050737729947Show details
