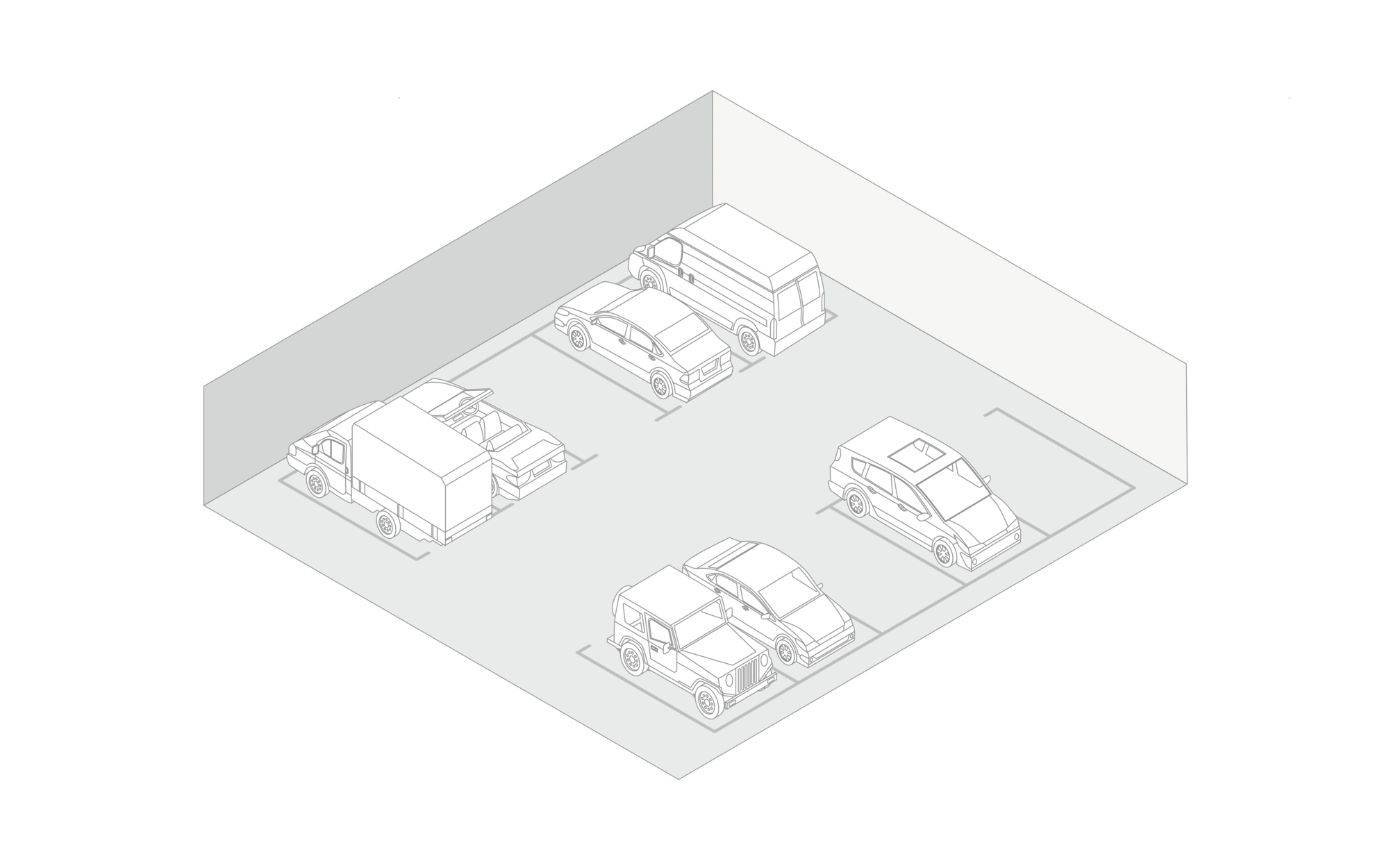

solutions for parking garages and underground garages
The office is the place where work and life come together. SITECO therefore puts people at the centre: for optimal visual comfort, maximum adaptability in everyday life and innovative concepts for greater well-being.
SITECO Connect solution kit
SITECO Connect 31 Logistic DALI
Intro product family
Key data
Article sensor; base module
Control ON/OFF; DALI; DALI 2
Special features
Multi-sensor for use in parking garages
Multi-sensor with very high detection quality guarantees reliable detection of large areas with few sensors. Up to 1256m² can be measured tangentially with one sensor
Sensor specially developed for the application. Circular detection area
Master already contains the complete intelligence for room-related lighting control. This reduces complexity and saves space
Basic energy-saving functions such as motion detection, daylight threshold value and fully automatic operation reduce energy costs and CO2 consumption
Sensor planning in Relux saves time and gives you the security of planning sensor detection correctly
Configuration & data sheets
- when contacting DALI line 1, suitable from 7-core wiring upwards
- with 14-core wiring, tapping between DALI line 1 and DALI line 2 can be slided tool-free
- each expansion sensor reduces the number of controllable ECGs by 3 pieces
- a sensor unit consists of sensor head and interface
Results
External Interface MD
Order No.: 59US1FCMA GTIN (EAN): 4058352363768
| Family | Article | Equipment | Control | Colour | Installation location | Mounting height | Feature | Detection range movement | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| SITECO Connect | External Interface MD | master | DALI | white | to the ceiling | 0.1 |
External Interface MS
Order No.: 59US1FAMA GTIN (EAN): 4058352363737
| Family | Article | Equipment | Control | Colour | Installation location | Mounting height | Feature | Detection range movement | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| SITECO Connect | External Interface MS | master | ON/OFF | white | to the ceiling | 0.1 |
External Interface S
Order No.: 59US1FCSA GTIN (EAN): 4058352361948
| Family | Article | Equipment | Control | Colour | Installation location | Mounting height | Feature | Detection range movement | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| SITECO Connect | External Interface S | slave | DALI 2 | white | to the ceiling | 0.1 |
Sensor-Head PC1-M
Order No.: 59US1HXMPC1A GTIN (EAN): 4058352363799
| Family | Article | Equipment | Control | Colour | Installation location | Mounting height | Feature | Detection range movement | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| SITECO Connect | Sensor-Head PC1-M | master | white | on interface | 2.5..4m | detection range can be limited with shield, circular detection area | max. ø40m | 0.1 |
Sensor-Head PC1-S
Order No.: 59US1HXSPC1A GTIN (EAN): 4058352363911
| Family | Article | Equipment | Control | Colour | Installation location | Mounting height | Feature | Detection range movement | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| SITECO Connect | Sensor-Head PC1-S | slave | DALI 2 | white | on interface | 2.5..4m | circular detection area | tangential max. ø40m | 0.1 |
External Interface MD
Order No.: 59US1FCMAGTIN (EAN): 4058352363768
| Family | SITECO Connect |
|---|---|
| Article | External Interface MD |
| Equipment | master |
| Control | DALI |
| Colour | white |
| Installation location | to the ceiling |
| Mounting height | |
| Feature | |
| Detection range movement | |
| Wt. (kg) | 0.1 |
External Interface MS
Order No.: 59US1FAMAGTIN (EAN): 4058352363737
| Family | SITECO Connect |
|---|---|
| Article | External Interface MS |
| Equipment | master |
| Control | ON/OFF |
| Colour | white |
| Installation location | to the ceiling |
| Mounting height | |
| Feature | |
| Detection range movement | |
| Wt. (kg) | 0.1 |
External Interface S
Order No.: 59US1FCSAGTIN (EAN): 4058352361948
| Family | SITECO Connect |
|---|---|
| Article | External Interface S |
| Equipment | slave |
| Control | DALI 2 |
| Colour | white |
| Installation location | to the ceiling |
| Mounting height | |
| Feature | |
| Detection range movement | |
| Wt. (kg) | 0.1 |
Sensor-Head PC1-M
Order No.: 59US1HXMPC1AGTIN (EAN): 4058352363799
| Family | SITECO Connect |
|---|---|
| Article | Sensor-Head PC1-M |
| Equipment | master |
| Control | |
| Colour | white |
| Installation location | on interface |
| Mounting height | 2.5..4m |
| Feature | detection range can be limited with shield, circular detection area |
| Detection range movement | max. ø40m |
| Wt. (kg) | 0.1 |
Sensor-Head PC1-S
Order No.: 59US1HXSPC1AGTIN (EAN): 4058352363911
| Family | SITECO Connect |
|---|---|
| Article | Sensor-Head PC1-S |
| Equipment | slave |
| Control | DALI 2 |
| Colour | white |
| Installation location | on interface |
| Mounting height | 2.5..4m |
| Feature | circular detection area |
| Detection range movement | tangential max. ø40m |
| Wt. (kg) | 0.1 |
Mandatory accessories
| Order No.: 59UC3RCAGTIN (EAN): 4058352363713 | Show all details |
