solutions for sports halls

Tipi di prodotto Configurazione e schede tecniche

For the magical moment, the perfect experience, everything simply has to be right: full focus on the performance. This is particularly important for light. With over 160 years of experience and over 200 patented lighting technologies, we stand for breathtaking lighting in stadiums, arenas and popular sports facilities. Thanks to optimal visual comfort for actors and spectators, we ensure goosebumps.

SITECO Connect solution kit

Tipi di prodotto

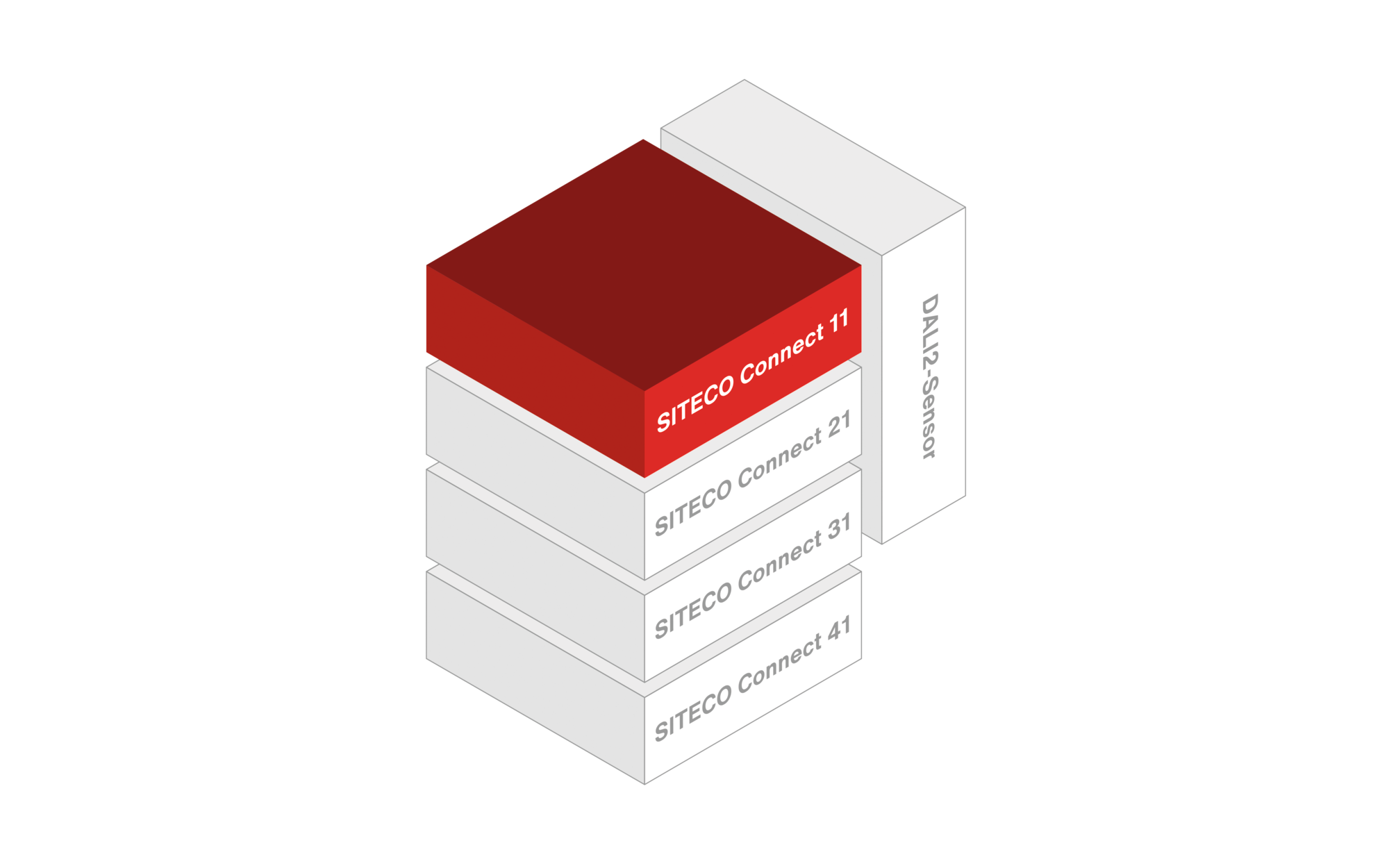

SITECO Connect 11

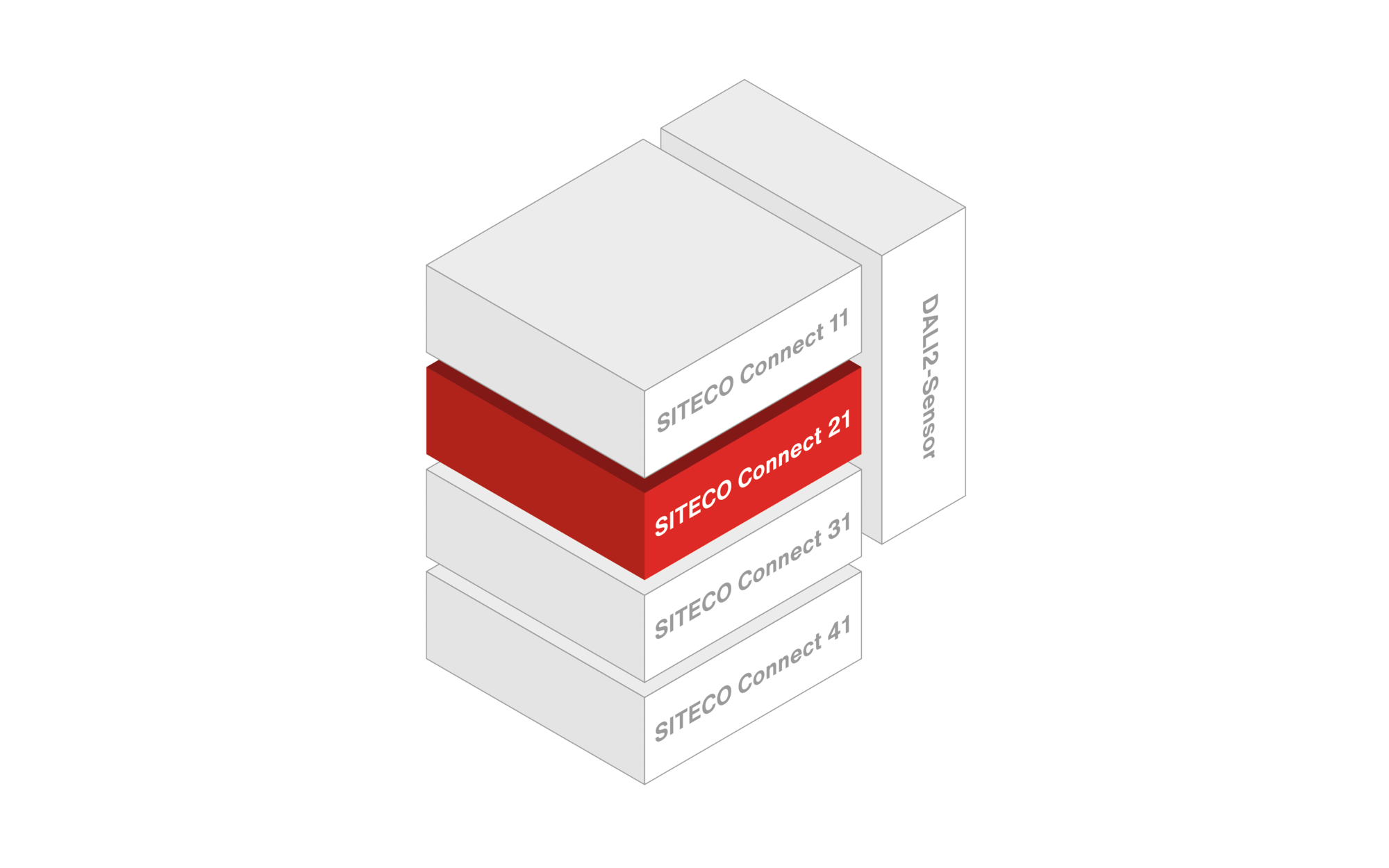

SITECO Connect 21 O

Dati caratteristici

Articolo centralina di controllo
Controllo DALI 2

Caratteristiche speciali

Controller available as DIN rail PC

Future-proof: through open and standardized DALI2 interface

Easy commissioning: all function via commissioning software

Manual intervention: possible at any time by users

Future-proofing and flexibility: through individual addressing and grouping of luminaires and sensors

Cost efficiency: accelerating payback through sensors (daylight and motion)

SITECO HCL^live: light influences our body visually, emotionally and biologically. It sets the pace for our internal clock

Intelligence: intelligent control of luminaires depending on partition walls (e.g. sports halls, meeting rooms, etc.)

Maintenance assistant: easy and quick access to the individual operating hours of the luminaires for better planning of the maintenance calendar; technical requirement: DALI2-certified ECGs according to IEC62386, parts 251, 252, 253; possible on request

Energy monitoring: display of energy consumption; identification of optimization opportunities; technical requirement: DALI2-certified ECGs according to IEC62386, parts 251, 252, 253; possible on request

Dashboard: provides an overview of the status of the lighting system; technical requirement DALI2-certified ECGs according to IEC62386, parts 251, 252, 253; possible on request

Informazione

With SITECO Connect 21O, the complete control intelligence is combined in one device
Incl. 2 DALI lines
Per DALI line max. 250mA power supply
Per DALI line max. 64 ECG and 64 sensor addresses
DALI2 certified according to part 101, 103, 303 and 304
Max. 8 controllers can be networked
Compatible DALI 2 sensors and DALI2 push button couplers see "SITECO Connect DALI2 components"
Maintenance assistant: technical requirement DALI 2-certified ECGs according to IEC62386, parts 251, 252, 253
Energy monitoring: technical requirement DALI 2-certified ECGs according to IEC62386, parts 251, 252, 253; possible on request
Dashboard: technical requirement DALI 2-certified ECGs according to IEC62386, parts 251, 252, 253; possible on request

Risultati

Famiglia	Articolo	Equipaggiamento	Controllo	Colore	Luogo di montaggio	Peso (kg)
SITECO Connect 21-O	controller	master	DALI 2	grigio	in una distribuzione elettrica	0,2

Mostra tutti i dettagli

Testo di capitolato Scheda tecnica (PDF, completa)Elenco completo dei download

Cod. articolo: 5LZ904712AGTIN (EAN): 4058352548448

Famiglia	SITECO Connect 21-O
Articolo	controller
Equipaggiamento	master
Controllo	DALI 2
Colore	grigio
Luogo di montaggio	in una distribuzione elettrica
Peso (kg)	0,2
