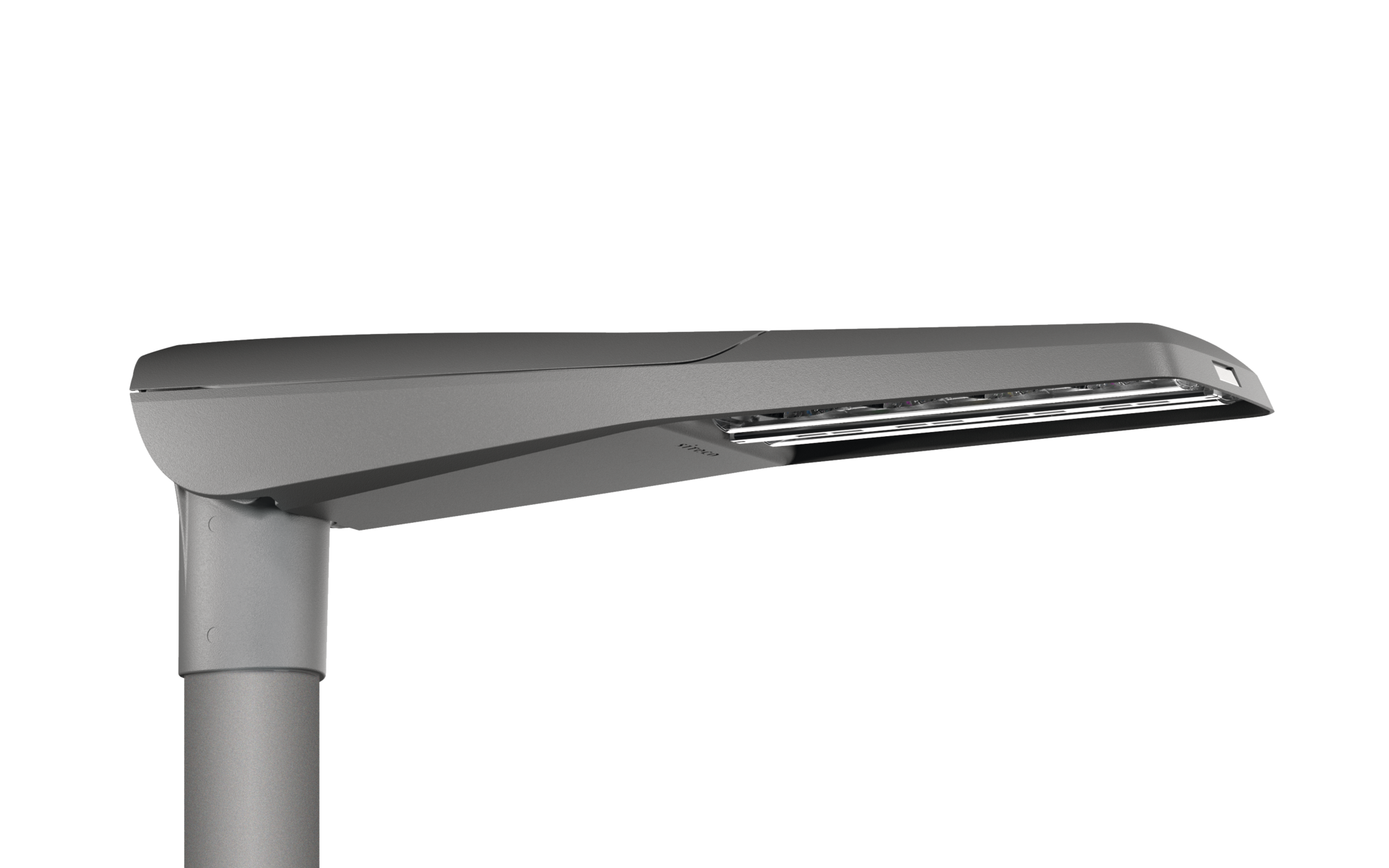

spare parts Streetlight SL 11 Plus

ProducttypesConfiguration & Datasheets

Switch to the latest LED technology and leave 80% of the existing luminaire on the mast - possible with the upgrade kit for Streetlight SL 11 luminaires. Significantly lower operating costs, quick and uncomplicated conversion in accordance with legal requirements and an even better view of the needs of flora and fauna - an upgrade is worthwhile for many reasons.
No matter whether it's an ECG replacement, an LED module replacement or both, the replacement works quickly and effortlessly: the LED replacement is possible without ESD protection, an ECG replacement is done in no time at all thanks to automatic data transfer.

Upgrade now and benefit from lower operating costs and well thought-out functions!

Producttypes

Streetlight SL 11 micro Plus LED module

Streetlight SL 11 mini/midi Plus LED module

Streetlight SL 11 Plus ECG unit

Streetlight SL 11 micro Plus LED module

Intro to Productfamily

Data

Article LED module
Lighting effect asymmetric wide distribution; asymmetric extremely wide distribution
Light distribution ST0.5a; ST1.2a; P1.0a
Colour temperature 2200K; 3000K; 4000K

Specials

Sustainable concept: the Streetlight SL 11 family consists of a high-quality aluminum housing and, thanks to its modular design, is prepared for quick and easy replacement of the components
Turn old into new: with the upgrade kit, around 80% of the luminaire remains on the mast and can be reused. Replacing the LED module and/or ECG is all it takes to bring your Streetlight SL 11 back to the state of the art
Upgrade yes, but how? Very uncomplicated! ECG exchange? LED module exchange? Both? No matter what you choose, the exchange is quick and easy. The LED module can be replaced without ESD protection, and you can also replace the ECG in no time at all, because all data is transferred automatically thanks to SITECO Auto-Match
Auto-Match: Replacing or refurbishing components for upgrades with automatic data transfer: With SITECO Auto-Match it's really easy, because ECG and LED board communicate with each other: As soon as a new element is added to the luminaire, it automatically receives all the necessary settings and information from the system. You don't have to do anything else! Save yourself the time and effort - and simply benefit from lower operating costs and well thought-out functions

Configuration & Datasheets

Light distribution

Colour temperature

Results

Streetlight SL 11 Plus micro, LED module, asymmetric wide distribution, ST1.2a

Order No.: 5XCMOD1A2DC GTIN (EAN): 4058352391785
Colour temperatureColour renderingLight distributionWt. (kg)
2200KCRI > 70ST1.2a0.4
Show details
Tender textTender text neutralData sheet (PDF, full)All Downloads

Streetlight SL 11 Plus micro, LED module, asymmetric wide distribution, ST1.2a

Order No.: 5XCMOD1A3DC GTIN (EAN): 4058352391808
Colour temperatureColour renderingLight distributionWt. (kg)
3000KCRI > 80ST1.2a0.4
Show details
Tender textTender text neutralData sheet (PDF, full)All Downloads

Streetlight SL 11 Plus micro, LED module, asymmetric wide distribution, ST1.2a

Order No.: 5XCMOD1A4DC GTIN (EAN): 4058352391822
Colour temperatureColour renderingLight distributionWt. (kg)
4000KCRI > 70ST1.2a0.1
Show details
Tender textTender text neutralData sheet (PDF, full)All Downloads

Streetlight SL 11 Plus micro, LED module, asymmetric wide distribution, ST0.5a

Order No.: 5XCMOD1B3DC GTIN (EAN): 4058352391846
Colour temperatureColour renderingLight distributionWt. (kg)
3000KCRI > 80ST0.5a1.1
Show details
Tender textTender text neutralData sheet (PDF, full)All Downloads

Streetlight SL 11 Plus micro, LED module, asymmetric wide distribution, ST0.5a

Order No.: 5XCMOD1B4DC GTIN (EAN): 4058352391860
Colour temperatureColour renderingLight distributionWt. (kg)
4000KCRI > 70ST0.5a0.3
Show details
Tender textTender text neutralData sheet (PDF, full)All Downloads

Streetlight SL 11 Plus micro, LED module, asymmetric extremely wide distribution, P1.0a

Order No.: 5XCMOD1C2DC GTIN (EAN): 4058352391884
Colour temperatureColour renderingLight distributionWt. (kg)
2200KCRI > 70P1.0a0.3
Show details
Tender textTender text neutralData sheet (PDF, full)All Downloads

Streetlight SL 11 Plus micro, LED module, asymmetric extremely wide distribution, P1.0a

Order No.: 5XCMOD1C3DC GTIN (EAN): 4058352391914
Colour temperatureColour renderingLight distributionWt. (kg)
3000KCRI > 80P1.0a0.4
Show details
Tender textTender text neutralData sheet (PDF, full)All Downloads

Streetlight SL 11 Plus micro, LED module, asymmetric wide distribution, ST1.2a

Order No.: 5XCMOD1A2DCGTIN (EAN): 4058352391785

Colour temperature2200K
Colour renderingCRI > 70
Light distributionST1.2a
Wt. (kg)0.4
Show details

Streetlight SL 11 Plus micro, LED module, asymmetric wide distribution, ST1.2a

Order No.: 5XCMOD1A3DCGTIN (EAN): 4058352391808

Colour temperature3000K
Colour renderingCRI > 80
Light distributionST1.2a
Wt. (kg)0.4
Show details

Streetlight SL 11 Plus micro, LED module, asymmetric wide distribution, ST1.2a

Order No.: 5XCMOD1A4DCGTIN (EAN): 4058352391822

Colour temperature4000K
Colour renderingCRI > 70
Light distributionST1.2a
Wt. (kg)0.1
Show details

Streetlight SL 11 Plus micro, LED module, asymmetric wide distribution, ST0.5a

Order No.: 5XCMOD1B3DCGTIN (EAN): 4058352391846

Colour temperature3000K
Colour renderingCRI > 80
Light distributionST0.5a
Wt. (kg)1.1
Show details

Streetlight SL 11 Plus micro, LED module, asymmetric wide distribution, ST0.5a

Order No.: 5XCMOD1B4DCGTIN (EAN): 4058352391860

Colour temperature4000K
Colour renderingCRI > 70
Light distributionST0.5a
Wt. (kg)0.3
Show details

Streetlight SL 11 Plus micro, LED module, asymmetric extremely wide distribution, P1.0a

Order No.: 5XCMOD1C2DCGTIN (EAN): 4058352391884

Colour temperature2200K
Colour renderingCRI > 70
Light distributionP1.0a
Wt. (kg)0.3
Show details

Streetlight SL 11 Plus micro, LED module, asymmetric extremely wide distribution, P1.0a

Order No.: 5XCMOD1C3DCGTIN (EAN): 4058352391914

Colour temperature3000K
Colour renderingCRI > 80
Light distributionP1.0a
Wt. (kg)0.4
Show details
