Tunnellight TL-L
Switch to the latest LED technology, save up to 65% and continue to use the existing infrastructure - possible with the TL-L LED refurbishment insert for your tunnel luminaires. Benefit from significantly reduced operating costs, sustainable use of materials and the best light in the shortest possible time - thanks to simple and effortless replacement.
We know: Every tunnel is different - but our TL-L LED refurbishment inserts are always a perfect fit. With two connection variants for uncomplicated installation. Also with individualized connections on request.
Renovate now and benefit directly from lower operating costs!
Producttypes
Tunnellight TL-L
Intro to Productfamily
Data
Article luminaire insert
Lighting effect direct open distribution
Net luminous flux 4990lm to 9930lm
Colour temperature 3000K; 4000K; 5000K
Control DALI; ON/OFF Multilumen; 4…20mA; emergency light
Configuration & Datasheets
Results

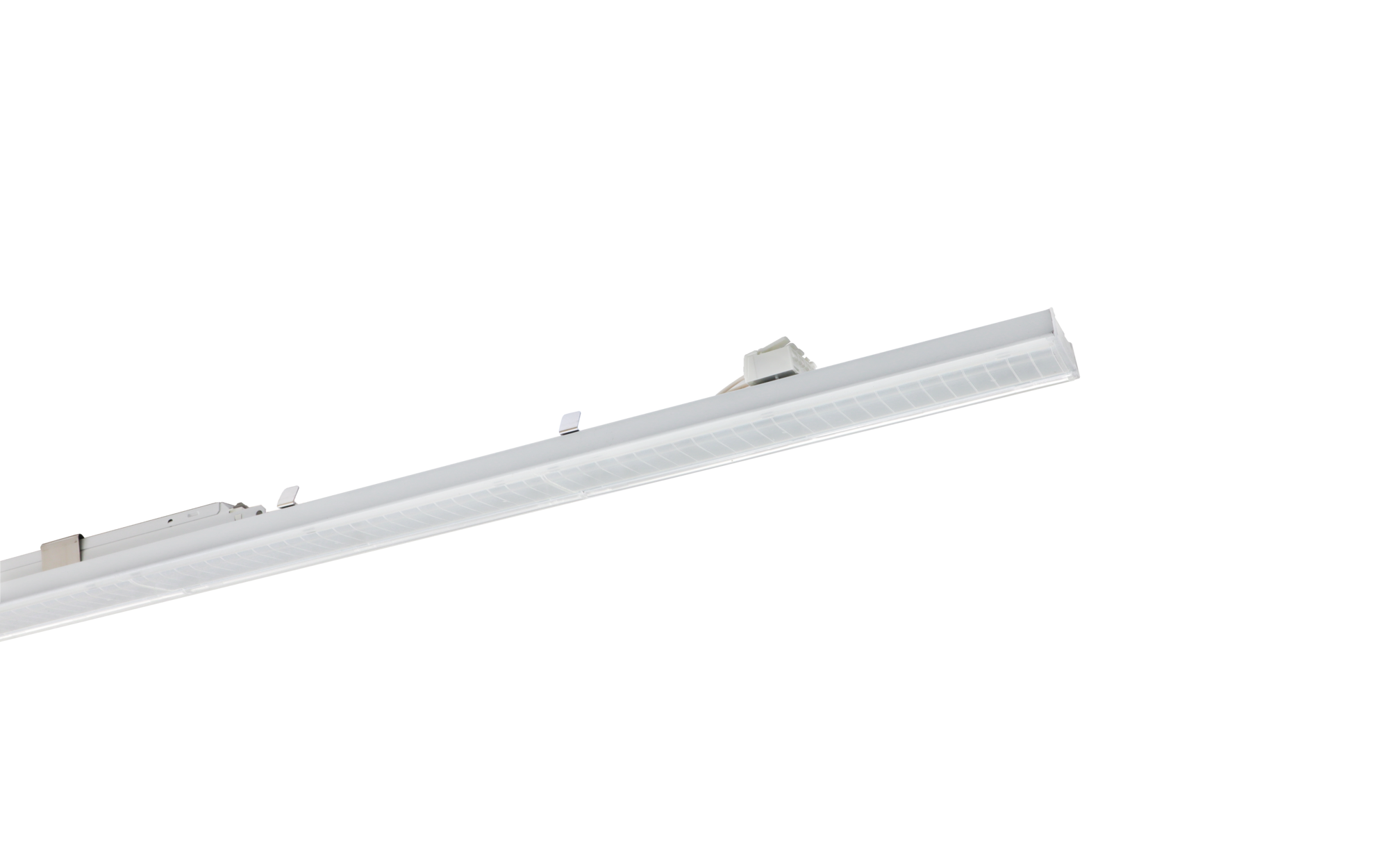

TL L, direct open distribution, DALI
Order No.: 5WD7A7D0A2B5 GTIN (EAN): 4058352973257
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 5000lm | 32W | 155lm/W | DALI | 1.3 | on request |

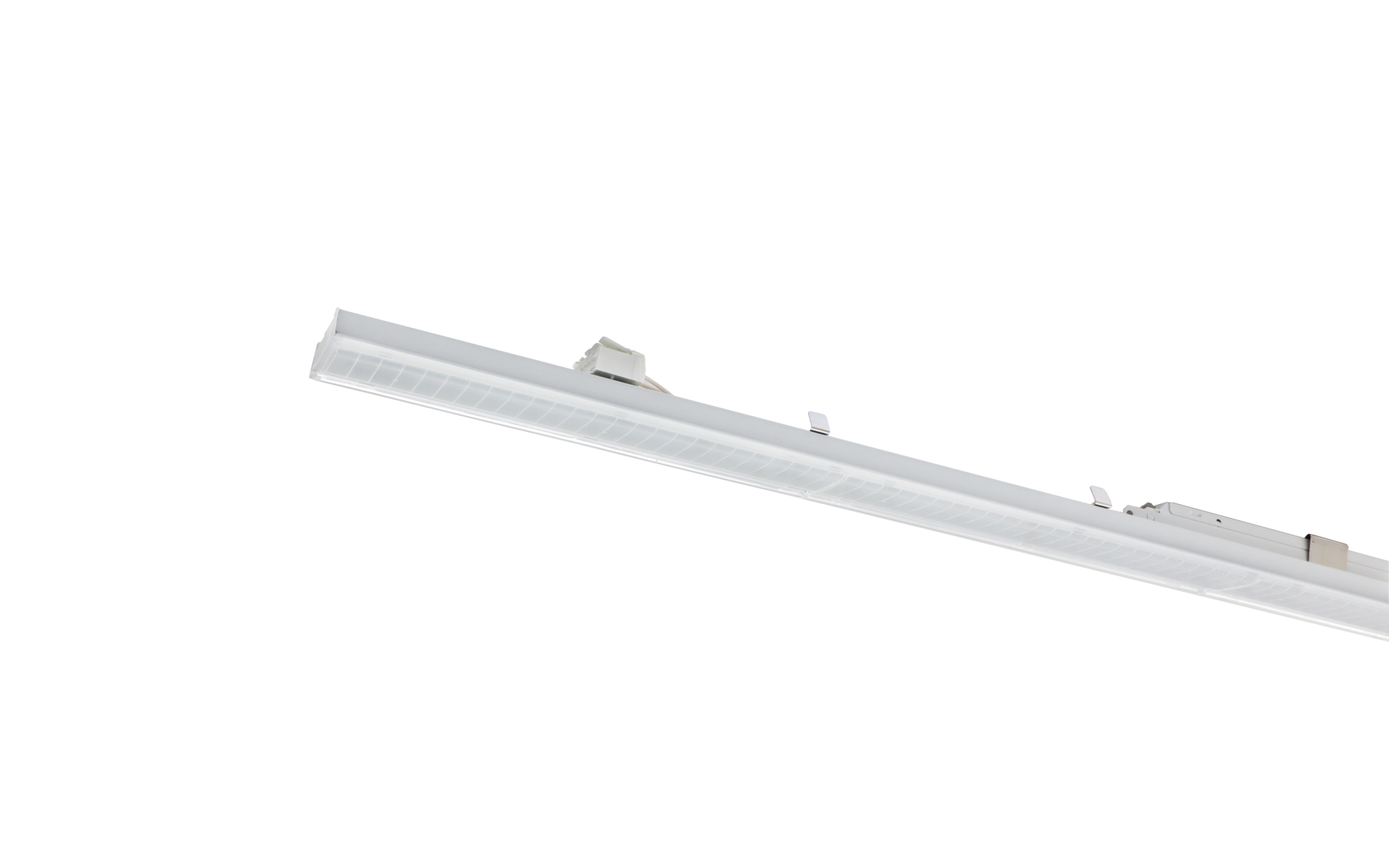

TL L, direct open distribution, DALI
Order No.: 5WD7A8D0A2B5 GTIN (EAN): 4058352972397
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4990lm | 30W | 166lm/W | DALI | 1.3 | on request |
TL L, direct open distribution, DALI
Order No.: 5WD7A9D0A2B5 GTIN (EAN): 4058352973905
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 5000K | CRI > 80 | 5000lm | 30W | 168lm/W | DALI | 1.3 | on request |
TL L, direct open distribution, DALI
Order No.: 5WD7A7D0A2C5 GTIN (EAN): 4058352973271
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 9080lm | 63W | 143lm/W | DALI | 1.3 | on request |
TL L, direct open distribution, DALI
Order No.: 5WD7A8D0A2C5 GTIN (EAN): 4058352973479
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 9800lm | 63W | 155lm/W | DALI | 1.3 | on request |
TL L, direct open distribution, DALI
Order No.: 5WD7A9D0A2C5 GTIN (EAN): 4058352973929
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 5000K | CRI > 80 | 9930lm | 63W | 157lm/W | DALI | 1.3 | on request |
TL L, direct open distribution, DALI, with micro fuse
Order No.: 5WD7A8D0B2B5 GTIN (EAN): 4058352973493
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4990lm | 30W | 166lm/W | DALI | 1.5 | on request |
TL L, direct open distribution, DALI, with micro fuse
Order No.: 5WD7A8D0B2C5 GTIN (EAN): 4058352973523
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 9800lm | 63W | 155lm/W | DALI | 1.5 | on request |
TL L, direct open distribution, DALI, with surge protection, with micro fuse
Order No.: 5WD7A8D0H2B5 GTIN (EAN): 4058352973578
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4990lm | 30W | 166lm/W | DALI | 1.5 | on request |
TL L, direct open distribution, DALI, with surge protection, with micro fuse
Order No.: 5WD7A8D0H2C5 GTIN (EAN): 4058352973592
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 9800lm | 63W | 155lm/W | DALI | 1.3 | on request |
TL L, direct open distribution, DALI, with surge protection
Order No.: 5WD7A8D0G2B5 GTIN (EAN): 4058352973530
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4990lm | 30W | 166lm/W | DALI | 1.5 | on request |
TL L, direct open distribution, DALI, with surge protection
Order No.: 5WD7A8D0G2C5 GTIN (EAN): 4058352973554
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 9800lm | 63W | 155lm/W | DALI | 1.5 | on request |
TL L, direct open distribution, 4..20mA
Order No.: 5WD7A8F0A2B5 GTIN (EAN): 4058352973622
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4990lm | 30W | 166lm/W | 4..20mA | 1.5 | on request |
TL L, direct open distribution, 4..20mA
Order No.: 5WD7A8F0A2C5 GTIN (EAN): 4058352973639
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 9800lm | 63W | 155lm/W | 4..20mA | 1.5 | on request |
TL L, direct open distribution, 4..20mA, with micro fuse
Order No.: 5WD7A8F0B2B5 GTIN (EAN): 4058352973653
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4990lm | 30W | 166lm/W | 4..20mA | 1.5 | on request |
TL L, direct open distribution, 4..20mA, with micro fuse
Order No.: 5WD7A8F0B2C5 GTIN (EAN): 4058352973677
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 9800lm | 63W | 155lm/W | 4..20mA | 1.5 | on request |
TL L, direct open distribution, 4..20mA, with surge protection, with micro fuse
Order No.: 5WD7A8F0H2B5 GTIN (EAN): 4058352973745
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4990lm | 30W | 166lm/W | 4..20mA | 1.5 | on request |
TL L, direct open distribution, 4..20mA, with surge protection, with micro fuse
Order No.: 5WD7A8F0H2C5 GTIN (EAN): 4058352973752
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 9800lm | 63W | 155lm/W | 4..20mA | 1.5 | on request |
TL L, direct open distribution, 4..20mA, with surge protection
Order No.: 5WD7A8F0G2B5 GTIN (EAN): 4058352973691
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4990lm | 30W | 166lm/W | 4..20mA | 1.5 | on request |
TL L, direct open distribution, 4..20mA, with surge protection
Order No.: 5WD7A8F0G2C5 GTIN (EAN): 4058352973714
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 9800lm | 63W | 155lm/W | 4..20mA | 1.5 | on request |
TL L, direct open distribution, ON/OFF Multilumen
Order No.: 5WD7A7A0A2B5 GTIN (EAN): 4058352973219
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 6100lm | 40W | 153lm/W | ON/OFF Multilumen | 1.0 | on request |
TL L, direct open distribution, ON/OFF Multilumen
Order No.: 5WD7A8A0A2B5 GTIN (EAN): 4058352973325
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 6100lm | 37W | 165lm/W | ON/OFF Multilumen | 1.3 | on request |
TL L, direct open distribution, ON/OFF Multilumen
Order No.: 5WD7A9A0A2B5 GTIN (EAN): 4058352973868
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 5000K | CRI > 80 | 6100lm | 36W | 168lm/W | ON/OFF Multilumen | 1.0 | on request |
TL L, direct open distribution, ON/OFF Multilumen
Order No.: 5WD7A7A0A2C5 GTIN (EAN): 4058352973233
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 9000lm | 61W | 147lm/W | ON/OFF Multilumen | 1.3 | on request |
TL L, direct open distribution, ON/OFF Multilumen
Order No.: 5WD7A8A0A2C5 GTIN (EAN): 4058352973332
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 9500lm | 59W | 160lm/W | ON/OFF Multilumen | 1.3 | on request |
TL L, direct open distribution, ON/OFF Multilumen
Order No.: 5WD7A9A0A2C5 GTIN (EAN): 4058352973882
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 5000K | CRI > 80 | 9500lm | 59W | 162lm/W | ON/OFF Multilumen | 1.3 | on request |
TL L, direct open distribution, ON/OFF Multilumen, with micro fuse
Order No.: 5WD7A8A0B2B5 GTIN (EAN): 4058352973356
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 6100lm | 37W | 165lm/W | ON/OFF Multilumen | 1.5 | on request |
TL L, direct open distribution, ON/OFF Multilumen, with micro fuse
Order No.: 5WD7A8A0B2C5 GTIN (EAN): 4058352973370
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 9500lm | 59W | 160lm/W | ON/OFF Multilumen | 1.5 | on request |
TL L, direct open distribution, ON/OFF Multilumen, with surge protection, with micro fuse
Order No.: 5WD7A8A0H2B5 GTIN (EAN): 4058352973431
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 6100lm | 37W | 165lm/W | ON/OFF Multilumen | 1.5 | on request |
TL L, direct open distribution, ON/OFF Multilumen, with surge protection, with micro fuse
Order No.: 5WD7A8A0H2C5 GTIN (EAN): 4058352973455
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 9500lm | 59W | 160lm/W | ON/OFF Multilumen | 1.5 | on request |
TL L, direct open distribution, ON/OFF Multilumen, with surge protection
Order No.: 5WD7A8A0G2B5 GTIN (EAN): 4058352973394
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 6100lm | 37W | 165lm/W | ON/OFF Multilumen | 1.5 | on request |
TL L, direct open distribution, ON/OFF Multilumen, with surge protection
Order No.: 5WD7A8A0G2C5 GTIN (EAN): 4058352973417
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 9500lm | 59W | 160lm/W | ON/OFF Multilumen | 1.5 | on request |
TL L, direct open distribution, emergency light
Order No.: 5WD7A7H0A2B5 GTIN (EAN): 4058352973295
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 5000lm | 36W | 155lm/W | emergency light | 1.8 | on request |
TL L, direct open distribution, emergency light
Order No.: 5WD7A8H0A2B5 GTIN (EAN): 4058352973776
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4990lm | 34W | 166lm/W | emergency light | 1.8 | on request |
TL L, direct open distribution, emergency light
Order No.: 5WD7A9H0A2B5 GTIN (EAN): 4058352973950
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 5000K | CRI > 80 | 5000lm | 34W | 168lm/W | emergency light | 1.0 | on request |
TL L, direct open distribution, emergency light, with micro fuse
Order No.: 5WD7A8H0B2B5 GTIN (EAN): 4058352973790
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4990lm | 34W | 166lm/W | emergency light | 1.8 | on request |
TL L, direct open distribution, emergency light, with surge protection, with micro fuse
Order No.: 5WD7A8H0H2B5 GTIN (EAN): 4058352973837
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4990lm | 34W | 166lm/W | emergency light | 1.8 | on request |
TL L, direct open distribution, emergency light, with surge protection
Order No.: 5WD7A8H0G2B5 GTIN (EAN): 4058352973813
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4990lm | 34W | 166lm/W | emergency light | 1.8 | on request |
TL L, direct open distribution, DALI
Order No.: 5WD7A8P0A2B5 GTIN (EAN): 4058352070581
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 5000lm | 31.5W | 159lm/W | DALI | 1.0 | on request |
TL L, direct open distribution, DALI
Order No.: 5WD7A8P0A2C5 GTIN (EAN): 4069025021281
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 9800lm | 63.4W | 155lm/W | DALI | 1.0 | on request |
TL L, direct open distribution, DALI, with micro fuse
Order No.: 5WD7A8P0B2B5 GTIN (EAN): 4069025022707
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 5000lm | 31.5W | 159lm/W | DALI | 1.0 | on request |
TL L, direct open distribution, DALI, with micro fuse
Order No.: 5WD7A8P0B2C5 GTIN (EAN): 4069025065476
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 9800lm | 63.4W | 155lm/W | DALI | 1.0 | on request |
TL L, direct open distribution, DALI, with surge protection, with micro fuse
Order No.: 5WD7A8P0H2B5 GTIN (EAN): 4069025065520
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 5000lm | 31.5W | 159lm/W | DALI | 1.0 | on request |
TL L, direct open distribution, DALI, with surge protection, with micro fuse
Order No.: 5WD7A8P0H2C5 GTIN (EAN): 4069025065544
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 9800lm | 63.4W | 155lm/W | DALI | 1.0 | on request |
TL L, direct open distribution, DALI, with surge protection
Order No.: 5WD7A8P0G2B5 GTIN (EAN): 4069025065483
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 5000lm | 31.5W | 159lm/W | DALI | 1.0 | on request |
TL L, direct open distribution, DALI, with surge protection
Order No.: 5WD7A8P0G2C5 GTIN (EAN): 4069025065506
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 9800lm | 63.4W | 155lm/W | DALI | 1.0 | on request |
TL L, direct open distribution, DALI
Order No.: 5WD7A7D0A2B5GTIN (EAN): 4058352973257
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5000lm |
| Connected load | 32W |
| Luminous efficacy | 155lm/W |
| Control | DALI |
| Wt. (kg) | 1.3 |
| Price (EUR) | on request |
TL L, direct open distribution, DALI
Order No.: 5WD7A8D0A2B5GTIN (EAN): 4058352972397
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4990lm |
| Connected load | 30W |
| Luminous efficacy | 166lm/W |
| Control | DALI |
| Wt. (kg) | 1.3 |
| Price (EUR) | on request |
TL L, direct open distribution, DALI
Order No.: 5WD7A9D0A2B5GTIN (EAN): 4058352973905
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5000lm |
| Connected load | 30W |
| Luminous efficacy | 168lm/W |
| Control | DALI |
| Wt. (kg) | 1.3 |
| Price (EUR) | on request |
TL L, direct open distribution, DALI
Order No.: 5WD7A7D0A2C5GTIN (EAN): 4058352973271
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 9080lm |
| Connected load | 63W |
| Luminous efficacy | 143lm/W |
| Control | DALI |
| Wt. (kg) | 1.3 |
| Price (EUR) | on request |
TL L, direct open distribution, DALI
Order No.: 5WD7A8D0A2C5GTIN (EAN): 4058352973479
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 9800lm |
| Connected load | 63W |
| Luminous efficacy | 155lm/W |
| Control | DALI |
| Wt. (kg) | 1.3 |
| Price (EUR) | on request |
TL L, direct open distribution, DALI
Order No.: 5WD7A9D0A2C5GTIN (EAN): 4058352973929
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 9930lm |
| Connected load | 63W |
| Luminous efficacy | 157lm/W |
| Control | DALI |
| Wt. (kg) | 1.3 |
| Price (EUR) | on request |
TL L, direct open distribution, DALI, with micro fuse
Order No.: 5WD7A8D0B2B5GTIN (EAN): 4058352973493
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4990lm |
| Connected load | 30W |
| Luminous efficacy | 166lm/W |
| Control | DALI |
| Wt. (kg) | 1.5 |
| Price (EUR) | on request |
TL L, direct open distribution, DALI, with micro fuse
Order No.: 5WD7A8D0B2C5GTIN (EAN): 4058352973523
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 9800lm |
| Connected load | 63W |
| Luminous efficacy | 155lm/W |
| Control | DALI |
| Wt. (kg) | 1.5 |
| Price (EUR) | on request |
TL L, direct open distribution, DALI, with surge protection, with micro fuse
Order No.: 5WD7A8D0H2B5GTIN (EAN): 4058352973578
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4990lm |
| Connected load | 30W |
| Luminous efficacy | 166lm/W |
| Control | DALI |
| Wt. (kg) | 1.5 |
| Price (EUR) | on request |
TL L, direct open distribution, DALI, with surge protection, with micro fuse
Order No.: 5WD7A8D0H2C5GTIN (EAN): 4058352973592
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 9800lm |
| Connected load | 63W |
| Luminous efficacy | 155lm/W |
| Control | DALI |
| Wt. (kg) | 1.3 |
| Price (EUR) | on request |
TL L, direct open distribution, DALI, with surge protection
Order No.: 5WD7A8D0G2B5GTIN (EAN): 4058352973530
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4990lm |
| Connected load | 30W |
| Luminous efficacy | 166lm/W |
| Control | DALI |
| Wt. (kg) | 1.5 |
| Price (EUR) | on request |
TL L, direct open distribution, DALI, with surge protection
Order No.: 5WD7A8D0G2C5GTIN (EAN): 4058352973554
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 9800lm |
| Connected load | 63W |
| Luminous efficacy | 155lm/W |
| Control | DALI |
| Wt. (kg) | 1.5 |
| Price (EUR) | on request |
TL L, direct open distribution, 4..20mA
Order No.: 5WD7A8F0A2B5GTIN (EAN): 4058352973622
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4990lm |
| Connected load | 30W |
| Luminous efficacy | 166lm/W |
| Control | 4..20mA |
| Wt. (kg) | 1.5 |
| Price (EUR) | on request |
TL L, direct open distribution, 4..20mA
Order No.: 5WD7A8F0A2C5GTIN (EAN): 4058352973639
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 9800lm |
| Connected load | 63W |
| Luminous efficacy | 155lm/W |
| Control | 4..20mA |
| Wt. (kg) | 1.5 |
| Price (EUR) | on request |
TL L, direct open distribution, 4..20mA, with micro fuse
Order No.: 5WD7A8F0B2B5GTIN (EAN): 4058352973653
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4990lm |
| Connected load | 30W |
| Luminous efficacy | 166lm/W |
| Control | 4..20mA |
| Wt. (kg) | 1.5 |
| Price (EUR) | on request |
TL L, direct open distribution, 4..20mA, with micro fuse
Order No.: 5WD7A8F0B2C5GTIN (EAN): 4058352973677
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 9800lm |
| Connected load | 63W |
| Luminous efficacy | 155lm/W |
| Control | 4..20mA |
| Wt. (kg) | 1.5 |
| Price (EUR) | on request |
TL L, direct open distribution, 4..20mA, with surge protection, with micro fuse
Order No.: 5WD7A8F0H2B5GTIN (EAN): 4058352973745
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4990lm |
| Connected load | 30W |
| Luminous efficacy | 166lm/W |
| Control | 4..20mA |
| Wt. (kg) | 1.5 |
| Price (EUR) | on request |
TL L, direct open distribution, 4..20mA, with surge protection, with micro fuse
Order No.: 5WD7A8F0H2C5GTIN (EAN): 4058352973752
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 9800lm |
| Connected load | 63W |
| Luminous efficacy | 155lm/W |
| Control | 4..20mA |
| Wt. (kg) | 1.5 |
| Price (EUR) | on request |
TL L, direct open distribution, 4..20mA, with surge protection
Order No.: 5WD7A8F0G2B5GTIN (EAN): 4058352973691
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4990lm |
| Connected load | 30W |
| Luminous efficacy | 166lm/W |
| Control | 4..20mA |
| Wt. (kg) | 1.5 |
| Price (EUR) | on request |
TL L, direct open distribution, 4..20mA, with surge protection
Order No.: 5WD7A8F0G2C5GTIN (EAN): 4058352973714
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 9800lm |
| Connected load | 63W |
| Luminous efficacy | 155lm/W |
| Control | 4..20mA |
| Wt. (kg) | 1.5 |
| Price (EUR) | on request |
TL L, direct open distribution, ON/OFF Multilumen
Order No.: 5WD7A7A0A2B5GTIN (EAN): 4058352973219
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 6100lm |
| Connected load | 40W |
| Luminous efficacy | 153lm/W |
| Control | ON/OFF Multilumen |
| Wt. (kg) | 1.0 |
| Price (EUR) | on request |
TL L, direct open distribution, ON/OFF Multilumen
Order No.: 5WD7A8A0A2B5GTIN (EAN): 4058352973325
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 6100lm |
| Connected load | 37W |
| Luminous efficacy | 165lm/W |
| Control | ON/OFF Multilumen |
| Wt. (kg) | 1.3 |
| Price (EUR) | on request |
TL L, direct open distribution, ON/OFF Multilumen
Order No.: 5WD7A9A0A2B5GTIN (EAN): 4058352973868
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 6100lm |
| Connected load | 36W |
| Luminous efficacy | 168lm/W |
| Control | ON/OFF Multilumen |
| Wt. (kg) | 1.0 |
| Price (EUR) | on request |
TL L, direct open distribution, ON/OFF Multilumen
Order No.: 5WD7A7A0A2C5GTIN (EAN): 4058352973233
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 9000lm |
| Connected load | 61W |
| Luminous efficacy | 147lm/W |
| Control | ON/OFF Multilumen |
| Wt. (kg) | 1.3 |
| Price (EUR) | on request |
TL L, direct open distribution, ON/OFF Multilumen
Order No.: 5WD7A8A0A2C5GTIN (EAN): 4058352973332
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 9500lm |
| Connected load | 59W |
| Luminous efficacy | 160lm/W |
| Control | ON/OFF Multilumen |
| Wt. (kg) | 1.3 |
| Price (EUR) | on request |
TL L, direct open distribution, ON/OFF Multilumen
Order No.: 5WD7A9A0A2C5GTIN (EAN): 4058352973882
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 9500lm |
| Connected load | 59W |
| Luminous efficacy | 162lm/W |
| Control | ON/OFF Multilumen |
| Wt. (kg) | 1.3 |
| Price (EUR) | on request |
TL L, direct open distribution, ON/OFF Multilumen, with micro fuse
Order No.: 5WD7A8A0B2B5GTIN (EAN): 4058352973356
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 6100lm |
| Connected load | 37W |
| Luminous efficacy | 165lm/W |
| Control | ON/OFF Multilumen |
| Wt. (kg) | 1.5 |
| Price (EUR) | on request |
TL L, direct open distribution, ON/OFF Multilumen, with micro fuse
Order No.: 5WD7A8A0B2C5GTIN (EAN): 4058352973370
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 9500lm |
| Connected load | 59W |
| Luminous efficacy | 160lm/W |
| Control | ON/OFF Multilumen |
| Wt. (kg) | 1.5 |
| Price (EUR) | on request |
TL L, direct open distribution, ON/OFF Multilumen, with surge protection, with micro fuse
Order No.: 5WD7A8A0H2B5GTIN (EAN): 4058352973431
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 6100lm |
| Connected load | 37W |
| Luminous efficacy | 165lm/W |
| Control | ON/OFF Multilumen |
| Wt. (kg) | 1.5 |
| Price (EUR) | on request |
TL L, direct open distribution, ON/OFF Multilumen, with surge protection, with micro fuse
Order No.: 5WD7A8A0H2C5GTIN (EAN): 4058352973455
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 9500lm |
| Connected load | 59W |
| Luminous efficacy | 160lm/W |
| Control | ON/OFF Multilumen |
| Wt. (kg) | 1.5 |
| Price (EUR) | on request |
TL L, direct open distribution, ON/OFF Multilumen, with surge protection
Order No.: 5WD7A8A0G2B5GTIN (EAN): 4058352973394
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 6100lm |
| Connected load | 37W |
| Luminous efficacy | 165lm/W |
| Control | ON/OFF Multilumen |
| Wt. (kg) | 1.5 |
| Price (EUR) | on request |
TL L, direct open distribution, ON/OFF Multilumen, with surge protection
Order No.: 5WD7A8A0G2C5GTIN (EAN): 4058352973417
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 9500lm |
| Connected load | 59W |
| Luminous efficacy | 160lm/W |
| Control | ON/OFF Multilumen |
| Wt. (kg) | 1.5 |
| Price (EUR) | on request |
TL L, direct open distribution, emergency light
Order No.: 5WD7A7H0A2B5GTIN (EAN): 4058352973295
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5000lm |
| Connected load | 36W |
| Luminous efficacy | 155lm/W |
| Control | emergency light |
| Wt. (kg) | 1.8 |
| Price (EUR) | on request |
TL L, direct open distribution, emergency light
Order No.: 5WD7A8H0A2B5GTIN (EAN): 4058352973776
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4990lm |
| Connected load | 34W |
| Luminous efficacy | 166lm/W |
| Control | emergency light |
| Wt. (kg) | 1.8 |
| Price (EUR) | on request |
TL L, direct open distribution, emergency light
Order No.: 5WD7A9H0A2B5GTIN (EAN): 4058352973950
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5000lm |
| Connected load | 34W |
| Luminous efficacy | 168lm/W |
| Control | emergency light |
| Wt. (kg) | 1.0 |
| Price (EUR) | on request |
TL L, direct open distribution, emergency light, with micro fuse
Order No.: 5WD7A8H0B2B5GTIN (EAN): 4058352973790
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4990lm |
| Connected load | 34W |
| Luminous efficacy | 166lm/W |
| Control | emergency light |
| Wt. (kg) | 1.8 |
| Price (EUR) | on request |
TL L, direct open distribution, emergency light, with surge protection, with micro fuse
Order No.: 5WD7A8H0H2B5GTIN (EAN): 4058352973837
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4990lm |
| Connected load | 34W |
| Luminous efficacy | 166lm/W |
| Control | emergency light |
| Wt. (kg) | 1.8 |
| Price (EUR) | on request |
TL L, direct open distribution, emergency light, with surge protection
Order No.: 5WD7A8H0G2B5GTIN (EAN): 4058352973813
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4990lm |
| Connected load | 34W |
| Luminous efficacy | 166lm/W |
| Control | emergency light |
| Wt. (kg) | 1.8 |
| Price (EUR) | on request |
TL L, direct open distribution, DALI
Order No.: 5WD7A8P0A2B5GTIN (EAN): 4058352070581
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5000lm |
| Connected load | 31.5W |
| Luminous efficacy | 159lm/W |
| Control | DALI |
| Wt. (kg) | 1.0 |
| Price (EUR) | on request |
TL L, direct open distribution, DALI
Order No.: 5WD7A8P0A2C5GTIN (EAN): 4069025021281
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 9800lm |
| Connected load | 63.4W |
| Luminous efficacy | 155lm/W |
| Control | DALI |
| Wt. (kg) | 1.0 |
| Price (EUR) | on request |
TL L, direct open distribution, DALI, with micro fuse
Order No.: 5WD7A8P0B2B5GTIN (EAN): 4069025022707
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5000lm |
| Connected load | 31.5W |
| Luminous efficacy | 159lm/W |
| Control | DALI |
| Wt. (kg) | 1.0 |
| Price (EUR) | on request |
TL L, direct open distribution, DALI, with micro fuse
Order No.: 5WD7A8P0B2C5GTIN (EAN): 4069025065476
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 9800lm |
| Connected load | 63.4W |
| Luminous efficacy | 155lm/W |
| Control | DALI |
| Wt. (kg) | 1.0 |
| Price (EUR) | on request |
TL L, direct open distribution, DALI, with surge protection, with micro fuse
Order No.: 5WD7A8P0H2B5GTIN (EAN): 4069025065520
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5000lm |
| Connected load | 31.5W |
| Luminous efficacy | 159lm/W |
| Control | DALI |
| Wt. (kg) | 1.0 |
| Price (EUR) | on request |
TL L, direct open distribution, DALI, with surge protection, with micro fuse
Order No.: 5WD7A8P0H2C5GTIN (EAN): 4069025065544
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 9800lm |
| Connected load | 63.4W |
| Luminous efficacy | 155lm/W |
| Control | DALI |
| Wt. (kg) | 1.0 |
| Price (EUR) | on request |
TL L, direct open distribution, DALI, with surge protection
Order No.: 5WD7A8P0G2B5GTIN (EAN): 4069025065483
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5000lm |
| Connected load | 31.5W |
| Luminous efficacy | 159lm/W |
| Control | DALI |
| Wt. (kg) | 1.0 |
| Price (EUR) | on request |
TL L, direct open distribution, DALI, with surge protection
Order No.: 5WD7A8P0G2C5GTIN (EAN): 4069025065506
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 9800lm |
| Connected load | 63.4W |
| Luminous efficacy | 155lm/W |
| Control | DALI |
| Wt. (kg) | 1.0 |
| Price (EUR) | on request |
Mandatory accessory
| Order No.: 5WD7ACCEC105GTIN (EAN): 4058352953235 | Show details |
| Order No.: 5WD7ACCC1005GTIN (EAN): 4058352984246 | Show details |
| Order No.: 5WD7ACCED105GTIN (EAN): 4058352984260 | Show details |
| Order No.: 5WD7ACCEE105GTIN (EAN): 4058352015681 | Show details |
Optional accessory
| Order No.: 5WD7ACCA1005GTIN (EAN): 4069025069337 | Show details |
| Order No.: 5WD7ACCBA005GTIN (EAN): 4069025069344 | Show details |
