Modario® 31
Over 1,000,000 installed luminaires make Modario® one of our greatest successes. Flexibility and quality have always been important to us: the modular system offers a variety of luminaire inserts for maximum adaptability, while the prismatic satin optics ensure low glare and maximum visual comfort. Luminous flux tracking and multi-lumen capability, even with on/off types, provide the basis for a needs-based lighting solution. Updating your existing system with state-of-the-art luminaire inserts with up to 177lm/W enables a significant reduction in costs and CO2 in the simplest way.
Modario®
A trunking system for universal use.

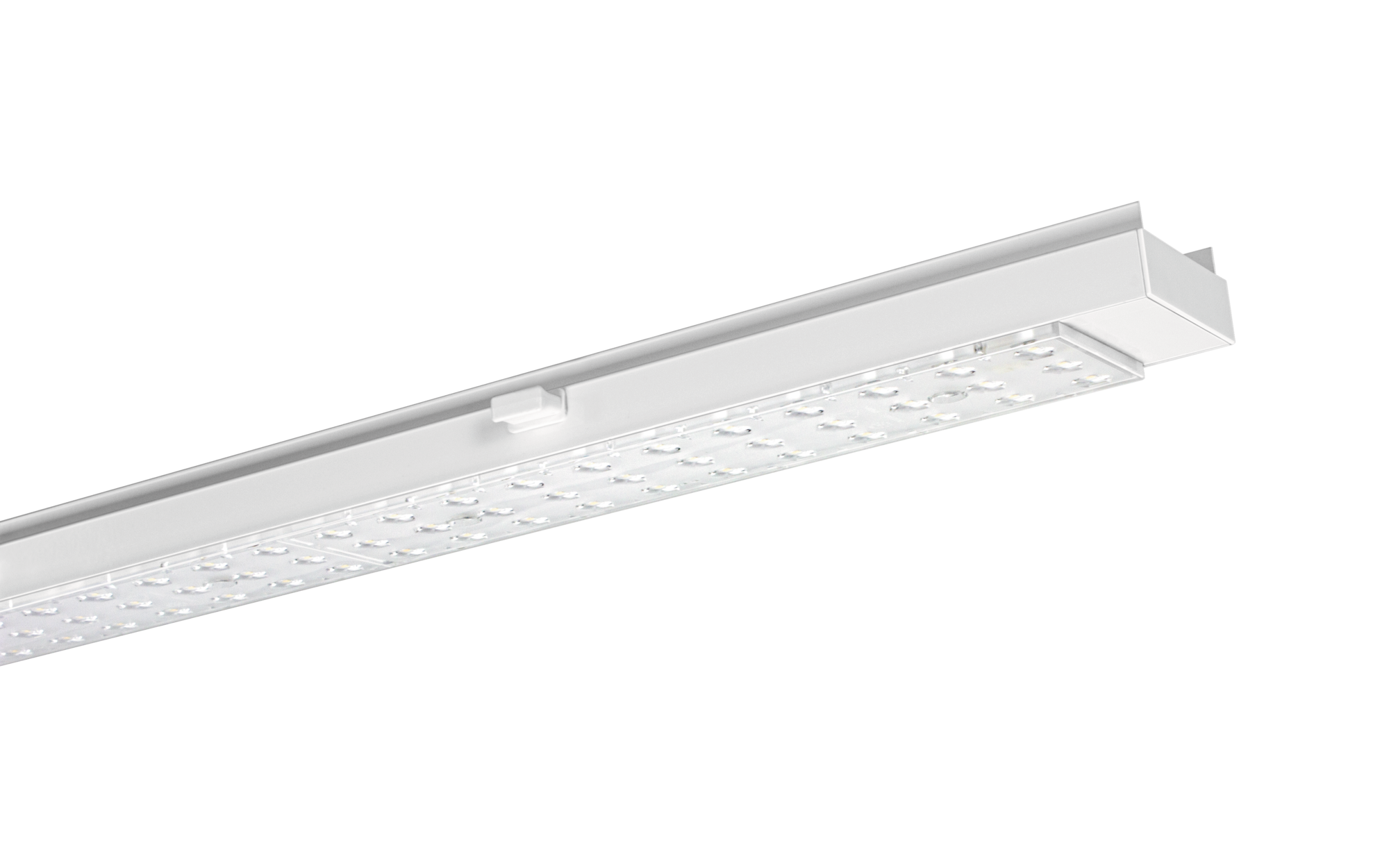

Modario® 31 with prism optics 2392mm
Intro product family
Key data
Article luminaire insert
Colour temperature 4000K; 6500K
Lighting effect direct symmetric extremely narrow distribution; direct symmetric narrow distribution; direct symmetric wide distribution
Special features
Wide range of variants due to modular system with a large number of luminaire inserts for maximum flexibility
Different light distributions for diverse applications
Multilumen capability also with On/Off models for lighting solutions tailored to requirements
Highly efficient LED inserts with high luminous efficacy – also suitable for replacing conventional luminaire inserts in existing Modario® systems for simple exploitation of energy-saving potential.
Configuration & data sheets
- please order Modario® trunking rail and trunking rail accessories separately
- with ceiling surface mounting: reducing of maximum allowable ambient temperature of 5°C
Results
Modario® 31 Gen.2, symmetric narrow distribution, IP20, AC
Order No.: 53BM811DU4GXC2 GTIN (EAN): 4069025134516
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 16290 | 92W | 177lm/W | DALI 2 | -25..+40°C | 2392 | white | 3.1 |
Modario® 31 Gen.2, symmetric narrow distribution, IP20, AC
Order No.: 53BM811DU4L3D2 GTIN (EAN): 4069025134530
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 23600 | 128W | 184lm/W | DALI 2 | -40..+35°C | 2392 | white | 3.1 |
Modario® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BM812DU4GXC2 GTIN (EAN): 4069025134554
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 16290 | 92W | 177lm/W | DALI 2 | -25..+40°C | 2392 | white | 3.1 |
Modario® 31 Gen.2, symmetric wide distribution, IP20, AC/DC, operation on group/central battery
Order No.: 53BM812DU4GXC2D GTIN (EAN): 4069025134578
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 16290 | 92W | 177lm/W | DALI 2 | -25..+40°C | 2392 | white | 3.1 |
Modario® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BM812DU4HXD2 GTIN (EAN): 4069025134608
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 17250 | 92W | 187lm/W | DALI 2 | -25..+35°C | 2392 | white | 3.1 |
Modario® 31 Gen.2, symmetric wide distribution, IP20, AC/DC, operation on group/central battery
Order No.: 53BM812DU4HXD2D GTIN (EAN): 4069025134615
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 17250 | 92W | 187lm/W | DALI 2 | -25..+35°C | 2392 | white | 3.1 |
Modario® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BM812DU4L3D2 GTIN (EAN): 4069025134639
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 23600 | 128W | 184lm/W | DALI 2 | -40..+35°C | 2392 | white | 3.1 |
Modario® 31 Gen.2, symmetric wide distribution, IP20, AC/DC, operation on group/central battery
Order No.: 53BM812DU4L3D2D GTIN (EAN): 4069025134653
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 23600 | 128W | 184lm/W | DALI 2 | -40..+35°C | 2392 | white | 3.1 |
Modario® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BM812DU4M1D2 GTIN (EAN): 4069025134677
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 26560 | 146W | 182lm/W | DALI 2 | -40..+30°C | 2392 | white | 3.1 |
Modario® 31 Gen.2, symmetric wide distribution, IP20, AC/DC, operation on group/central battery
Order No.: 53BM812DU4M1D2D GTIN (EAN): 4069025134691
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 26560 | 146W | 182lm/W | DALI 2 | -40..+30°C | 2392 | white | 3.1 |
Modario® 31 Gen.2, symmetric extremely narrow distribution, IP20, AC
Order No.: 53BM813DU4F5C2 GTIN (EAN): 4069025134714
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 15920 | 92W | 173lm/W | DALI 2 | -25..+40°C | 2392 | white | 3.1 |
Modario® 31 Gen.2, symmetric extremely narrow distribution, IP20, AC
Order No.: 53BM813DU4L3D2 GTIN (EAN): 4069025134738
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 23060 | 128W | 180lm/W | DALI 2 | -40..+35°C | 2392 | white | 3.1 |
Modario® 31 Gen.2, symmetric narrow distribution, IP20, AC
Order No.: 53BM8117U4GXC2 GTIN (EAN): 4069025227089
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 16360 | 90W | 181lm/W | ON/OFF | -40..+40°C | 2392 | white | 3.1 |
Modario® 31 Gen.2, symmetric narrow distribution, IP20, AC
Order No.: 53BM8117U4L3D2 GTIN (EAN): 4069025227102
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 23600 | 126W | 187lm/W | ON/OFF | -40..+35°C | 2392 | white | 3.1 |
Modario® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BM8127U4GXC2 GTIN (EAN): 4069025227126
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 16360 | 90W | 181lm/W | ON/OFF | -40..+40°C | 2392 | white | 3.1 |
Modario® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BM8127U4L3D2 GTIN (EAN): 4069025222213
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 23600 | 126W | 187lm/W | ON/OFF | -40..+35°C | 2392 | white | 3.1 |
Modario® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BM8127U4M1D2 GTIN (EAN): 4069025227140
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 26560 | 144W | 185lm/W | ON/OFF | -40..+30°C | 2392 | white | 3.1 |
Modario® 31 Gen.2, symmetric extremely narrow distribution, IP20, AC
Order No.: 53BM8137U4F5C2 GTIN (EAN): 4069025227164
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 15990 | 90W | 177lm/W | ON/OFF | -40..+40°C | 2392 | white | 3.1 |
Modario® 31 Gen.2, symmetric extremely narrow distribution, IP20, AC
Order No.: 53BM8137U4L3D2 GTIN (EAN): 4069025227188
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 23060 | 126W | 183lm/W | ON/OFF | -40..+35°C | 2392 | white | 3.1 |
Modario® 31 Gen.2, symmetric wide distribution, IP20, AC, with self-test function according to EN 60598-2-22, 2-rod battery, with self-contained supply, 3h
Order No.: 53BM812DU4GXC23S GTIN (EAN): 4069025254818
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 16290 | 96W | 170lm/W | DALI 2 | 3h | +5..+40°C | 2392 | white | 3.1 |
Modario® 31 Gen.2, symmetric wide distribution, IP20, AC, with self-test function according to EN 60598-2-22, 2-rod battery, with self-contained supply, 3h
Order No.: 53BM812DU4HXD23S GTIN (EAN): 4069025254832
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 17250 | 96W | 180lm/W | DALI 2 | 3h | +5..+35°C | 2392 | white | 3.1 |
Modario® 31 Gen.2, symmetric wide distribution, IP20, AC, with self-test function according to EN 60598-2-22, 2-rod battery, with self-contained supply, 3h
Order No.: 53BM812DU4L3D23S GTIN (EAN): 4069025254856
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 23600 | 132W | 179lm/W | DALI 2 | 3h | +5..+35°C | 2392 | white | 3.1 |
Modario® 31 Gen.2, symmetric wide distribution, IP20, AC, with self-test function according to EN 60598-2-22, 2-rod battery, with self-contained supply, 3h
Order No.: 53BM812DU4M1D23S GTIN (EAN): 4069025254870
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 26560 | 150W | 177lm/W | DALI 2 | 3h | +5..+30°C | 2392 | white | 3.1 |
Modario® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BM812DU6L2D2 GTIN (EAN): 4069025478696
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | Battery duration | ta | L (mm) | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 22920 | 128W | 179lm/W | DALI 2 | -40..+35°C | 2392 | white | 3.1 |
Modario® 31 Gen.2, symmetric narrow distribution, IP20, AC
Order No.: 53BM811DU4GXC2GTIN (EAN): 4069025134516
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 16290 |
| Connected load | 92W |
| Luminous efficacy | 177lm/W |
| Control | DALI 2 |
| Battery duration | |
| ta | -25..+40°C |

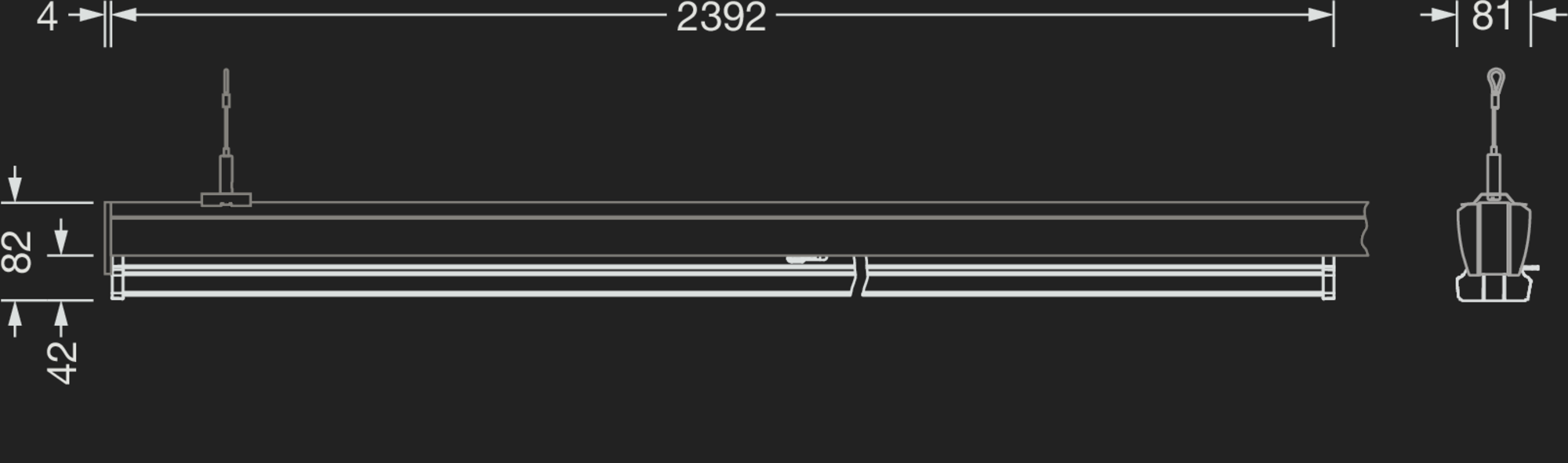

| L (mm) | 2392 |
| Colour | white |
| Wt. (kg) | 3.1 |
Modario® 31 Gen.2, symmetric narrow distribution, IP20, AC
Order No.: 53BM811DU4L3D2GTIN (EAN): 4069025134530
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 23600 |
| Connected load | 128W |
| Luminous efficacy | 184lm/W |
| Control | DALI 2 |
| Battery duration | |
| ta | -40..+35°C |
| L (mm) | 2392 |
| Colour | white |
| Wt. (kg) | 3.1 |
Modario® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BM812DU4GXC2GTIN (EAN): 4069025134554
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 16290 |
| Connected load | 92W |
| Luminous efficacy | 177lm/W |
| Control | DALI 2 |
| Battery duration | |
| ta | -25..+40°C |
| L (mm) | 2392 |
| Colour | white |
| Wt. (kg) | 3.1 |
Modario® 31 Gen.2, symmetric wide distribution, IP20, AC/DC, operation on group/central battery
Order No.: 53BM812DU4GXC2DGTIN (EAN): 4069025134578
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 16290 |
| Connected load | 92W |
| Luminous efficacy | 177lm/W |
| Control | DALI 2 |
| Battery duration | |
| ta | -25..+40°C |
| L (mm) | 2392 |
| Colour | white |
| Wt. (kg) | 3.1 |
Modario® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BM812DU4HXD2GTIN (EAN): 4069025134608
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 17250 |
| Connected load | 92W |
| Luminous efficacy | 187lm/W |
| Control | DALI 2 |
| Battery duration | |
| ta | -25..+35°C |
| L (mm) | 2392 |
| Colour | white |
| Wt. (kg) | 3.1 |
Modario® 31 Gen.2, symmetric wide distribution, IP20, AC/DC, operation on group/central battery
Order No.: 53BM812DU4HXD2DGTIN (EAN): 4069025134615
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 17250 |
| Connected load | 92W |
| Luminous efficacy | 187lm/W |
| Control | DALI 2 |
| Battery duration | |
| ta | -25..+35°C |
| L (mm) | 2392 |
| Colour | white |
| Wt. (kg) | 3.1 |
Modario® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BM812DU4L3D2GTIN (EAN): 4069025134639
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 23600 |
| Connected load | 128W |
| Luminous efficacy | 184lm/W |
| Control | DALI 2 |
| Battery duration | |
| ta | -40..+35°C |
| L (mm) | 2392 |
| Colour | white |
| Wt. (kg) | 3.1 |
Modario® 31 Gen.2, symmetric wide distribution, IP20, AC/DC, operation on group/central battery
Order No.: 53BM812DU4L3D2DGTIN (EAN): 4069025134653
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 23600 |
| Connected load | 128W |
| Luminous efficacy | 184lm/W |
| Control | DALI 2 |
| Battery duration | |
| ta | -40..+35°C |
| L (mm) | 2392 |
| Colour | white |
| Wt. (kg) | 3.1 |
Modario® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BM812DU4M1D2GTIN (EAN): 4069025134677
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 26560 |
| Connected load | 146W |
| Luminous efficacy | 182lm/W |
| Control | DALI 2 |
| Battery duration | |
| ta | -40..+30°C |
| L (mm) | 2392 |
| Colour | white |
| Wt. (kg) | 3.1 |
Modario® 31 Gen.2, symmetric wide distribution, IP20, AC/DC, operation on group/central battery
Order No.: 53BM812DU4M1D2DGTIN (EAN): 4069025134691
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 26560 |
| Connected load | 146W |
| Luminous efficacy | 182lm/W |
| Control | DALI 2 |
| Battery duration | |
| ta | -40..+30°C |
| L (mm) | 2392 |
| Colour | white |
| Wt. (kg) | 3.1 |
Modario® 31 Gen.2, symmetric extremely narrow distribution, IP20, AC
Order No.: 53BM813DU4F5C2GTIN (EAN): 4069025134714
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 15920 |
| Connected load | 92W |
| Luminous efficacy | 173lm/W |
| Control | DALI 2 |
| Battery duration | |
| ta | -25..+40°C |
| L (mm) | 2392 |
| Colour | white |
| Wt. (kg) | 3.1 |
Modario® 31 Gen.2, symmetric extremely narrow distribution, IP20, AC
Order No.: 53BM813DU4L3D2GTIN (EAN): 4069025134738
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 23060 |
| Connected load | 128W |
| Luminous efficacy | 180lm/W |
| Control | DALI 2 |
| Battery duration | |
| ta | -40..+35°C |
| L (mm) | 2392 |
| Colour | white |
| Wt. (kg) | 3.1 |
Modario® 31 Gen.2, symmetric narrow distribution, IP20, AC
Order No.: 53BM8117U4GXC2GTIN (EAN): 4069025227089
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 16360 |
| Connected load | 90W |
| Luminous efficacy | 181lm/W |
| Control | ON/OFF |
| Battery duration | |
| ta | -40..+40°C |
| L (mm) | 2392 |
| Colour | white |
| Wt. (kg) | 3.1 |
Modario® 31 Gen.2, symmetric narrow distribution, IP20, AC
Order No.: 53BM8117U4L3D2GTIN (EAN): 4069025227102
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 23600 |
| Connected load | 126W |
| Luminous efficacy | 187lm/W |
| Control | ON/OFF |
| Battery duration | |
| ta | -40..+35°C |
| L (mm) | 2392 |
| Colour | white |
| Wt. (kg) | 3.1 |
Modario® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BM8127U4GXC2GTIN (EAN): 4069025227126
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 16360 |
| Connected load | 90W |
| Luminous efficacy | 181lm/W |
| Control | ON/OFF |
| Battery duration | |
| ta | -40..+40°C |
| L (mm) | 2392 |
| Colour | white |
| Wt. (kg) | 3.1 |
Modario® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BM8127U4L3D2GTIN (EAN): 4069025222213
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 23600 |
| Connected load | 126W |
| Luminous efficacy | 187lm/W |
| Control | ON/OFF |
| Battery duration | |
| ta | -40..+35°C |
| L (mm) | 2392 |
| Colour | white |
| Wt. (kg) | 3.1 |
Modario® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BM8127U4M1D2GTIN (EAN): 4069025227140
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 26560 |
| Connected load | 144W |
| Luminous efficacy | 185lm/W |
| Control | ON/OFF |
| Battery duration | |
| ta | -40..+30°C |
| L (mm) | 2392 |
| Colour | white |
| Wt. (kg) | 3.1 |
Modario® 31 Gen.2, symmetric extremely narrow distribution, IP20, AC
Order No.: 53BM8137U4F5C2GTIN (EAN): 4069025227164
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 15990 |
| Connected load | 90W |
| Luminous efficacy | 177lm/W |
| Control | ON/OFF |
| Battery duration | |
| ta | -40..+40°C |
| L (mm) | 2392 |
| Colour | white |
| Wt. (kg) | 3.1 |
Modario® 31 Gen.2, symmetric extremely narrow distribution, IP20, AC
Order No.: 53BM8137U4L3D2GTIN (EAN): 4069025227188
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 23060 |
| Connected load | 126W |
| Luminous efficacy | 183lm/W |
| Control | ON/OFF |
| Battery duration | |
| ta | -40..+35°C |
| L (mm) | 2392 |
| Colour | white |
| Wt. (kg) | 3.1 |
Modario® 31 Gen.2, symmetric wide distribution, IP20, AC, with self-test function according to EN 60598-2-22, 2-rod battery, with self-contained supply, 3h
Order No.: 53BM812DU4GXC23SGTIN (EAN): 4069025254818
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 16290 |
| Connected load | 96W |
| Luminous efficacy | 170lm/W |
| Control | DALI 2 |
| Battery duration | 3h |
| ta | +5..+40°C |
| L (mm) | 2392 |
| Colour | white |
| Wt. (kg) | 3.1 |
Modario® 31 Gen.2, symmetric wide distribution, IP20, AC, with self-test function according to EN 60598-2-22, 2-rod battery, with self-contained supply, 3h
Order No.: 53BM812DU4HXD23SGTIN (EAN): 4069025254832
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 17250 |
| Connected load | 96W |
| Luminous efficacy | 180lm/W |
| Control | DALI 2 |
| Battery duration | 3h |
| ta | +5..+35°C |
| L (mm) | 2392 |
| Colour | white |
| Wt. (kg) | 3.1 |
Modario® 31 Gen.2, symmetric wide distribution, IP20, AC, with self-test function according to EN 60598-2-22, 2-rod battery, with self-contained supply, 3h
Order No.: 53BM812DU4L3D23SGTIN (EAN): 4069025254856
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 23600 |
| Connected load | 132W |
| Luminous efficacy | 179lm/W |
| Control | DALI 2 |
| Battery duration | 3h |
| ta | +5..+35°C |
| L (mm) | 2392 |
| Colour | white |
| Wt. (kg) | 3.1 |
Modario® 31 Gen.2, symmetric wide distribution, IP20, AC, with self-test function according to EN 60598-2-22, 2-rod battery, with self-contained supply, 3h
Order No.: 53BM812DU4M1D23SGTIN (EAN): 4069025254870
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 26560 |
| Connected load | 150W |
| Luminous efficacy | 177lm/W |
| Control | DALI 2 |
| Battery duration | 3h |
| ta | +5..+30°C |
| L (mm) | 2392 |
| Colour | white |
| Wt. (kg) | 3.1 |
Modario® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BM812DU6L2D2GTIN (EAN): 4069025478696
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 22920 |
| Connected load | 128W |
| Luminous efficacy | 179lm/W |
| Control | DALI 2 |
| Battery duration | |
| ta | -40..+35°C |
| L (mm) | 2392 |
| Colour | white |
| Wt. (kg) | 3.1 |
Optional accessories
| Order No.: 5TP9018GTIN (EAN): 4058352076842 | Show all details |
