45 years of experience – trunking Made in Germany perfected in our Licross® trunking system. The one-for-all concept offers a variety of luminaire inserts and functional expansion options for maximum flexibility and future compatibility. With its unique 14 cores, the rail system becomes the backbone of the building infrastructure and is ready for a wide range of applications - today and tomorrow. The luminaire inserts offer outstanding lighting technology with up to 200lm/W for low operating costs as well as SITECO-typical optics technology for the best viewing conditions. In addition, it features a maximum service life of up to 100,000 hours as well as high luminous flux and a large variety of light colours including tunable white. Extensions from sensor to cameras and data transmission open up a broad horizon of applications far from lighting, which create additional added value.

Our performance solution: Licross® 11 is our innovative trunking system with maximum efficiency, service life (up to 100,000h) and flexibility

Producttypes

tračni nosilec

Recessed luminaire insert IP40/IP54

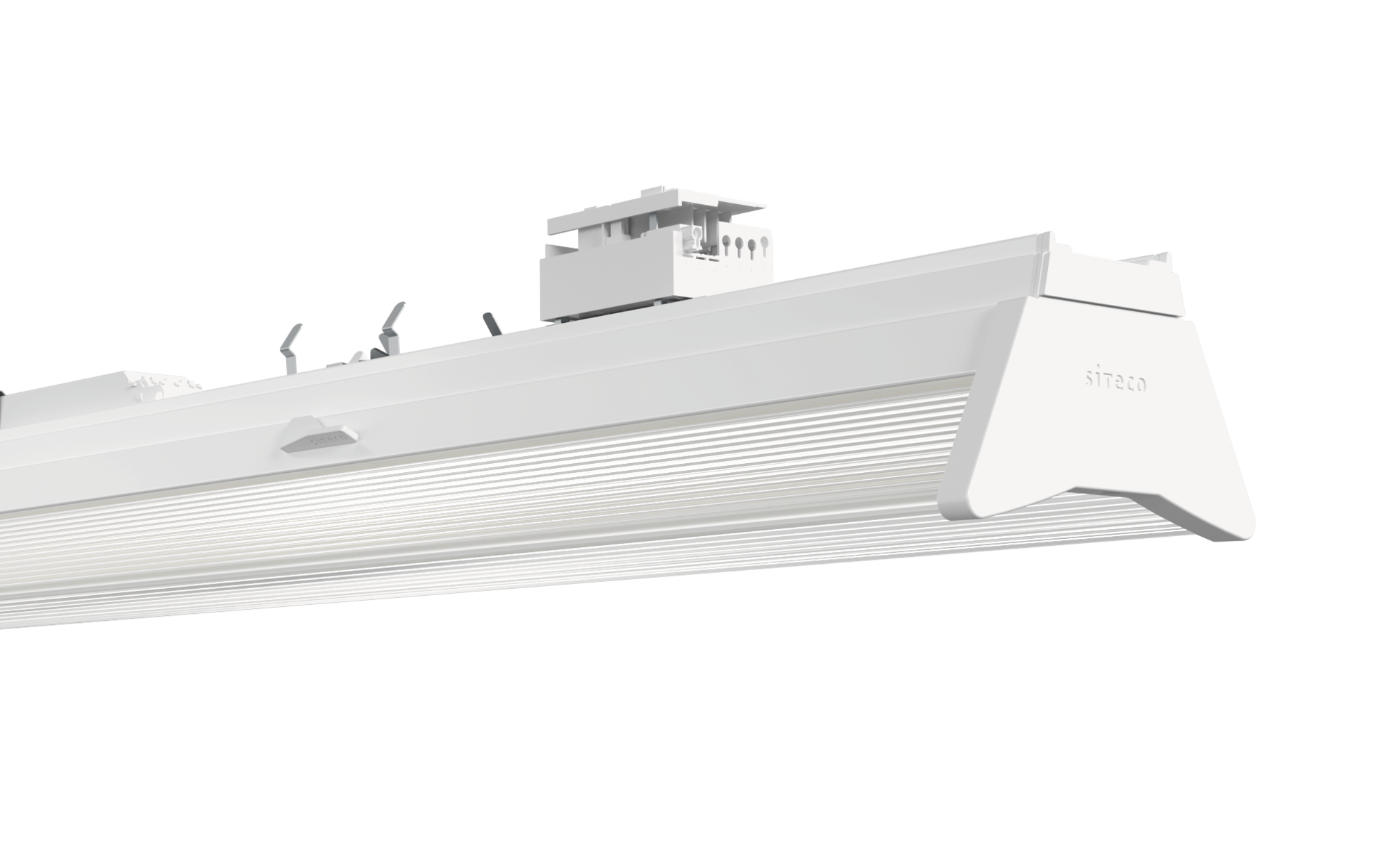

Protected luminaire insert IP50/IP54/IP64

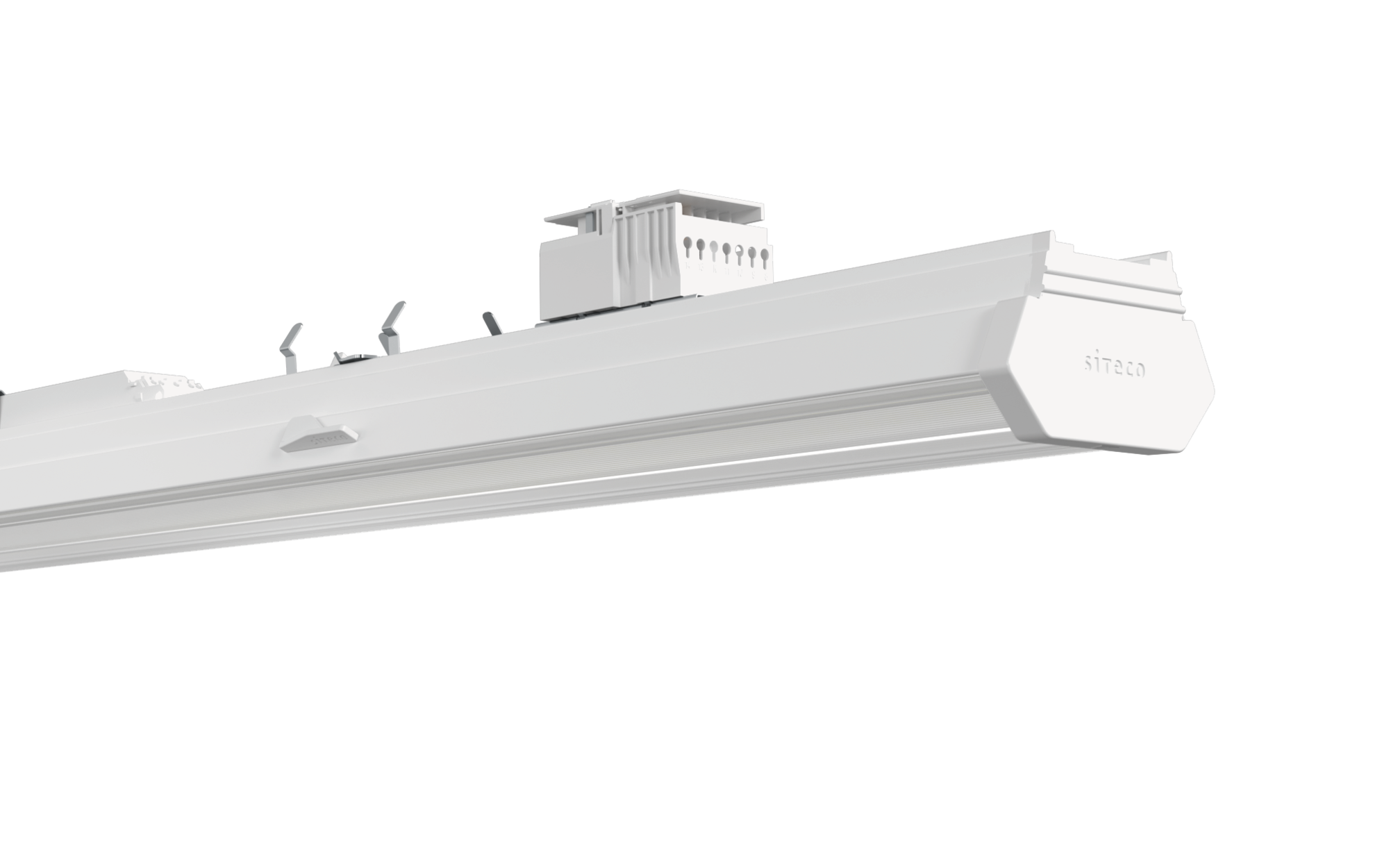

Performance luminaire insert IP40/IP54

functional insert

Highbay 11 for rail IP64

Data

Opis svetilka za dvorane LED
Neto svetlobni tok 16190lm do 33150lm
Barvna temperatura 4000K
Svetlobni učinek direktna simetrična ozka porazdelitev; direktna simetrična široka porazdelitev

Specials

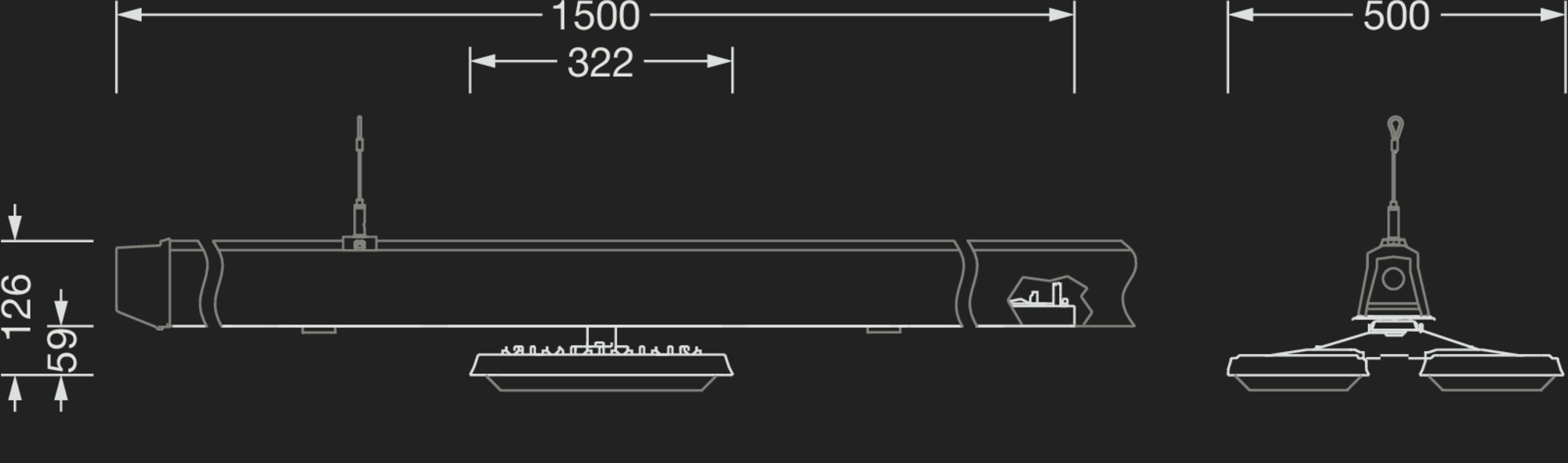

Luminaire in differing construction size with 2 or 4 luminaire heads

Defined light packages for different ambient temperatures in the range -35°C…+45°C

Scope for design via various light packages and diverse light colours (standard 4000K, optionally 3000K, 5000K or 6500K)

Highly efficient lens optic in narrow and wide distribution design

Optional prismatic supplementary optic for special light distributions and light pressure reduction

For mounting to trunking rail of Licross® trunking system; in further versions also for ceiling surface or suspended mounting

Ustreza zahtevam IFS za uporabo v prehrambeni industriji

Meets the high demands of the automotive industry

Notice

please order Licross® trunking rail or trunking rail accessories separately
please order prismatic cover for elliptical or diffuse light distribution separately if required
Please order transparent cover separately if required
izvedbe s temperaturo svetlobe 3000K, 5000K in 6500K na povpraševanje

Results

Barvna temperatura	Barvni videz	Neto svetlobni tok (lm)	Priključna moč	Svetlobni izkoristek	Upravljanje	t_a	Zaščitna stopnja	L (mm)	Masa (kg)
4000K	CRI > 80	16580	95W	175lm/W	DALI	-35..+45°C	IP64	1500	5,0

Razpisno besedilo Podatkovni list (PDF, podrobno)Photometric report / planning data All Downloads

Barvna temperatura	Barvni videz	Neto svetlobni tok (lm)	Priključna moč	Svetlobni izkoristek	Upravljanje	t_a	Zaščitna stopnja	L (mm)	Masa (kg)
4000K	CRI > 80	16190	95W	171lm/W	DALI	-35..+45°C	IP64	1500	5,0

Razpisno besedilo Podatkovni list (PDF, podrobno)Photometric report / planning data All Downloads

Barvna temperatura	Barvni videz	Neto svetlobni tok (lm)	Priključna moč	Svetlobni izkoristek	Upravljanje	t_a	Zaščitna stopnja	L (mm)	Masa (kg)
4000K	CRI > 80	32370	190W	171lm/W	DALI (2 naslova)	-35..+45°C	IP64	1500	6,5

Razpisno besedilo Podatkovni list (PDF, podrobno)Photometric report / planning data All Downloads

Barvna temperatura	Barvni videz	Neto svetlobni tok (lm)	Priključna moč	Svetlobni izkoristek	Upravljanje	t_a	Zaščitna stopnja	L (mm)	Masa (kg)
4000K	CRI > 80	33150	190W	175lm/W	DALI (2 naslova)	-35..+45°C	IP64	1500	6,5

Razpisno besedilo Podatkovni list (PDF, podrobno)Photometric report / planning data All Downloads

Oznaka za naročilo: 51HLA2D14GLAGTIN (EAN): 4058352361467

Barvna temperatura	4000K
Barvni videz	CRI > 80
Neto svetlobni tok (lm)	16580
Priključna moč	95W
Svetlobni izkoristek	175lm/W
Upravljanje	DALI
t_a	-35..+45°C
Zaščitna stopnja	IP64
L (mm)	1500
Masa (kg)	5,0

Razpisno besedilo Podatkovni list (PDF, podrobno)Photometric report / planning data All Downloads

Oznaka za naročilo: 51HLA1D14GLAGTIN (EAN): 4058352361429

Barvna temperatura	4000K
Barvni videz	CRI > 80
Neto svetlobni tok (lm)	16190
Priključna moč	95W
Svetlobni izkoristek	171lm/W
Upravljanje	DALI
t_a	-35..+45°C
Zaščitna stopnja	IP64
L (mm)	1500
Masa (kg)	5,0

Razpisno besedilo Podatkovni list (PDF, podrobno)Photometric report / planning data All Downloads

Oznaka za naročilo: 51HLA1D24NLAGTIN (EAN): 4058352361443

Barvna temperatura	4000K
Barvni videz	CRI > 80
Neto svetlobni tok (lm)	32370
Priključna moč	190W
Svetlobni izkoristek	171lm/W
Upravljanje	DALI (2 naslova)
t_a	-35..+45°C
Zaščitna stopnja	IP64
L (mm)	1500
Masa (kg)	6,5

Razpisno besedilo Podatkovni list (PDF, podrobno)Photometric report / planning data All Downloads

Oznaka za naročilo: 51HLA2D24NLAGTIN (EAN): 4058352361481

Barvna temperatura	4000K
Barvni videz	CRI > 80
Neto svetlobni tok (lm)	33150
Priključna moč	190W
Svetlobni izkoristek	175lm/W
Upravljanje	DALI (2 naslova)
t_a	-35..+45°C
Zaščitna stopnja	IP64
L (mm)	1500
Masa (kg)	6,5

Razpisno besedilo Podatkovni list (PDF, podrobno)Photometric report / planning data All Downloads

Opispokrov, eliptična porazdelitev, PC, UV-stabiliziran, L= 313mm, B= 174mm	EP2 kosa	Masa (kg)0,5	Oznaka za naročilo: 59HL91003GTIN (EAN): 4058352341667	Show details
Opispokrov, široka porazdelitev, PC, UV-stabiliziran, L= 313mm, B= 174mm	EP2 kosa	Masa (kg)0,5	Oznaka za naročilo: 59HL91004GTIN (EAN): 4058352341674	Show details
Opispokrov, steklo, L= 313mm, B= 174mm	EP2 kosa	Masa (kg)0,6	Oznaka za naročilo: 59HL91001GTIN (EAN): 4058352323519	Show details
Opispokrov, PC, UV-stabiliziran, L= 313mm, B= 174mm	EP2 kosa	Masa (kg)0,5	Oznaka za naročilo: 59HL91002GTIN (EAN): 4058352341650	Show details
