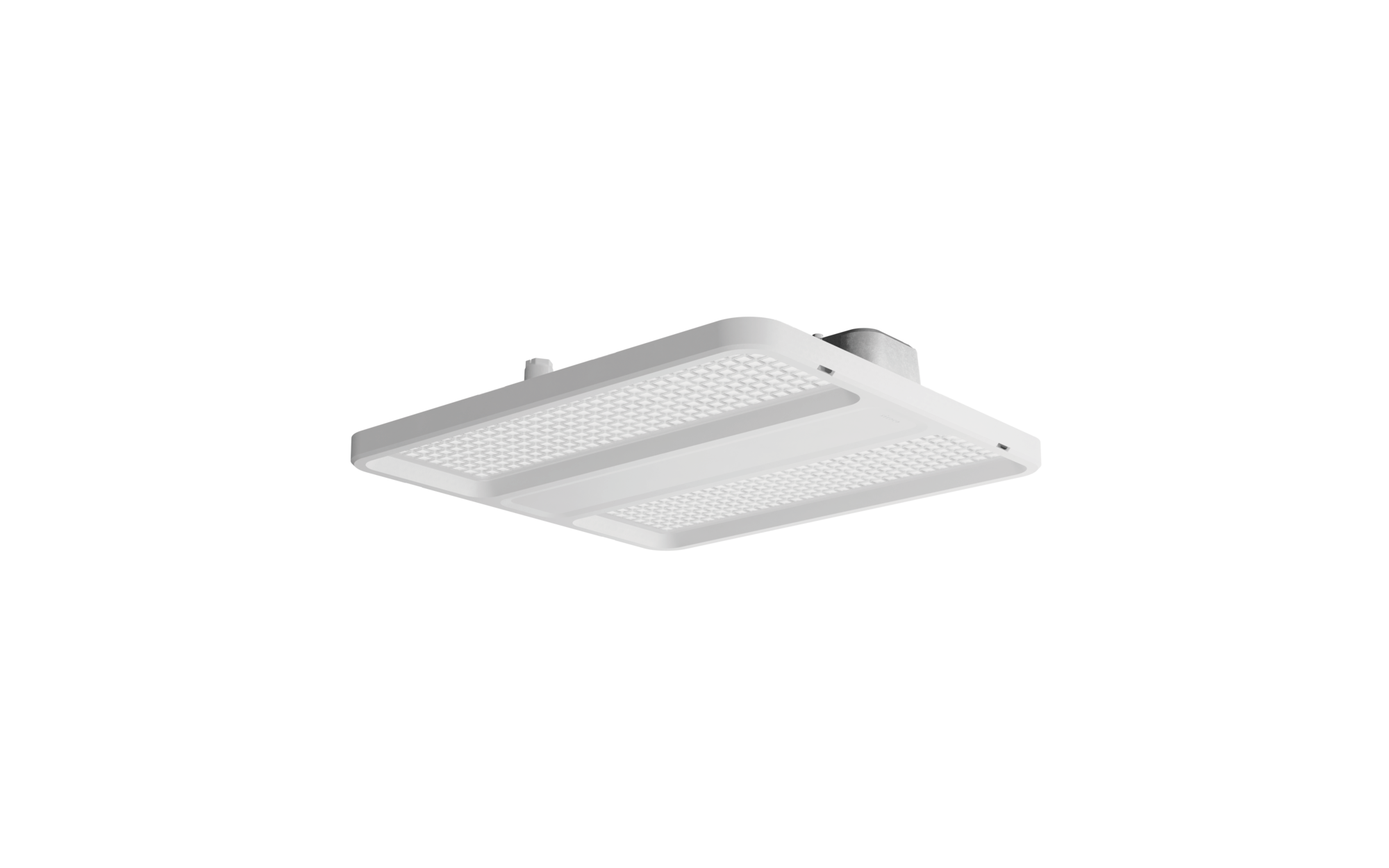

Highbay 21
The Highbay 21 has the same mechanical concept as the Highbay 11 with all its advantages.
Thanks to the innovative housing concept, the Highbay 21 also has a low weight and excellent thermal management.
The modified light engine with other LEDs offers a specification tailored to the target applications with adapted efficiency, lifetime and ambient temperatures.

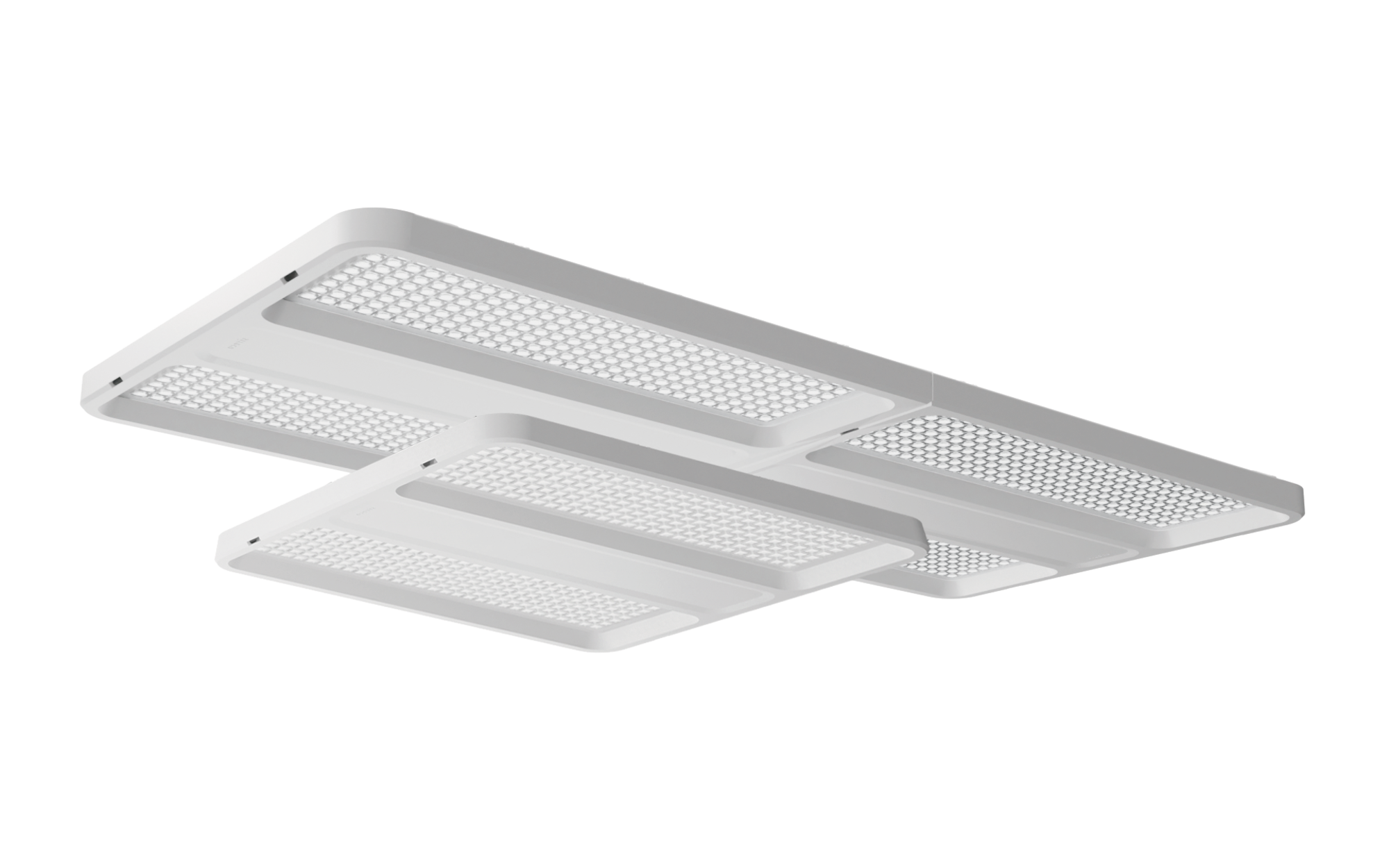

The Highbay 21 is also available in two construction sizes, midi and maxi, various light distributions and mounting variants with a large selection of different lumen packages for a wide range of applications.
Our core portfolio for demanding applications: 14,000…64,000lm | up to 190lm/W | 75,000h service life L90 | -35…+65°C
Highbay 21 maxi
Intro product family
Key data
Article high bay luminaire
Lighting effect direct symmetric narrow distribution; direct symmetric wide distribution
Net luminous flux 25590lm to 64000lm
Luminous efficacy up to 194lm/W
Colour temperature 3000K; 4000K; 5000K; 6500K
ta according to version/application in the range from -40°C to +65°C
Technology wired networking; wireless networking
Cover PMMA
Protection rating IP40; IP65; IP66
IFS corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry
LABS LABS conformity tested according to VDMA 24364:2018-05
Halogen freeness internal wiring halogen-free
Special features
Highly efficient lens-based optical system with extremely good efficiency of up to 190lm/W and very good glare control (UGR ≤ 22) with a long service life of up to 75,000 hours (L95 B50)
Innovative housing concept made of high-performance plastic and aluminum with a high protection class of IP66. Thanks to the special thermal concept, it is suitable for permanent ambient temperatures of -35 to +50°C. The extremely low weight and the external plug-in terminal make installation quick and easy
Developed for a very wide range of applications through various light packages up to 41,000lm with different light distributions and a wide range of mounting accessories
Luminaire validated and approved for operation on central battery systems according to DIN EN 60598-2-22
Variants with integrated sensors for light control concepts depending on movement and daylight, wired or easily wirelessly networkable with automatic swarm function
The use of control and sensor technology reduces energy costs and CO2 consumption and supports the fulfillment of legal regulations (GEG / EPDB)
Minimal material consumption and recyclable components protect the environment. The modular design enables easy maintenance. Manufactured in Germany, delivered quickly and in an environmentally friendly manner
Configuration & data sheets
- luminaire according to the requirements of the automotive industry (LABS free)
- Luminaire meets the requirements of the IFS for use in the food industry

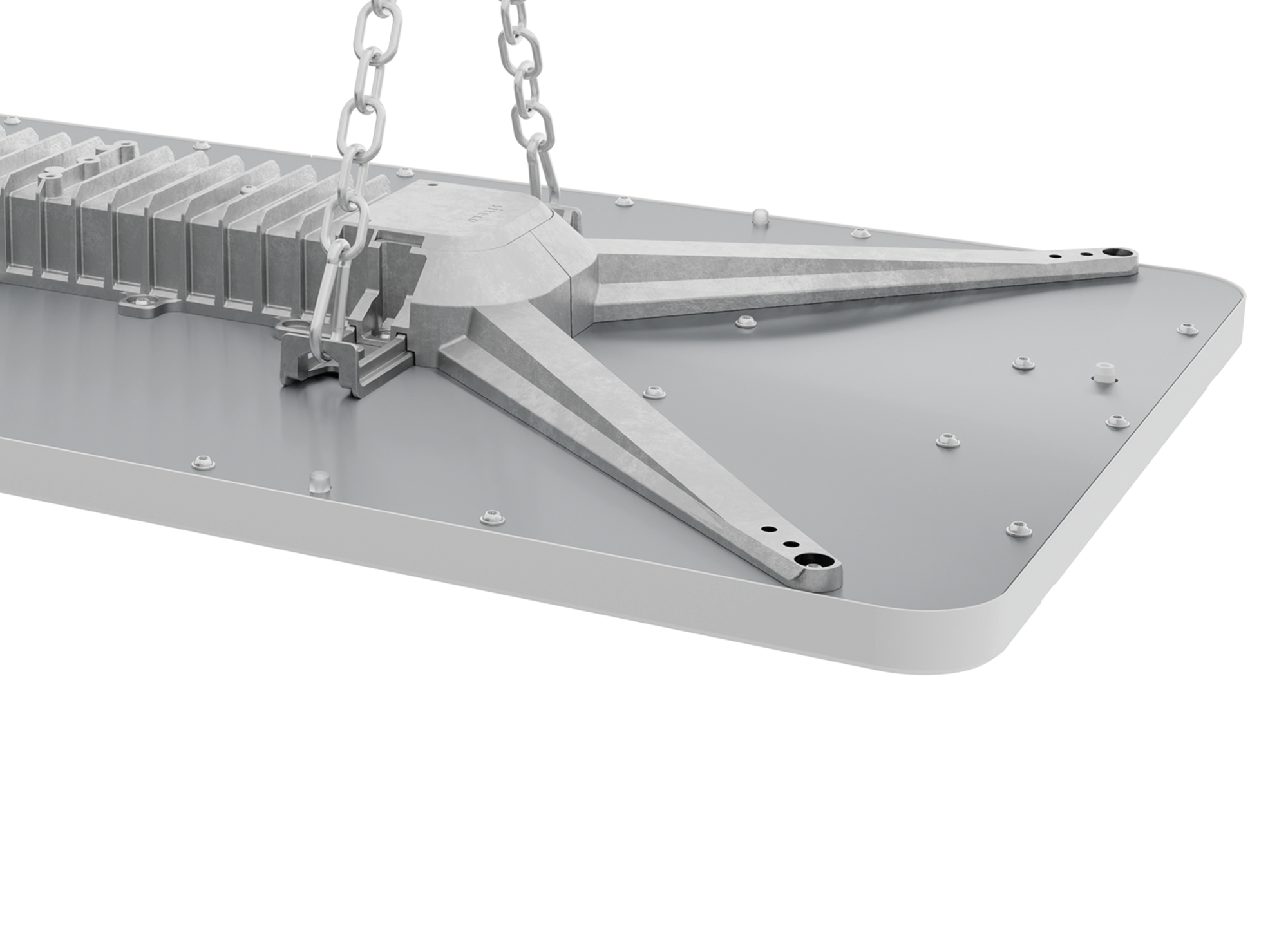

- suspended mounting with wire or chain with 4 suspension points on luminaire side (4-fold suspension on ceiling side with one fixing point / 2-fold suspension on ceiling side with two fixing points)
- near-ceiling mounting or wall mounting with mounting bracket
- please order mounting accessories (in required quantities) separately
- please order supplementary chain for higher suspension heights separately if required (as replacement for standard chain of chain suspension | please consider desired suspension height and number of chain strands)
- versions with colour temperature 3000K, 5000K or 6500K on request
Results

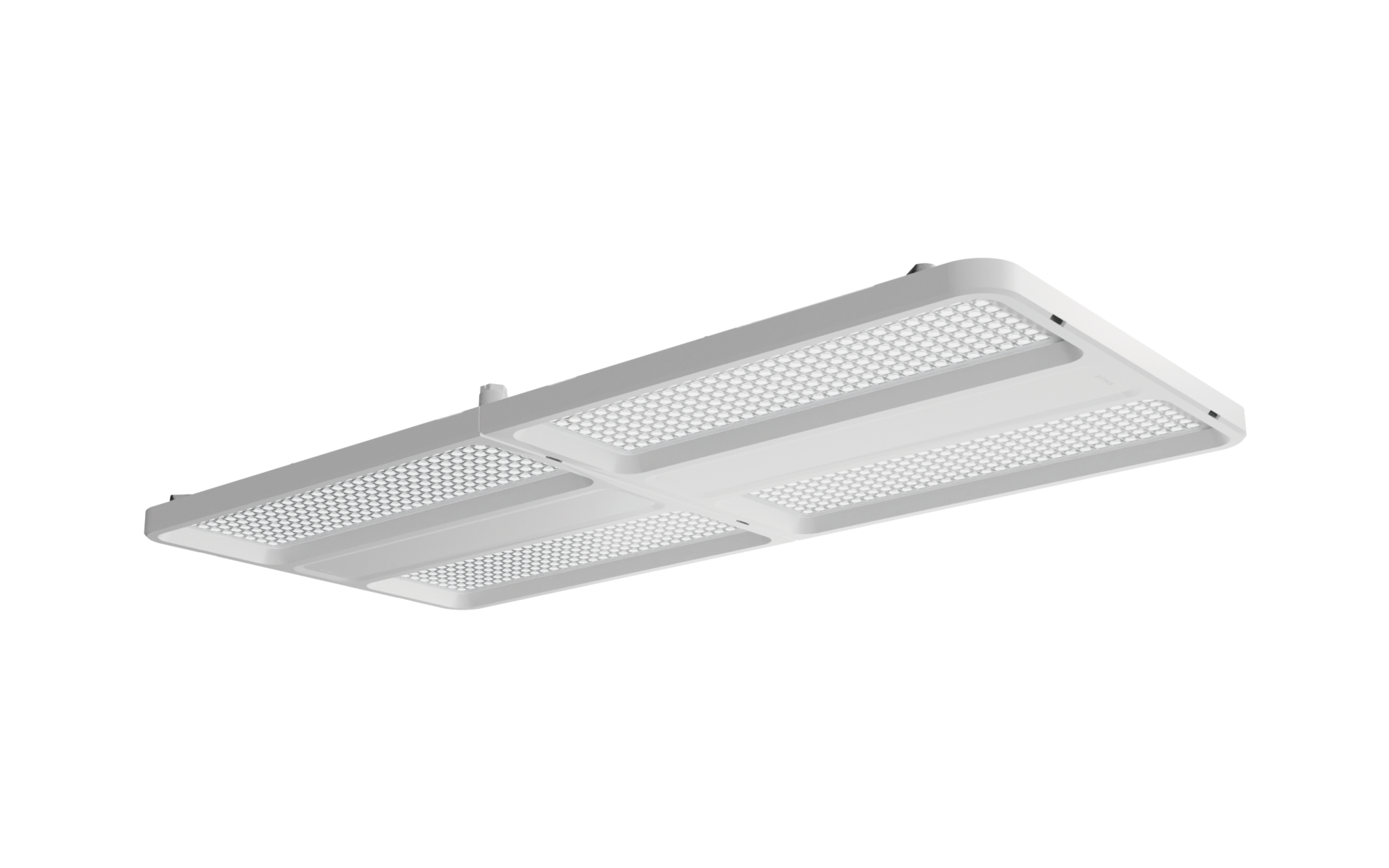

Highbay 21 maxi, narrow distribution, LED, 840, DALI 2, AC/DC
Order No.: 52HN11DB4QDA GTIN (EAN): 4069025256652
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 38000lm | 197.7W | 192lm/W | DALI 2 | -40..+60°C | 946x442 | 7.1 |
Highbay 21 maxi, narrow distribution, LED, 840, DALI 2, AC/DC
Order No.: 52HN11DB4RDA GTIN (EAN): 4069025256676
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 45000lm | 239.3W | 188lm/W | DALI 2 | -40..+55°C | 946x442 | 7.1 |
Highbay 21 maxi, wide distribution, LED, 840, DALI 2, AC/DC
Order No.: 52HN12DB4QDA GTIN (EAN): 4069025256782
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 38000lm | 197.7W | 192lm/W | DALI 2 | -40..+60°C | 946x442 | 7.1 |
Highbay 21 maxi, wide distribution, LED, 840, DALI 2, AC/DC
Order No.: 52HN12DB4RDA GTIN (EAN): 4069025256799
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 45000lm | 239.3W | 188lm/W | DALI 2 | -40..+55°C | 946x442 | 7.1 |
Highbay 21 maxi, narrow distribution, LED, 840, DALI 2, AC/DC
Order No.: 52HN11DB4MDA GTIN (EAN): 4069025394644
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 28000lm | 144W | 194lm/W | DALI 2 | -40..+65°C | 946x442 | 7.1 |
Highbay 21 maxi, narrow distribution, LED, 840, DALI 2, AC/DC
Order No.: 52HN11DB4TDA GTIN (EAN): 4069025394699
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 53000lm | 286.6W | 185lm/W | DALI 2 | -40..+55°C | 946x442 | 7.1 |
Highbay 21 maxi, narrow distribution, LED, 840, DALI 2, AC/DC
Order No.: 52HN11DB4WDA GTIN (EAN): 4069025394729
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 64000lm | 345W | 186lm/W | DALI 2 | -40..+50°C | 946x442 | 7.1 |
Highbay 21 maxi, wide distribution, LED, 840, DALI 2, AC/DC
Order No.: 52HN12DB4MDA GTIN (EAN): 4069025394798
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 28000lm | 144W | 194lm/W | DALI 2 | -40..+65°C | 946x442 | 7.1 |
Highbay 21 maxi, wide distribution, LED, 840, DALI 2, AC/DC
Order No.: 52HN12DB4TDA GTIN (EAN): 4069025394842
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 53000lm | 286.6W | 185lm/W | DALI 2 | -40..+55°C | 946x442 | 7.1 |
Highbay 21 maxi, wide distribution, LED, 840, DALI 2, AC/DC
Order No.: 52HN12DB4WDA GTIN (EAN): 4069025394873
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 64000lm | 345W | 186lm/W | DALI 2 | -40..+50°C | 946x442 | 7.1 |
Highbay 21 maxi, narrow distribution, LED, 840, Bluetooth® Mesh, AC
Order No.: 52HN11DB4MDA01 GTIN (EAN): 4069025421395
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 28000lm | 144.5W | 194lm/W | Bluetooth® Mesh | -20..+45°C | 946x442 | 7.1 |
Highbay 21 maxi, narrow distribution, LED, 840, Bluetooth® Mesh, AC
Order No.: 52HN11DB4MDA02 GTIN (EAN): 4069025421401
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 28000lm | 144.5W | 194lm/W | Bluetooth® Mesh | -20..+45°C | 946x442 | 7.1 |
Highbay 21 maxi, narrow distribution, LED, 840, DALI 2, AC
Order No.: 52HN11DB4MDA03 GTIN (EAN): 4069025421418
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 28000lm | 144W | 194lm/W | DALI 2 | -20..+45°C | 946x442 | 7.1 |
Highbay 21 maxi, narrow distribution, LED, 840, Bluetooth® Mesh, AC
Order No.: 52HN11DB4QDA01 GTIN (EAN): 4069025421456
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 38000lm | 198.2W | 192lm/W | Bluetooth® Mesh | -20..+40°C | 946x442 | 7.1 |
Highbay 21 maxi, narrow distribution, LED, 840, Bluetooth® Mesh, AC
Order No.: 52HN11DB4QDA02 GTIN (EAN): 4069025421463
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 38000lm | 198.2W | 192lm/W | Bluetooth® Mesh | -20..+40°C | 946x442 | 7.1 |
Highbay 21 maxi, narrow distribution, LED, 840, DALI 2, AC
Order No.: 52HN11DB4QDA03 GTIN (EAN): 4069025421470
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 38000lm | 197.7W | 192lm/W | DALI 2 | -20..+40°C | 946x442 | 7.1 |
Highbay 21 maxi, wide distribution, LED, 840, Bluetooth® Mesh, AC
Order No.: 52HN12DB4MDA01 GTIN (EAN): 4069025421777
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 28000lm | 144.5W | 194lm/W | Bluetooth® Mesh | -20..+45°C | 946x442 | 7.1 |
Highbay 21 maxi, wide distribution, LED, 840, Bluetooth® Mesh, AC
Order No.: 52HN12DB4MDA02 GTIN (EAN): 4069025421784
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 28000lm | 144.5W | 194lm/W | Bluetooth® Mesh | -20..+45°C | 946x442 | 7.1 |
Highbay 21 maxi, wide distribution, LED, 840, DALI 2, AC
Order No.: 52HN12DB4MDA03 GTIN (EAN): 4069025421791
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 28000lm | 144W | 194lm/W | DALI 2 | -20..+45°C | 946x442 | 7.1 |
Highbay 21 maxi, wide distribution, LED, 840, Bluetooth® Mesh, AC
Order No.: 52HN12DB4QDA01 GTIN (EAN): 4069025307880
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 38000lm | 198.2W | 192lm/W | Bluetooth® Mesh | -20..+40°C | 946x442 | 7.1 |
Highbay 21 maxi, wide distribution, LED, 840, Bluetooth® Mesh, AC
Order No.: 52HN12DB4QDA02 GTIN (EAN): 4069025421838
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 38000lm | 198.2W | 192lm/W | Bluetooth® Mesh | -20..+40°C | 946x442 | 7.1 |
Highbay 21 maxi, wide distribution, LED, 840, DALI 2, AC
Order No.: 52HN12DB4QDA03 GTIN (EAN): 4069025421845
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 38000lm | 197.7W | 192lm/W | DALI 2 | -20..+40°C | 946x442 | 7.1 |
Highbay 21 maxi, wide distribution, LED, 840, DALI 2, AC/DC, ball impact resistant according to DIN 18032-3 with ceiling mounting or chain suspension
Order No.: 52HN12DB4MBA GTIN (EAN): 4069025441102
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 28000lm | 144W | 194lm/W | DALI 2 | -40..+65°C | 946x442 | 7.0 |
Highbay 21 maxi, wide distribution, LED, 840, DALI 2, AC/DC, ball impact resistant according to DIN 18032-3 with ceiling mounting or chain suspension
Order No.: 52HN12DB4QBA GTIN (EAN): 4069025441133
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 38000lm | 197.7W | 192lm/W | DALI 2 | -40..+60°C | 946x442 | 7.0 |
Highbay 21 maxi, narrow distribution, LED, 830, DALI 2, AC/DC
Order No.: 52HN11DB3LDA GTIN (EAN): 4069025445179
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 3000K | CRI > 80 | 25590lm | 144W | 178lm/W | DALI 2 | -40..+65°C | 946x442 | 7.1 |
Highbay 21 maxi, narrow distribution, LED, 830, DALI 2, AC/DC
Order No.: 52HN11DB3PDA GTIN (EAN): 4069025445209
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 3000K | CRI > 80 | 34690lm | 197.7W | 176lm/W | DALI 2 | -40..+60°C | 946x442 | 7.1 |
Highbay 21 maxi, narrow distribution, LED, 840, DALI 2, AC/DC
Order No.: 52HN11DB4MEA GTIN (EAN): 4069025438461
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 28000lm | 144W | 194lm/W | DALI 2 | -40..+65°C | 946x442 | 7.0 |
Highbay 21 maxi, narrow distribution, LED, 840, DALI 2, AC/DC
Order No.: 52HN11DB4QEA GTIN (EAN): 4069025438508
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 38000lm | 197.7W | 192lm/W | DALI 2 | -40..+60°C | 946x442 | 7.0 |
Highbay 21 maxi, narrow distribution, LED, 840, DALI 2, AC/DC
Order No.: 52HN11DB4TEA GTIN (EAN): 4069025443441
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 53000lm | 286.6W | 185lm/W | DALI 2 | -40..+55°C | 946x442 | 7.0 |
Highbay 21 maxi, narrow distribution, LED, 850, DALI 2, AC/DC
Order No.: 52HN11DB5LDA GTIN (EAN): 4069025445230
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 5000K | CRI > 80 | 27240lm | 144W | 189lm/W | DALI 2 | -40..+65°C | 946x442 | 7.1 |
Highbay 21 maxi, narrow distribution, LED, 850, DALI 2, AC/DC
Order No.: 52HN11DB5QDA GTIN (EAN): 4069025445261
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 5000K | CRI > 80 | 36980lm | 197.7W | 187lm/W | DALI 2 | -40..+60°C | 946x442 | 7.1 |
Highbay 21 maxi, narrow distribution, LED, 865, DALI 2, AC/DC
Order No.: 52HN11DB6LDA GTIN (EAN): 4069025445292
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 6500K | CRI > 80 | 27140lm | 144W | 189lm/W | DALI 2 | -40..+65°C | 946x442 | 7.1 |
Highbay 21 maxi, narrow distribution, LED, 865, DALI 2, AC/DC
Order No.: 52HN11DB6QDA GTIN (EAN): 4069025445322
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 6500K | CRI > 80 | 36840lm | 197.7W | 186lm/W | DALI 2 | -40..+60°C | 946x442 | 7.1 |
Highbay 21 maxi, wide distribution, LED, 830, DALI 2, AC/DC
Order No.: 52HN12DB3LDA GTIN (EAN): 4069025445537
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 3000K | CRI > 80 | 25590lm | 144W | 178lm/W | DALI 2 | -40..+65°C | 946x442 | 7.1 |
Highbay 21 maxi, wide distribution, LED, 830, DALI 2, AC/DC
Order No.: 52HN12DB3PDA GTIN (EAN): 4069025445568
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 3000K | CRI > 80 | 34690lm | 197.7W | 176lm/W | DALI 2 | -40..+60°C | 946x442 | 7.1 |
Highbay 21 maxi, wide distribution, LED, 840, DALI 2, AC/DC
Order No.: 52HN12DB4MEA GTIN (EAN): 4069025438669
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 28000lm | 144W | 194lm/W | DALI 2 | -40..+65°C | 946x442 | 7.0 |
Highbay 21 maxi, wide distribution, LED, 840, DALI 2, AC/DC
Order No.: 52HN12DB4QEA GTIN (EAN): 4069025438713
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 38000lm | 197.7W | 192lm/W | DALI 2 | -40..+60°C | 946x442 | 7.0 |
Highbay 21 maxi, wide distribution, LED, 840, DALI 2, AC/DC
Order No.: 52HN12DB4TEA GTIN (EAN): 4069025443533
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 53000lm | 286.6W | 185lm/W | DALI 2 | -40..+55°C | 946x442 | 7.0 |
Highbay 21 maxi, wide distribution, LED, 850, DALI 2, AC/DC
Order No.: 52HN12DB5LDA GTIN (EAN): 4069025445599
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 5000K | CRI > 80 | 27240lm | 144W | 189lm/W | DALI 2 | -40..+65°C | 946x442 | 7.1 |
Highbay 21 maxi, wide distribution, LED, 850, DALI 2, AC/DC
Order No.: 52HN12DB5QDA GTIN (EAN): 4069025445629
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 5000K | CRI > 80 | 36980lm | 197.7W | 187lm/W | DALI 2 | -40..+60°C | 946x442 | 7.1 |
Highbay 21 maxi, wide distribution, LED, 865, DALI 2, AC/DC
Order No.: 52HN12DB6LDA GTIN (EAN): 4069025445650
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 6500K | CRI > 80 | 27140lm | 144W | 189lm/W | DALI 2 | -40..+65°C | 946x442 | 7.1 |
Highbay 21 maxi, wide distribution, LED, 865, DALI 2, AC/DC
Order No.: 52HN12DB6QDA GTIN (EAN): 4069025445681
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LED | 6500K | CRI > 80 | 36840lm | 197.7W | 186lm/W | DALI 2 | -40..+60°C | 946x442 | 7.1 |
Highbay 21 maxi, narrow distribution, LED, 840, DALI 2, AC/DC
Order No.: 52HN11DB4QDAGTIN (EAN): 4069025256652
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 38000lm |
| Connected load | 197.7W |
| Luminous efficacy | 192lm/W |
| Control | DALI 2 |
| ta | -40..+60°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, narrow distribution, LED, 840, DALI 2, AC/DC
Order No.: 52HN11DB4RDAGTIN (EAN): 4069025256676
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 45000lm |
| Connected load | 239.3W |
| Luminous efficacy | 188lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, wide distribution, LED, 840, DALI 2, AC/DC
Order No.: 52HN12DB4QDAGTIN (EAN): 4069025256782
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 38000lm |
| Connected load | 197.7W |
| Luminous efficacy | 192lm/W |
| Control | DALI 2 |
| ta | -40..+60°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, wide distribution, LED, 840, DALI 2, AC/DC
Order No.: 52HN12DB4RDAGTIN (EAN): 4069025256799
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 45000lm |
| Connected load | 239.3W |
| Luminous efficacy | 188lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, narrow distribution, LED, 840, DALI 2, AC/DC
Order No.: 52HN11DB4MDAGTIN (EAN): 4069025394644
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 28000lm |
| Connected load | 144W |
| Luminous efficacy | 194lm/W |
| Control | DALI 2 |
| ta | -40..+65°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, narrow distribution, LED, 840, DALI 2, AC/DC
Order No.: 52HN11DB4TDAGTIN (EAN): 4069025394699
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 53000lm |
| Connected load | 286.6W |
| Luminous efficacy | 185lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, narrow distribution, LED, 840, DALI 2, AC/DC
Order No.: 52HN11DB4WDAGTIN (EAN): 4069025394729
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 64000lm |
| Connected load | 345W |
| Luminous efficacy | 186lm/W |
| Control | DALI 2 |
| ta | -40..+50°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, wide distribution, LED, 840, DALI 2, AC/DC
Order No.: 52HN12DB4MDAGTIN (EAN): 4069025394798
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 28000lm |
| Connected load | 144W |
| Luminous efficacy | 194lm/W |
| Control | DALI 2 |
| ta | -40..+65°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, wide distribution, LED, 840, DALI 2, AC/DC
Order No.: 52HN12DB4TDAGTIN (EAN): 4069025394842
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 53000lm |
| Connected load | 286.6W |
| Luminous efficacy | 185lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, wide distribution, LED, 840, DALI 2, AC/DC
Order No.: 52HN12DB4WDAGTIN (EAN): 4069025394873
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 64000lm |
| Connected load | 345W |
| Luminous efficacy | 186lm/W |
| Control | DALI 2 |
| ta | -40..+50°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, narrow distribution, LED, 840, Bluetooth® Mesh, AC
Order No.: 52HN11DB4MDA01GTIN (EAN): 4069025421395
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 28000lm |
| Connected load | 144.5W |
| Luminous efficacy | 194lm/W |
| Control | Bluetooth® Mesh |
| ta | -20..+45°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, narrow distribution, LED, 840, Bluetooth® Mesh, AC
Order No.: 52HN11DB4MDA02GTIN (EAN): 4069025421401
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 28000lm |
| Connected load | 144.5W |
| Luminous efficacy | 194lm/W |
| Control | Bluetooth® Mesh |
| ta | -20..+45°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, narrow distribution, LED, 840, DALI 2, AC
Order No.: 52HN11DB4MDA03GTIN (EAN): 4069025421418
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 28000lm |
| Connected load | 144W |
| Luminous efficacy | 194lm/W |
| Control | DALI 2 |
| ta | -20..+45°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, narrow distribution, LED, 840, Bluetooth® Mesh, AC
Order No.: 52HN11DB4QDA01GTIN (EAN): 4069025421456
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 38000lm |
| Connected load | 198.2W |
| Luminous efficacy | 192lm/W |
| Control | Bluetooth® Mesh |
| ta | -20..+40°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, narrow distribution, LED, 840, Bluetooth® Mesh, AC
Order No.: 52HN11DB4QDA02GTIN (EAN): 4069025421463
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 38000lm |
| Connected load | 198.2W |
| Luminous efficacy | 192lm/W |
| Control | Bluetooth® Mesh |
| ta | -20..+40°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, narrow distribution, LED, 840, DALI 2, AC
Order No.: 52HN11DB4QDA03GTIN (EAN): 4069025421470
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 38000lm |
| Connected load | 197.7W |
| Luminous efficacy | 192lm/W |
| Control | DALI 2 |
| ta | -20..+40°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, wide distribution, LED, 840, Bluetooth® Mesh, AC
Order No.: 52HN12DB4MDA01GTIN (EAN): 4069025421777
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 28000lm |
| Connected load | 144.5W |
| Luminous efficacy | 194lm/W |
| Control | Bluetooth® Mesh |
| ta | -20..+45°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, wide distribution, LED, 840, Bluetooth® Mesh, AC
Order No.: 52HN12DB4MDA02GTIN (EAN): 4069025421784
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 28000lm |
| Connected load | 144.5W |
| Luminous efficacy | 194lm/W |
| Control | Bluetooth® Mesh |
| ta | -20..+45°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, wide distribution, LED, 840, DALI 2, AC
Order No.: 52HN12DB4MDA03GTIN (EAN): 4069025421791
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 28000lm |
| Connected load | 144W |
| Luminous efficacy | 194lm/W |
| Control | DALI 2 |
| ta | -20..+45°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, wide distribution, LED, 840, Bluetooth® Mesh, AC
Order No.: 52HN12DB4QDA01GTIN (EAN): 4069025307880
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 38000lm |
| Connected load | 198.2W |
| Luminous efficacy | 192lm/W |
| Control | Bluetooth® Mesh |
| ta | -20..+40°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, wide distribution, LED, 840, Bluetooth® Mesh, AC
Order No.: 52HN12DB4QDA02GTIN (EAN): 4069025421838
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 38000lm |
| Connected load | 198.2W |
| Luminous efficacy | 192lm/W |
| Control | Bluetooth® Mesh |
| ta | -20..+40°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, wide distribution, LED, 840, DALI 2, AC
Order No.: 52HN12DB4QDA03GTIN (EAN): 4069025421845
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 38000lm |
| Connected load | 197.7W |
| Luminous efficacy | 192lm/W |
| Control | DALI 2 |
| ta | -20..+40°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, wide distribution, LED, 840, DALI 2, AC/DC, ball impact resistant according to DIN 18032-3 with ceiling mounting or chain suspension
Order No.: 52HN12DB4MBAGTIN (EAN): 4069025441102
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 28000lm |
| Connected load | 144W |
| Luminous efficacy | 194lm/W |
| Control | DALI 2 |
| ta | -40..+65°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.0 |
Highbay 21 maxi, wide distribution, LED, 840, DALI 2, AC/DC, ball impact resistant according to DIN 18032-3 with ceiling mounting or chain suspension
Order No.: 52HN12DB4QBAGTIN (EAN): 4069025441133
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 38000lm |
| Connected load | 197.7W |
| Luminous efficacy | 192lm/W |
| Control | DALI 2 |
| ta | -40..+60°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.0 |
Highbay 21 maxi, narrow distribution, LED, 830, DALI 2, AC/DC
Order No.: 52HN11DB3LDAGTIN (EAN): 4069025445179
| Lamps | LED |
|---|---|
| Colour temperature | 3000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 25590lm |
| Connected load | 144W |
| Luminous efficacy | 178lm/W |
| Control | DALI 2 |
| ta | -40..+65°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, narrow distribution, LED, 830, DALI 2, AC/DC
Order No.: 52HN11DB3PDAGTIN (EAN): 4069025445209
| Lamps | LED |
|---|---|
| Colour temperature | 3000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 34690lm |
| Connected load | 197.7W |
| Luminous efficacy | 176lm/W |
| Control | DALI 2 |
| ta | -40..+60°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, narrow distribution, LED, 840, DALI 2, AC/DC
Order No.: 52HN11DB4MEAGTIN (EAN): 4069025438461
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 28000lm |
| Connected load | 144W |
| Luminous efficacy | 194lm/W |
| Control | DALI 2 |
| ta | -40..+65°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.0 |
Highbay 21 maxi, narrow distribution, LED, 840, DALI 2, AC/DC
Order No.: 52HN11DB4QEAGTIN (EAN): 4069025438508
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 38000lm |
| Connected load | 197.7W |
| Luminous efficacy | 192lm/W |
| Control | DALI 2 |
| ta | -40..+60°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.0 |
Highbay 21 maxi, narrow distribution, LED, 840, DALI 2, AC/DC
Order No.: 52HN11DB4TEAGTIN (EAN): 4069025443441
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 53000lm |
| Connected load | 286.6W |
| Luminous efficacy | 185lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.0 |
Highbay 21 maxi, narrow distribution, LED, 850, DALI 2, AC/DC
Order No.: 52HN11DB5LDAGTIN (EAN): 4069025445230
| Lamps | LED |
|---|---|
| Colour temperature | 5000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 27240lm |
| Connected load | 144W |
| Luminous efficacy | 189lm/W |
| Control | DALI 2 |
| ta | -40..+65°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, narrow distribution, LED, 850, DALI 2, AC/DC
Order No.: 52HN11DB5QDAGTIN (EAN): 4069025445261
| Lamps | LED |
|---|---|
| Colour temperature | 5000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 36980lm |
| Connected load | 197.7W |
| Luminous efficacy | 187lm/W |
| Control | DALI 2 |
| ta | -40..+60°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, narrow distribution, LED, 865, DALI 2, AC/DC
Order No.: 52HN11DB6LDAGTIN (EAN): 4069025445292
| Lamps | LED |
|---|---|
| Colour temperature | 6500K |
| Colour rendering | CRI > 80 |
| Luminous flux | 27140lm |
| Connected load | 144W |
| Luminous efficacy | 189lm/W |
| Control | DALI 2 |
| ta | -40..+65°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, narrow distribution, LED, 865, DALI 2, AC/DC
Order No.: 52HN11DB6QDAGTIN (EAN): 4069025445322
| Lamps | LED |
|---|---|
| Colour temperature | 6500K |
| Colour rendering | CRI > 80 |
| Luminous flux | 36840lm |
| Connected load | 197.7W |
| Luminous efficacy | 186lm/W |
| Control | DALI 2 |
| ta | -40..+60°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, wide distribution, LED, 830, DALI 2, AC/DC
Order No.: 52HN12DB3LDAGTIN (EAN): 4069025445537
| Lamps | LED |
|---|---|
| Colour temperature | 3000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 25590lm |
| Connected load | 144W |
| Luminous efficacy | 178lm/W |
| Control | DALI 2 |
| ta | -40..+65°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, wide distribution, LED, 830, DALI 2, AC/DC
Order No.: 52HN12DB3PDAGTIN (EAN): 4069025445568
| Lamps | LED |
|---|---|
| Colour temperature | 3000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 34690lm |
| Connected load | 197.7W |
| Luminous efficacy | 176lm/W |
| Control | DALI 2 |
| ta | -40..+60°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, wide distribution, LED, 840, DALI 2, AC/DC
Order No.: 52HN12DB4MEAGTIN (EAN): 4069025438669
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 28000lm |
| Connected load | 144W |
| Luminous efficacy | 194lm/W |
| Control | DALI 2 |
| ta | -40..+65°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.0 |
Highbay 21 maxi, wide distribution, LED, 840, DALI 2, AC/DC
Order No.: 52HN12DB4QEAGTIN (EAN): 4069025438713
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 38000lm |
| Connected load | 197.7W |
| Luminous efficacy | 192lm/W |
| Control | DALI 2 |
| ta | -40..+60°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.0 |
Highbay 21 maxi, wide distribution, LED, 840, DALI 2, AC/DC
Order No.: 52HN12DB4TEAGTIN (EAN): 4069025443533
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 53000lm |
| Connected load | 286.6W |
| Luminous efficacy | 185lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.0 |
Highbay 21 maxi, wide distribution, LED, 850, DALI 2, AC/DC
Order No.: 52HN12DB5LDAGTIN (EAN): 4069025445599
| Lamps | LED |
|---|---|
| Colour temperature | 5000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 27240lm |
| Connected load | 144W |
| Luminous efficacy | 189lm/W |
| Control | DALI 2 |
| ta | -40..+65°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, wide distribution, LED, 850, DALI 2, AC/DC
Order No.: 52HN12DB5QDAGTIN (EAN): 4069025445629
| Lamps | LED |
|---|---|
| Colour temperature | 5000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 36980lm |
| Connected load | 197.7W |
| Luminous efficacy | 187lm/W |
| Control | DALI 2 |
| ta | -40..+60°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, wide distribution, LED, 865, DALI 2, AC/DC
Order No.: 52HN12DB6LDAGTIN (EAN): 4069025445650
| Lamps | LED |
|---|---|
| Colour temperature | 6500K |
| Colour rendering | CRI > 80 |
| Luminous flux | 27140lm |
| Connected load | 144W |
| Luminous efficacy | 189lm/W |
| Control | DALI 2 |
| ta | -40..+65°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Highbay 21 maxi, wide distribution, LED, 865, DALI 2, AC/DC
Order No.: 52HN12DB6QDAGTIN (EAN): 4069025445681
| Lamps | LED |
|---|---|
| Colour temperature | 6500K |
| Colour rendering | CRI > 80 |
| Luminous flux | 36840lm |
| Connected load | 197.7W |
| Luminous efficacy | 186lm/W |
| Control | DALI 2 |
| ta | -40..+60°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.1 |
Optional accessories
| Order No.: 59HL92001GTIN (EAN): 4058352332405 | Show all details |
| Order No.: 59HL92002GTIN (EAN): 4058352332429 | Show all details |
| Order No.: 5LY9001GTIN (EAN): 4039806184290 | Show all details |
| Order No.: 59HL92004GTIN (EAN): 4058352329948 | Show all details |
| Order No.: 59HL92005GTIN (EAN): 4058352329962 | Show all details |
| Order No.: 59HN92007GTIN (EAN): 4069025238894 | Show all details |
| Order No.: 59HN92010GTIN (EAN): 4069025341754 | Show all details |
| Order No.: 59HN92001GTIN (EAN): 4069025445711 | Show all details |
| Order No.: 59HN92002GTIN (EAN): 4069025445728 | Show all details |
| Order No.: 59HN92011GTIN (EAN): 4069025356994 | Show all details |
