Bell iQ

Product typesConfiguration & data sheets

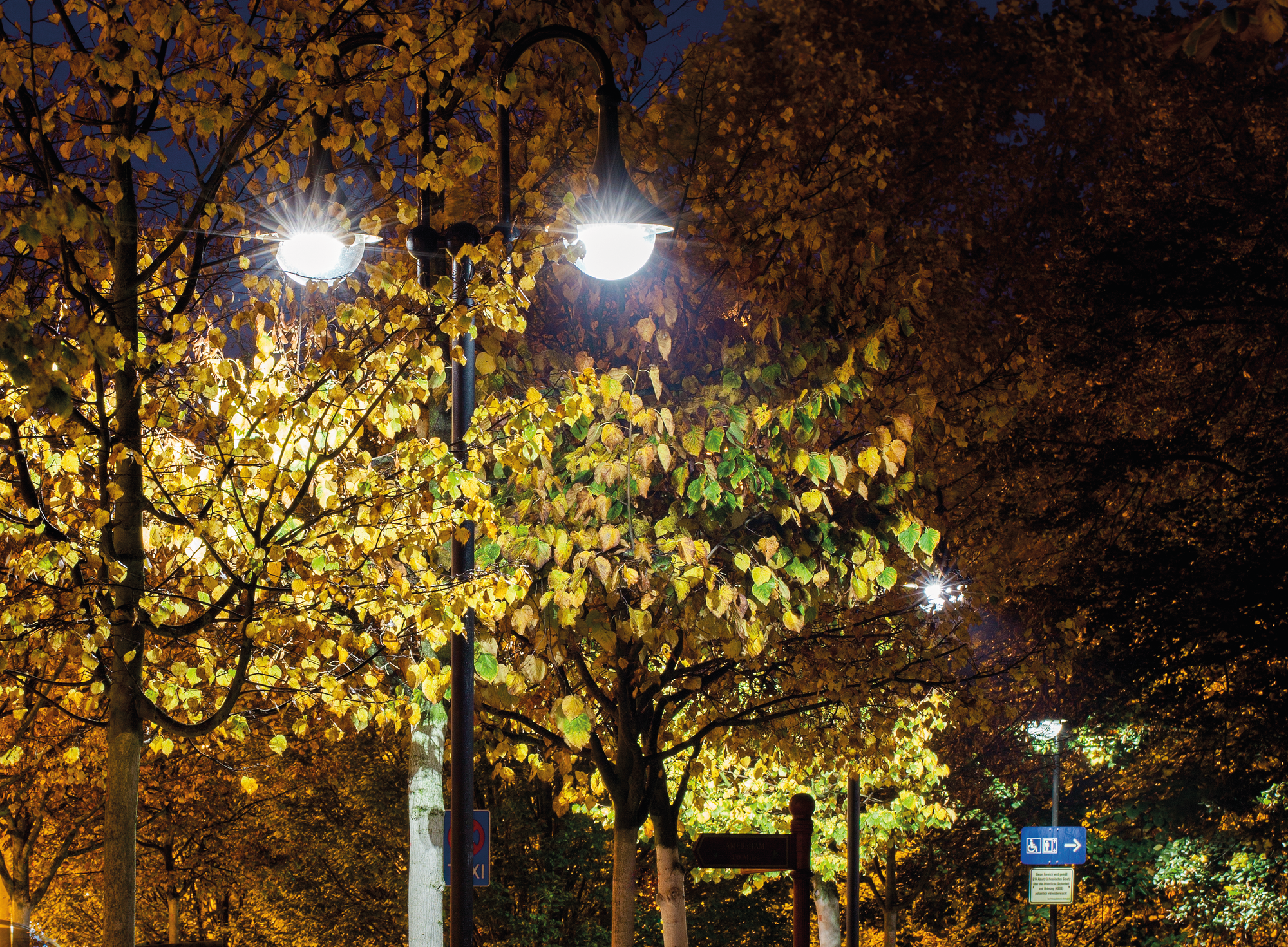

Classics don't get older over the years, they get better. This also applies to the Bell iQ from SITECO, a true classic in terms of decorative outdoor lighting - now with a state-of-the-art interior.

On the outside, the Bell iQ retains its traditional design language with a high recognition effect. But inside it is the latest lighting technology, which, thanks to SITECO iQ and the internal smart interface, not only allows highly efficient operation, but also offers future-oriented control options. And the best thing: the LED module including cover is available as a ready-to-use refurbishment kit.

Bell iQ – Classically innovative. More efficient than ever

Product types

Small Bell iQ

Large Bell iQ

LED module Bell iQ

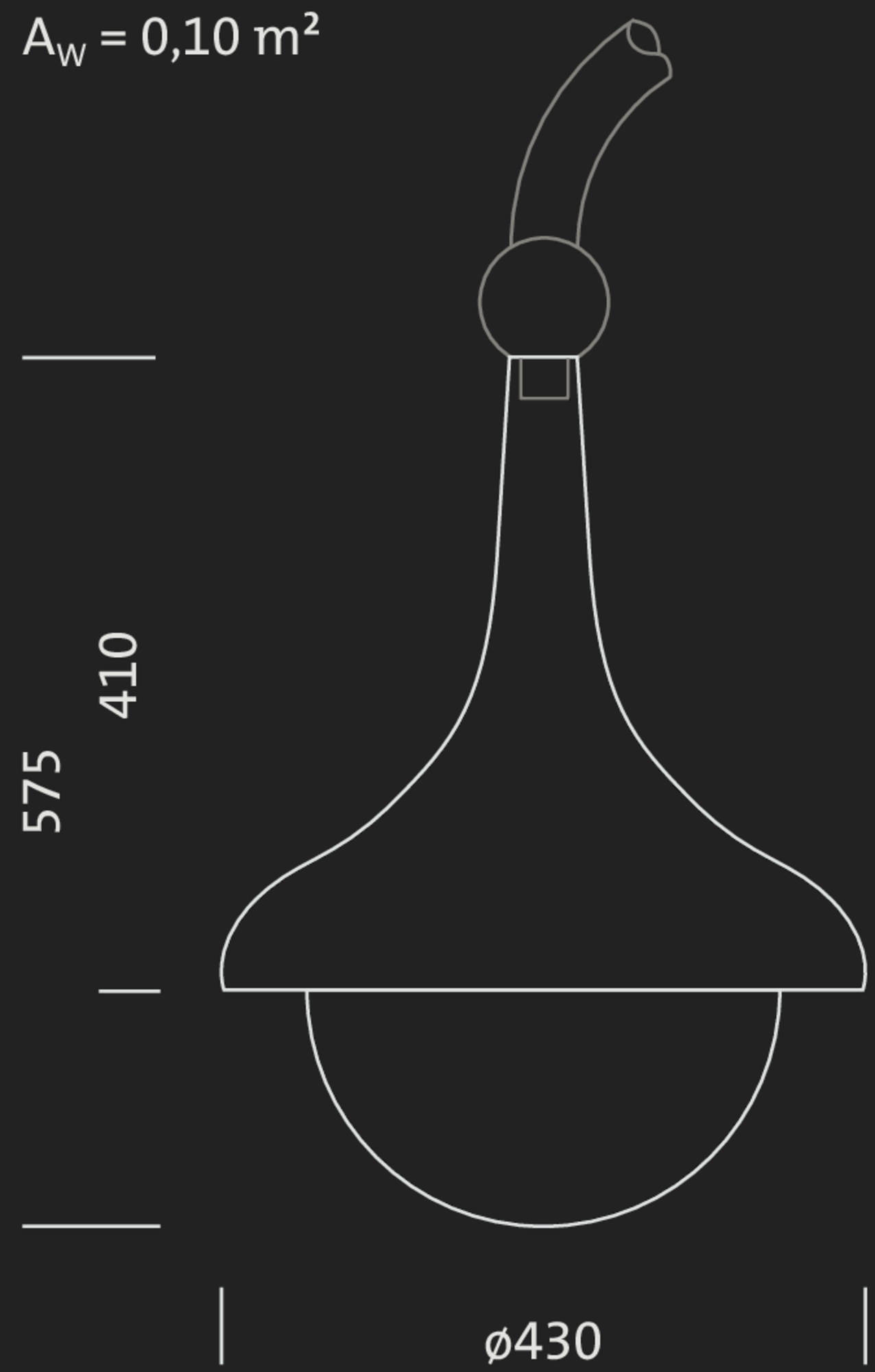

Small Bell iQ

Intro product family

Key data

Article mast luminaire
Net luminous flux 3220lm
Colour temperature 3000K
Lighting effect direct asymmetric wide distribution
Light distribution ST1.2a
Protection rating IP54
Insulation class insulation class II (safety insulation)

Special features

Classic appearance with innovative components including HD faceted reflector for precise, glare-free light distribution
Flexible solution in two sizes, available both as complete luminaire and as LED module for refurbishing existing bell luminaires
High energy savings of over 80% compared to old systems with SON lamps – fast payback of less than 3 years
Siteco iQ Street-Remote (iQ-SR): transmission of all parameters without tools and cable connection via a stable Bluetooth connection
Siteco iQ Smart Interface (Zhaga & D4i) for smart city applications with a modular design for component upgrades
Siteco iQ: Auto-Match: Replacement of spare parts with automatic data exchange without manually reading out and transferring the data

Configuration & data sheets

Control

Smart City

  • please order curved mast extension separately
  • please order shielding on building side separately if required
  • luminaire colour: Siteco® metallic grey (DB 702S) as standard; (further DB and RAL colours on request)

Results

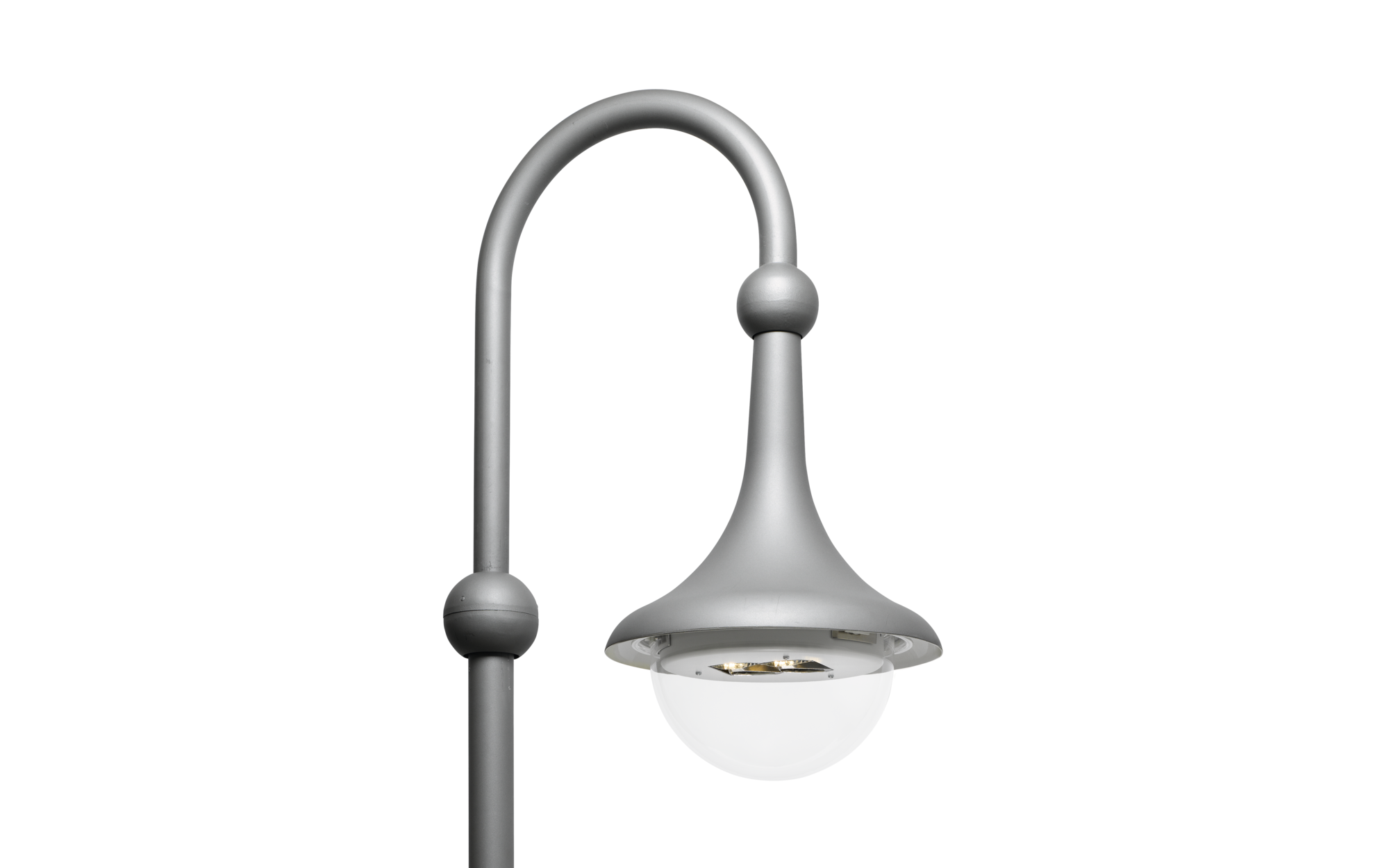

Small Bell iQ, direct asymmetric wide distribution, ST1.2a, enclosure, transparent

Order No.: 5XA1575E1F108 GTIN (EAN): 4069025073877
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)Price (EUR)
3000KCRI > 703220lmST1.2aiQ Street-Remote2021105.31056.60
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

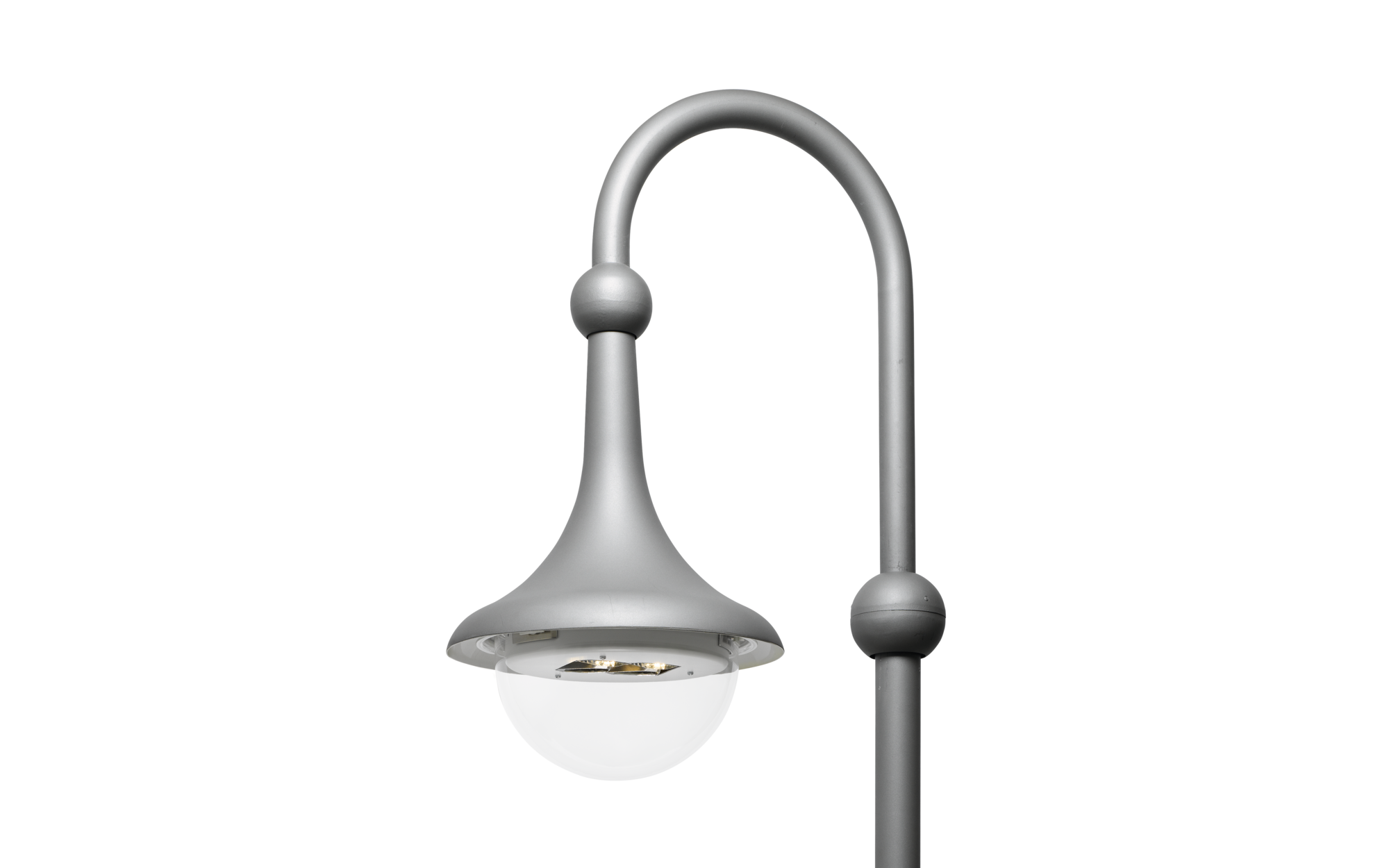

Small Bell iQ, direct asymmetric wide distribution, ST1.2a, with Smart Interface above, enclosure, transparent

Order No.: 5XA1575E1V108 GTIN (EAN): 4069025073914
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)Price (EUR)
3000KCRI > 703220lmST1.2aiQ-Street Remote, D4i with power reduction2021105.31105.60
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Small Bell iQ, direct asymmetric wide distribution, ST1.2a, enclosure, transparent

Order No.: 5XA1575E1F108GTIN (EAN): 4069025073877

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux3220lm
Light distributionST1.2a
ControliQ Street-Remote
Pnom begin service life20
Pnom end service life21
Pred at 50% lumin. flux10
Wt. (kg)5.3
Price (EUR)1056.60
Show all details

Small Bell iQ, direct asymmetric wide distribution, ST1.2a, with Smart Interface above, enclosure, transparent

Order No.: 5XA1575E1V108GTIN (EAN): 4069025073914

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux3220lm
Light distributionST1.2a
ControliQ-Street Remote, D4i with power reduction
Pnom begin service life20
Pnom end service life21
Pred at 50% lumin. flux10
Wt. (kg)5.3
Price (EUR)1105.60
Show all details

Mandatory accessories

Articlecurved mast extension, aligned, Siteco® metallic grey (DB 702S), steel, galvanised, coated, 1-arm, spigot size: 60mmPU1 pc.Wt. (kg)6.6Price (EUR)657.80Order No.: 5NY15711XX08GTIN (EAN): 4039806215215Show all details
Articlecurved mast extension, aligned, Siteco® metallic grey (DB 702S), steel, galvanised, coated, 1-arm, spigot size: 76mmPU1 pc.Wt. (kg)7.5Price (EUR)693.40Order No.: 5NY15721XX08GTIN (EAN): 4039806215451Show all details
Articlecurved mast extension, aligned, Siteco® metallic grey (DB 702S), steel, galvanised, coated, 2-arm, spigot size: 76mmPU1 pc.Wt. (kg)13.3Price (EUR)1386.80Order No.: 5NY15722XX08GTIN (EAN): 4039806370747Show all details
Articlecurved mast extension, offset, Siteco® metallic grey (DB 702S), steel, galvanised, coated, 1-arm, spigot size: 60mmPU1 pc.Wt. (kg)5.4Price (EUR)654.40Order No.: 5NY15711XA08GTIN (EAN): 4039806215055Show all details
Articlecurved mast extension, offset, Siteco® metallic grey (DB 702S), steel, galvanised, coated, 1-arm, spigot size: 76mmPU1 pc.Wt. (kg)6.3Price (EUR)654.40Order No.: 5NY15721XA08GTIN (EAN): 4039806215291Show all details
Articlecurved mast extension, offset, Siteco® metallic grey (DB 702S), steel, galvanised, coated, 2-arm, spigot size: 76mmPU1 pc.Wt. (kg)9.3Price (EUR)1119.90Order No.: 5NY15722XA08GTIN (EAN): 4039806215536Show all details
Articlecurved mast extension, standard, Siteco® metallic grey (DB 702S), steel, galvanised, coated, 1-arm, spigot size: 60mmPU1 pc.Wt. (kg)5.1Price (EUR)467.90Order No.: 5NY15711XF08GTIN (EAN): 4039806215130Show all details
Articlecurved mast extension, standard, Siteco® metallic grey (DB 702S), steel, galvanised, coated, 1-arm, spigot size: 76mmPU1 pc.Wt. (kg)4.9Price (EUR)467.90Order No.: 5NY15721XF08GTIN (EAN): 4039806215376Show all details
Articlewall bracketPU1 pc.Wt. (kg)6.3Price (EUR)971.40Order No.: 5NY15701XW08GTIN (EAN): 4039806214898Show all details

Optional accessories

Articleshield, rear shieldingPU1 pc.Wt. (kg)0.1Price (EUR)66.00Order No.: 5NA15700XB1GTIN (EAN): 4050737087979Show all details
