Bell iQ
Classics don't get older over the years, they get better. This also applies to the Bell iQ from SITECO, a true classic in terms of decorative outdoor lighting - now with a state-of-the-art interior.
On the outside, the Bell iQ retains its traditional design language with a high recognition effect. But inside it is the latest lighting technology, which, thanks to SITECO iQ and the internal smart interface, not only allows highly efficient operation, but also offers future-oriented control options. And the best thing: the LED module including cover is available as a ready-to-use refurbishment kit.
Bell iQ – Classically innovative. More efficient than ever
Product types

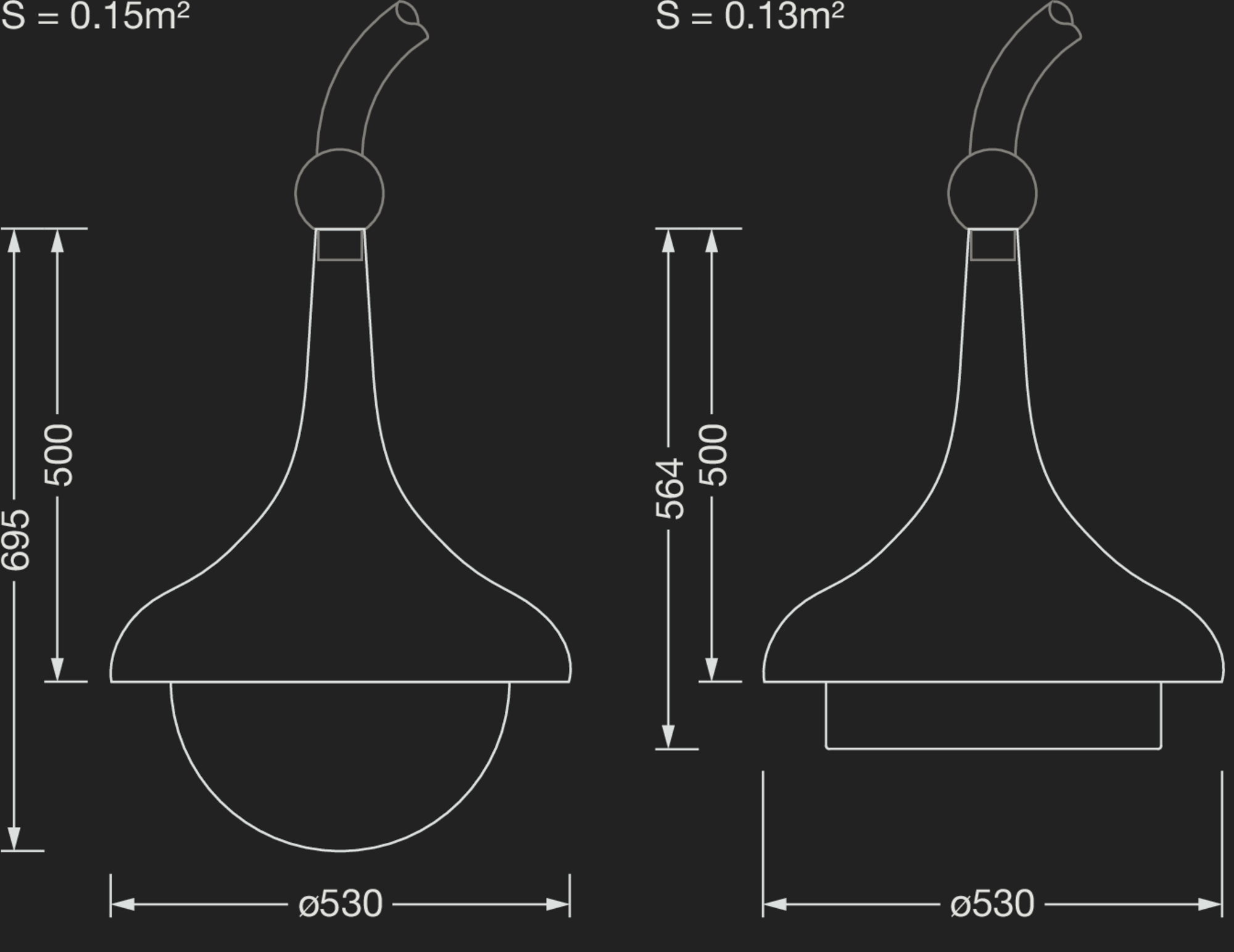

Large Bell iQ
Intro product family
Key data
Article mast luminaire
Net luminous flux 4180lm to 5420lm
Colour temperature 2700K; 2200K; 3000K; 4000K
Lighting effect direct asymmetric wide distribution
Light distribution ST1.2a; P1.0a
Protection rating IP54
Insulation class insulation class II (safety insulation)
Special features
Classic appearance with innovative components including HD faceted reflector for precise, glare-free light distribution
Flexible solution in two sizes, available both as complete luminaire and as LED module for refurbishing existing bell luminaires
High energy savings of over 80% compared to old systems with SON lamps – fast payback of less than 3 years
Siteco iQ Street-Remote (iQ-SR): transmission of all parameters without tools and cable connection via a stable Bluetooth connection
Siteco iQ Smart Interface (Zhaga & D4i) for smart city applications with a modular design for component upgrades
Siteco iQ: Auto-Match: Replacement of spare parts with automatic data exchange without manually reading out and transferring the data
Configuration & data sheets
- please order curved mast extension separately
- please order shielding on building side separately if required
- luminaire colour: Siteco® metallic grey (DB 702S) as standard; (further DB and RAL colours on request)
Results
Large Bell iQ, direct asymmetric wide distribution, ST1.2a, enclosure, transparent
Order No.: 5XA1565E1F108 GTIN (EAN): 4069025073754
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 5180lm | ST1.2a | iQ Street-Remote | 34 | 38 | 16 | 7.8 | 1380.50 |
Large Bell iQ, direct asymmetric wide distribution, ST1.2a, enclosure, transparent
Order No.: 5XA1565A1F108 GTIN (EAN): 4069025123329
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|
| 2200K | CRI > 70 | 4180lm | ST1.2a | iQ Street-Remote | 34 | 38 | 16 | 7.8 | 1380.50 |
Large Bell iQ, direct asymmetric wide distribution, ST1.2a, enclosure, transparent
Order No.: 5XA1565M1F108 GTIN (EAN): 4069025123466
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|
| 2700K | CRI > 70 | 4470lm | ST1.2a | iQ Street-Remote | 34 | 38 | 16 | 7.8 | 1380.50 |
Large Bell iQ, direct asymmetric wide distribution, ST1.2a, enclosure, transparent
Order No.: 5XA1565K1F108 GTIN (EAN): 4069025123428
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 5420lm | ST1.2a | iQ Street-Remote | 34 | 38 | 16 | 7.8 | 1380.50 |
Large Bell iQ, direct asymmetric wide distribution, P1.0a, enclosure, transparent
Order No.: 5XA1565F1F108 GTIN (EAN): 4069025123381
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 5070lm | P1.0a | iQ Street-Remote | 34 | 38 | 16 | 7.8 | 1380.50 |
Large Bell iQ, direct asymmetric wide distribution, ST1.2a, cover panel, transparent
Order No.: 5XA1565E1F308 GTIN (EAN): 4069025073792
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 4750lm | ST1.2a | iQ Street-Remote | 34 | 38 | 16 | 8.9 | 1576.60 |
Large Bell iQ, direct asymmetric wide distribution, ST1.2a, with Smart Interface above, enclosure, transparent
Order No.: 5XA1565E1V108 GTIN (EAN): 4069025073815
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 5180lm | ST1.2a | iQ-Street Remote, D4i with power reduction | 34 | 38 | 16 | 7.9 | 1429.60 |
Large Bell iQ, direct asymmetric wide distribution, ST1.2a, enclosure, transparent
Order No.: 5XA1565E1F108GTIN (EAN): 4069025073754
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 5180lm |
| Light distribution | ST1.2a |
| Control | iQ Street-Remote |
| Pnom begin service life | 34 |
| Pnom end service life | 38 |
| Pred at 50% lumin. flux | 16 |
| Wt. (kg) | 7.8 |
| Price (EUR) | 1380.50 |
Large Bell iQ, direct asymmetric wide distribution, ST1.2a, enclosure, transparent
Order No.: 5XA1565A1F108GTIN (EAN): 4069025123329
| Colour temperature | 2200K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 4180lm |
| Light distribution | ST1.2a |
| Control | iQ Street-Remote |
| Pnom begin service life | 34 |
| Pnom end service life | 38 |
| Pred at 50% lumin. flux | 16 |
| Wt. (kg) | 7.8 |
| Price (EUR) | 1380.50 |
Large Bell iQ, direct asymmetric wide distribution, ST1.2a, enclosure, transparent
Order No.: 5XA1565M1F108GTIN (EAN): 4069025123466
| Colour temperature | 2700K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 4470lm |
| Light distribution | ST1.2a |
| Control | iQ Street-Remote |
| Pnom begin service life | 34 |
| Pnom end service life | 38 |
| Pred at 50% lumin. flux | 16 |
| Wt. (kg) | 7.8 |
| Price (EUR) | 1380.50 |
Large Bell iQ, direct asymmetric wide distribution, ST1.2a, enclosure, transparent
Order No.: 5XA1565K1F108GTIN (EAN): 4069025123428
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 5420lm |
| Light distribution | ST1.2a |
| Control | iQ Street-Remote |
| Pnom begin service life | 34 |
| Pnom end service life | 38 |
| Pred at 50% lumin. flux | 16 |
| Wt. (kg) | 7.8 |
| Price (EUR) | 1380.50 |
Large Bell iQ, direct asymmetric wide distribution, P1.0a, enclosure, transparent
Order No.: 5XA1565F1F108GTIN (EAN): 4069025123381
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 5070lm |
| Light distribution | P1.0a |
| Control | iQ Street-Remote |
| Pnom begin service life | 34 |
| Pnom end service life | 38 |
| Pred at 50% lumin. flux | 16 |
| Wt. (kg) | 7.8 |
| Price (EUR) | 1380.50 |
Large Bell iQ, direct asymmetric wide distribution, ST1.2a, cover panel, transparent
Order No.: 5XA1565E1F308GTIN (EAN): 4069025073792
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 4750lm |
| Light distribution | ST1.2a |
| Control | iQ Street-Remote |
| Pnom begin service life | 34 |
| Pnom end service life | 38 |
| Pred at 50% lumin. flux | 16 |
| Wt. (kg) | 8.9 |
| Price (EUR) | 1576.60 |
Large Bell iQ, direct asymmetric wide distribution, ST1.2a, with Smart Interface above, enclosure, transparent
Order No.: 5XA1565E1V108GTIN (EAN): 4069025073815
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 5180lm |
| Light distribution | ST1.2a |
| Control | iQ-Street Remote, D4i with power reduction |
| Pnom begin service life | 34 |
| Pnom end service life | 38 |
| Pred at 50% lumin. flux | 16 |
| Wt. (kg) | 7.9 |
| Price (EUR) | 1429.60 |
Mandatory accessories
| Order No.: 5NY15621XX08GTIN (EAN): 4039806214737 | Show all details |
| Order No.: 5NY15622XX08GTIN (EAN): 4039806370624 | Show all details |
| Order No.: 5NY15621XA08GTIN (EAN): 4039806214577 | Show all details |
| Order No.: 5NY15622XA08GTIN (EAN): 4039806214812 | Show all details |
| Order No.: 5NY15621XF08GTIN (EAN): 4039806214652 | Show all details |
| Order No.: 5NY15601XW08GTIN (EAN): 4039806214416 | Show all details |
Optional accessories
| Order No.: 5NA15600XB1GTIN (EAN): 4050737087955 | Show all details |
