The compact luminaires of the Lunis 11 R family offer a lighting solution for many applications. Various optical covers ensure a high degree of planning freedom. The luminaire is even a good solution for lighting in areas with VDU screen workplaces.

Round, simple, universal

Product types

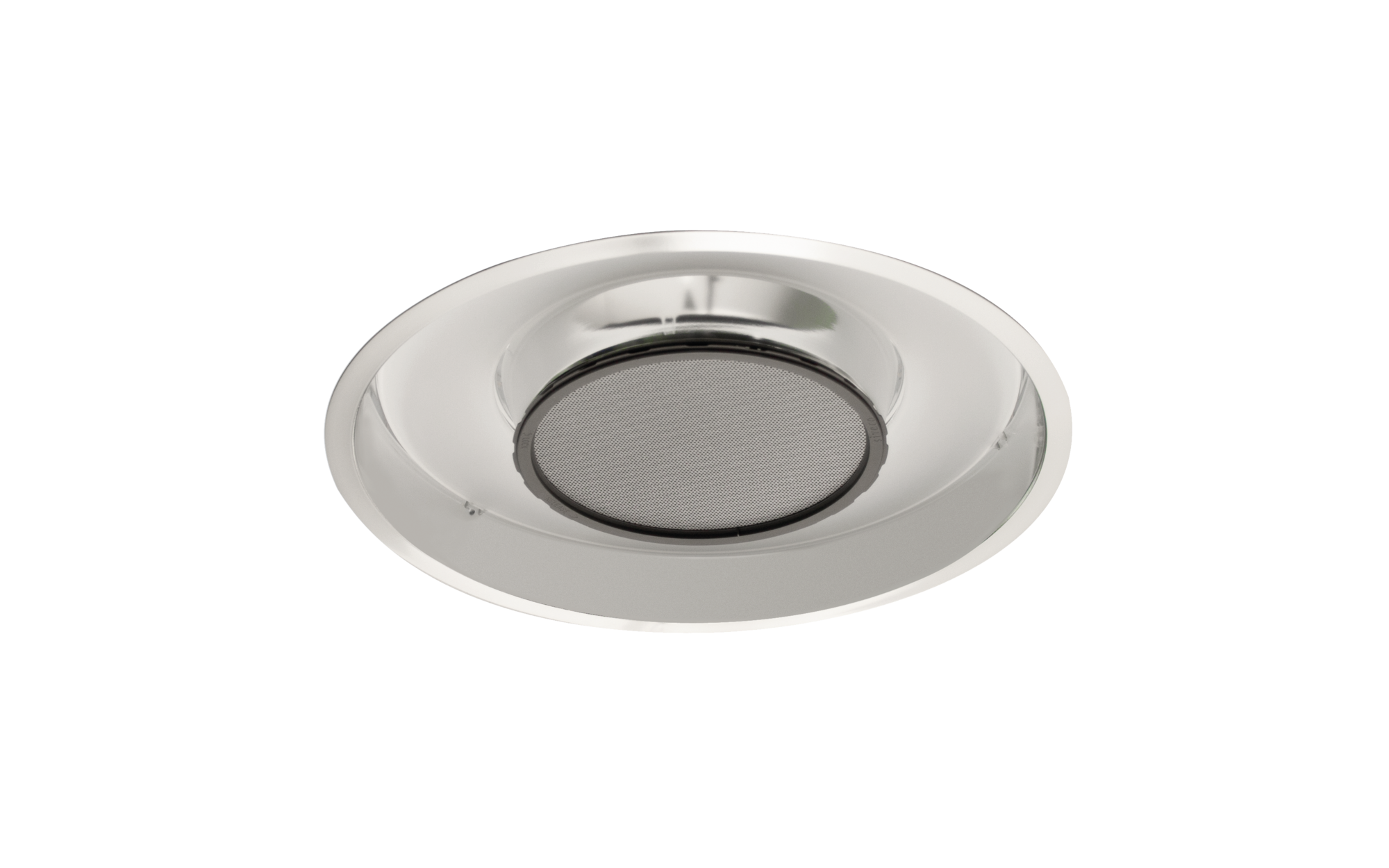

Lunis 11 R for ceiling recessed mounting

Key data

Article downlight
Lighting effect direct symmetric wide distribution
Net luminous flux 4860lm
Colour temperature 4000K
Control DALI Multilumen

Special features

Different light characteristics by means of various louvers (highly specular/matt/C louver, transparent collector lens/opal diffuser)

High form factor due to high quality housing material: housing and reflector made of aluminum

Wide flexibility in adapting to individual light requirements due to light control via DALI or with multilumen (switchable luminous flux)

Luminous flux can be switched in the range from 4860 to 3470lm during installation

Note

please order lighting technology (louvre or panel) for circular downlight separately
if required, please order mount element separately for M625 system ceilings to support the weight of the luminaire on the ceiling structure

Results

Colour temperature	Colour rendering	Luminous flux	Connected load	Luminous efficacy	Control	Wt. (kg)
4000K	CRI > 80	4860lm	37W	131lm/W	DALI Multilumen	1.9

Show all details

Tender text Data sheet (PDF, full)Photometric report / planning data Complete download list

Order No.: 5LR610D4OB11AFGTIN (EAN): 4058352125915

Colour temperature	4000K
Colour rendering	CRI > 80
Luminous flux	4860lm
Connected load	37W
Luminous efficacy	131lm/W
Control	DALI Multilumen
Wt. (kg)	1.9
