Streetlight SL 31 Area

ProdukttyperKonfigurasjon og datablad

If you want the maximum, you have to focus on the essentials. And that's exactly what Streetlight SL 31 does. With its special light distribution for areas, the Streetlight SL 31 Area impresses with perfect light, high comfort, and optimal energy efficiency. Thanks to various interfaces, it offers flexibility, both today and tomorrow. Environmental protection and sustainability are evident in every detail, and on-site development and production in Traunreut ensure short delivery times and routes.

Focused on what matters. For maximum results in area lighting. That's Streetlight SL 31 Area

Produkttyper

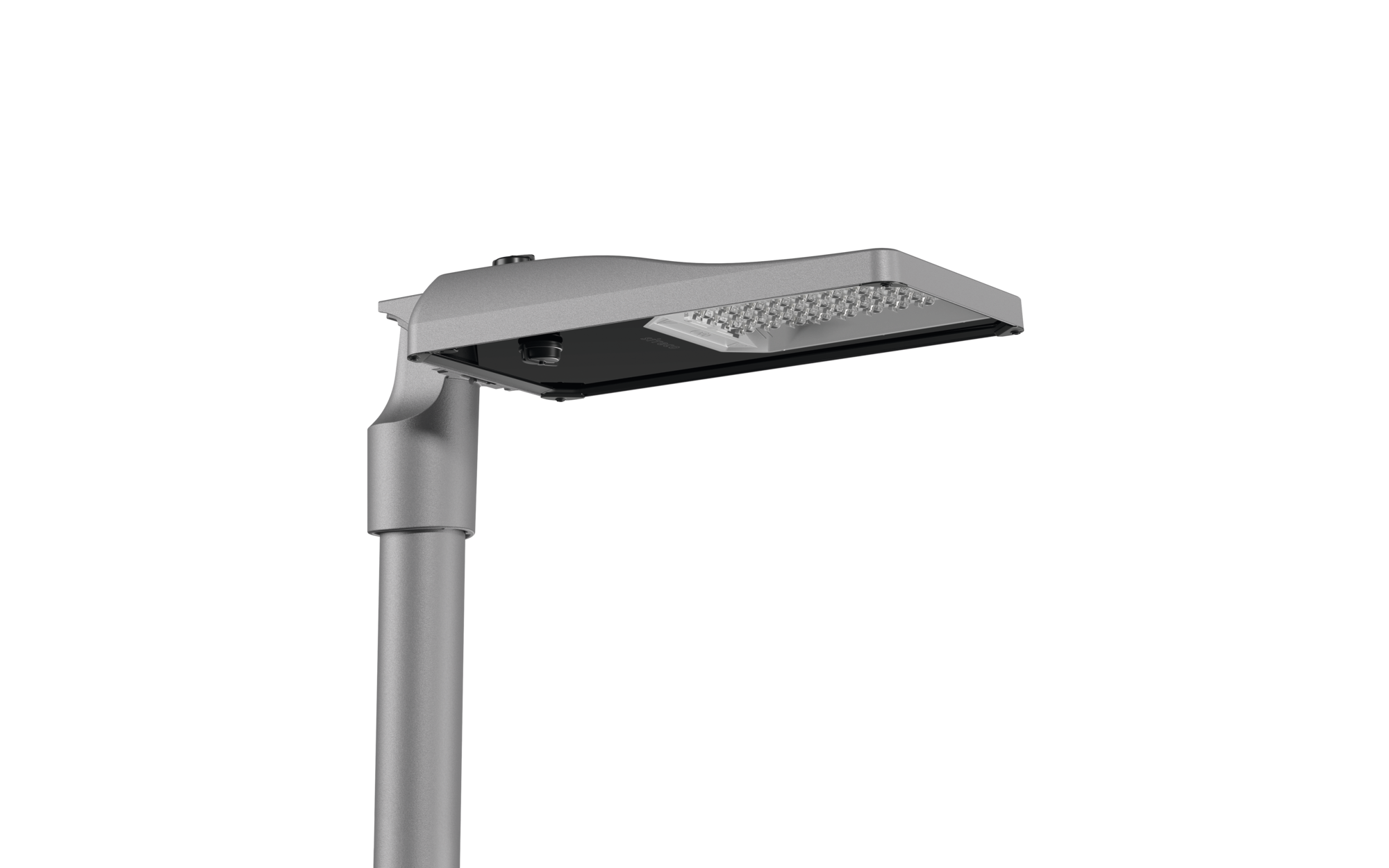

Streetlight SL 31 micro Area

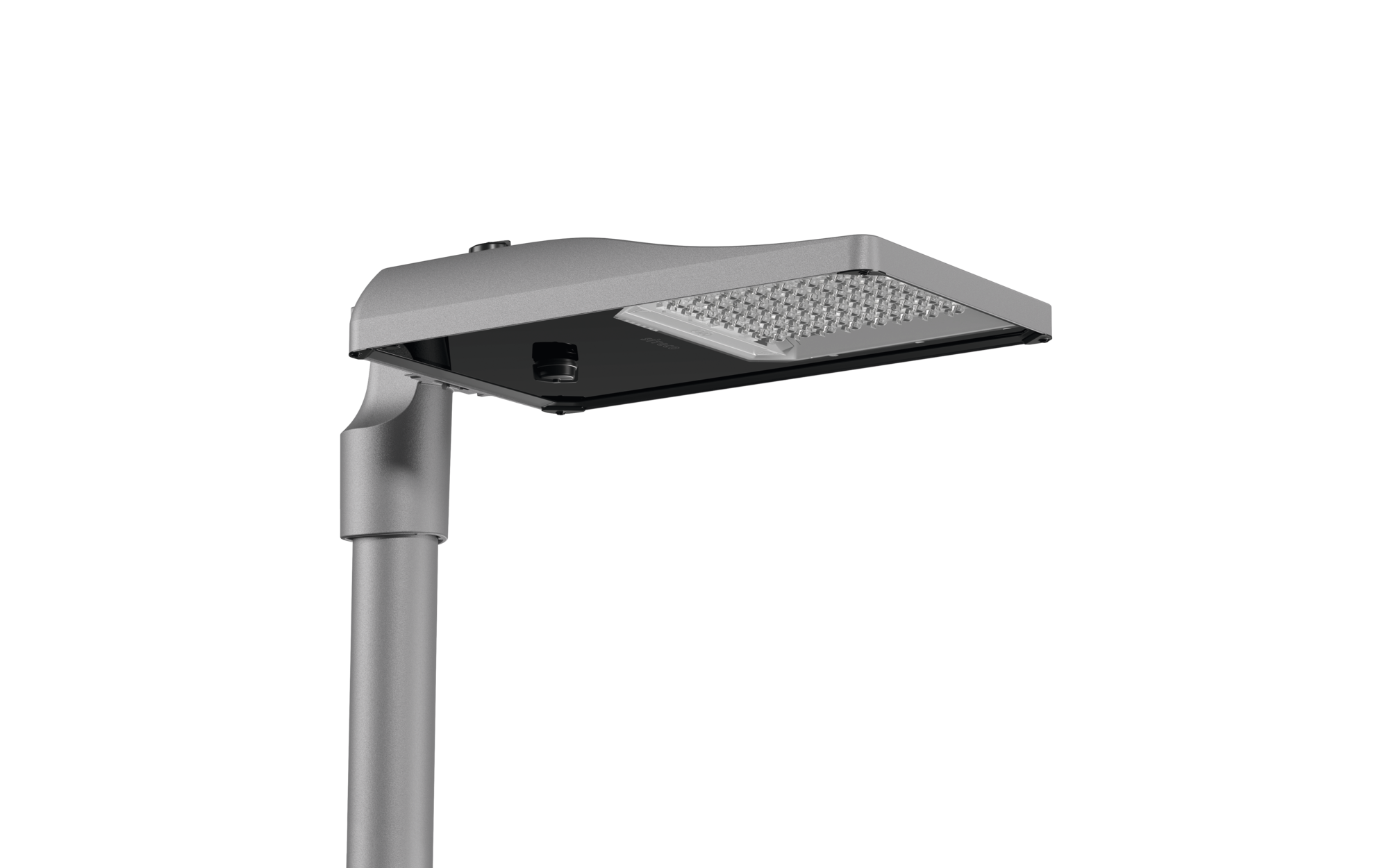

Streetlight SL 31 mini Area

Streetlight SL 31 midi Area

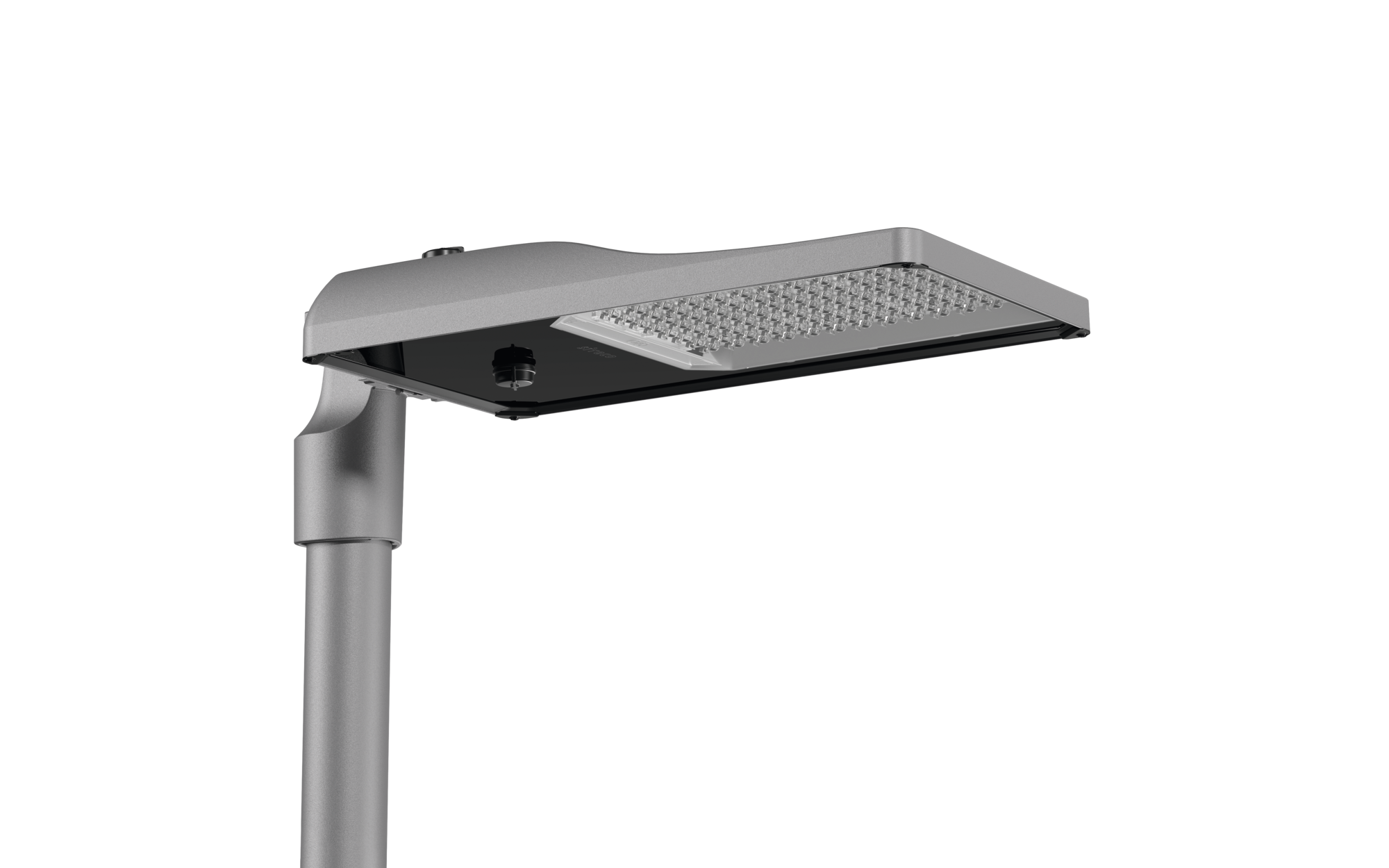

Streetlight SL 31 maxi Area

Streetlight SL 31 maxi Area

Introduksjon til produktfamilien

Hovedegenskaper

Varetekst mastarmatur
Netto lysfluks 22010lm
Fargetemperatur 2200K
Lyseffekt direkte asymmetrisk bredstrålende
Lysfordeling PL52
Kapslingsklasse IP66
Isolasjonsklasse VK I (vernejording)

Spesielle egenskaper

Long service life of more than 100,000h, also thanks to future-proof product concept and long-life components
Light distributions are based on our non-yellowing PMMA lens platform. Mixing and rotating the lens plates for other light distributions is possible on request if required.
Easy installation thanks to pre-assembled connection cable as standard
Mast flange for spigot size 60/76mm with inclination adjustment (-15°…+20° (post-top), -20°…+20° (side-entry) included in delivery
All variants of the Streetlight SL 31 can be individually parameterized either with our SITECO® Service Box (5EA6TEF03) or wirelessly and without voltage with our Desk-Remote variant via our SITECO® Handheld (5EA6HBR02)
Easy and Easy LST variants are the basic variants of the new Streetlight SL 31. The variants can be operated as an ON/OFF luminaire, with a Night-Set profile or Lumen-Switch. The Easy LST variant also has the function of being controlled via a reducing wire
Smart-City-ready: future-proof thanks to two optional Zhaga or NEMA interfaces (7pin) for state-of-the-art lighting control, wireless networking and versatile sensors
Desk-Remote: voltage-free transmission of data to the luminaire via application-optimized NFC function/RFID function, even through the packaging

Konfigurasjon og datablad

  • mast flange for mast spigot diameter 76mm and 60mm contained in product
  • mast flange 60/48/42mm or 76…34mm available on request
  • Pre-assembled connection cable (H07RN-F)
  • Other connection cable types and lengths available on request

Resultater

Streetlight SL 31 maxi, direkte asymmetrisk bredstrålende, PL52, med Smart Interface oppe, kan åpnes uten bruk av verktøy

Bestillingsnummer: 5XH8H75N08SA GTIN (EAN): 4069025105035
FargetemperaturFargegjengivelseLysfluksLysfordelingStyringPnom start levetidPnom slutt levetidPred ved 50 % lysfluksVekt (kg)
2200KCRI > 7022010lmPL52NEMA (7pin), Desk-Remote2092338812,0
Vis alle detaljer
Beskrivende tekstBeskrivende tekst nøytralDatablad (PDF, fullversjon)Environmental Product Declaration EPDFotometrisk rapport / planleggingsdataKomplett nedlastingsliste

Streetlight SL 31 maxi, direkte asymmetrisk bredstrålende, PL52, med Smart Interface oppe, kan åpnes uten bruk av verktøy

Bestillingsnummer: 5XH8H75N08SAGTIN (EAN): 4069025105035

Fargetemperatur2200K
FargegjengivelseCRI > 70
Lysfluks22010lm
LysfordelingPL52
StyringNEMA (7pin), Desk-Remote
Pnom start levetid209
Pnom slutt levetid233
Pred ved 50 % lysfluks88
Vekt (kg)12,0
Vis alle detaljer

Valgfritt tilbehør

Varetekstavskjerming, bakskjermingForpakningsenhet1 stykkVekt (kg)0,3Bestillingsnummer: 5XEBLC40AGTIN (EAN): 4069025237965Vis alle detaljer
