Streetlight SL 31 Area

Types de produitsConfiguration et fiches techniques

If you want the maximum, you have to focus on the essentials. And that's exactly what Streetlight SL 31 does. With its special light distribution for areas, the Streetlight SL 31 Area impresses with perfect light, high comfort, and optimal energy efficiency. Thanks to various interfaces, it offers flexibility, both today and tomorrow. Environmental protection and sustainability are evident in every detail, and on-site development and production in Traunreut ensure short delivery times and routes.

Focused on what matters. For maximum results in area lighting. That's Streetlight SL 31 Area

Types de produits

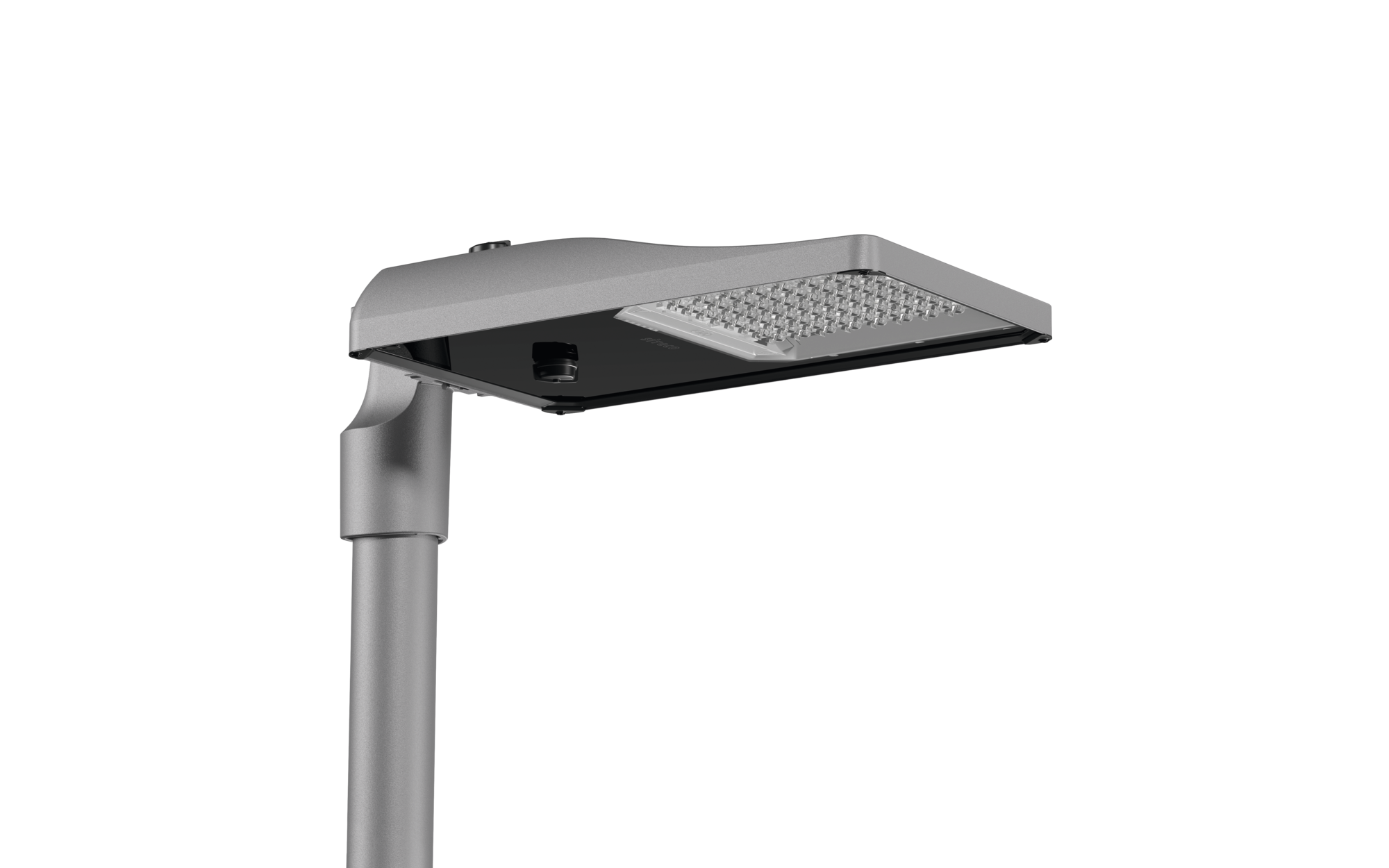

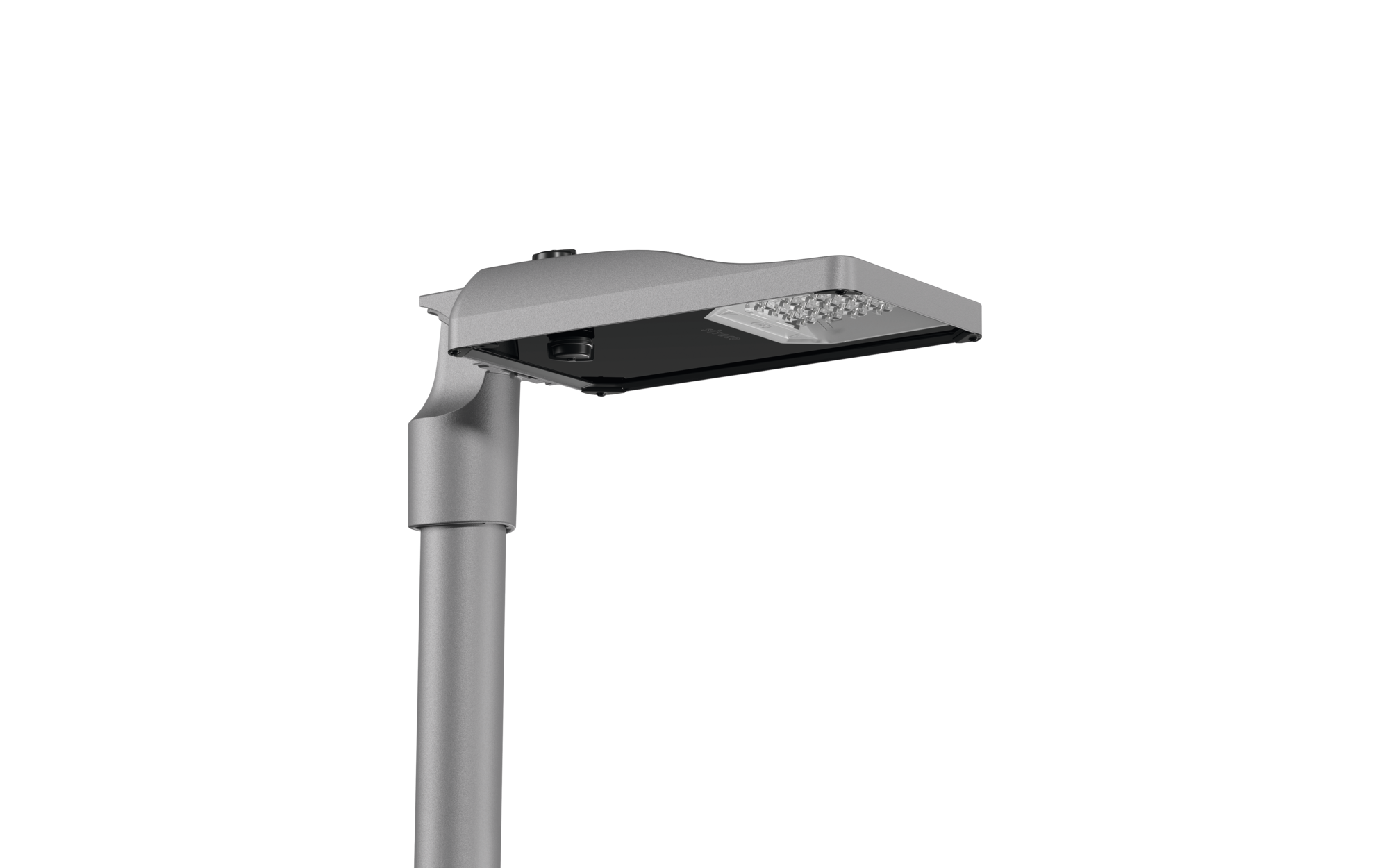

Streetlight SL 31 micro Area

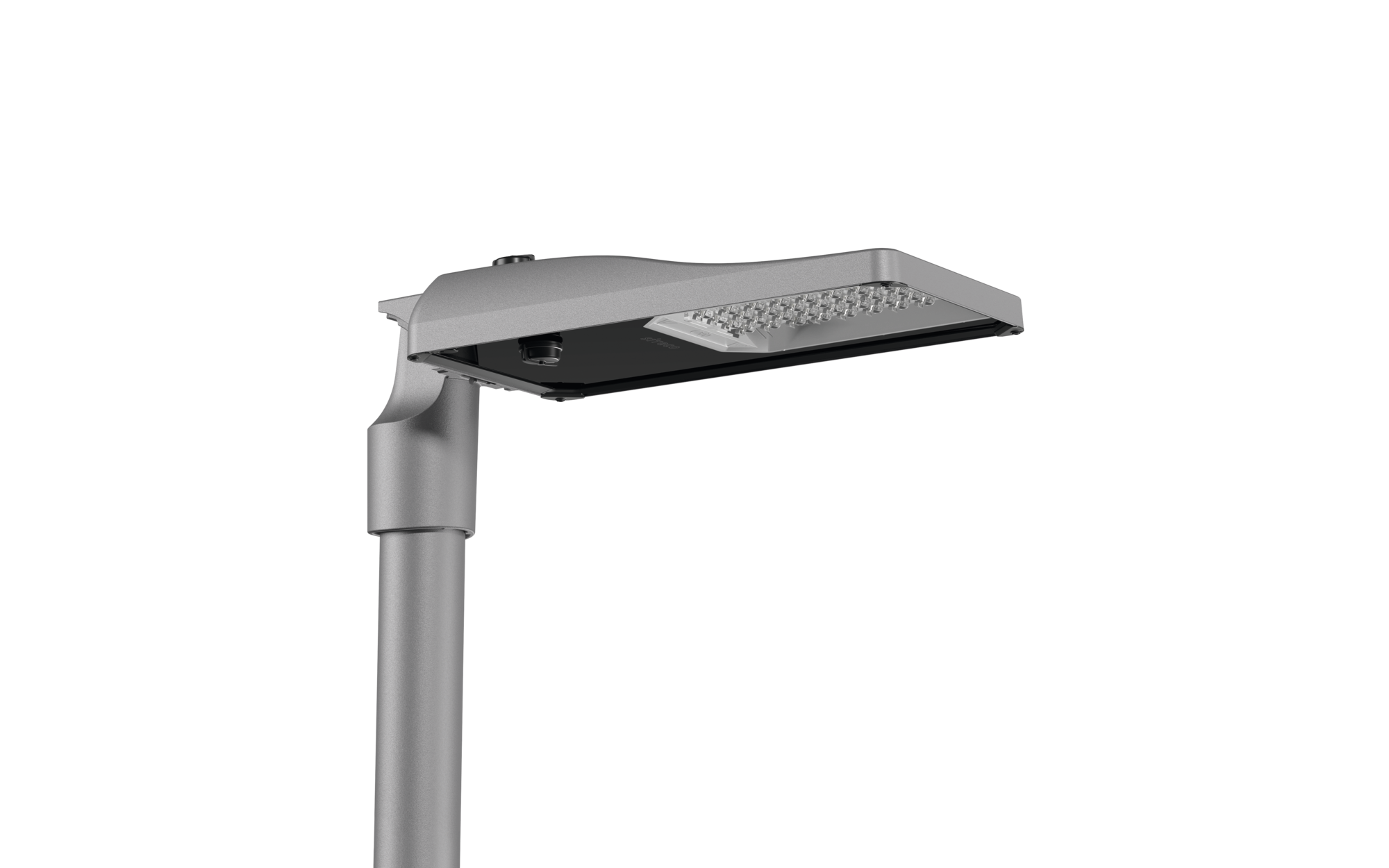

Streetlight SL 31 mini Area

Streetlight SL 31 midi Area

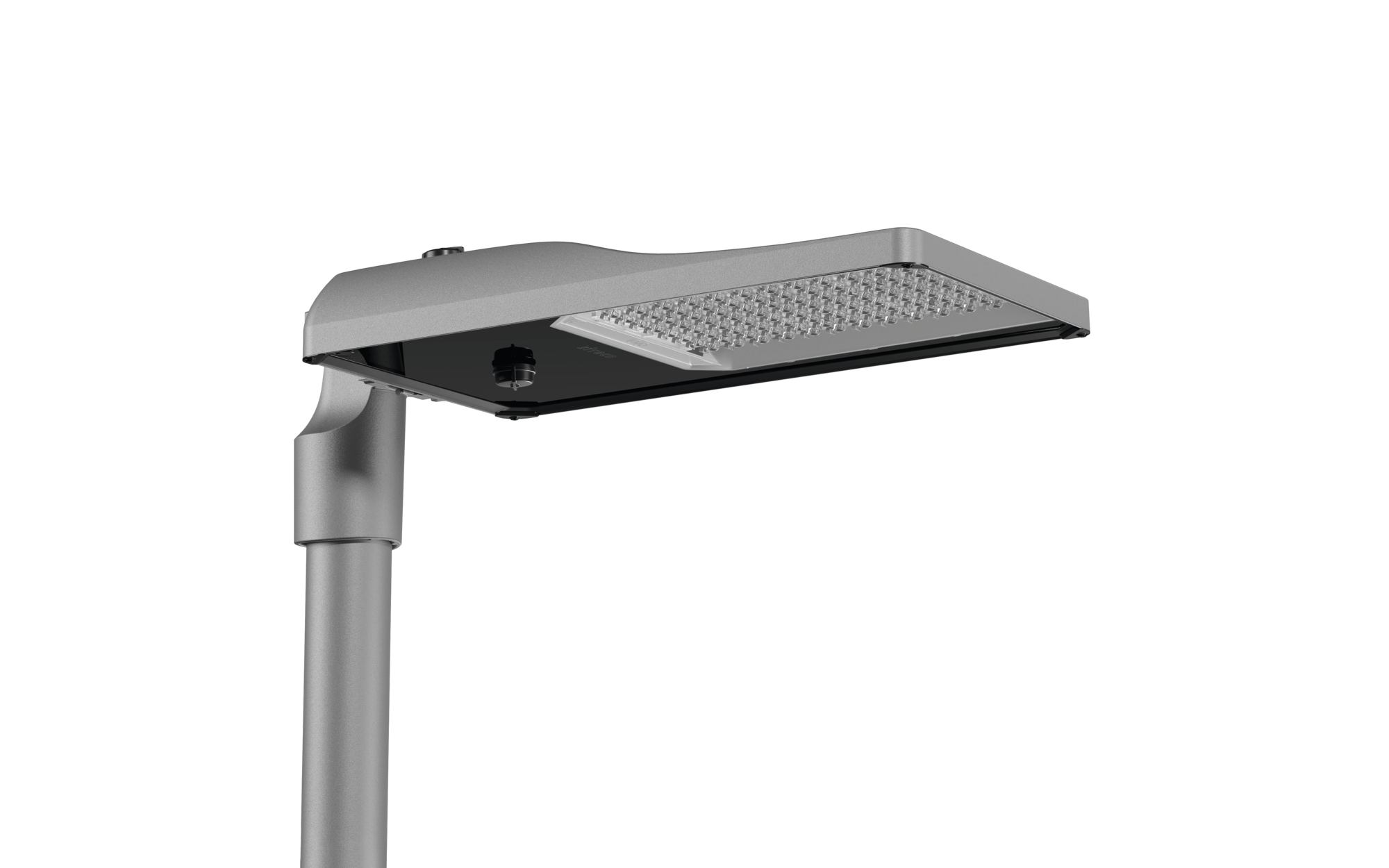

Streetlight SL 31 maxi Area

Streetlight SL 31 maxi Area

Introduction famille de produits

Données caractéristiques

Désignation éclairage sur mât
Flux lumineux 22010lm
Température de couleur 2200K
Effet de la lumière distribution directe asymétrique extensive
Répartition de la lumière PL52
Degré de protection IP66
Classe de protection classe de protection I (mise à la terre)

Particularités

Long service life of more than 100,000h, also thanks to future-proof product concept and long-life components
Light distributions are based on our non-yellowing PMMA lens platform. Mixing and rotating the lens plates for other light distributions is possible on request if required.
Easy installation thanks to pre-assembled connection cable as standard
Mast flange for spigot size 60/76mm with inclination adjustment (-15°…+20° (post-top), -20°…+20° (side-entry) included in delivery
All variants of the Streetlight SL 31 can be individually parameterized either with our SITECO® Service Box (5EA6TEF03) or wirelessly and without voltage with our Desk-Remote variant via our SITECO® Handheld (5EA6HBR02)
Easy and Easy LST variants are the basic variants of the new Streetlight SL 31. The variants can be operated as an ON/OFF luminaire, with a Night-Set profile or Lumen-Switch. The Easy LST variant also has the function of being controlled via a reducing wire
Smart-City-ready: future-proof thanks to two optional Zhaga or NEMA interfaces (7pin) for state-of-the-art lighting control, wireless networking and versatile sensors
Desk-Remote: voltage-free transmission of data to the luminaire via application-optimized NFC function/RFID function, even through the packaging

Configuration et fiches techniques

  • mast flange for mast spigot diameter 76mm and 60mm contained in product
  • mast flange 60/48/42mm or 76…34mm available on request
  • Pre-assembled connection cable (H07RN-F)
  • Other connection cable types and lengths available on request

Résultats

Streetlight SL 31 maxi, distribution directe asymétrique extensive, PL52, avec Smart Interface dessus, ouverture sans outils

N° de commande: 5XH8H75N08SA GTIN (EAN): 4069025105035
Température de couleurRendu des couleursFlux lumineuxRépartition de la lumièreCommandePnom début durée de viePnom fin durée de viePred à 50% flux lumineuxPds (kg)Prix (CHF)
2200KIRC > 7022010lmPL52NEMA (7 broches), Desk-Remote2092338812,01025,00
Afficher tous les détails
Texte d'appel d'offreTexte d'appel d'offres neutreFiche technique (PDF, version détaillée)Environmental Product Declaration EPDRapport photométrique / données de planificationListe complète des téléchargements

Streetlight SL 31 maxi, distribution directe asymétrique extensive, PL52, avec Smart Interface dessus, ouverture sans outils

N° de commande: 5XH8H75N08SAGTIN (EAN): 4069025105035

Température de couleur2200K
Rendu des couleursIRC > 70
Flux lumineux22010lm
Répartition de la lumièrePL52
CommandeNEMA (7 broches), Desk-Remote
Pnom début durée de vie209
Pnom fin durée de vie233
Pred à 50% flux lumineux88
Pds (kg)12,0
Prix (CHF)1025,00
Afficher tous les détails

Accessoires optionnels

Désignationécran, protection arrièreUE1 piècePds (kg)0,3Prix (CHF)58,00N° de commande: 5XEBLC40AGTIN (EAN): 4069025237965Afficher tous les détails
