Highbay 21
The Highbay 21 has the same mechanical concept as the Highbay 11 with all its advantages.
Thanks to the innovative housing concept, the Highbay 21 also has a low weight and excellent thermal management.
The modified light engine with other LEDs offers a specification tailored to the target applications with adapted efficiency, lifetime and ambient temperatures.

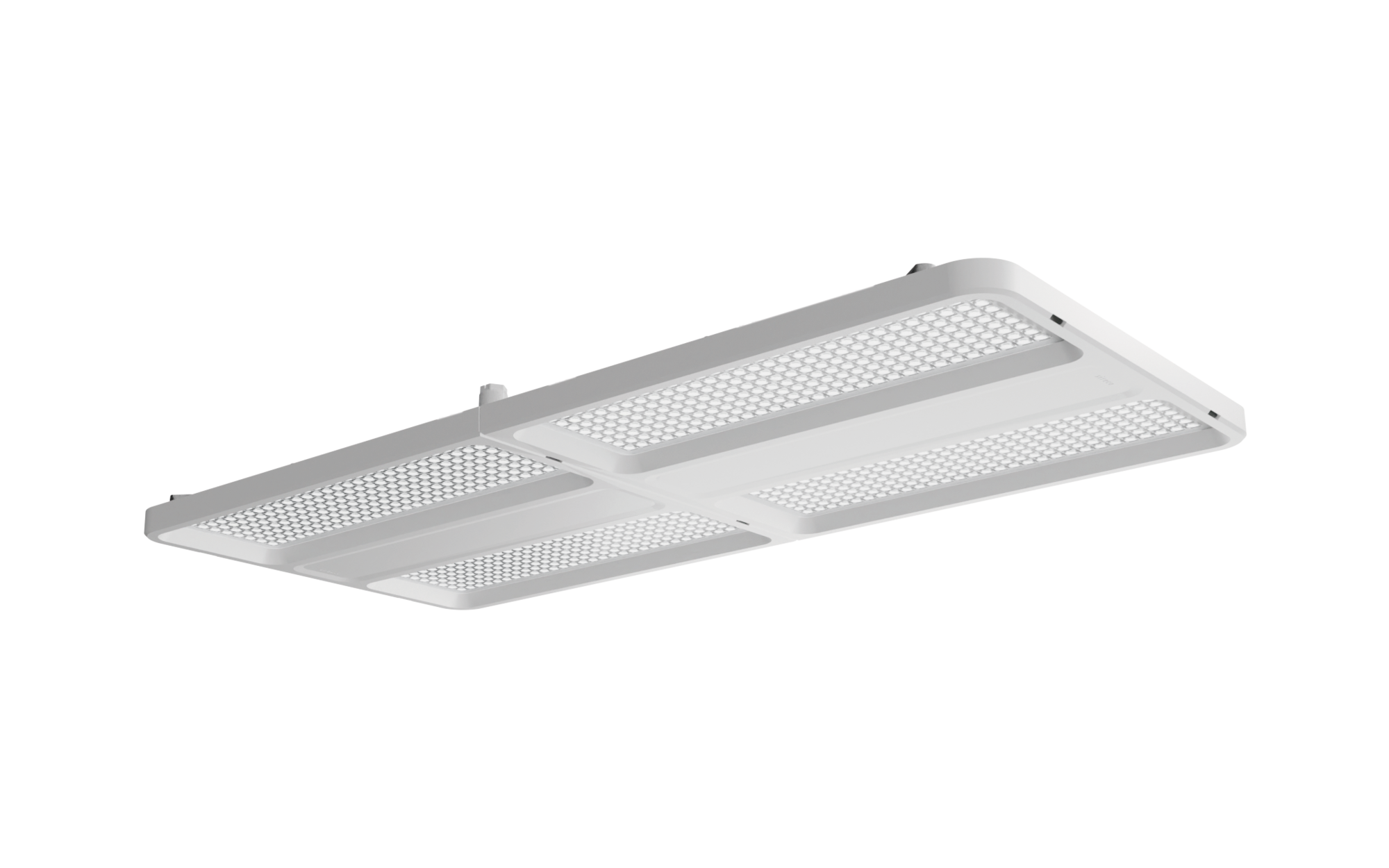

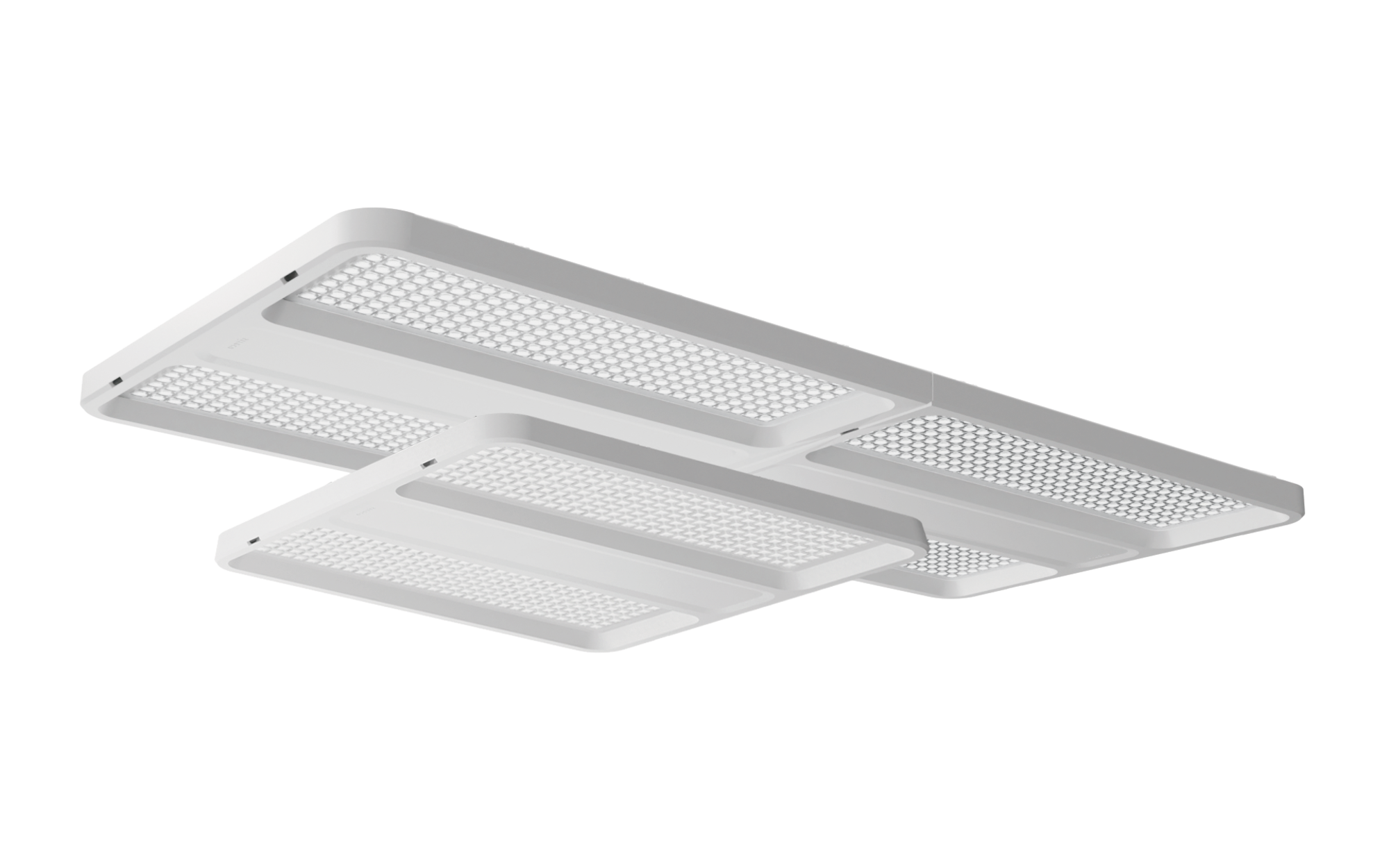

The Highbay 21 is also available in two construction sizes, midi and maxi, various light distributions and mounting variants with a large selection of different lumen packages for a wide range of applications.
Our core portfolio for demanding applications: 14,000…64,000lm | up to 190lm/W | 75,000h service life L90 | -35…+65°C
Product types

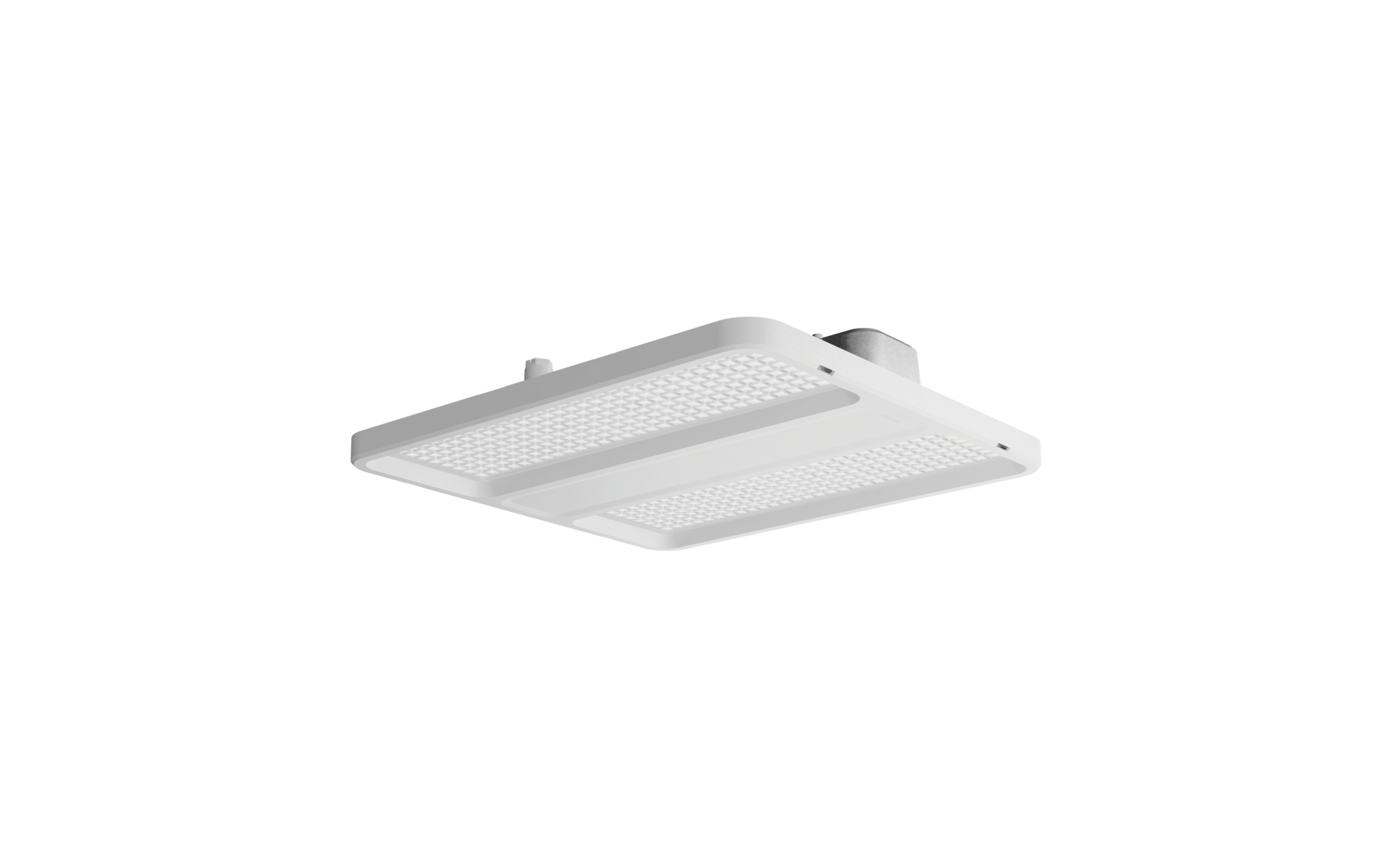

Highbay 21 midi
Intro product family
Key data
Article high bay luminaire
Lighting effect direct symmetric wide distribution
Net luminous flux 14000lm to 26500lm
Luminous efficacy up to 194lm/W
Colour temperature 4000K
ta according to version/application in the range from -40°C to +70°C
Cover PMMA
Protection rating IP40
LABS LABS conformity tested according to VDMA 24364:2018-05
Halogen freeness internal wiring halogen-free
Special features
Configuration & data sheets
- luminaire according to the requirements of the automotive industry (LABS free)
- Suitable for use in the food industry according to the specifications of IFS-Food, HACCP and/or BRC

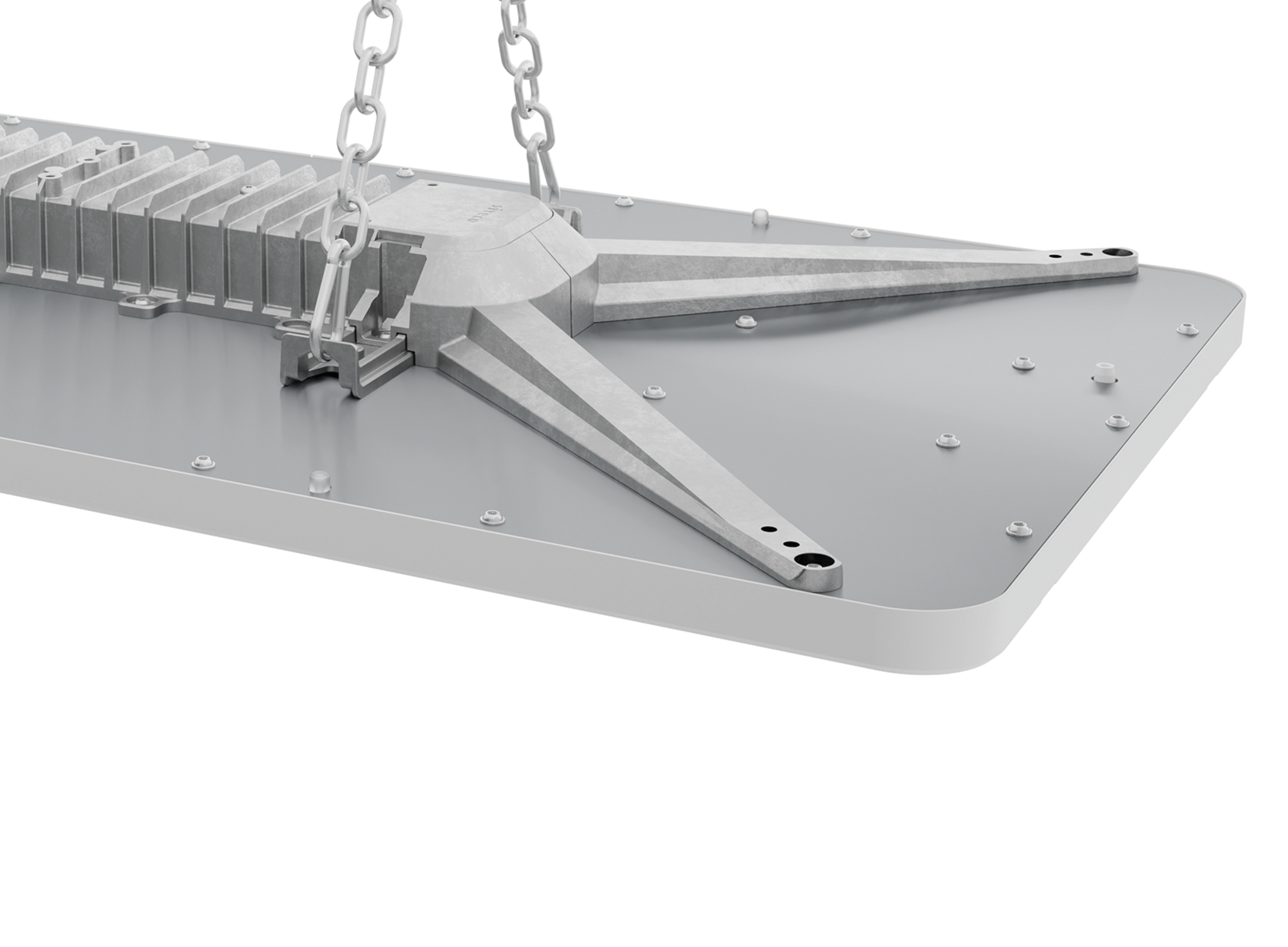

- suspended mounting with wire or chain with 4 suspension points on luminaire side (4-fold suspension on ceiling side with one fixing point / 2-fold suspension on ceiling side with two fixing points)
- near-ceiling mounting or wall mounting with mounting bracket
- please order mounting accessories (in required quantities) separately
- please order supplementary chain for higher suspension heights separately if required (as replacement for standard chain of chain suspension | please consider desired suspension height and number of chain strands)
- versions with colour temperature 3000K, 5000K or 6500K on request
Results
Highbay 21 midi, wide distribution, LED, 840, DALI 2, AC/DC, ball impact resistant according to DIN 18032-3 with ceiling mounting or chain suspension
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 14000lm | 72.1W | 194lm/W | DALI 2 | -40..+70°C | 474x442 | 3.7 | 506.88 |
Highbay 21 midi, wide distribution, LED, 840, DALI 2, AC/DC, ball impact resistant according to DIN 18032-3 with ceiling mounting or chain suspension
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 19000lm | 98.9W | 192lm/W | DALI 2 | -40..+60°C | 474x442 | 3.7 | 528.44 |
Highbay 21 midi, wide distribution, LED, 840, DALI 2, AC/DC, ball impact resistant according to DIN 18032-3 with ceiling mounting or chain suspension
| Lamps | Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| LED | 4000K | CRI > 80 | 26500lm | 142.6W | 186lm/W | DALI 2 | -40..+55°C | 474x442 | 3.7 | 636.24 |
Highbay 21 midi, wide distribution, LED, 840, DALI 2, AC/DC, ball impact resistant according to DIN 18032-3 with ceiling mounting or chain suspension
Order No.: 52HN12DA4FBAGTIN (EAN): 4069025441003
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 14000lm |
| Connected load | 72.1W |
| Luminous efficacy | 194lm/W |
| Control | DALI 2 |
| ta | -40..+70°C |
| Dimension (mm) | 474x442 |
| Wt. (kg) | 3.7 |
| Price (EUR) | 506.88 |
Highbay 21 midi, wide distribution, LED, 840, DALI 2, AC/DC, ball impact resistant according to DIN 18032-3 with ceiling mounting or chain suspension
Order No.: 52HN12DA4HBAGTIN (EAN): 4069025441041
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 19000lm |
| Connected load | 98.9W |
| Luminous efficacy | 192lm/W |
| Control | DALI 2 |
| ta | -40..+60°C |
| Dimension (mm) | 474x442 |
| Wt. (kg) | 3.7 |
| Price (EUR) | 528.44 |
Highbay 21 midi, wide distribution, LED, 840, DALI 2, AC/DC, ball impact resistant according to DIN 18032-3 with ceiling mounting or chain suspension
Order No.: 52HN12DA4LBAGTIN (EAN): 4069025441065
| Lamps | LED |
|---|---|
| Colour temperature | 4000K |
| Colour rendering | CRI > 80 |
| Luminous flux | 26500lm |
| Connected load | 142.6W |
| Luminous efficacy | 186lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Dimension (mm) | 474x442 |
| Wt. (kg) | 3.7 |
| Price (EUR) | 636.24 |
Optional accessories
| Order No.: 59HN92001GTIN (EAN): 4069025445711 | Show all details |
| Order No.: 59HN92002GTIN (EAN): 4069025445728 | Show all details |
| Order No.: 59HN92011GTIN (EAN): 4069025356994 | Show all details |
