Apollon® 41
The lay-in panel is an economical lighting solution thanks to its cost-optimized design and high efficiency. The Apollon® 41 is a durable replacement for traditional recessed luminaires and provides a homogeneous and glare-free light distribution.
Our simple solution: Apollon® 41 is our recessed-mounted luminaire with the simplest requirements in terms of efficiency and quality
Product types

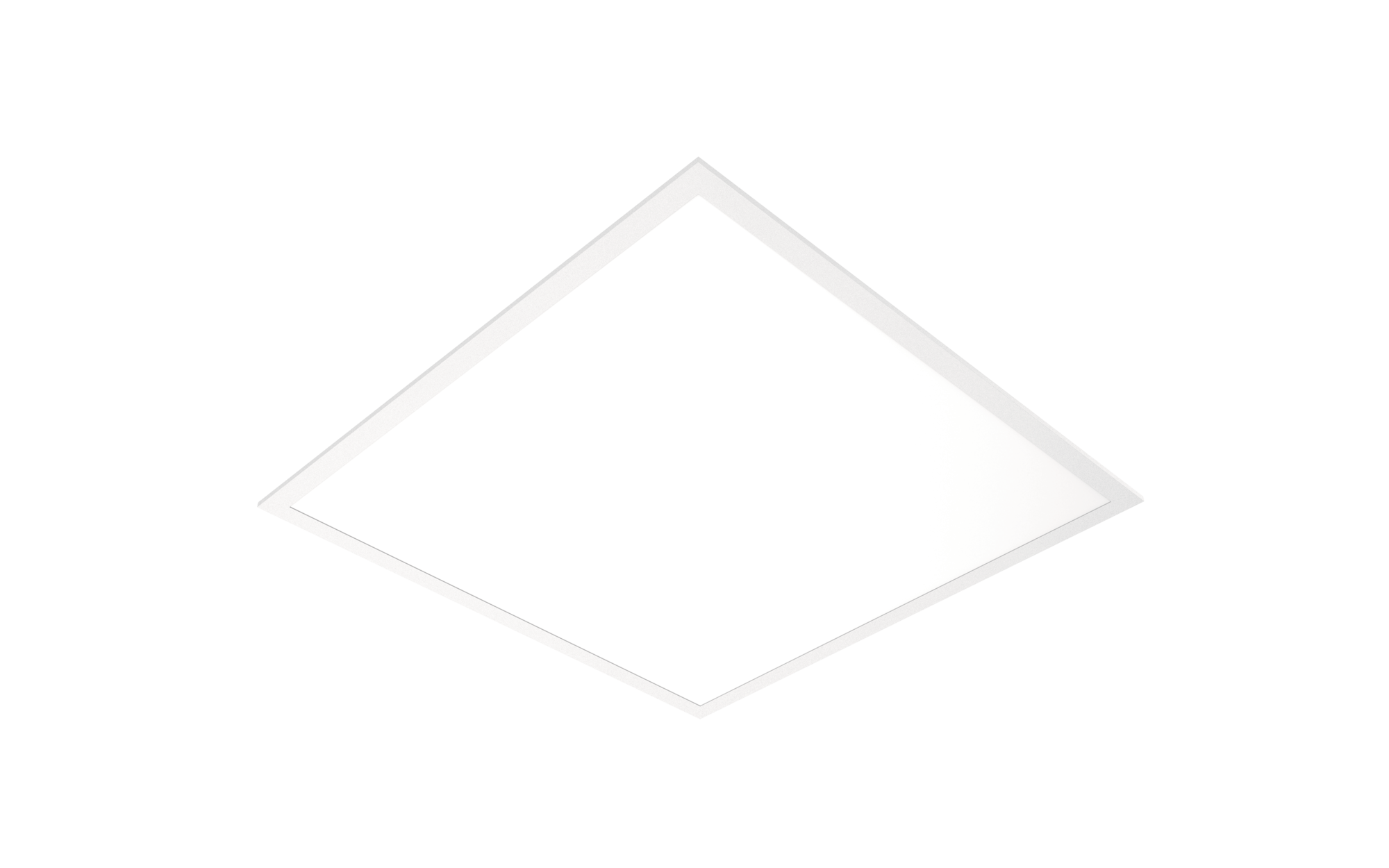

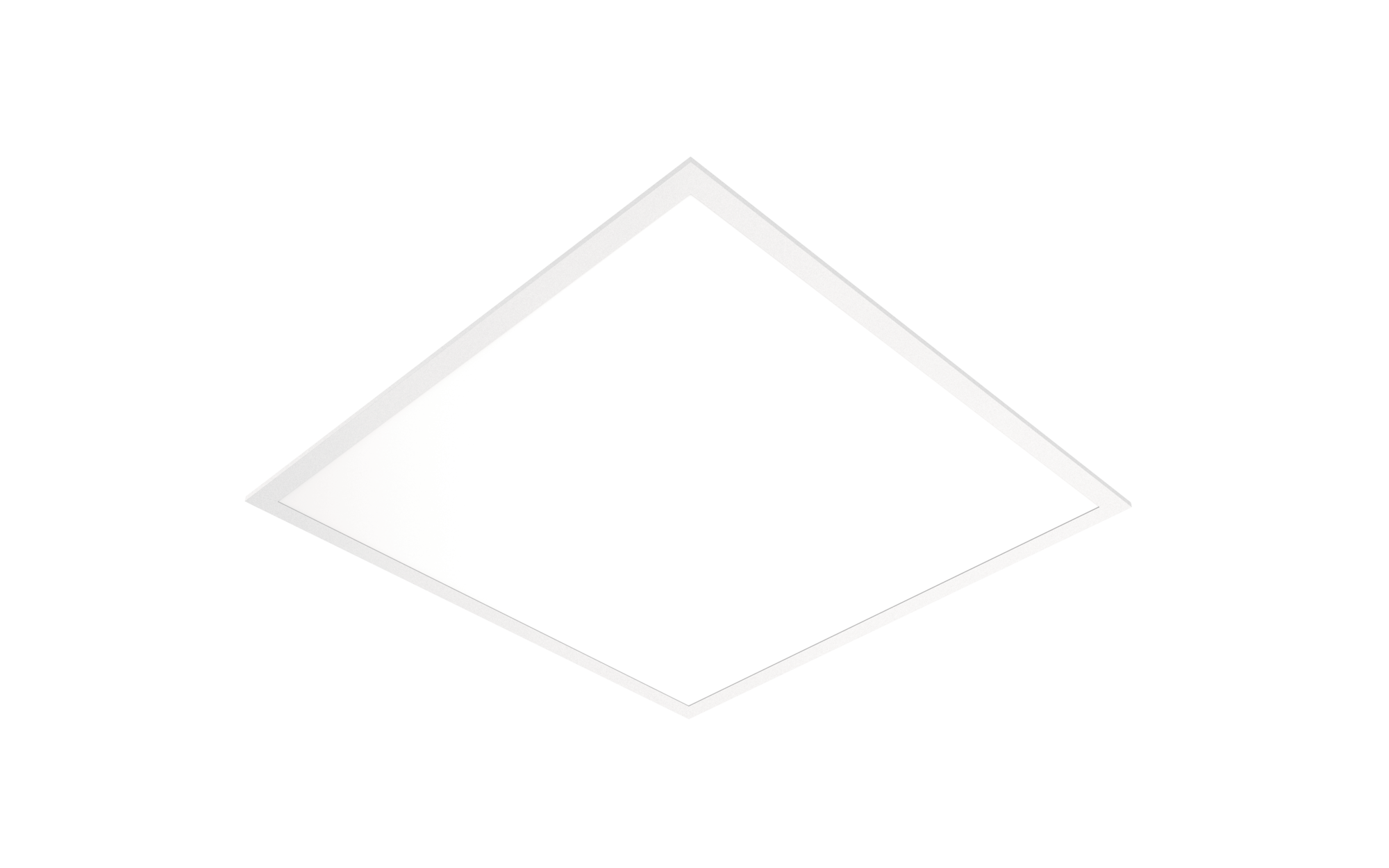

Apollon® 41 with square housing (Edge LED)
Intro product family
Key data
Article office luminaire
Lighting effect direct symmetric wide distribution, 90°
Net luminous flux 3550lm to 3800lm
Colour temperature 3000K; 4000K; 6500K
Control ON/OFF; DALI; DALI 2
Protection rating IP20/IP40; IP20/IP40
Service life 50000h (L80) at AT = 25°C; 50000h (L70/B50) at AT = 25°C; 50000h (L80/B50) at AT = 25°C; 60000h (L70/B50) at AT = 25°C
Special features
Apollon® 41 is suitable for most applications in offices and for general lighting in commercial buildings with system ceilings
Replacement for traditional louvre sulutions
Good colour rendering, with uniformly illuminated cover without dark spots
VDU-compliant in accordance with EN 12464-1 for computer screens with high luminance levels
Configuration & data sheets
- lay-in mounting into system ceilings without recessing accessories; for installation in ceiling cutout and for other types of installation: please order mounting accessories separately
- recessing into a cut ceiling aperture with recessing frame; please order installation accessories matching the luminaire separately
- please order mounting cable separately for additional support of the luminaire in the ceiling cavity if required
Results
Apollon® 41, Light colour 830, ON/OFF, for M600
Order No.: 51MH12W72322 GTIN (EAN): 4058352396827
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Battery duration | Connection | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 3550lm | 35W | 100lm/W | ON/OFF | 595x595 | 2.0 |
Apollon® 41, Light colour 865, ON/OFF, for M600
Order No.: 51MH12W72622 GTIN (EAN): 4058352450321
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Battery duration | Connection | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 3700lm | 35W | 105lm/W | ON/OFF | 595x595 | 2.0 |

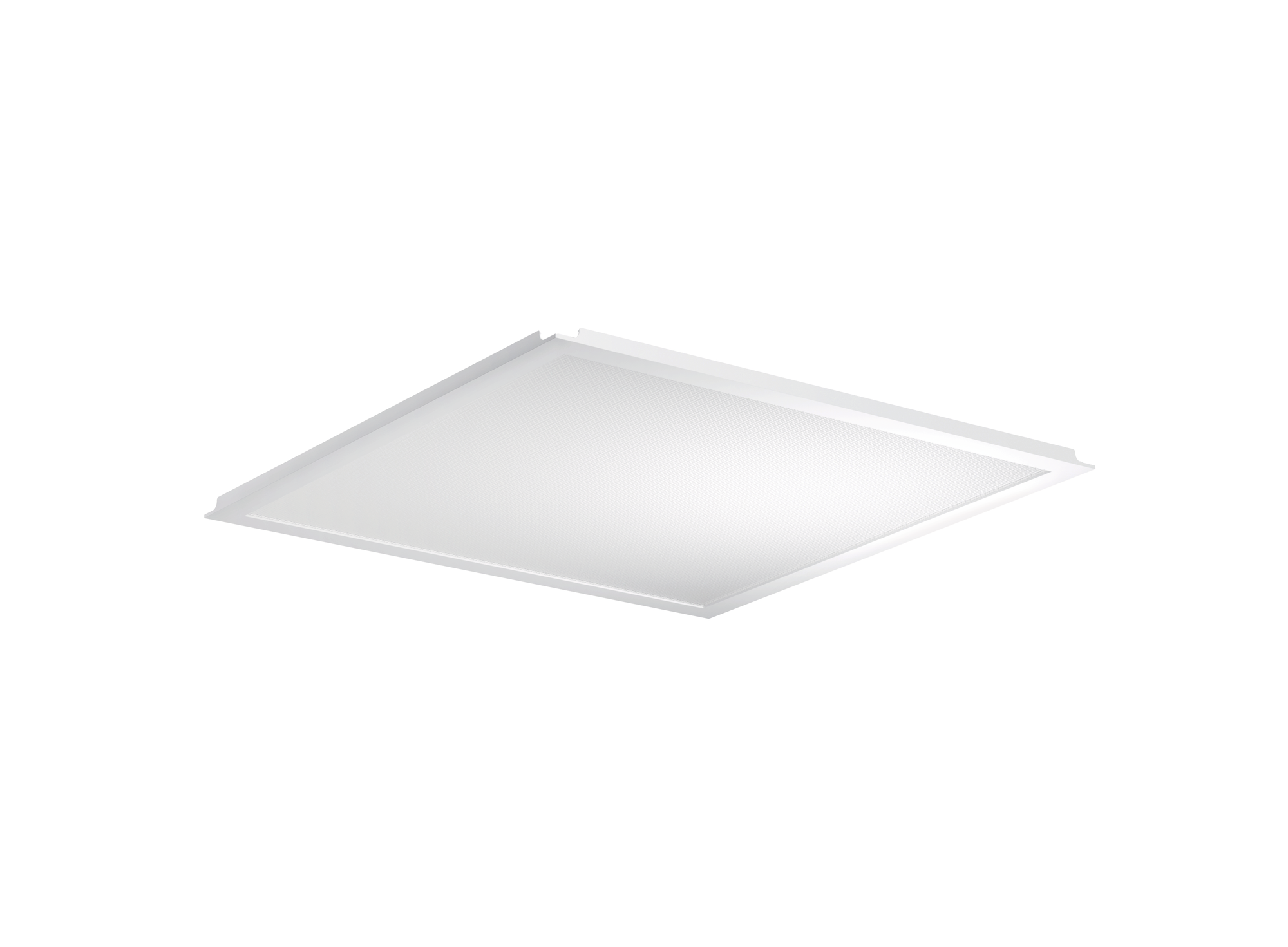

Apollon 21 square, Light colour 830, DALI, for M600 and for cut ceiling aperture
Order No.: 51MQ12WD3312 GTIN (EAN): 4058352327944
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Battery duration | Connection | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 3800lm | 38W | 100lm/W | DALI | Linect® | 597x597 | 1.9 |
Apollon® 41, Light colour 840, ON/OFF, for M625
Order No.: 51MH11W72422 GTIN (EAN): 4058352396803
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Battery duration | Connection | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 3700lm | 35W | 105lm/W | ON/OFF | 620x620 | 2.1 |
Apollon® 41, Light colour 840, DALI 2, for M600
Order No.: 51MH12WD2422 GTIN (EAN): 4058352450345
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Battery duration | Connection | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 3700lm | 35W | 105lm/W | DALI 2 | 595x595 | 2.0 |
Apollon® 41, Light colour 865, DALI 2, for M625
Order No.: 51MH11WD2622 GTIN (EAN): 4058352714942
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Battery duration | Connection | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 3700lm | 35W | 105lm/W | DALI 2 | 620x620 | 2.1 |
Apollon® 41, Light colour 840, ON/OFF, 3h, for M600
Order No.: 51MH12W724223 GTIN (EAN): 4058352685037
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Battery duration | Connection | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 3700lm | 35W | 105lm/W | ON/OFF | 3h | 595x595 | 2.0 |
Apollon® 41, Light colour 840, ON/OFF, for M625
Order No.: 51MH11W72443 GTIN (EAN): 4058352930861
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Battery duration | Connection | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 3700lm | 28.5W | 130lm/W | ON/OFF | 620x620 | 1.9 |
Apollon® 41, Light colour 830, ON/OFF, for M600
Order No.: 51MH12W72322GTIN (EAN): 4058352396827
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3550lm |
| Connected load | 35W |
| Luminous efficacy | 100lm/W |
| Control | ON/OFF |
| Battery duration | |
| Connection | |
| Dimension (mm) | 595x595 |
| Wt. (kg) | 2.0 |
Apollon® 41, Light colour 865, ON/OFF, for M600
Order No.: 51MH12W72622GTIN (EAN): 4058352450321
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3700lm |
| Connected load | 35W |
| Luminous efficacy | 105lm/W |
| Control | ON/OFF |
| Battery duration | |
| Connection | |
| Dimension (mm) | 595x595 |
| Wt. (kg) | 2.0 |
Apollon 21 square, Light colour 830, DALI, for M600 and for cut ceiling aperture
Order No.: 51MQ12WD3312GTIN (EAN): 4058352327944
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3800lm |
| Connected load | 38W |
| Luminous efficacy | 100lm/W |
| Control | DALI |
| Battery duration | |
| Connection | Linect® |
| Dimension (mm) | 597x597 |
| Wt. (kg) | 1.9 |
Apollon® 41, Light colour 840, ON/OFF, for M625
Order No.: 51MH11W72422GTIN (EAN): 4058352396803
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3700lm |
| Connected load | 35W |
| Luminous efficacy | 105lm/W |
| Control | ON/OFF |
| Battery duration | |
| Connection | |
| Dimension (mm) | 620x620 |
| Wt. (kg) | 2.1 |
Apollon® 41, Light colour 840, DALI 2, for M600
Order No.: 51MH12WD2422GTIN (EAN): 4058352450345
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3700lm |
| Connected load | 35W |
| Luminous efficacy | 105lm/W |
| Control | DALI 2 |
| Battery duration | |
| Connection | |
| Dimension (mm) | 595x595 |
| Wt. (kg) | 2.0 |
Apollon® 41, Light colour 865, DALI 2, for M625
Order No.: 51MH11WD2622GTIN (EAN): 4058352714942
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3700lm |
| Connected load | 35W |
| Luminous efficacy | 105lm/W |
| Control | DALI 2 |
| Battery duration | |
| Connection | |
| Dimension (mm) | 620x620 |
| Wt. (kg) | 2.1 |
Apollon® 41, Light colour 840, ON/OFF, 3h, for M600
Order No.: 51MH12W724223GTIN (EAN): 4058352685037
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3700lm |
| Connected load | 35W |
| Luminous efficacy | 105lm/W |
| Control | ON/OFF |
| Battery duration | 3h |
| Connection | |
| Dimension (mm) | 595x595 |
| Wt. (kg) | 2.0 |
Apollon® 41, Light colour 840, ON/OFF, for M625
Order No.: 51MH11W72443GTIN (EAN): 4058352930861
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3700lm |
| Connected load | 28.5W |
| Luminous efficacy | 130lm/W |
| Control | ON/OFF |
| Battery duration | |
| Connection | |
| Dimension (mm) | 620x620 |
| Wt. (kg) | 1.9 |
Optional accessories
| Order No.: 59MQ91110GTIN (EAN): 4058352345344 | Show all details |
| Order No.: 59MQ12005021GTIN (EAN): 4058352465332 | Show all details |
| Order No.: 59MQ11005021GTIN (EAN): 4058352465325 | Show all details |
