Product selection
Scriptus 11 surface-mounted luminaire
Key data
Article office luminaire
Lighting effect direct symmetric distribution
Net luminous flux 4390lm to 7230lm
Colour temperature 3000…6500K; 3000K; 4000K
Control DALI
Special features

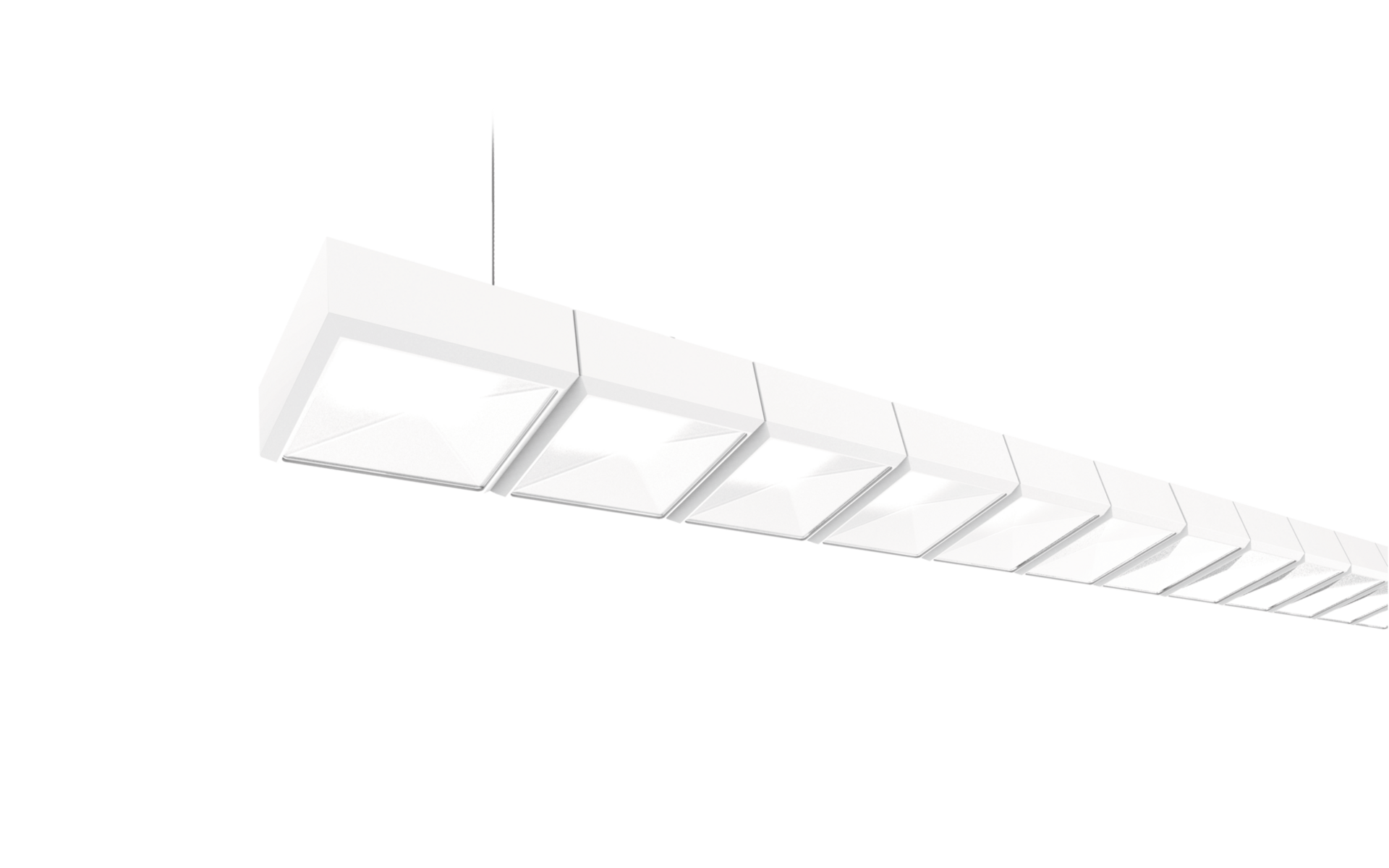

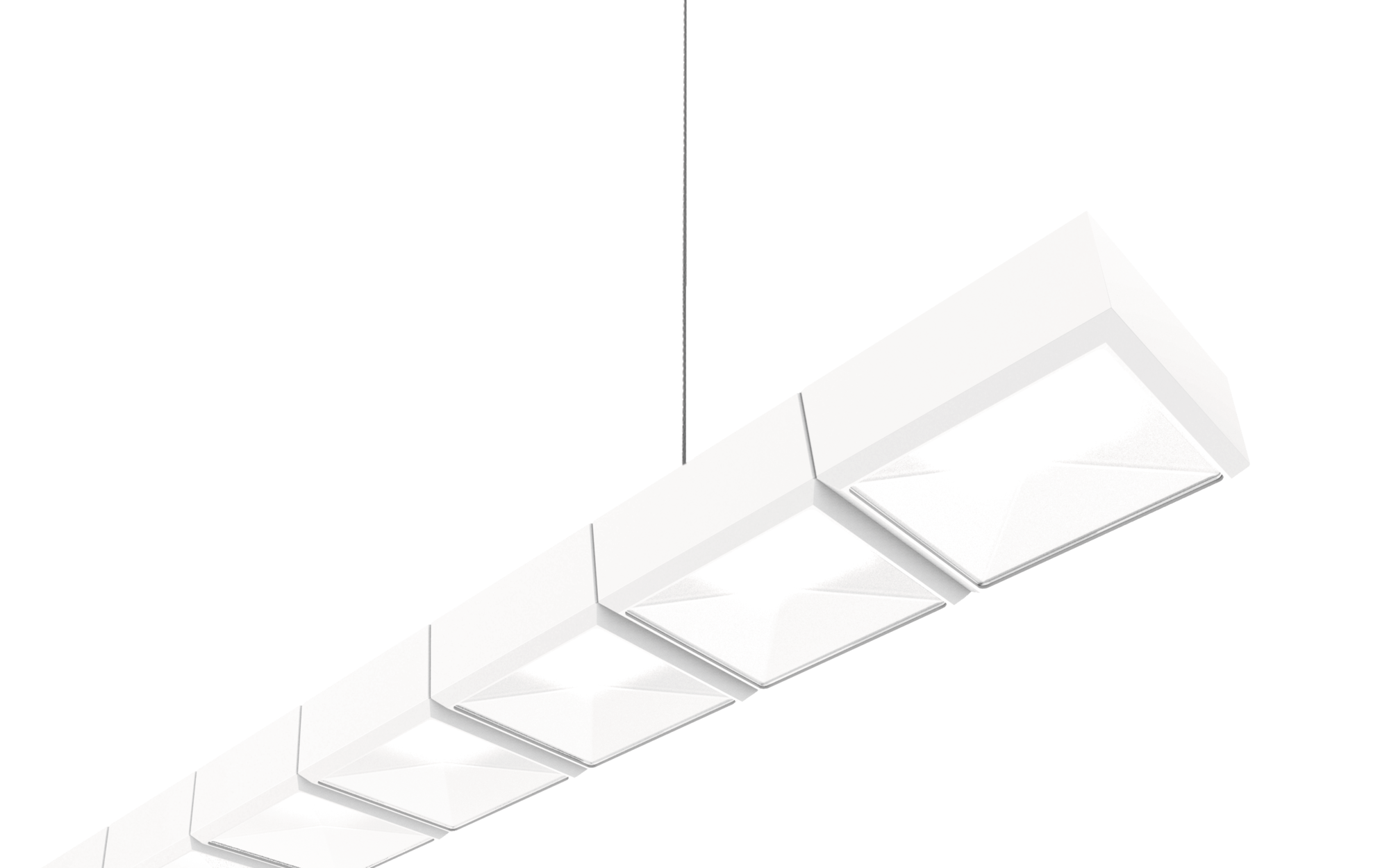

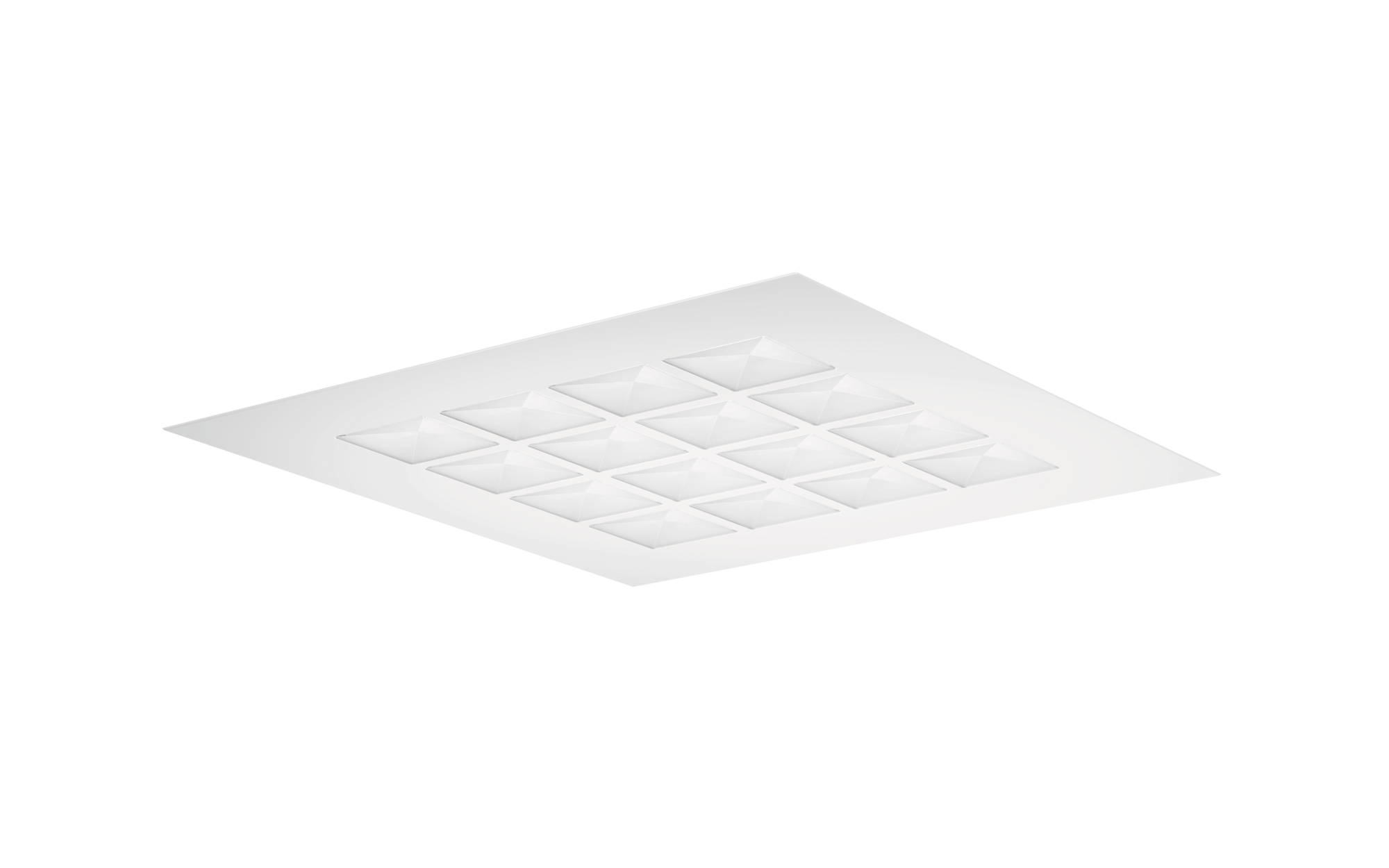

Luminaire range for ceiling surface mounting or suspended mounting as well as individual ceiling recessed variants – with a sophisticated appearance due to discreetly integrated ECG
High quality lighting technology with new, multi-step optic system for maximum visual comfort due to very good glare control (UGR ≤ 16) and uniform illumination
Available with Tunable White function as suspended version with indirect light component as the ideal basis for HCLlive applications – for greater well-being and motivation
Maximum planning flexibility due to various lengths, luminous intensities and configurations as well as extensive control options
Configuration & data sheets
- luminaire for integration in light management concepts suitable both for building environments with local control and those with central control
- for light management with local control: master luminaire (with light and motion sensor) and slave luminaire (with motion sensor) can be used; the light sensor of the slave luminaire is inactive in this application
- with light management concept with local control: manual control of lighting installation is possible via push button interface and commercial push buttons; for commissioning and parameterizing the installation, a commissioning remote control is required
- for light management with central control: slave luminaire (with light and motion sensor) can be used
- with light management concept with central control: manual control of lighting installation via push button interface only possible in combination with controller
- please order push button interface, controller, commissioning remote control and further Siteco Connect components separately if required
Results
Scriptus 11, direct distribution, Light colour 830, DALI
Order No.: 5MZ212D03WA GTIN (EAN): 4058352066362
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 4390lm | 35W | 127lm/W | DALI | 1658 | 5.3 |
Scriptus 11, direct distribution, Light colour 840, DALI
Order No.: 5MZ212D04WA GTIN (EAN): 4058352065105
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4810lm | 35W | 139lm/W | DALI | 1658 | 5.3 |
Scriptus 11, direct distribution, 3000..6500K, DALI
Order No.: 5MZ214D0TWA GTIN (EAN): 4058352124062
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000..6500K | CRI > 80 | 7190lm | 53W | 137lm/W | DALI | 3088 | 9.8 |
Scriptus 11, direct distribution, Light colour 840, DALI
Order No.: 5MZ223D04WA GTIN (EAN): 4058352124338
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 7230lm | 51W | 143lm/W | DALI | 2426 | 7.6 |
Scriptus 11, direct distribution, Light colour 830, DALI
Order No.: 5MZ212D03WAGTIN (EAN): 4058352066362
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4390lm |
| Connected load | 35W |
| Luminous efficacy | 127lm/W |
| Control | DALI |
| L (mm) | 1658 |
| Wt. (kg) | 5.3 |
Scriptus 11, direct distribution, Light colour 840, DALI
Order No.: 5MZ212D04WAGTIN (EAN): 4058352065105
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4810lm |
| Connected load | 35W |
| Luminous efficacy | 139lm/W |
| Control | DALI |
| L (mm) | 1658 |
| Wt. (kg) | 5.3 |
Scriptus 11, direct distribution, 3000..6500K, DALI
Order No.: 5MZ214D0TWAGTIN (EAN): 4058352124062
| Colour temperature | 3000..6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7190lm |
| Connected load | 53W |
| Luminous efficacy | 137lm/W |
| Control | DALI |
| L (mm) | 3088 |
| Wt. (kg) | 9.8 |
Scriptus 11, direct distribution, Light colour 840, DALI
Order No.: 5MZ223D04WAGTIN (EAN): 4058352124338
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7230lm |
| Connected load | 51W |
| Luminous efficacy | 143lm/W |
| Control | DALI |
| L (mm) | 2426 |
| Wt. (kg) | 7.6 |
Optional accessories
| Order No.: 5LZ904712GTIN (EAN): 4008321710871 | Show all details |
| Order No.: 5LZ904307GTIN (EAN): 4052899195967 | Show all details |
