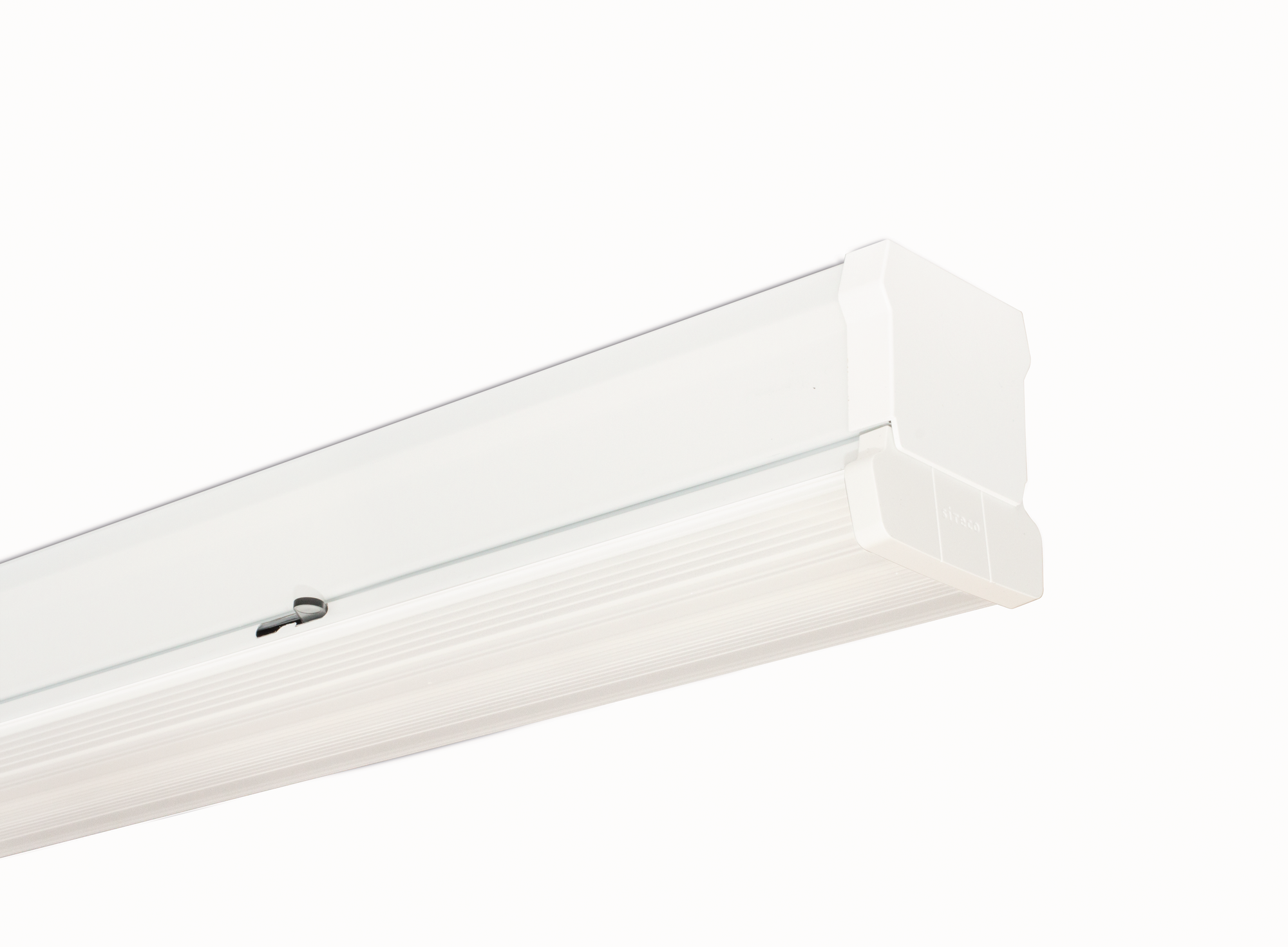

DUS® 31
Proven, functional system with the latest technology: With DUS® 31, the latest energy efficiency standards are easily implemented in existing systems. The highly efficient LED luminaire insert with up to 170lm/W is ideally suited for the refurbishment of existing DUS® trunking systems with fluorescent lamps. Low glare and high visual comfort thanks to the prismatic satin-finish optics ensure optimal visual conditions.
Brings the classic of the trunking systems up to date
Product types
DUS® 31 luminaire insert
Intro product family
Key data
Article luminaire insert
Lighting effect direct symmetric extremely narrow distribution; direct symmetric narrow distribution; direct symmetric wide distribution
Net luminous flux 7600lm to 15440lm
Colour temperature 4000K; 6500K
Control ON/OFF; ON/OFF Multilumen; DALI 2; ON/OFF Multilumen, CLOi
Special features
Efficient LED inserts with high luminous efficacy for refurbishing existing DUS® trunking rail systems e.g. as replacement for existing flurorescent lamp inserts
Different light distributions for diverse applications
Lighting solution tailored to requirements with individually settable lumen packages even with On/Off types by multilumen capability
Simple, quick mounting
Configuration & data sheets
Versions with colour temperature 3000K on request
- with ceiling surface mounting: reducing of maximum allowable ambient temperature of 5°C
Results
DUS® 31 HO, symmetric wide distribution, DUS® 31 HO, symmetric wide distribution, IP20, AC
Order No.: 53BD812C1V4105 GTIN (EAN): 4058352421680
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 10520 | 64 | 73 | 165lm/W | ON/OFF Multilumen, CLOi | -35..+35°C | IP20/IP50 | 1535 | 1.9 |
DUS® 31 Gen.2, symmetric narrow distribution, DUS® 31 Gen.2, symmetric narrow distribution, IP20, AC
Order No.: 53BD811DV4A5C2 GTIN (EAN): 4069025124203
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 10860 | 61W | 177lm/W | DALI 2 | -25..+35°C | IP20/IP50 | 1535 | 1.8 |
DUS® 31 Gen.2, symmetric narrow distribution, DUS® 31 Gen.2, symmetric narrow distribution, IP20, AC
Order No.: 53BD811DV4D5D2 GTIN (EAN): 4069025124227
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 13680 | 75W | 183lm/W | DALI 2 | -25..+35°C | IP20/IP50 | 1535 | 1.8 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BD8127V485C2 GTIN (EAN): 4069025124241
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 8590 | 48W | 179lm/W | ON/OFF | -35..+45°C | IP20/IP50 | 1535 | 1.8 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BD8127V68XC2 GTIN (EAN): 4069025124265
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 8340 | 48W | 174lm/W | ON/OFF | -35..+45°C | IP20/IP50 | 1535 | 1.7 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BD812CV49XC2 GTIN (EAN): 4069025124289
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 9240 | 50 | 61 | 185lm/W | ON/OFF Multilumen, CLOi | -35..+40°C | IP20/IP50 | 1535 | 1.8 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BD812CV4DXD2 GTIN (EAN): 4069025124302
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 13040 | 69 | 82 | 190lm/W | ON/OFF Multilumen, CLOi | -35..+35°C | IP20/IP50 | 1535 | 1.8 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BD812CV685C2 GTIN (EAN): 4069025124326
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 8970 | 50 | 61 | 180lm/W | ON/OFF Multilumen, CLOi | -35..+40°C | IP20/IP50 | 1535 | 1.8 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BD812CV6C5D2 GTIN (EAN): 4069025124340
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 12660 | 69 | 82 | 185lm/W | ON/OFF Multilumen, CLOi | -35..+35°C | IP20/IP50 | 1535 | 1.8 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BD812DV4A5C2 GTIN (EAN): 4069025124371
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 10860 | 61W | 177lm/W | DALI 2 | -25..+35°C | IP20/IP50 | 1535 | 1.8 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BD812DV4D5D2 GTIN (EAN): 4069025124388
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 13680 | 75W | 183lm/W | DALI 2 | -25..+35°C | IP20/IP50 | 1535 | 1.8 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BD812DV6A5C2 GTIN (EAN): 4069025124401
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 10550 | 61W | 172lm/W | DALI 2 | -25..+35°C | IP20/IP50 | 1535 | 1.8 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BD812DV6DXD2 GTIN (EAN): 4069025124425
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 13280 | 75W | 177lm/W | DALI 2 | -25..+35°C | IP20/IP50 | 1535 | 1.8 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BD812MV4A5C2 GTIN (EAN): 4069025124449
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 10960 | 61W | 181lm/W | ON/OFF Multilumen | -35..+40°C | IP20/IP50 | 1535 | 1.8 |

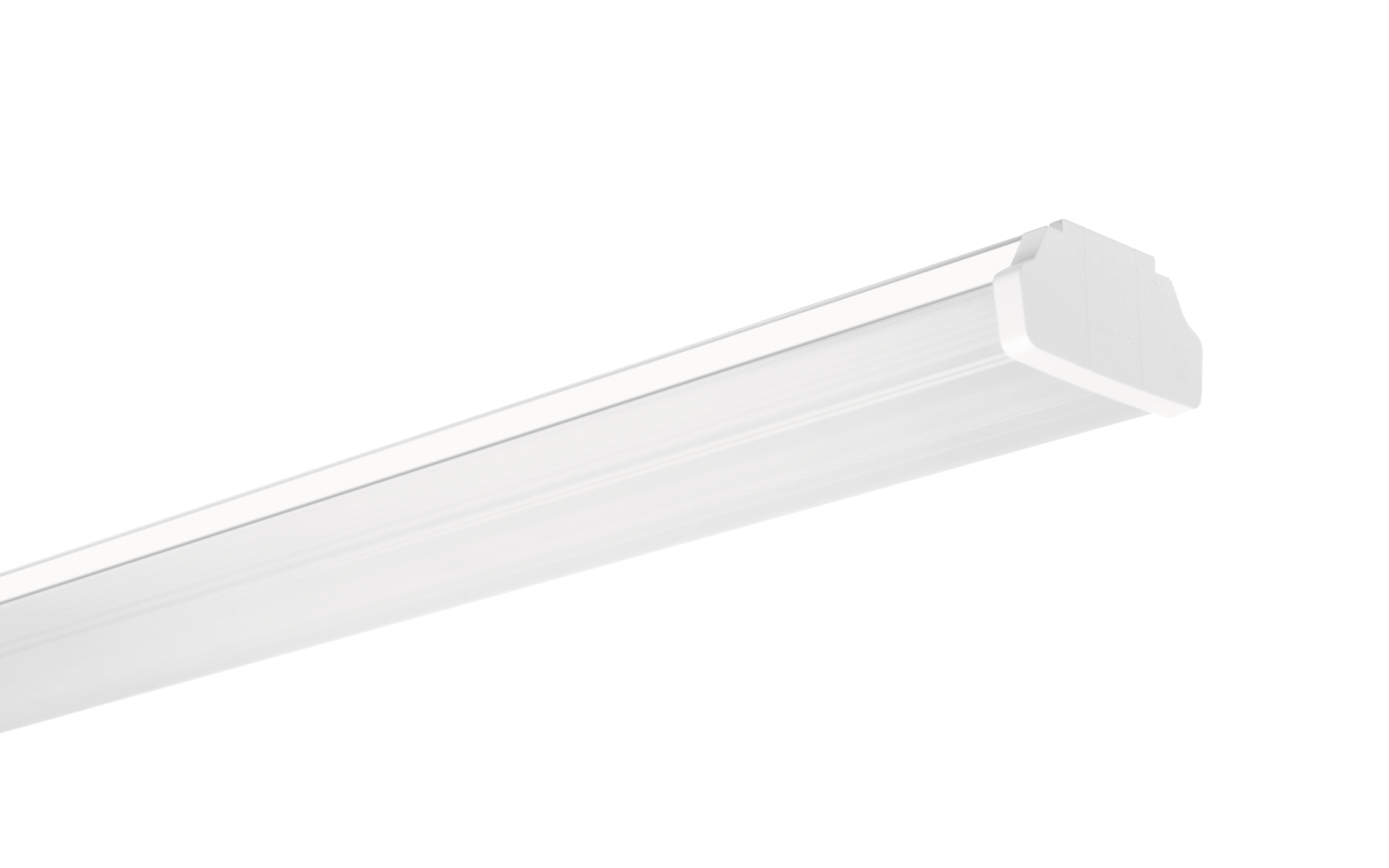

DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BD812MV4FXD2 GTIN (EAN): 4069025124470
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 15440 | 82W | 188lm/W | ON/OFF Multilumen | -35..+35°C | IP20/IP50 | 1535 | 1.8 |

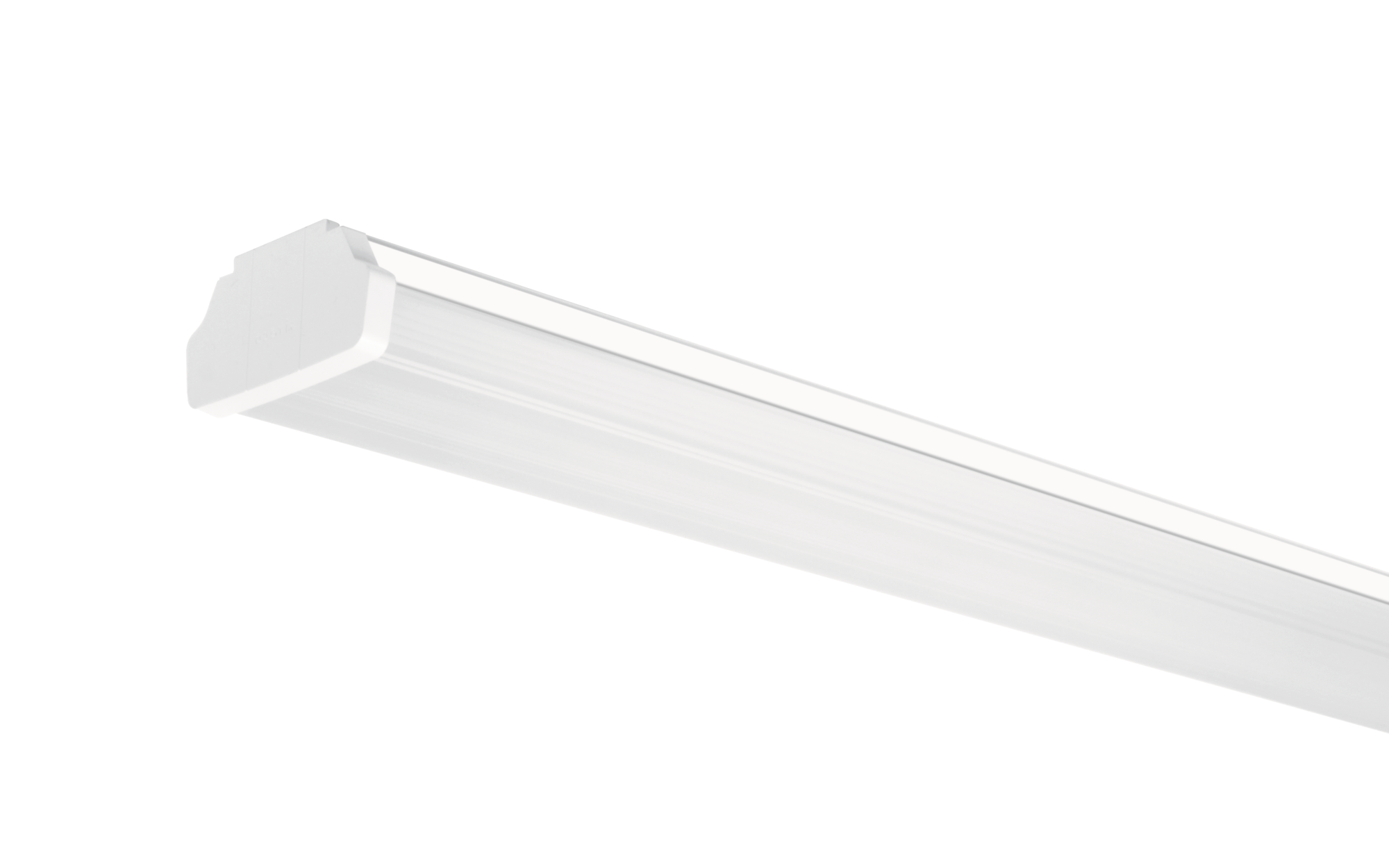

DUS® 31 Gen.2, symmetric extremely narrow distribution, DUS® 31 Gen.2, symmetric extremely narrow distribution, IP20, AC
Order No.: 53BD813DV4A5C2 GTIN (EAN): 4069025124487
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 10610 | 61W | 173lm/W | DALI 2 | -25..+35°C | IP20/IP50 | 1535 | 1.8 |
DUS® 31 Gen.2, symmetric extremely narrow distribution, DUS® 31 Gen.2, symmetric extremely narrow distribution, IP20, AC
Order No.: 53BD813DV4DXD2 GTIN (EAN): 4069025124500
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 13370 | 75W | 178lm/W | DALI 2 | -25..+35°C | IP20/IP50 | 1535 | 1.8 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC, with self-test function according to 60598-2-22, 2-rod battery, with self-contained supply, 3h
Order No.: 53BD812DV4A5C23SL3 GTIN (EAN): 4069025254771
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 10860 | 65W | 167lm/W | DALI 2 | +5..+35°C | IP20/IP50 | 1535 | 2.3 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC, with self-test function according to 60598-2-22, 2-rod battery, with self-contained supply, 3h
Order No.: 53BD812DV4D5D23SL3 GTIN (EAN): 4069025254795
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 13680 | 79W | 174lm/W | DALI 2 | +5..+35°C | IP20/IP50 | 1535 | 2.3 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BD812MV485C2 GTIN (EAN): 4069025185914
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 8950 | 48W | 186lm/W | ON/OFF Multilumen | -35..+50°C | IP20/IP50 | 1535 | 1.8 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BD812CV475C2 GTIN (EAN): 4069025185839
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 7600 | 41 | 48 | 188lm/W | ON/OFF Multilumen, CLOi | -35..+50°C | IP20/IP50 | 1535 | 1.8 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BD812CV675C2 GTIN (EAN): 4069025185877
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 7670 | 42 | 50 | 182lm/W | ON/OFF Multilumen, CLOi | -35..+50°C | IP20/IP50 | 1535 | 1.8 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BD812CV6A5D2 GTIN (EAN): 4069025185891
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 10550 | 57 | 68 | 187lm/W | ON/OFF Multilumen, CLOi | -35..+40°C | IP20/IP50 | 1535 | 1.8 |
DUS® 31 HO, symmetric wide distribution, DUS® 31 HO, symmetric wide distribution, IP20, AC
Order No.: 53BD812C1V4105GTIN (EAN): 4058352421680
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 10520 |
| Connected load | |
| Pnom (W) begin service life | 64 |
| Pnom (W) end service life | 73 |
| Luminous efficacy | 165lm/W |
| Control | ON/OFF Multilumen, CLOi |
| ta | -35..+35°C |
| Protection rating | IP20/IP50 |

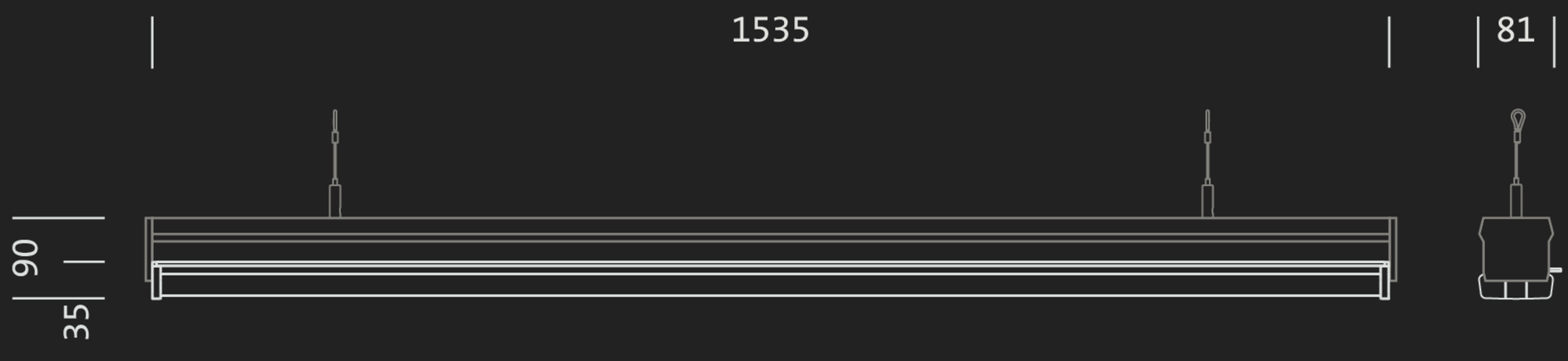

| L (mm) | 1535 |
| Wt. (kg) | 1.9 |
DUS® 31 Gen.2, symmetric narrow distribution, DUS® 31 Gen.2, symmetric narrow distribution, IP20, AC
Order No.: 53BD811DV4A5C2GTIN (EAN): 4069025124203
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 10860 |
| Connected load | 61W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 177lm/W |
| Control | DALI 2 |
| ta | -25..+35°C |
| Protection rating | IP20/IP50 |
| L (mm) | 1535 |
| Wt. (kg) | 1.8 |
DUS® 31 Gen.2, symmetric narrow distribution, DUS® 31 Gen.2, symmetric narrow distribution, IP20, AC
Order No.: 53BD811DV4D5D2GTIN (EAN): 4069025124227
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 13680 |
| Connected load | 75W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 183lm/W |
| Control | DALI 2 |
| ta | -25..+35°C |
| Protection rating | IP20/IP50 |
| L (mm) | 1535 |
| Wt. (kg) | 1.8 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BD8127V485C2GTIN (EAN): 4069025124241
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 8590 |
| Connected load | 48W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 179lm/W |
| Control | ON/OFF |
| ta | -35..+45°C |
| Protection rating | IP20/IP50 |
| L (mm) | 1535 |
| Wt. (kg) | 1.8 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BD8127V68XC2GTIN (EAN): 4069025124265
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 8340 |
| Connected load | 48W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 174lm/W |
| Control | ON/OFF |
| ta | -35..+45°C |
| Protection rating | IP20/IP50 |
| L (mm) | 1535 |
| Wt. (kg) | 1.7 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BD812CV49XC2GTIN (EAN): 4069025124289
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 9240 |
| Connected load | |
| Pnom (W) begin service life | 50 |
| Pnom (W) end service life | 61 |
| Luminous efficacy | 185lm/W |
| Control | ON/OFF Multilumen, CLOi |
| ta | -35..+40°C |
| Protection rating | IP20/IP50 |
| L (mm) | 1535 |
| Wt. (kg) | 1.8 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BD812CV4DXD2GTIN (EAN): 4069025124302
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 13040 |
| Connected load | |
| Pnom (W) begin service life | 69 |
| Pnom (W) end service life | 82 |
| Luminous efficacy | 190lm/W |
| Control | ON/OFF Multilumen, CLOi |
| ta | -35..+35°C |
| Protection rating | IP20/IP50 |
| L (mm) | 1535 |
| Wt. (kg) | 1.8 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BD812CV685C2GTIN (EAN): 4069025124326
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 8970 |
| Connected load | |
| Pnom (W) begin service life | 50 |
| Pnom (W) end service life | 61 |
| Luminous efficacy | 180lm/W |
| Control | ON/OFF Multilumen, CLOi |
| ta | -35..+40°C |
| Protection rating | IP20/IP50 |
| L (mm) | 1535 |
| Wt. (kg) | 1.8 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BD812CV6C5D2GTIN (EAN): 4069025124340
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 12660 |
| Connected load | |
| Pnom (W) begin service life | 69 |
| Pnom (W) end service life | 82 |
| Luminous efficacy | 185lm/W |
| Control | ON/OFF Multilumen, CLOi |
| ta | -35..+35°C |
| Protection rating | IP20/IP50 |
| L (mm) | 1535 |
| Wt. (kg) | 1.8 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BD812DV4A5C2GTIN (EAN): 4069025124371
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 10860 |
| Connected load | 61W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 177lm/W |
| Control | DALI 2 |
| ta | -25..+35°C |
| Protection rating | IP20/IP50 |
| L (mm) | 1535 |
| Wt. (kg) | 1.8 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BD812DV4D5D2GTIN (EAN): 4069025124388
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 13680 |
| Connected load | 75W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 183lm/W |
| Control | DALI 2 |
| ta | -25..+35°C |
| Protection rating | IP20/IP50 |
| L (mm) | 1535 |
| Wt. (kg) | 1.8 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BD812DV6A5C2GTIN (EAN): 4069025124401
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 10550 |
| Connected load | 61W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 172lm/W |
| Control | DALI 2 |
| ta | -25..+35°C |
| Protection rating | IP20/IP50 |
| L (mm) | 1535 |
| Wt. (kg) | 1.8 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BD812DV6DXD2GTIN (EAN): 4069025124425
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 13280 |
| Connected load | 75W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 177lm/W |
| Control | DALI 2 |
| ta | -25..+35°C |
| Protection rating | IP20/IP50 |
| L (mm) | 1535 |
| Wt. (kg) | 1.8 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BD812MV4A5C2GTIN (EAN): 4069025124449
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 10960 |
| Connected load | 61W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 181lm/W |
| Control | ON/OFF Multilumen |
| ta | -35..+40°C |
| Protection rating | IP20/IP50 |
| L (mm) | 1535 |
| Wt. (kg) | 1.8 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BD812MV4FXD2GTIN (EAN): 4069025124470
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 15440 |
| Connected load | 82W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 188lm/W |
| Control | ON/OFF Multilumen |
| ta | -35..+35°C |
| Protection rating | IP20/IP50 |
| L (mm) | 1535 |
| Wt. (kg) | 1.8 |
DUS® 31 Gen.2, symmetric extremely narrow distribution, DUS® 31 Gen.2, symmetric extremely narrow distribution, IP20, AC
Order No.: 53BD813DV4A5C2GTIN (EAN): 4069025124487
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 10610 |
| Connected load | 61W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 173lm/W |
| Control | DALI 2 |
| ta | -25..+35°C |
| Protection rating | IP20/IP50 |
| L (mm) | 1535 |
| Wt. (kg) | 1.8 |
DUS® 31 Gen.2, symmetric extremely narrow distribution, DUS® 31 Gen.2, symmetric extremely narrow distribution, IP20, AC
Order No.: 53BD813DV4DXD2GTIN (EAN): 4069025124500
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 13370 |
| Connected load | 75W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 178lm/W |
| Control | DALI 2 |
| ta | -25..+35°C |
| Protection rating | IP20/IP50 |
| L (mm) | 1535 |
| Wt. (kg) | 1.8 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC, with self-test function according to 60598-2-22, 2-rod battery, with self-contained supply, 3h
Order No.: 53BD812DV4A5C23SL3GTIN (EAN): 4069025254771
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 10860 |
| Connected load | 65W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 167lm/W |
| Control | DALI 2 |
| ta | +5..+35°C |
| Protection rating | IP20/IP50 |
| L (mm) | 1535 |
| Wt. (kg) | 2.3 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC, with self-test function according to 60598-2-22, 2-rod battery, with self-contained supply, 3h
Order No.: 53BD812DV4D5D23SL3GTIN (EAN): 4069025254795
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 13680 |
| Connected load | 79W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 174lm/W |
| Control | DALI 2 |
| ta | +5..+35°C |
| Protection rating | IP20/IP50 |
| L (mm) | 1535 |
| Wt. (kg) | 2.3 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BD812MV485C2GTIN (EAN): 4069025185914
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 8950 |
| Connected load | 48W |
| Pnom (W) begin service life | |
| Pnom (W) end service life | |
| Luminous efficacy | 186lm/W |
| Control | ON/OFF Multilumen |
| ta | -35..+50°C |
| Protection rating | IP20/IP50 |
| L (mm) | 1535 |
| Wt. (kg) | 1.8 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BD812CV475C2GTIN (EAN): 4069025185839
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 7600 |
| Connected load | |
| Pnom (W) begin service life | 41 |
| Pnom (W) end service life | 48 |
| Luminous efficacy | 188lm/W |
| Control | ON/OFF Multilumen, CLOi |
| ta | -35..+50°C |
| Protection rating | IP20/IP50 |
| L (mm) | 1535 |
| Wt. (kg) | 1.8 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BD812CV675C2GTIN (EAN): 4069025185877
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 7670 |
| Connected load | |
| Pnom (W) begin service life | 42 |
| Pnom (W) end service life | 50 |
| Luminous efficacy | 182lm/W |
| Control | ON/OFF Multilumen, CLOi |
| ta | -35..+50°C |
| Protection rating | IP20/IP50 |
| L (mm) | 1535 |
| Wt. (kg) | 1.8 |
DUS® 31 Gen.2, symmetric wide distribution, DUS® 31 Gen.2, symmetric wide distribution, IP20, AC
Order No.: 53BD812CV6A5D2GTIN (EAN): 4069025185891
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 10550 |
| Connected load | |
| Pnom (W) begin service life | 57 |
| Pnom (W) end service life | 68 |
| Luminous efficacy | 187lm/W |
| Control | ON/OFF Multilumen, CLOi |
| ta | -35..+40°C |
| Protection rating | IP20/IP50 |
| L (mm) | 1535 |
| Wt. (kg) | 1.8 |
