Highbay 11

ProducttypesConfiguration & Datasheets

The universal high bay lighting solution with a view to the future. Thanks to three construction sizes, different light distributions and mounting options, a wide range of applications opens up for demanding high bay lighting solutions. The highly efficient lens-based optical system ensures low operating costs and the best visual comfort. At the same time, the Highbay 11 is resistant to extreme ambient temperatures and is therefore prepared for long-lasting, reliable operation.

Our performance solution: Highbay 11 is our innovative high bay luminaire with maximum efficiency, service life and flexibility

Producttypes

with 2 luminaire heads narrow or wide distribution | up to 100,000h at 25°C

with 4 luminaire heads narrow or wide distribution | up to 100,000h at 25°C

with 6 luminaire heads narrow or wide distribution | up to 100,000h at 25°C

sensors for local control | za stojalo in visoko shranjevanje bay

sensors for local control | for shipping areas (5…14m)

sensors with DALI2 interface | za stojalo in visoko shranjevanje bay

sensors with DALI2 interface | for shipping areas (5…14m)

sensors with DALI2 interface | for rack and high-bay warehouses with daylight sensor - for large mounting heights

with 6 luminaire heads narrow or wide distribution | up to 100,000h at 25°C

Intro to Productfamily

Data

Opis svetilka za dvorane LED
Svetlobni učinek direktna simetrična ozka porazdelitev; direktna simetrična široka porazdelitev
Neto svetlobni tok 48560lm do 49690lm
Barvna temperatura 4000K
Upravljanje DALI (s tremi naslovi DALI)
Zaščitna stopnja IP65
Zaščitni razred zaščitni razred I (RI - zaščitna ozemljitev)
Zaščitni znak D
Odpornost na udarce IK08 s steklom ali pokrovčkom za osebni računalnik
IFS izpolnjuje zahteve IFS (International Featured Standards) glede varnosti in kakovosti v prehrambeni industriji

Specials

Highly efficient lens-based optic system with high glare reduction (UGR ≤ 22) and up to 180lm/W with simultaneously long service life of up to 100,000 hours
Optional sensor technology for light control depending on movement and available daylight
Very robust with IP65 protection rating for reliable operation and suitable for ambient temperatures of up to 70°C
Ready for a wide range of applications due to various construction sizes with lumen packages up to 64,000lm, various light distributions and different mounting options
Also available as a ballproof version with mechanical reinforcement of the housing – ideal for sports halls

Configuration & Datasheets

Svetlobni učinek

Nazivni svetlobni tok

  • luminaire according to the requirements of the automotive industry (LABS free)
  • luminaire with optional PC cover: complies to IFS requirements for use in the food industry
  • optional clear cover made of toughened safety glass for increased chemical resistance, protection against soiling and easier lens cleaning
  • suspended mounting with wire or chain for three-length luminaires with 8 suspension points on the luminaire side (2 sets with 4-fold suspension, on the ceiling with two attachment points / 2 sets with 2-fold suspension, on the ceiling with four attachment points)
  • please order mounting accessories (in required quantities) separately
  • please order supplementary chain for higher suspension heights separately if required (as replacement for standard chain of chain suspension | please consider desired suspension height and number of chain strands)
  • if required, please order luminaire connectors for attaching luminaires mounted next to one another separately (not for ballproof luminaire)
  • if required, please order prism cover for elliptical or diffused light distribution separately (not for ballproof luminaire)
  • If required, please order clear cover separately (not for ballproof luminaire)
  • izvedbe s temperaturo svetlobe 3000K, 5000K in 6500K na povpraševanje

Results

Highbay 11, široka porazdelitev, 3x 2x LED, 840, DALI (3 naslovi), AC

Oznaka za naročilo: 51HLA2D34SCAGTIN (EAN): 4058352474860
SijalkeBarvna temperaturaBarvni videzUpravljanje razsvetljavePriključna močSvetlobni izkoristekUpravljanjetaDimenzija (mm)Masa (kg)
3x 2x LED4000KCRI > 8049690lm284W175lm/WDALI (3 naslovi)-35..+45°C1410x50013,3
Show details
Razpisno besediloPodatkovni list (PDF, podrobno)Photometric report / planning dataAll Downloads

Highbay 11, ozka porazdelitev, 3x 2x LED, 840, DALI (3 naslovi), AC

Oznaka za naročilo: 51HLA1D34SCAGTIN (EAN): 4058352322949
SijalkeBarvna temperaturaBarvni videzUpravljanje razsvetljavePriključna močSvetlobni izkoristekUpravljanjetaDimenzija (mm)Masa (kg)
3x 2x LED4000KCRI > 8048560lm284W171lm/WDALI (3 naslovi)-35..+45°C1410x50013,3
Show details
Razpisno besediloPodatkovni list (PDF, podrobno)Photometric report / planning dataAll Downloads

Highbay 11, široka porazdelitev, 3x 2x LED, 840, DALI (3 naslovi), AC

Oznaka za naročilo: 51HLA2D34SCAGTIN (EAN): 4058352474860

Sijalke3x 2x LED
Barvna temperatura4000K
Barvni videzCRI > 80
Upravljanje razsvetljave49690lm
Priključna moč284W
Svetlobni izkoristek175lm/W
UpravljanjeDALI (3 naslovi)
ta-35..+45°C

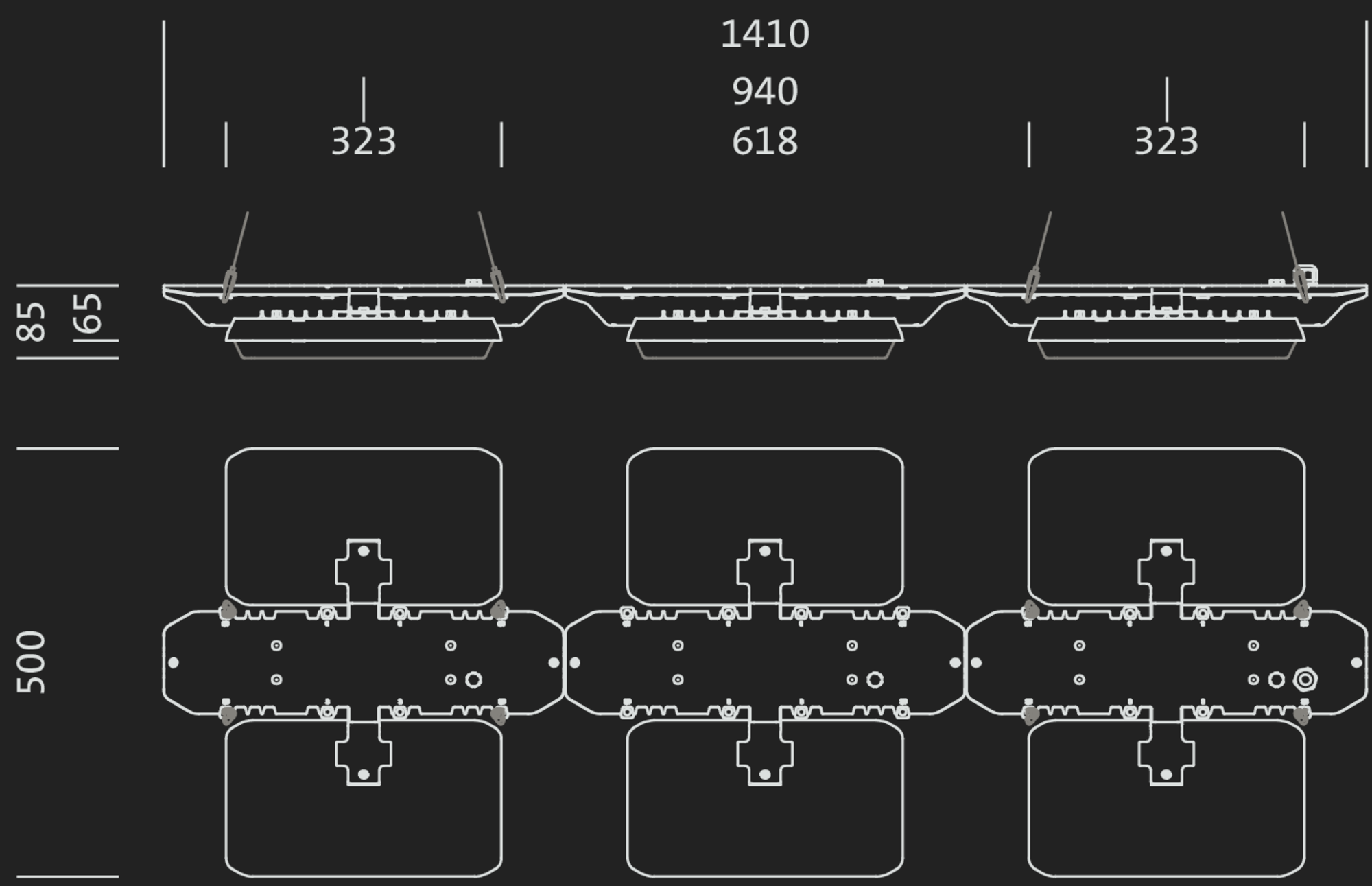

Dimenzija (mm)1410x500
Masa (kg)13,3
Show details

Highbay 11, ozka porazdelitev, 3x 2x LED, 840, DALI (3 naslovi), AC

Oznaka za naročilo: 51HLA1D34SCAGTIN (EAN): 4058352322949

Sijalke3x 2x LED
Barvna temperatura4000K
Barvni videzCRI > 80
Upravljanje razsvetljave48560lm
Priključna moč284W
Svetlobni izkoristek171lm/W
UpravljanjeDALI (3 naslovi)
ta-35..+45°C
Dimenzija (mm)1410x500
Masa (kg)13,3
Show details

Optional accessory

Opispokrov, eliptična porazdelitev, PC, UV-stabiliziran, L= 313mm, B= 174mmEP2 kosaMasa (kg)0,5Oznaka za naročilo: 59HL91003GTIN (EAN): 4058352341667Show details
Opispokrov, široka porazdelitev, PC, UV-stabiliziran, L= 313mm, B= 174mmEP2 kosaMasa (kg)0,5Oznaka za naročilo: 59HL91004GTIN (EAN): 4058352341674Show details
Opispokrov, steklo, L= 313mm, B= 174mmEP2 kosaMasa (kg)0,6Oznaka za naročilo: 59HL91001GTIN (EAN): 4058352323519Show details
Opispokrov, PC, UV-stabiliziran, L= 313mm, B= 174mmEP2 kosaMasa (kg)0,5Oznaka za naročilo: 59HL91002GTIN (EAN): 4058352341650Show details
Opis4-smerno verižno obešalo, jeklo, pocinkanoEP1 kosMasa (kg)0,5Oznaka za naročilo: 59HL92001GTIN (EAN): 4058352332405Show details
Opisdvosmerno verižno obešalo, jeklo, pocinkanoEP2 kosaMasa (kg)0,5Oznaka za naročilo: 59HL92002GTIN (EAN): 4058352332429Show details
Opisveriga z vozlički, jeklo, pocinkanoEPtmMasa (kg)0,1Oznaka za naročilo: 5LY9001GTIN (EAN): 4039806184290Show details
Opis4-smerno vrvno obešalo, jeklo, pocinkanoEP1 kosMasa (kg)0,5Oznaka za naročilo: 59HL92004GTIN (EAN): 4058352329948Show details
Opisdvosmerno vrvno obešalo, jeklo, pocinkanoEP2 kosaMasa (kg)0,2Oznaka za naročilo: 59HL92005GTIN (EAN): 4058352329962Show details
Opisstropni nosilec, jeklo, pocinkano, višina obešanja 160mmEP2 kosaMasa (kg)0,8Oznaka za naročilo: 59HL92006GTIN (EAN): 4058352325315Show details
Opisspojnik svetilk, jeklo, pocinkanoEP2 kosaMasa (kg)1,7Oznaka za naročilo: 59HL92007GTIN (EAN): 4058352341681Show details
Opisosnovni modul, master, v beli barviEP1 kosMasa (kg)0,3Oznaka za naročilo: 59HL94001GTIN (EAN): 4058352379325Show details
Opisosnovni modul, slave, v beli barviEP1 kosMasa (kg)0,3Oznaka za naročilo: 59HL94002GTIN (EAN): 4058352379349Show details
