Highbay 11

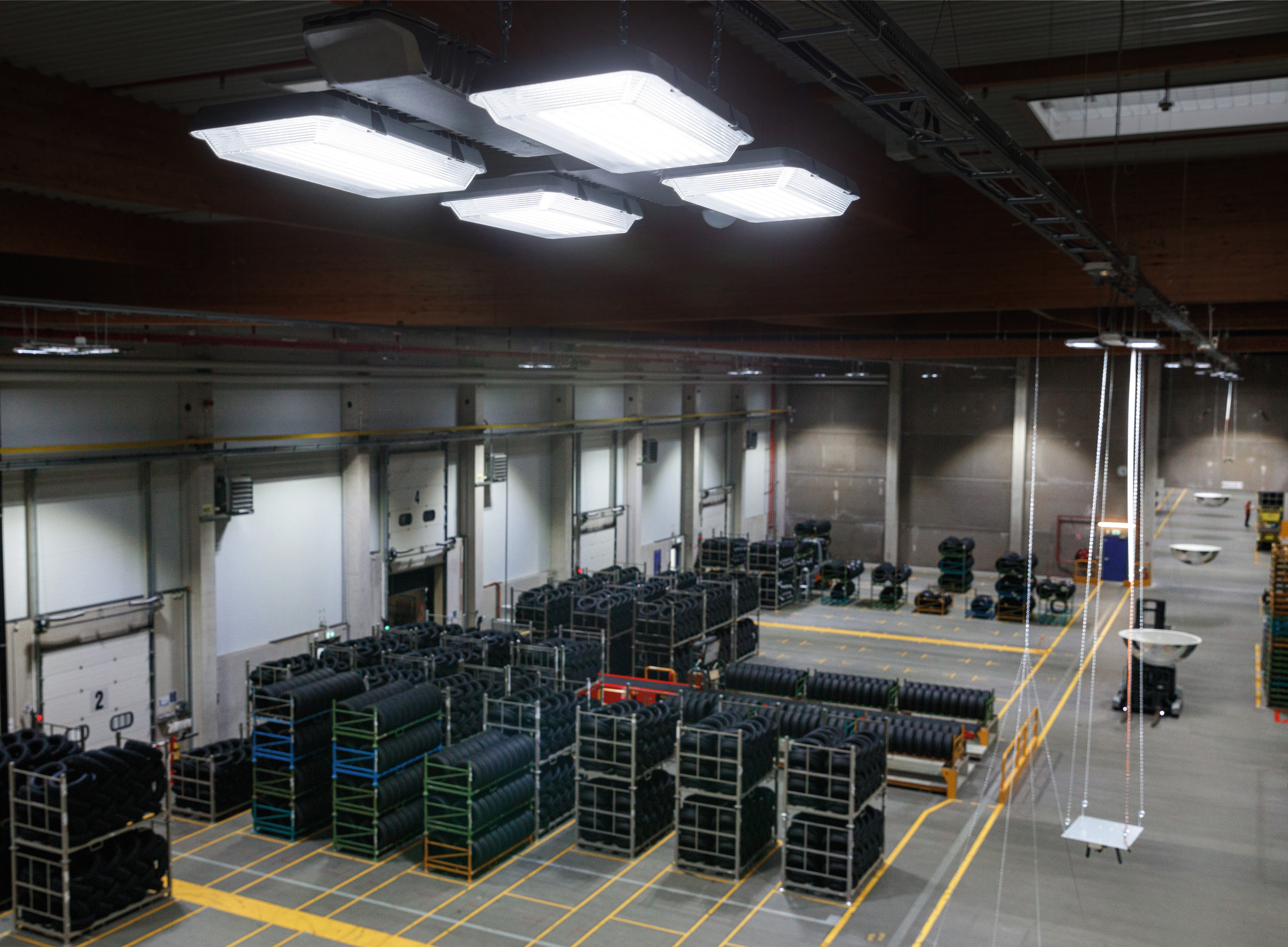

The universal high bay lighting solution with a view to the future. Thanks to three construction sizes, different light distributions and mounting options, a wide range of applications opens up for demanding high bay lighting solutions. The highly efficient lens-based optical system ensures low operating costs and the best visual comfort. At the same time, the Highbay 11 is resistant to extreme ambient temperatures and is therefore prepared for long-lasting, reliable operation.
Our performance solution: Highbay 11 is our innovative high bay luminaire with maximum efficiency, service life and flexibility
Producttypes
with 2 luminaire heads narrow or wide distribution | opptil 100 000t ved 25°C
with 4 luminaire heads narrow or wide distribution | opptil 100 000t ved 25°C
with 6 luminaire heads narrow or wide distribution | opptil 100 000t ved 25°C

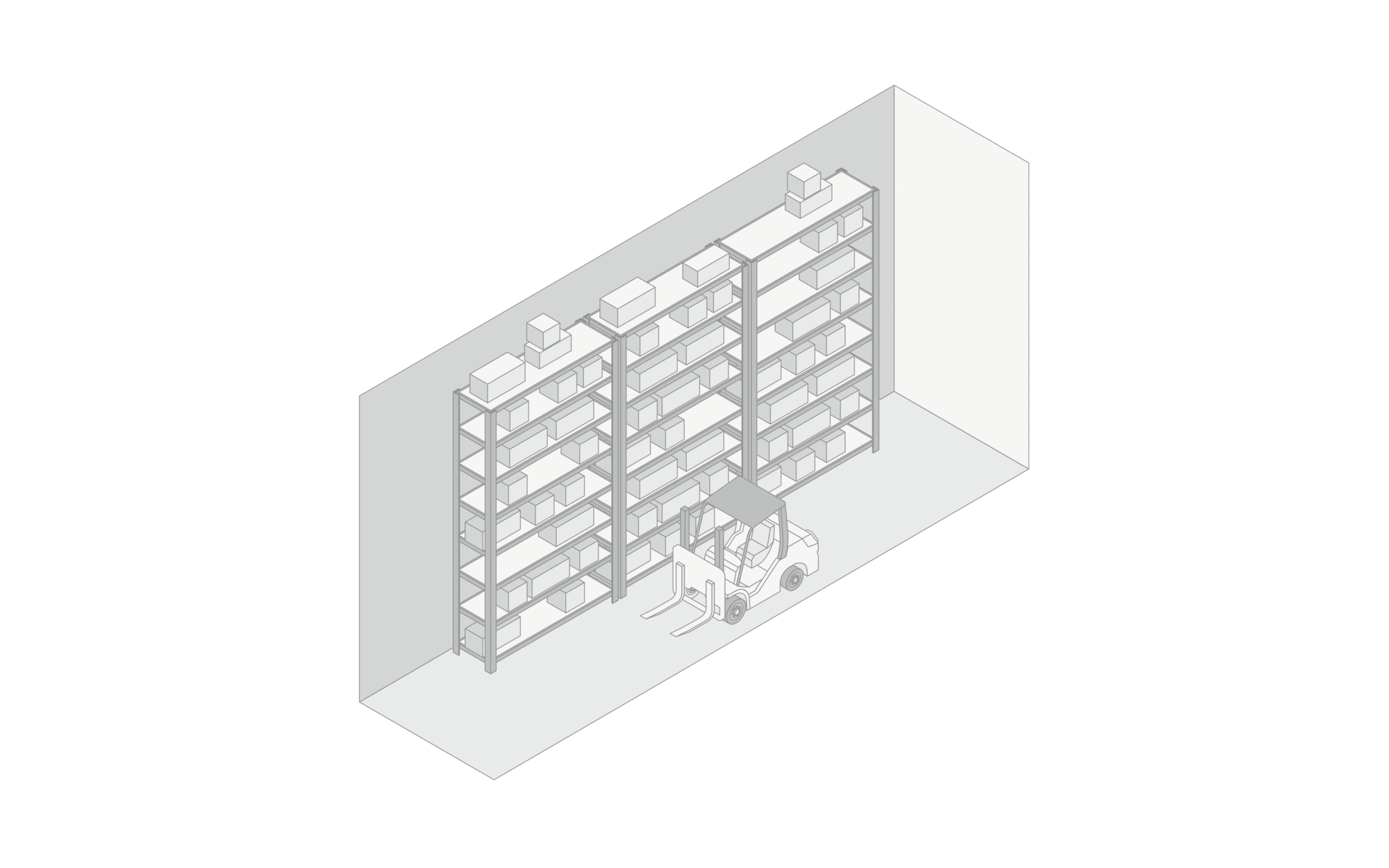

sensorer for lokal styring | for reol- og høyhyllelager

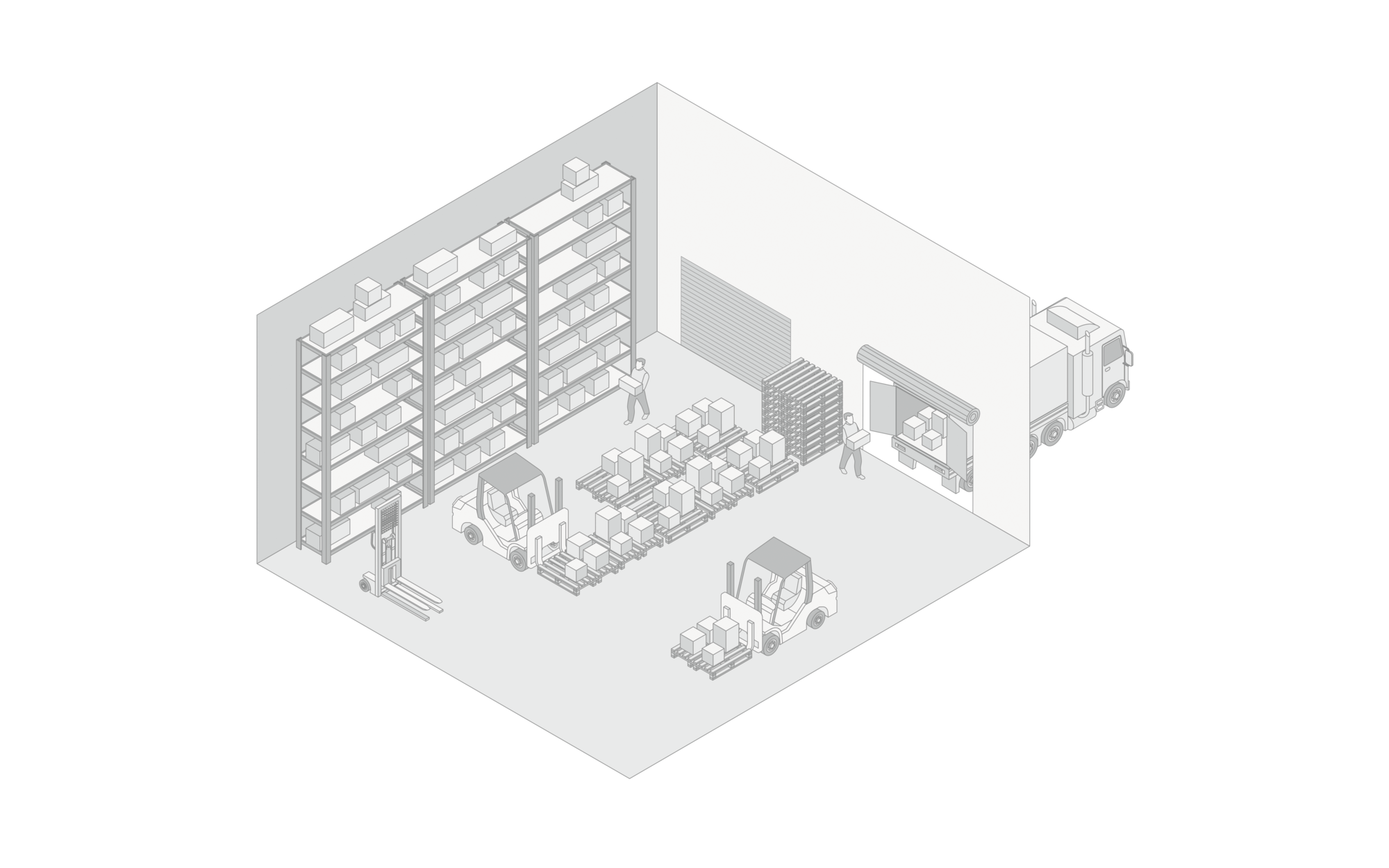

sensorer for lokal styring | for shipping areas (5…14m)
sensors with DALI2 interface | for reol- og høyhyllelager
sensors with DALI2 interface | for shipping areas (5…14m)
sensors with DALI2 interface | for rack and high-bay warehouses with daylight sensor - for large mounting heights
sensors with DALI2 interface | for rack and high-bay warehouses with daylight sensor - for large mounting heights
Intro to ProductfamilyData
Utstyr slave
Varetekst sensor PE1
Configuration & Datasheets
- ved kontakt med DALI-linje 1 velegnet fra 7-tråds kabling
- adaption to on-site conditions via 90° rotatable sensor interface
- en sensorenhet består av et sensorhode og et grensesnitt
- DALI2 certified according to part 101,103,303,304
- DALI current I= 6mA
Results
Highbay 11, slave
| Varetekst | Bruksområde | Montasjehøyde | Bevegelsens deteksjonsområde | Dimensjon (mm) | ta | Vekt (kg) |
|---|---|---|---|---|---|---|
| sensor PE1 | for reol- og høyhyllelager, for høye rom, f.eks. logistikksoner | 5..14m | maks. 30x19m | 83x83 | -25..+50°C | 0,4 |
Highbay 11, slave
Bestillingsnummer: 59HL94003GTIN (EAN): 4058352641941
| Varetekst | sensor PE1 |
|---|---|
| Bruksområde | for reol- og høyhyllelager, for høye rom, f.eks. logistikksoner |
| Montasjehøyde | 5..14m |
| Bevegelsens deteksjonsområde | maks. 30x19m |
| Dimensjon (mm) | 83x83 |
| ta | -25..+50°C |
| Vekt (kg) | 0,4 |
Mandatory accessory
| Bestillingsnummer: 5LZ930101GTIN (EAN): 4058352385913 | Show details |
| Bestillingsnummer: 5LZ930103GTIN (EAN): 4058352385937 | Show details |
| Bestillingsnummer: 5LZ930100GTIN (EAN): 4058352385906 | Show details |
| Bestillingsnummer: 5LZ930102GTIN (EAN): 4058352385920 | Show details |
Optional accessory
| Bestillingsnummer: 59US6HGTIN (EAN): 4058352364017 | Show details |
