Monsun

Family Product selection Configuration & data sheets

Monsun 11 Facade

Key data

Article damp-proof luminaire
Lighting effect direct symmetric diffuse distribution
Net luminous flux 5790lm to 8180lm
Colour temperature 3000K; 4000K
Control ON/OFF Multilumen; DALI 2
Cover PMMA
Protection rating IP66
Insulation class insulation class I (protective earthing)
Protection symbol D
Impact resistance IK06
Halogen freeness internal wiring halogen-free

Special features

Suitable for use in unprotected outdoor areas
With special sealing system and integrated climate membrane
Up to 195lm/W for best energy efficiency
Long-distance runner: 100,000h service file with minimal degradation
With a non-yellowing cover made of impact-resistant PMMA

Configuration & data sheets

Colour temperature

Rated luminous flux (lm)

Control

Through-wiring

Operating ambient temperature

  • includes ceiling fixing element and chain hanger of V2A; surface-mounting to ceilings without further luminaire-specific mounting accessories; for further installation methods: please order mounting accessory separately
  • for chain suspension: please order chain separately
  • for wall mounting: please order anti-theft/wall mounting protection separately
  • for further installation methods: please order mounting accessory separately
  • for greater anti-theft safety for all types of installation: if required, please order anti-theft/wall mounting protection separately
  • Some luminaires with through-wiring as standard; for other luminaires: please order through-wiring separately if required

Results

Available from stock

Monsun 11 facade, diffuse distribution, ON/OFF Multilumen, PMMA

Order No.: 51FF40MP460L GTIN (EAN): 4069025273956
Colour temperatureColour renderingLuminous fluxPnomFactory-preset luminous fluxFactory-preset PnomLuminous efficacyControlThrough-wiringtaImpact resistanceL (mm)Wt. (kg)
4000KCRI > 804280…6110lm21.9…31.5W6110lm31.5W194lm/WON/OFF Multilumen -35..+45°CIK0615902.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list
Available approx. 15-20 working days from order

Monsun 11 facade, diffuse distribution, DALI 2, PMMA

Order No.: 51FF40DP460L007 GTIN (EAN): 4069025268617
Colour temperatureColour renderingLuminous fluxPnomFactory-preset luminous fluxFactory-preset PnomLuminous efficacyControlThrough-wiringtaImpact resistanceL (mm)Wt. (kg)
4000KCRI > 806190lm31.8W6190lm31.8W195lm/WDALI 27x 2.5mm²-25..+30°CIK0615902.8
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list
Delivery time on request

Monsun 11 facade, diffuse distribution, ON/OFF Multilumen, PMMA

Order No.: 51FF40MP480L GTIN (EAN): 4069025611895
Colour temperatureColour renderingLuminous fluxPnomFactory-preset luminous fluxFactory-preset PnomLuminous efficacyControlThrough-wiringtaImpact resistanceL (mm)Wt. (kg)
4000KCRI > 804280…8180lm21.9…43.2W8180lm43.2W189lm/WON/OFF Multilumen -35..+40°CIK0615902.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list
Delivery time on request

Monsun 11 facade, diffuse distribution, ON/OFF Multilumen, PMMA

Order No.: 51FF40MP350L GTIN (EAN): 4069025611857
Colour temperatureColour renderingLuminous fluxPnomFactory-preset luminous fluxFactory-preset PnomLuminous efficacyControlThrough-wiringtaImpact resistanceL (mm)Wt. (kg)
3000KCRI > 804080…5820lm21.9…31.5W5820lm31.5W185lm/WON/OFF Multilumen -35..+45°CIK0615902.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list
Delivery time on request

Monsun 11 facade, diffuse distribution, ON/OFF Multilumen, PMMA

Order No.: 51FF40MP360L GTIN (EAN): 4069025273932
Colour temperatureColour renderingLuminous fluxPnomFactory-preset luminous fluxFactory-preset PnomLuminous efficacyControlThrough-wiringtaImpact resistanceL (mm)Wt. (kg)
3000KCRI > 804080…5790lm21.9…31.4W5790lm31.4W184lm/WON/OFF Multilumen -35..+45°CIK0615902.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list
Delivery time on request

Monsun 11 facade, diffuse distribution, ON/OFF Multilumen, PMMA

Order No.: 51FF40MP380L GTIN (EAN): 4069025611871
Colour temperatureColour renderingLuminous fluxPnomFactory-preset luminous fluxFactory-preset PnomLuminous efficacyControlThrough-wiringtaImpact resistanceL (mm)Wt. (kg)
3000KCRI > 804130…8080lm22.1…45.1W8080lm45.1W179lm/WON/OFF Multilumen -35..+40°CIK0615902.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list
Delivery time on request

Monsun 11 facade, diffuse distribution, DALI 2, PMMA

Order No.: 51FF40DP360L007 GTIN (EAN): 4069025374615
Colour temperatureColour renderingLuminous fluxPnomFactory-preset luminous fluxFactory-preset PnomLuminous efficacyControlThrough-wiringtaImpact resistanceL (mm)Wt. (kg)
3000KCRI > 806190lm33.4W6190lm33.4W185lm/WDALI 27x 2.5mm²-25..+30°CIK0615902.8
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list
Available from stock

Monsun 11 facade, diffuse distribution, ON/OFF Multilumen, PMMA

Order No.: 51FF40MP460LGTIN (EAN): 4069025273956

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4280…6110lm
Pnom21.9…31.5W
Factory-preset luminous flux6110lm
Factory-preset Pnom31.5W
Luminous efficacy194lm/W
ControlON/OFF Multilumen
Through-wiring
ta-35..+45°C
Impact resistanceIK06

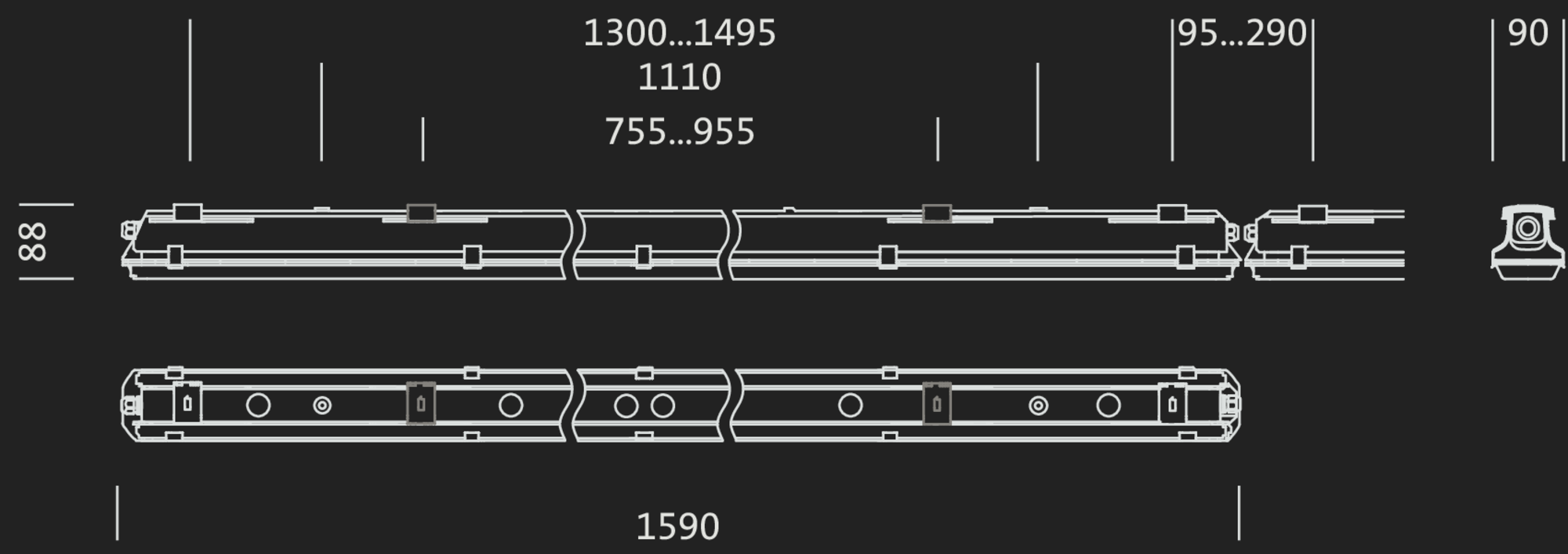

L (mm)1590
Wt. (kg)2.5
Show all details
Available approx. 15-20 working days from order

Monsun 11 facade, diffuse distribution, DALI 2, PMMA

Order No.: 51FF40DP460L007GTIN (EAN): 4069025268617

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux6190lm
Pnom31.8W
Factory-preset luminous flux6190lm
Factory-preset Pnom31.8W
Luminous efficacy195lm/W
ControlDALI 2
Through-wiring7x 2.5mm²
ta-25..+30°C
Impact resistanceIK06
L (mm)1590
Wt. (kg)2.8
Show all details
Delivery time on request

Monsun 11 facade, diffuse distribution, ON/OFF Multilumen, PMMA

Order No.: 51FF40MP480LGTIN (EAN): 4069025611895

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4280…8180lm
Pnom21.9…43.2W
Factory-preset luminous flux8180lm
Factory-preset Pnom43.2W
Luminous efficacy189lm/W
ControlON/OFF Multilumen
Through-wiring
ta-35..+40°C
Impact resistanceIK06
L (mm)1590
Wt. (kg)2.5
Show all details
Delivery time on request

Monsun 11 facade, diffuse distribution, ON/OFF Multilumen, PMMA

Order No.: 51FF40MP350LGTIN (EAN): 4069025611857

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux4080…5820lm
Pnom21.9…31.5W
Factory-preset luminous flux5820lm
Factory-preset Pnom31.5W
Luminous efficacy185lm/W
ControlON/OFF Multilumen
Through-wiring
ta-35..+45°C
Impact resistanceIK06
L (mm)1590
Wt. (kg)2.5
Show all details
Delivery time on request

Monsun 11 facade, diffuse distribution, ON/OFF Multilumen, PMMA

Order No.: 51FF40MP360LGTIN (EAN): 4069025273932

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux4080…5790lm
Pnom21.9…31.4W
Factory-preset luminous flux5790lm
Factory-preset Pnom31.4W
Luminous efficacy184lm/W
ControlON/OFF Multilumen
Through-wiring
ta-35..+45°C
Impact resistanceIK06
L (mm)1590
Wt. (kg)2.5
Show all details
Delivery time on request

Monsun 11 facade, diffuse distribution, ON/OFF Multilumen, PMMA

Order No.: 51FF40MP380LGTIN (EAN): 4069025611871

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux4130…8080lm
Pnom22.1…45.1W
Factory-preset luminous flux8080lm
Factory-preset Pnom45.1W
Luminous efficacy179lm/W
ControlON/OFF Multilumen
Through-wiring
ta-35..+40°C
Impact resistanceIK06
L (mm)1590
Wt. (kg)2.5
Show all details
Delivery time on request

Monsun 11 facade, diffuse distribution, DALI 2, PMMA

Order No.: 51FF40DP360L007GTIN (EAN): 4069025374615

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux6190lm
Pnom33.4W
Factory-preset luminous flux6190lm
Factory-preset Pnom33.4W
Luminous efficacy185lm/W
ControlDALI 2
Through-wiring7x 2.5mm²
ta-25..+30°C
Impact resistanceIK06
L (mm)1590
Wt. (kg)2.8
Show all details

Optional accessories

Articlethrough-wiring, 3-core, 2.5mm², L= 1.4m, with terminal, for interrupted trunkingPU1 pc.Wt. (kg)0.1Order No.: 58FV003GTIN (EAN): 4058352409473Show all details
Articlethrough-wiring, 5-core, 2.5mm², L= 1.4m, with terminal, for interrupted trunkingPU1 pc.Wt. (kg)0.1Order No.: 58FV005GTIN (EAN): 4058352409503Show all details
Articlethrough-wiring, 7-core, 2.5mm², L= 1.4m, with terminal, for interrupted trunkingPU1 pc.Wt. (kg)0.3Order No.: 58FV007GTIN (EAN): 4058352409510Show all details
Articlethrough-wiring, 5-core, 2.5mm², L= 1.7m, with terminal, for continuous trunkingPU1 pc.Wt. (kg)0.2Order No.: 58FV009GTIN (EAN): 4058352409534Show all details
Articletwin cable gland, M25, rubber, for cables, Ø 8.4..12mmPU1 pc.Wt. (kg)0.1Order No.: 58FV00DGTIN (EAN): 4058352409558Show all details
Articleclimate membrane, screwable, M20, PA / EPDM / ePTFE / silicone, for cables, Ø 6..13mmPU1 pc.Wt. (kg)0.1Order No.: 58FT003GTIN (EAN): 4058352410332Show all details
Articlecable gland, M25, PA / silicone, for cables, Ø 9..17mmPU1 pc.Wt. (kg)0.1Order No.: 58FT004GTIN (EAN): 4058352410356Show all details
Articleclimate membrane, screwable, M25, PA / EPDM / ePTFE / silicone, for cables, Ø 9..17mmPU1 pc.Wt. (kg)0.1Order No.: 58FT005GTIN (EAN): 4058352410370Show all details
Articlelink chain, steel, galvanisedPUrun. m.Wt. (kg)0.1Order No.: 5LY9001GTIN (EAN): 4039806184290Show all details
Articlelink chain, stainless steel (V2A)PUrun. m.Wt. (kg)0.1Order No.: 5LY9002GTIN (EAN): 4039806184313Show all details
Articlequick-release link, stainless steel (V2A)PU1 pc.Wt. (kg)0.1Order No.: 5LY9004GTIN (EAN): 4039806184368Show all details
Articlewall fastening, inclinablePU2 pcs.Wt. (kg)0.2Order No.: 58FM002GTIN (EAN): 4058352410257Show all details
Articleceiling mountingPU2 pcs.Wt. (kg)0.1Order No.: 58FM012GTIN (EAN): 4069025193957Show all details
Articlepipe clip fixing, for pipe diameter 1.5"PU2 pcs.Wt. (kg)0.2Order No.: 58FM003GTIN (EAN): 4058352426500Show all details
Articlepipe clip fixing, for pipe diameter 2"PU2 pcs.Wt. (kg)0.2Order No.: 58FM004GTIN (EAN): 4058352426524Show all details
Articlewall fastening, horizontal mounting, vertical mountingPU2 pcs.Wt. (kg)0.1Order No.: 58FM007GTIN (EAN): 4058352410295Show all details
Articlefixing reinforcementPU2 pcs.Wt. (kg)0.1Order No.: 58FM006GTIN (EAN): 4058352410271Show all details
Articlespring clip, surface-mounted to the Licross mounting railPU2 pcs.Wt. (kg)0.1Order No.: 58FM001GTIN (EAN): 4058352410233Show all details
Articlespring clip, surface-mounted to the DUS mounting railPU2 pcs.Wt. (kg)0.1Order No.: 58FM008GTIN (EAN): 4058352426548Show all details
Articlecable infeed, M20, rubber, for cables, Ø 6..13mmPU1 pc.Wt. (kg)0.1Order No.: 59FT001GTIN (EAN): 4058352410394Show all details
Articlecable infeed, M25, rubber, for cables, Ø 9..17mmPU1 pc.Wt. (kg)0.1Order No.: 58FT002GTIN (EAN): 4058352410318Show all details
Articlemounting rail, for suspended mounting, surface-mounted, L= 1590mmPU1 pc.Wt. (kg)1.7Order No.: 58FS001GTIN (EAN): 4058352474945Show all details
Articlemounting rail, for suspended mounting, surface-mounted, L= 3180mmPU1 pc.Wt. (kg)3.5Order No.: 58FS002GTIN (EAN): 4058352474976Show all details
Articlemounting rail, for suspended mounting, surface-mounted, L= 4770mmPU1 pc.Wt. (kg)5.2Order No.: 58FS003GTIN (EAN): 4058352475799Show all details
Articleconnector, steel, galvanisedPU1 pc.Wt. (kg)0.3Order No.: 58FS005GTIN (EAN): 4058352477052Show all details
Articlecable holder, for supplementary wiring in the trunking railPU10 pcs.Wt. (kg)0.1Order No.: 59TR1HGTIN (EAN): 4058352476222Show all details
Articleend cap for rail, white, for IP20 protection rating, incl. infeed terminalPU2 pcs.Wt. (kg)0.1Order No.: 59TL1SGTIN (EAN): 4058352272589Show all details
Articleenclosure, PMMA, L= 1590mmPU1 pc.Wt. (kg)0.5Order No.: 59FW004GTIN (EAN): 4058352409640Show all details
