SITECO Connect 31

ProducttypesConfiguration & Datasheets

The SITECO Connect 31 Gen2 portfolio is the professional plug & play lighting solution for single-room renovation. The perfectly coordinated components are quick, easy and expandable - and can be put into operation in next to no time. Preconfigured scenes, schedules or user profiles can be stored and controlled - effortlessly via the on-site button, the intuitive app or the touch panel. Make your light efficient and save up to 70% on energy costs thanks to smart helpers.

Local control - lighting base functions

Producttypes

for single and group offices

pour salles de réunion

for classrooms and training rooms (group function, integration of panel lighting)

for traffic areas and ancillary rooms

pour les espaces étroits, par ex. couloirs

pour rayonnages et stockage en hauteur

for shipping areas (2…4m) and car parks

for shipping areas (5…14m)

for traffic areas and ancillary rooms

Intro to Productfamily

Data

Désignation composant de gestion d'éclairage
Commande DALI 2

Specials

Cost-efficient: Accelerated payback through motion and daylight-dependent control
Energy and CO2 savings: up to 70% additional through the use of sensors
The heart of the controller: complete control intelligence including bus voltage supply, room-related combined in one device
Reduces assembly and cabling costs: compared to central control systems with e.g. controllers for each floor
Simple commissioning: all functions can be set using an APP without any knowledge of the DALI system

Configuration & Datasheets

  • mains + DALI + sensors: maximum total cable length 300m (when laying with standard cable e.g. NYM-J 5G 1.5mm²)
  • on-site push-button: maximum total cable length 50m (when laying with standard cable e.g. NYM-J 5G 1.5mm²)
  • The package can be expanded with optional accessories (see max. system sizes in mounting instruction)
  • Attention: iPhone 6 and older not compatible!
  • networking between controller and touch panel via BLE Mesh

Results

SITECO Connect 31 Gen.2, DALI 2, pour encastré, pour ouverture de plafond découpée

N° de commande: 5LZ910100AGTIN (EAN): 4058352489987
DésignationModèle
contrôleur gen2commande locale
Show details
Texte d'appel d'offreFiche technique (PDF, version détaillée)All Downloads

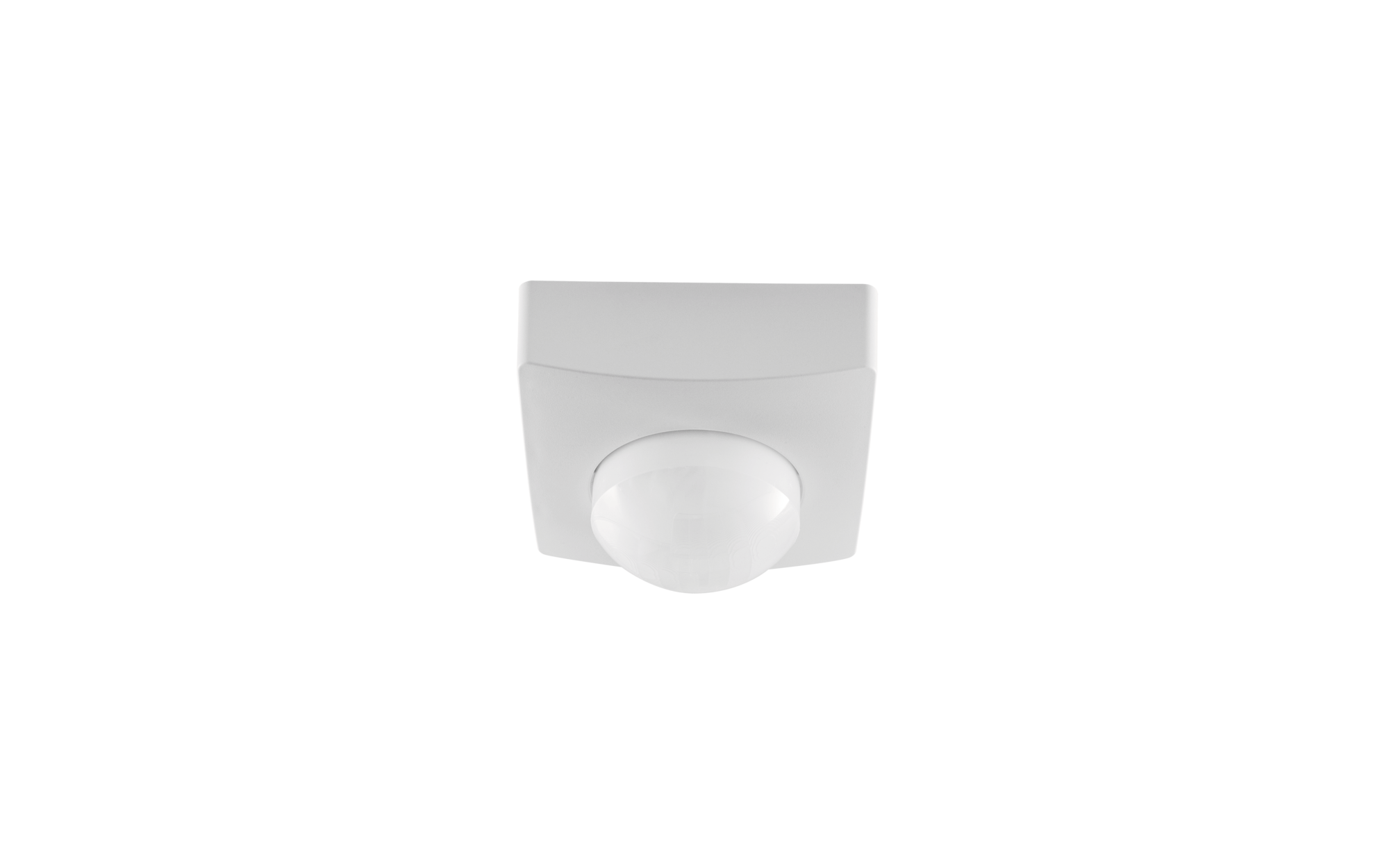

SITECO Connect 31 Gen.2, pour encastré, pour ouverture de plafond découpée

N° de commande: 5LZ910200AGTIN (EAN): 4058352489994
DésignationModèle
capteur gen2commande locale
Show details
Texte d'appel d'offreFiche technique (PDF, version détaillée)All Downloads

SITECO Connect 31 Gen.2, DALI 2, pour encastré, pour ouverture de plafond découpée

N° de commande: 5LZ910100AGTIN (EAN): 4058352489987

Désignationcontrôleur gen2
Modèlecommande locale
Show details

SITECO Connect 31 Gen.2, pour encastré, pour ouverture de plafond découpée

N° de commande: 5LZ910200AGTIN (EAN): 4058352489994

Désignationcapteur gen2
Modèlecommande locale
Show details
