SITECO Connect DALI2 components

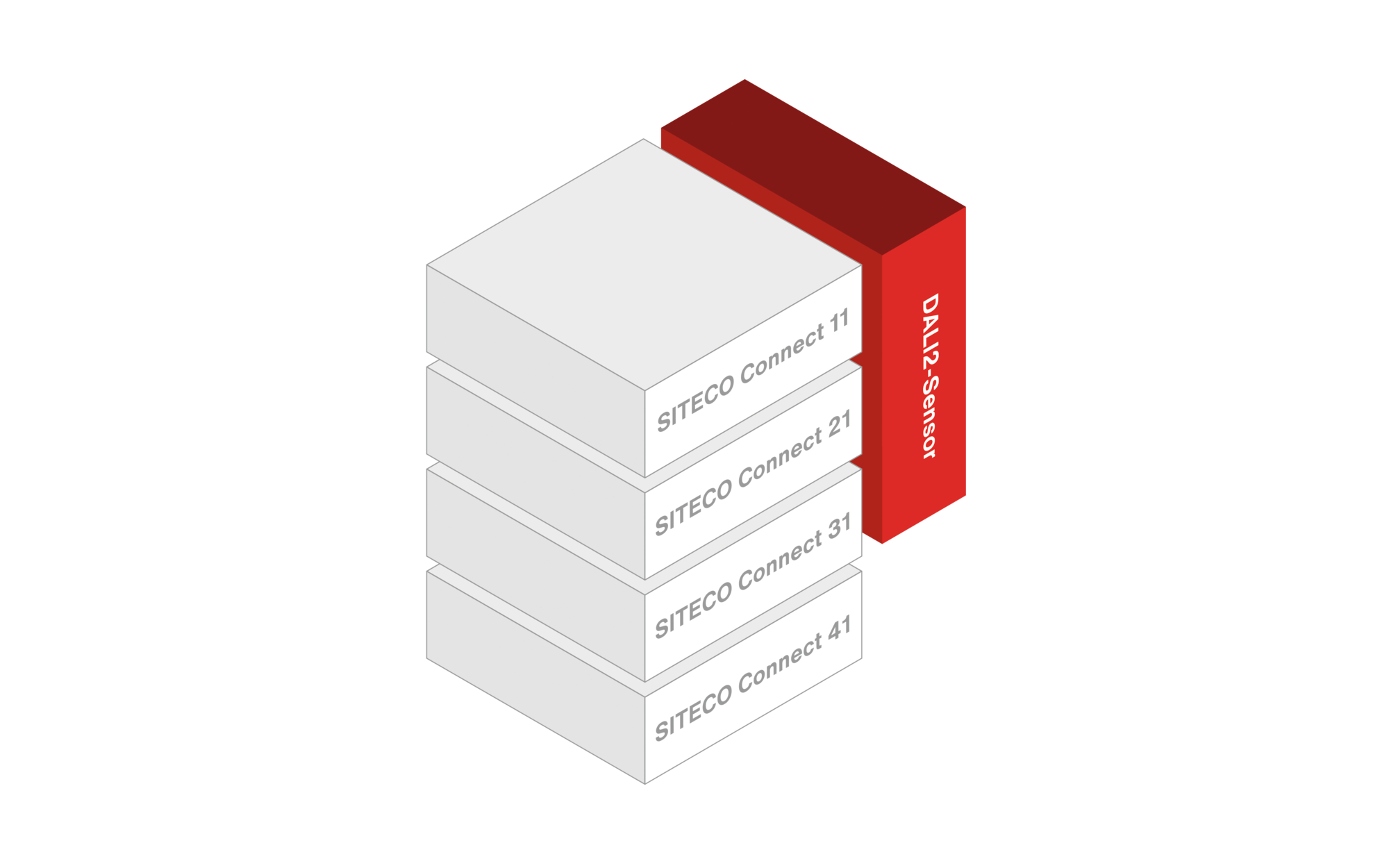

SITECO Connect sensors with a DALI2 interface can be connected to a wide variety of control systems such as SITECO Connect 11, 21, 31 or other lighting and building control systems available on the market. The future-proof sensors can be retrofitted thanks to open and standardized interfaces. Remain as flexible as possible, even if your individual requirements change: the sensors can be relocated at any time.
Open interfaces enable modularity, flexibility and future safety

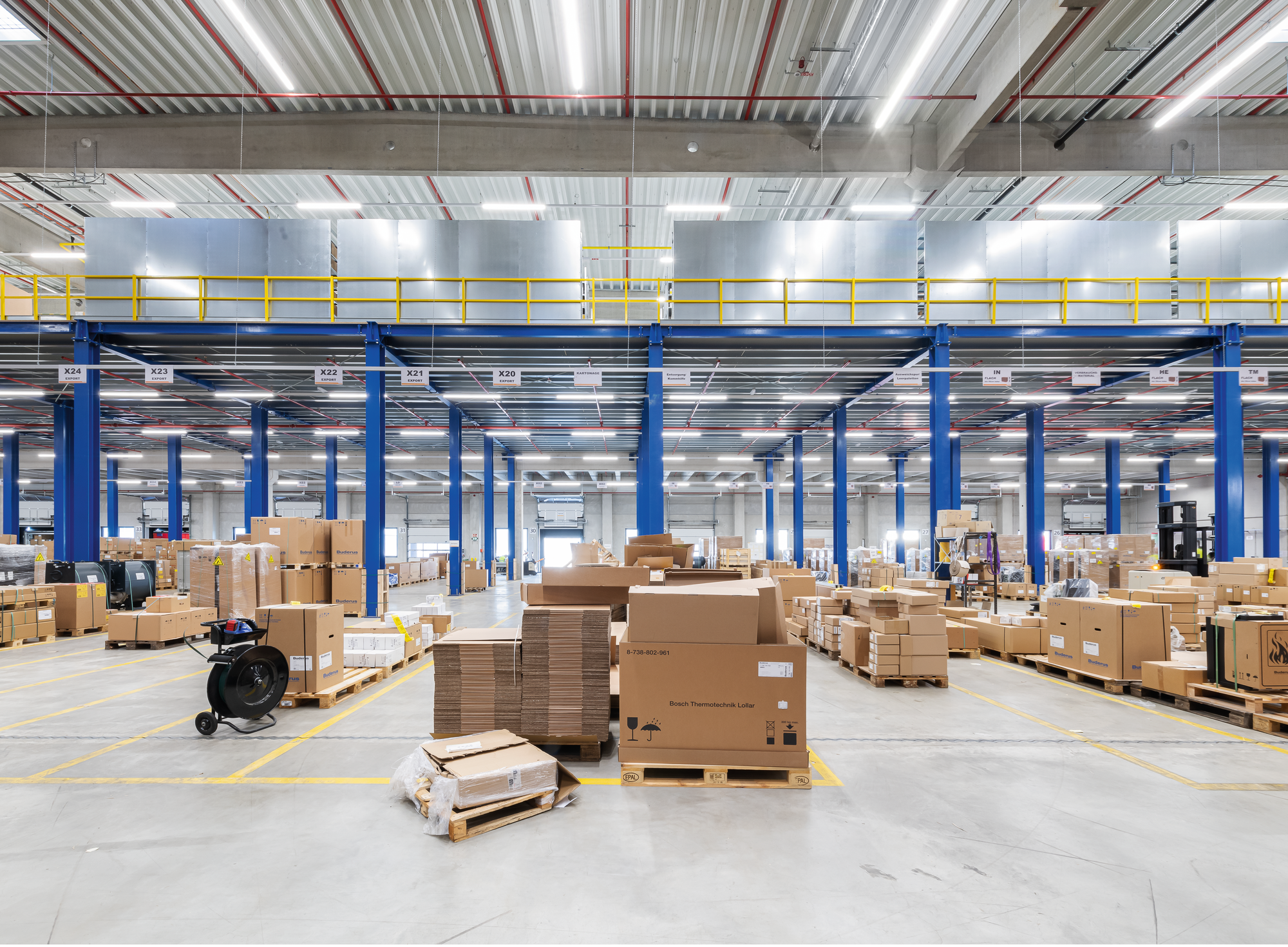

for rack and highbay storage
Intro to Productfamily
Data
Article sensor; base module
Control DALI 2
Specials
DALI2 standard guarantees future safety through an open interface and flexibility in the event of later changes
Any connection to SITECO Connect 11, 21 and 31 gen2 or to any other LMS or BMS system with a certified DALI2 interface according to part 101, 103, 303 and 304
Multi-sensor for use in shelf or high-bay warehouses (mounting height 4…14m)
Very high detection quality for high work safety and low follow-up times
Separate and powerful localization LED for quick and safe commissioning
Sensor planning in Relux saves time and gives you the security of planning sensor detection correctly
Large detection area for a low number of sensors required and low investment
Cut-off option for the detection range for even more precise control
Configuration & Datasheets
- a sensor unit consists of sensor head and interface
- DALI2 certified according to part 101,103,303,304
- DALI current I= 6mA
Results
External Interface S, slave
Order No.: 59US1FCSAGTIN (EAN): 4058352361948
| Article | Detection range movement | Mounting height | Wt. (kg) |
|---|---|---|---|
| External Interface S | 0.1 |
Sensor-Head PR2-S, slave
Order No.: 59US1HXSPR2AGTIN (EAN): 4058352361979
| Article | Detection range movement | Mounting height | Wt. (kg) |
|---|---|---|---|
| Sensor-Head PR2-S | max. 30x4m | 4..14m | 0.1 |
Interface S, slave
Order No.: 56TL1FCSAGTIN (EAN): 4058352373880
| Article | Detection range movement | Mounting height | Wt. (kg) |
|---|---|---|---|
| Interface S | 0.5 |
Interface S, slave
Order No.: 5TR305FCSAGTIN (EAN): 4058352635711
| Article | Detection range movement | Mounting height | Wt. (kg) |
|---|---|---|---|
| Interface S | 0.4 |
External Interface S, slave
Order No.: 59US1FCSAGTIN (EAN): 4058352361948
| Article | External Interface S |
|---|---|
| Detection range movement | |
| Mounting height | |
| Wt. (kg) | 0.1 |
Sensor-Head PR2-S, slave
Order No.: 59US1HXSPR2AGTIN (EAN): 4058352361979
| Article | Sensor-Head PR2-S |
|---|---|
| Detection range movement | max. 30x4m |
| Mounting height | 4..14m |
| Wt. (kg) | 0.1 |
Interface S, slave
Order No.: 56TL1FCSAGTIN (EAN): 4058352373880
| Article | Interface S |
|---|---|
| Detection range movement | |
| Mounting height | |
| Wt. (kg) | 0.5 |
Interface S, slave
Order No.: 5TR305FCSAGTIN (EAN): 4058352635711
| Article | Interface S |
|---|---|
| Detection range movement | |
| Mounting height | |
| Wt. (kg) | 0.4 |
Mandatory accessory
| Order No.: 5LZ930101GTIN (EAN): 4058352385913 | Show details |
| Order No.: 5LZ930103GTIN (EAN): 4058352385937 | Show details |
| Order No.: 5LZ930100GTIN (EAN): 4058352385906 | Show details |
| Order No.: 5LZ930102GTIN (EAN): 4058352385920 | Show details |
Optional accessory
| Order No.: 5LZ925BSKGTIN (EAN): 4050737767512 | Show details |
| Order No.: 59US3HGTIN (EAN): 4058352364000 | Show details |
| Order No.: 59US6HGTIN (EAN): 4058352364017 | Show details |
